SAAS Water Temp Gauge 40°-120° 52mm Black Muscle Series 3 | SG32220

Special Order

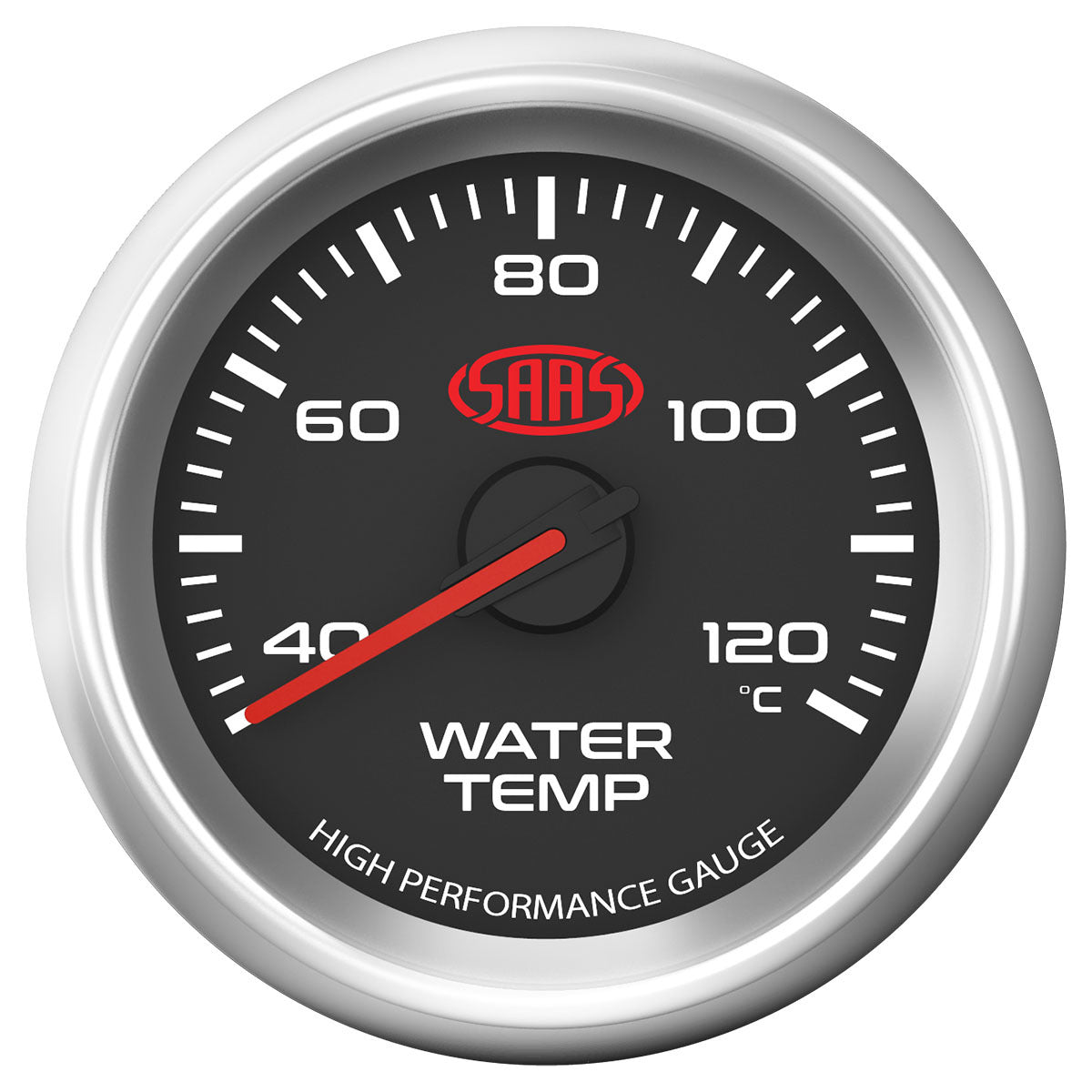

SG32220 Water Temp Gauge 40°-120° 52mm Black Muscle Series 3
This water temperature gauge is ideal for checking on your engine cooling system and helps keep on eye out for any potential issues.

The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

FEATURES
Gauge Diameter: 52mm/2"
Gauge Operating Range: 40°-120°
Polished Bezel Surround
Rear set colour change button
10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White
Includes all mounting hardware, bracket and sender
5 levels day / night dimming function
User pre-set warning functions
Advanced stepper motor technology
SPARES/SPECS
SERIES Muscle Series III
BEZEL OD 57mm / 2 1/4"
BODY OD 52mm / 2"
RANGE 40°-120°
LIGHTING LED Multi-select 10 Colour
TYPE Electronic
BRACKET MOUNTING SG61005
GAUGE LINK CONNECTOR SG9101
PROGRAMMING BUTTON SG4106
SENDER WATER TEMP SG51001
SENDER THREAD 1/8" NPT
SENDER ADAPTORS List Adaptors
WIRING LOOM SG5100
DOWNLOAD Fitting Instructions
