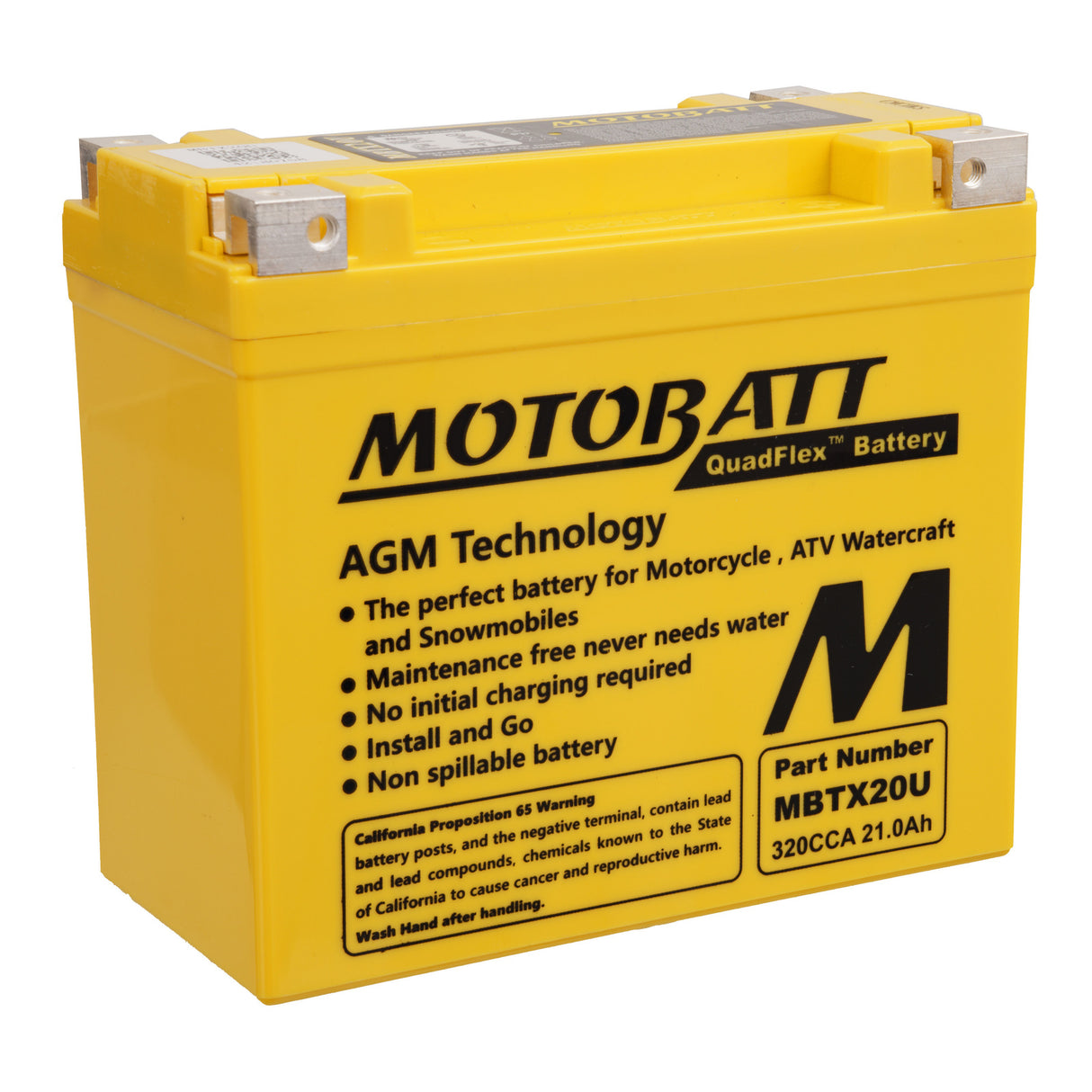

Motobatt Battery Quadflex AGM - MBTX20U

Motobatt batteries are built using Absorbed Glass Mat (AGM) technology, a design that has revolutionised the motorcycle, ATV, lawnmower, and small engine industries. Featuring QuadFlex technology, each battery incorporates a unique four-terminal design with two positive and two negative terminals, plus height spacers to allow for an almost universal fit. All Motobatt AGM batteries are maintenance-free, non- hazardous, non-spillable, and come fully charged and ready to install straight out of the box.

Each battery plate is wrapped in a fibrous glass mat that absorbs all liquid electrolytes and cushions the plates to prevent vibration damage. This design minimises the risk of short circuits or broken plate welds, common causes of battery failure. The thicker, heavier plates used in Motobatt’s construction further enhance durability and performance.

Compared to standard wet-flooded batteries, AGM batteries have a significantly lower self-discharge rate. As a high amp-hour AGM battery, Motobatt can discharge more deeply and recover repeatedly under vehicle alternator charging or through maintenance charging, something conventional flooded batteries cannot endure without premature failure.

Your Motobatt is a Factory Activated battery, pre-conditioned and fully charged for optimal performance right out of the box. Up to 80% of early Powersports battery failures are due to improper activation of dry battery plates, a problem completely eliminated with Motobatt’s factory activation. You’ll also never need to handle acid, top up fluids, or deal with corrosion from gassing, all of which are common issues with traditional flooded-cell batteries.

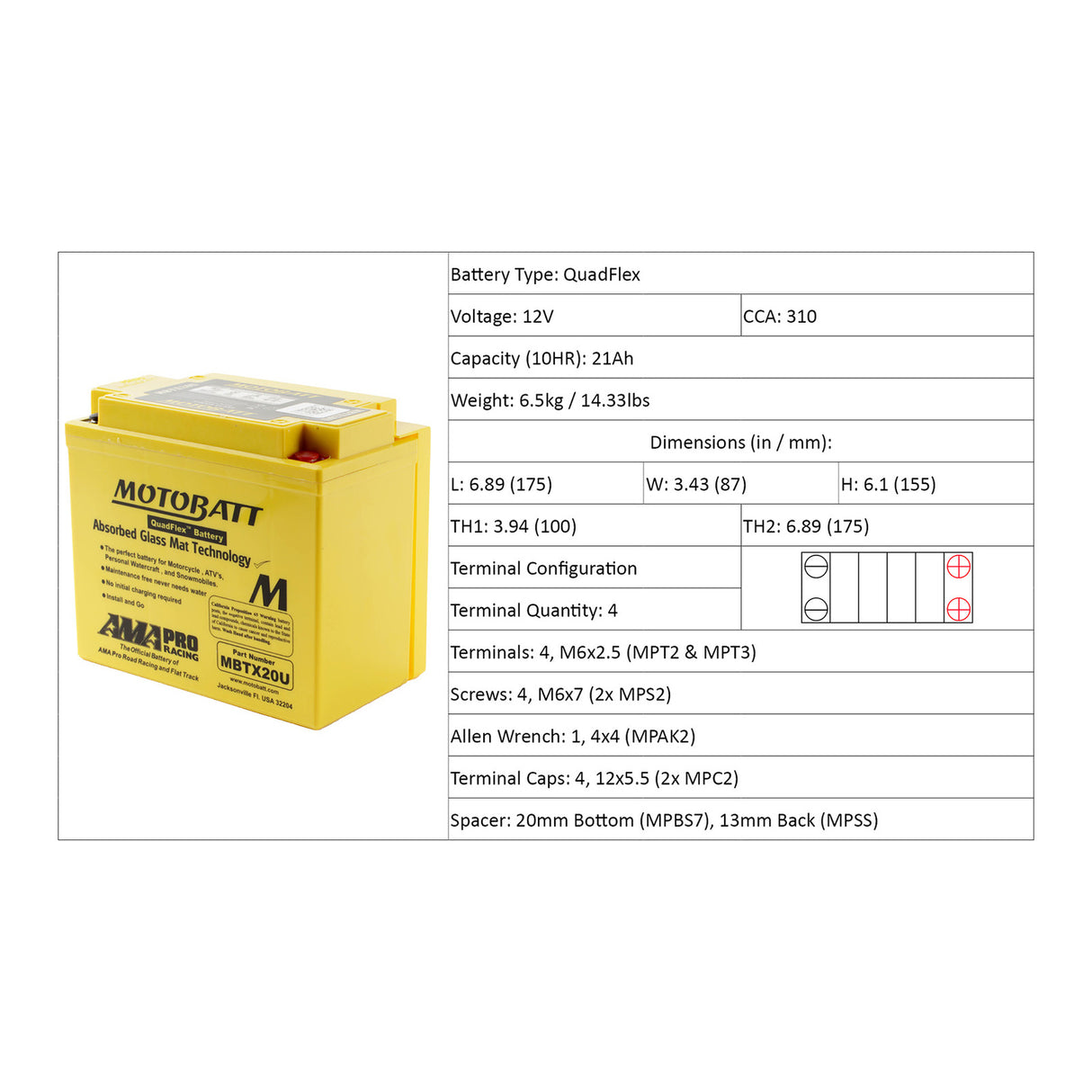

Specifications:

• Voltage: 12V
• C(10) Ah: 21
• C(20) Ah: 22.3
• CCA (Cold Cranking Amps): 320A
• MCA (Marine Cranking Amps): 407A
• PHCA (Pulse Hot Cranking Amps): 624A
• Weight: 6.5kg (14.33lbs)
• Dimensions (LxWxH): 175 x 87 x 155mm (6.89 x 3.43 x 6.1)
• Terminal Height 1: 100mm (3.94)
• Terminal Height 2: 175mm (6.89)
• Terminals: 4, M6x2.5 (MPT2 and MPT3)
• Screws: 4, M6x7 (2x MPS2)
• Allen Wrench: 1, 4x4 (MPAK2)
• Terminal Caps: 4, 12x5.5 (2x MPC2)
• Spacer: 20mm Bottom (MPBS7), 13mm Back (MPSS)

Features:

• Patented QuadFlex multi-fit terminals.
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle.
• Fully sealed – can be mounted and transported in any position.
• No initial charging – install and go, charged right out of the box.
• Maintenance free – no messy acid to worry about.
• 20% more cold cranking amps (CCA).
• Easy accessory connection with multiple terminals.

Motobatt batteries are available via courier delivery as they contain no liquid acid!
