NGK

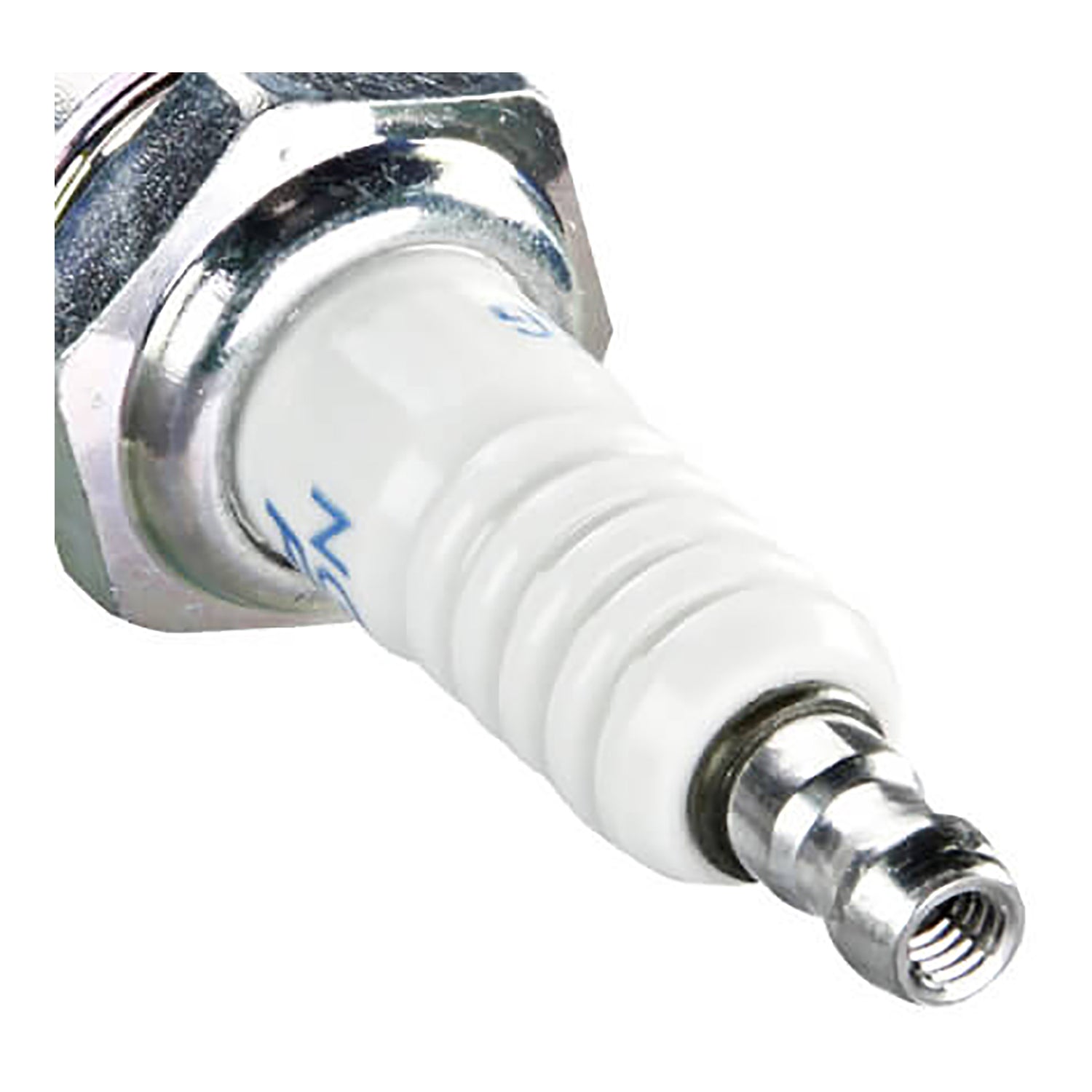

NGK Spark Plug - BR10EG (3830)

Part no.NGKBR10EG
Checking fitment…
$31.49
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
NGK
Part number
NGKBR10EG
Part type
Spark Plugs
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

Spark plugs used for racing must withstand especially hard stresses. The speeds during a race are frequently in excess of 10,000 rpm. Temperature, pressure, and vibrations in the combustion chamber are so immense that conventional ground electrodes could break or melt. For this reason, racing spark plugs often come with specially designed ground electrodes, the most extreme form with a ring-shaped ground electrode. The spark jumps from the middle electrode to the ring-shaped ground electrode.

Shell

  • Thread Size: 14mm
  • Thread Pitch: 1.25mm
  • Seat Type: Gasket
  • Resistor Value: 5K Ohm
  • Reach: 19mm (3/4")
  • Hex Size: 21mm (13/16")
  • Terminal Type: Removable Nut
  • Overall Height: ISO
  • Gap: 0.6mm (0.024")

Centre Electrode

  • Material: Nickel
  • Type: Fine Wire
  • Size: 1.3mm
  • Projection: Non-Projected

Ground Electrode

  • Material: Nickel
  • Type: Standard
  • Quantity: 1

Specifications

  • Heat Range: 10
  • Resistor: Yes

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
