Stator for Honda CRF50F XR50R / Z50R / XR70R '88-'24
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS010101530
- Part type
- Stators
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS010101530 |
| Part type | Stators |
| Barcode | RMS010-101530 |
| Warranty | Full manufacturer warranty |

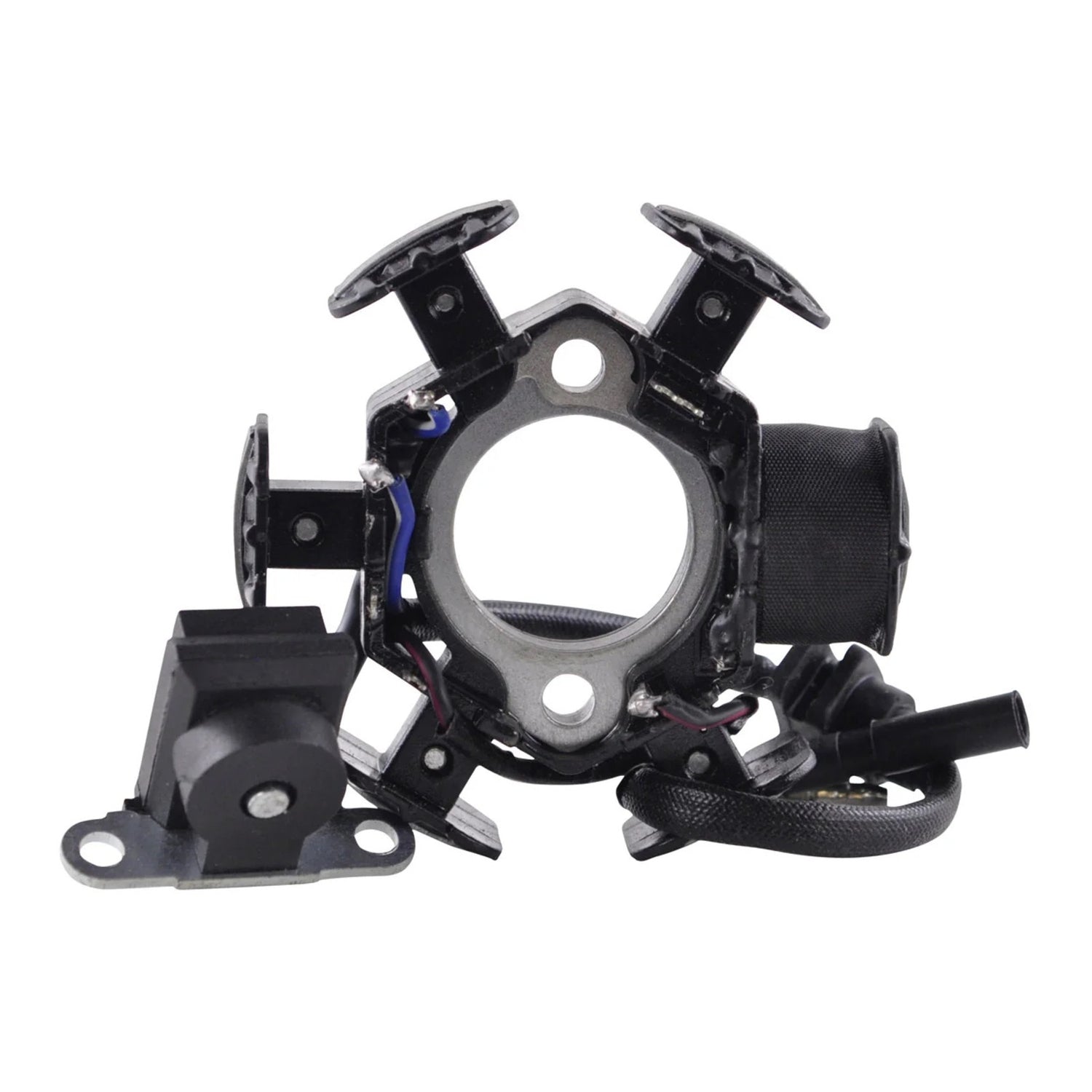

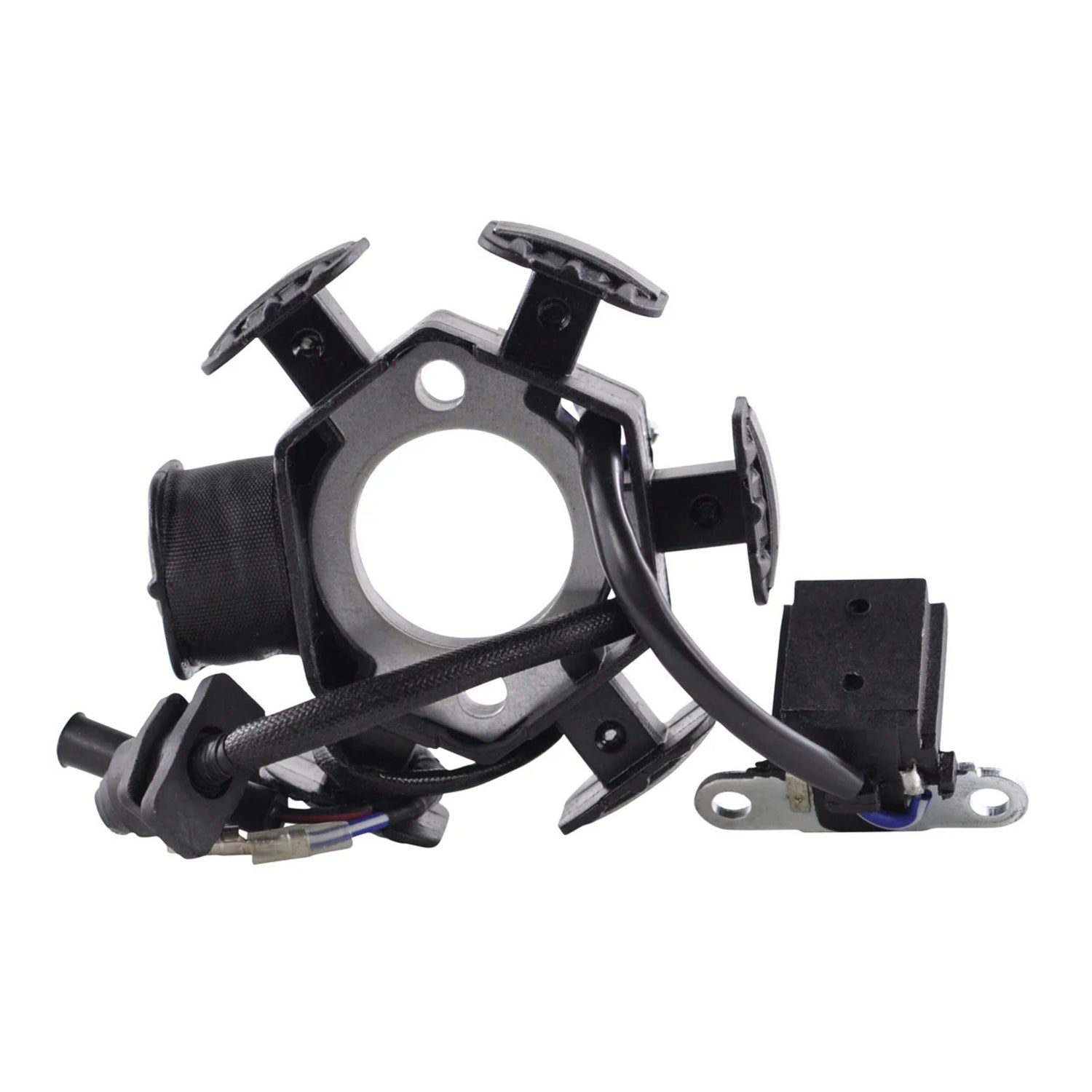

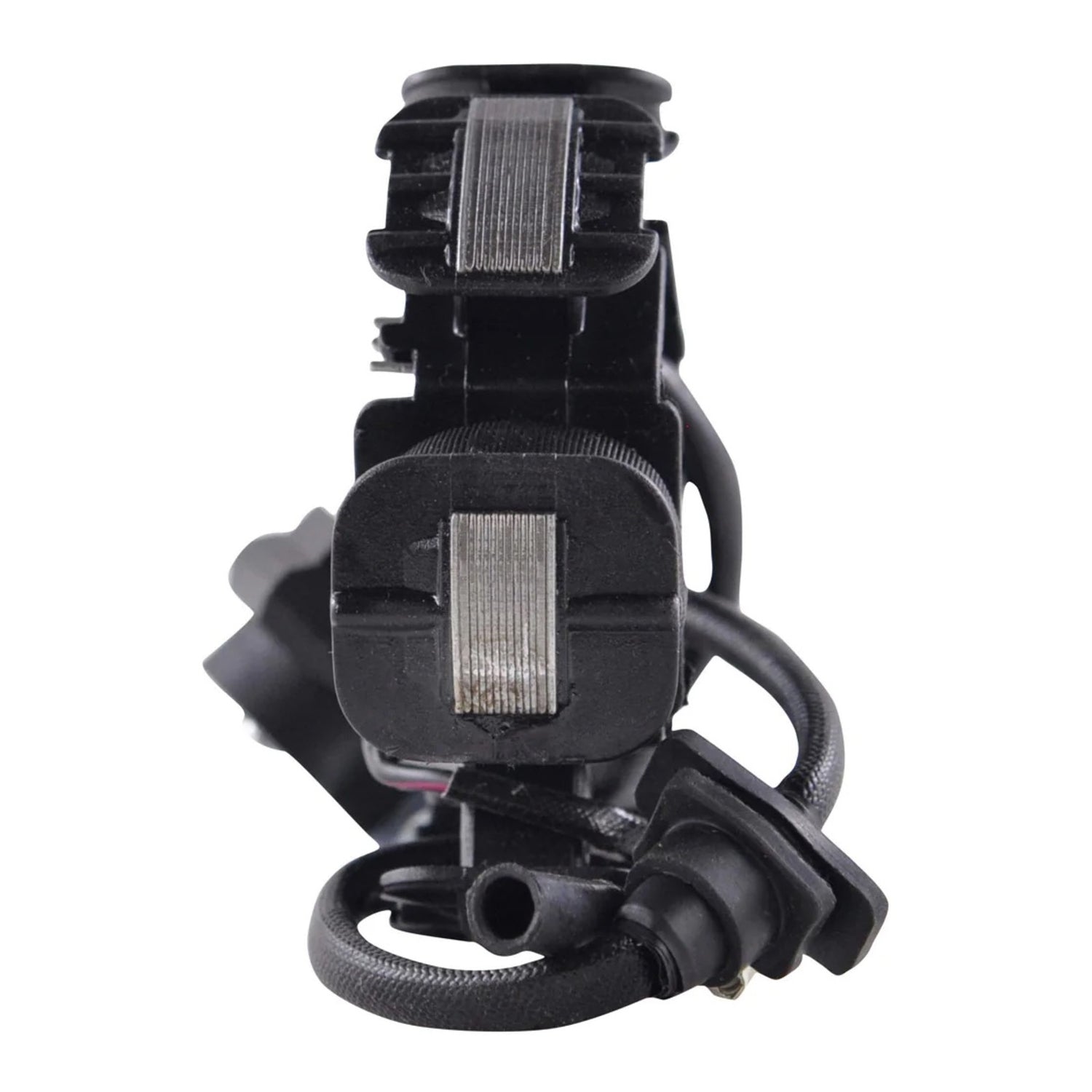

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

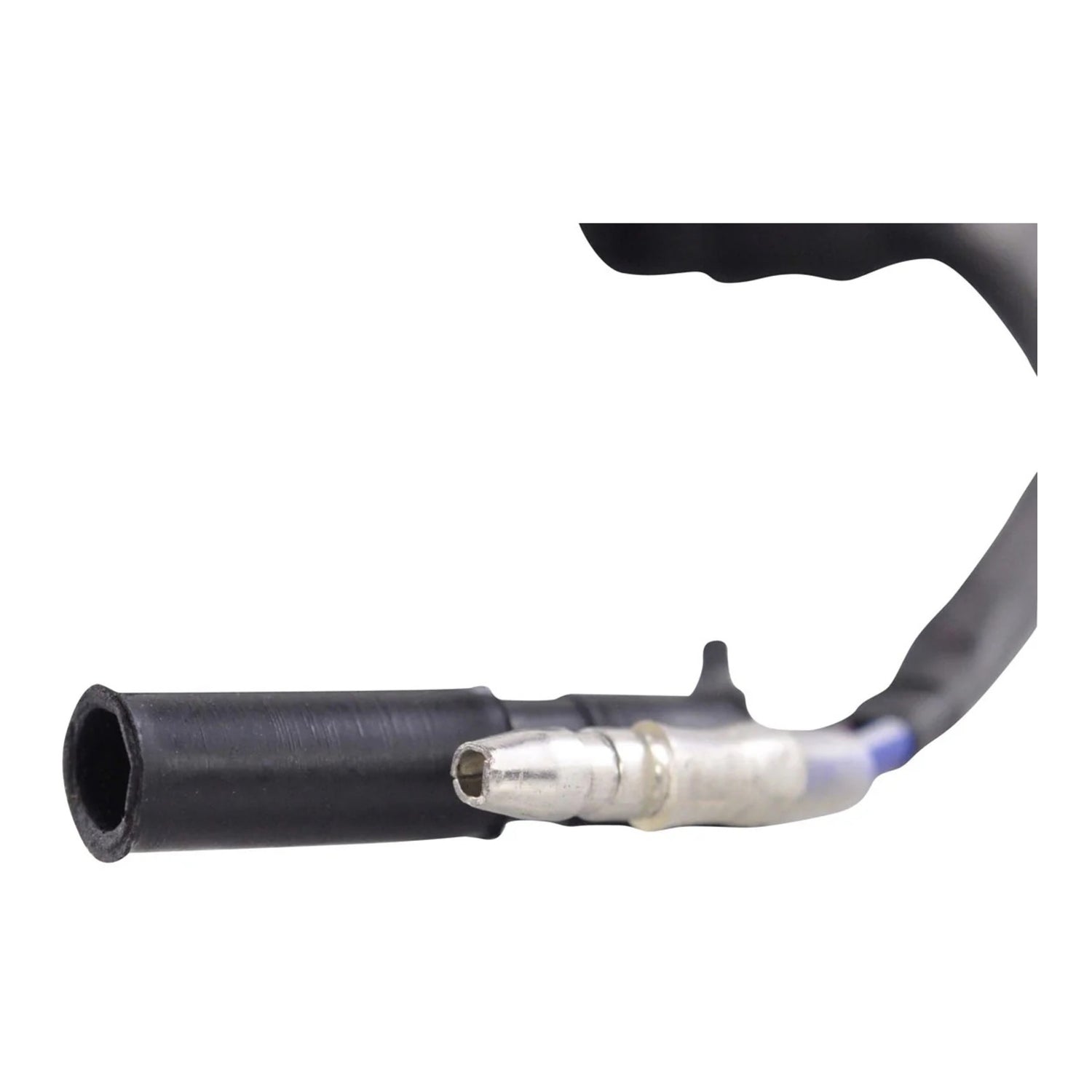

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter : 29 mm
- Exterior diameter : 83 mm
- Thickness : 9 mm
- Length of wires stator to grommet : 40 mm
- Length of wires grommet to plug : 130 mm
- Length of pickup coil's wire to grommet : 60 mm
Other Specifications:
- Number of wires : 2
- Number of plugs : 2
- Number of pins : 2
- Wire to wire resistance :
- Pickup : Blue/Yellow to Bracket = 120 ohms ±20%
- Source : Black/Red to Ground = 715 ohms ±20%
