STATOR KTM SX XC XC-W 150 200 250 300 07-17 (RMS010-101534)
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS010101534
- Part type
- Stators
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS010101534 |
| Part type | Stators |
| Barcode | RMS010-101534 |
| Warranty | Full manufacturer warranty |

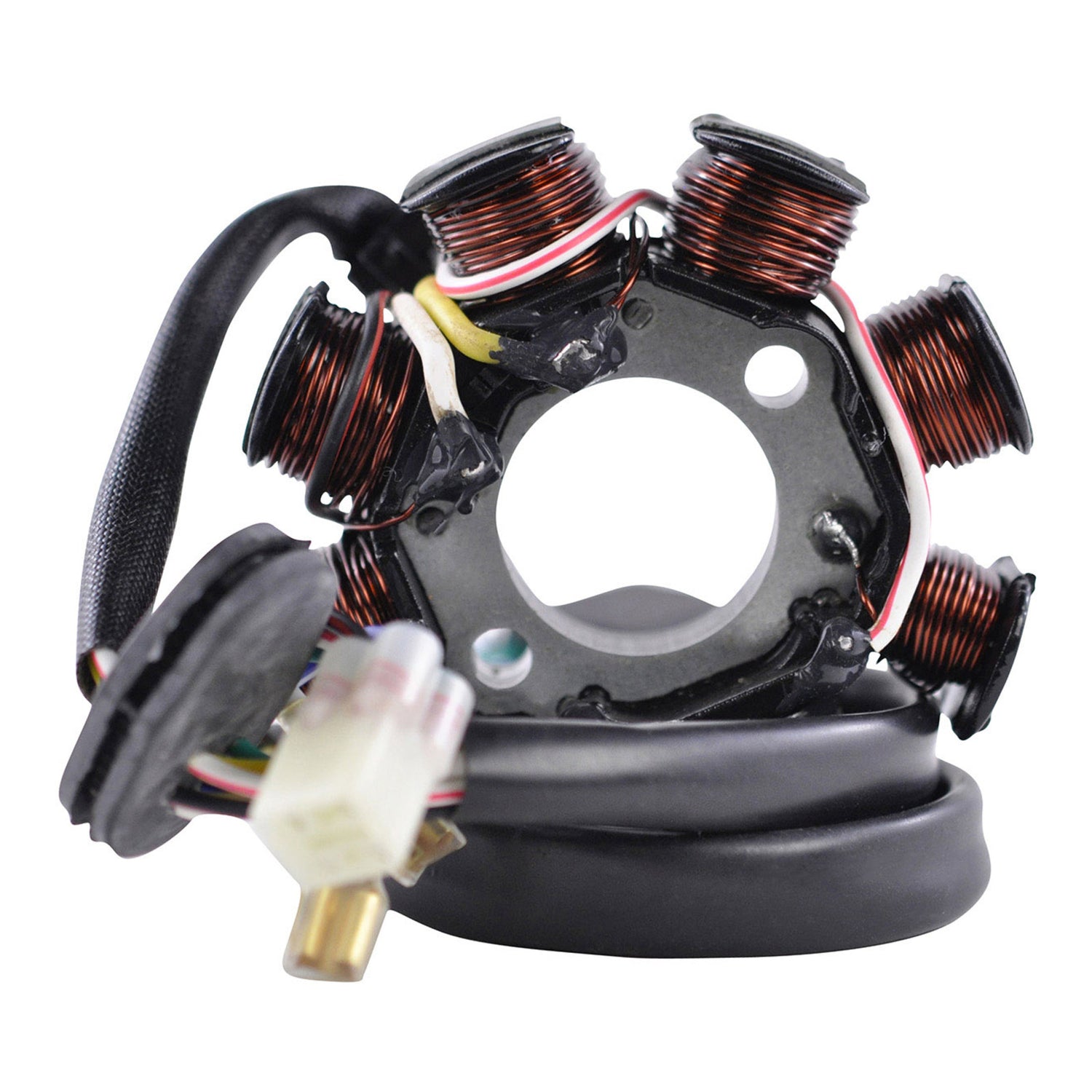

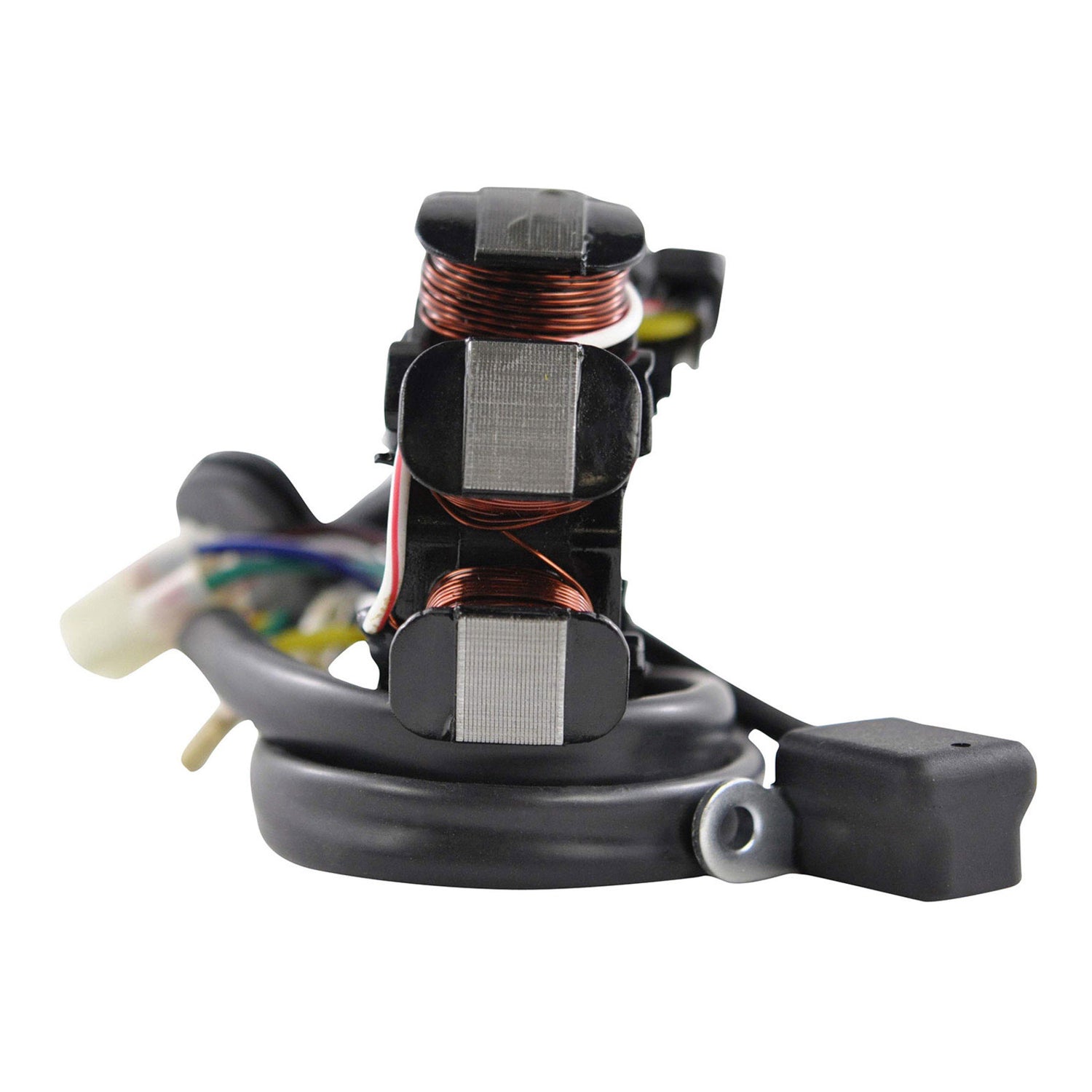

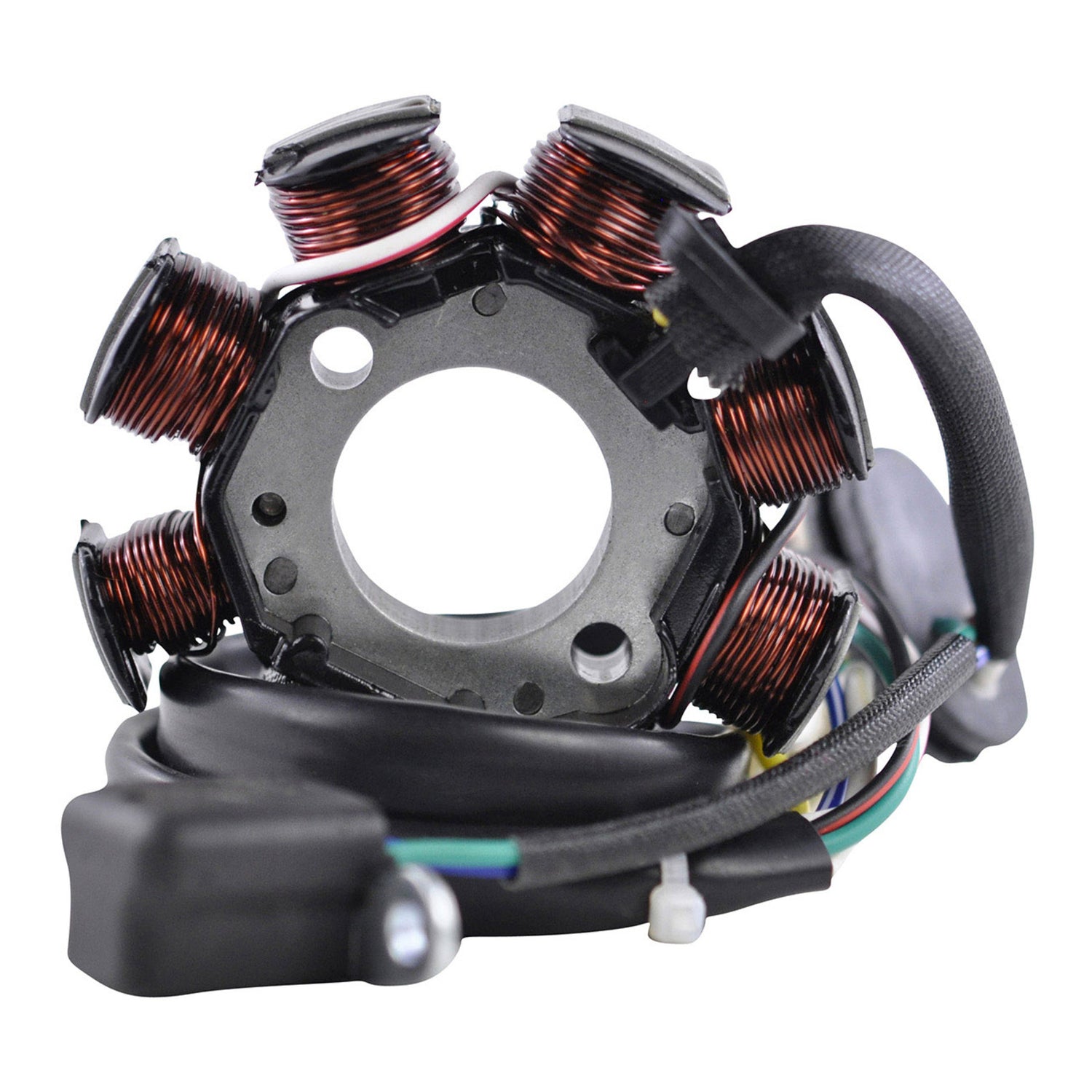

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

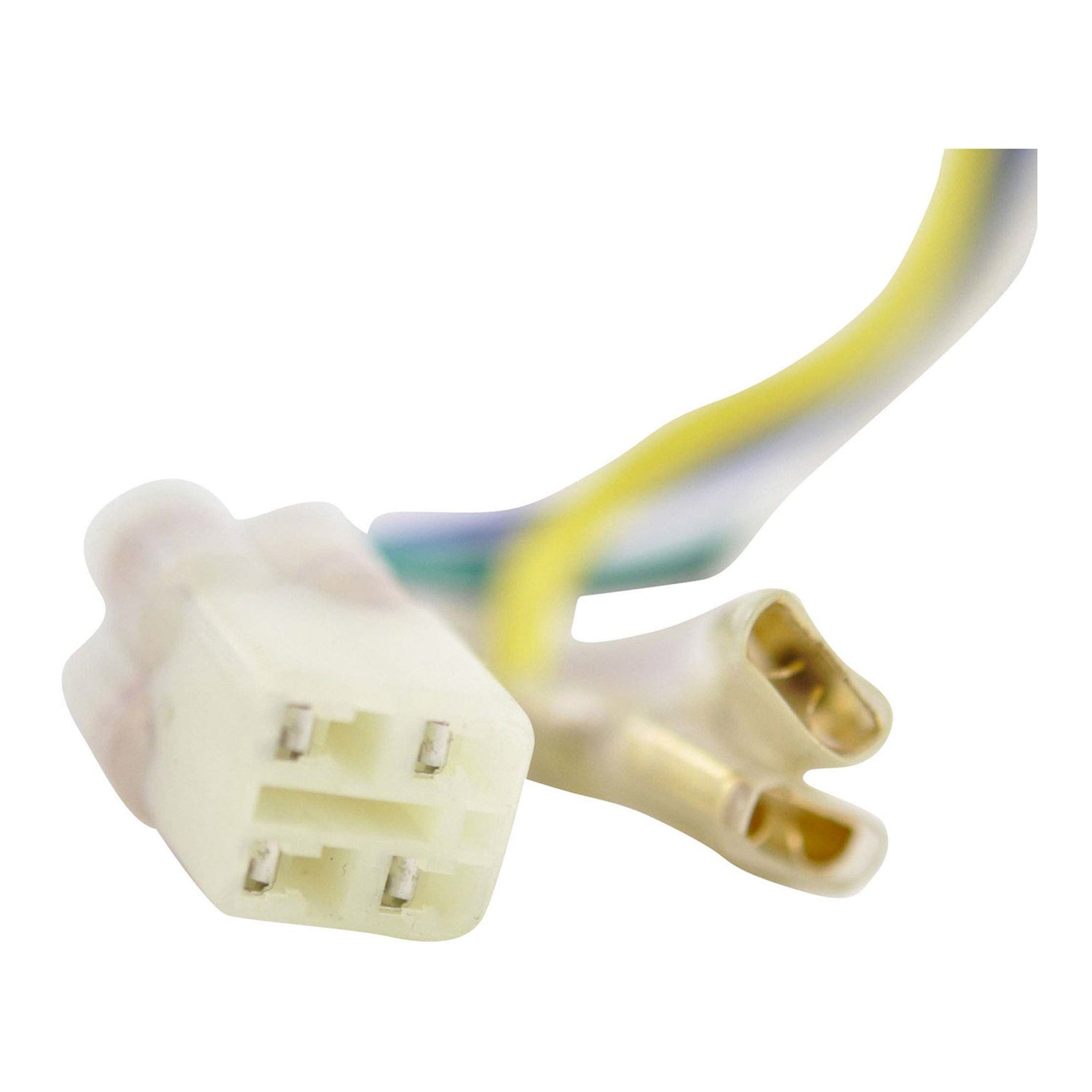

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter : 28 mm
- Exterior diameter : 84 mm
- Thickness : 12 mm
- Length of wires stator to grommet : 82 mm
- Length of wires grommet to plug : 400 mm
- Length of pickup coil's wire to grommet : 40 mm
Other Specifications:
- Number of wires : 6
- Number of plugs : 3
- Number of pins : 6
- Wire to wire resistance :
- Alternator : White To Yellow = 0.6 ohms ±20%
- Pickup : = Green To Red = 100 ohms ±20%
- Source : Red/White To Black/Red = 15 ohms ±20%
