RMSTATOR

STATOR KTM ASSTD MODELS 1999-2011 (RMS010-104105)

Part no.RMS010104105
Checking fitment…
$299.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS010104105
Part type
Stators
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

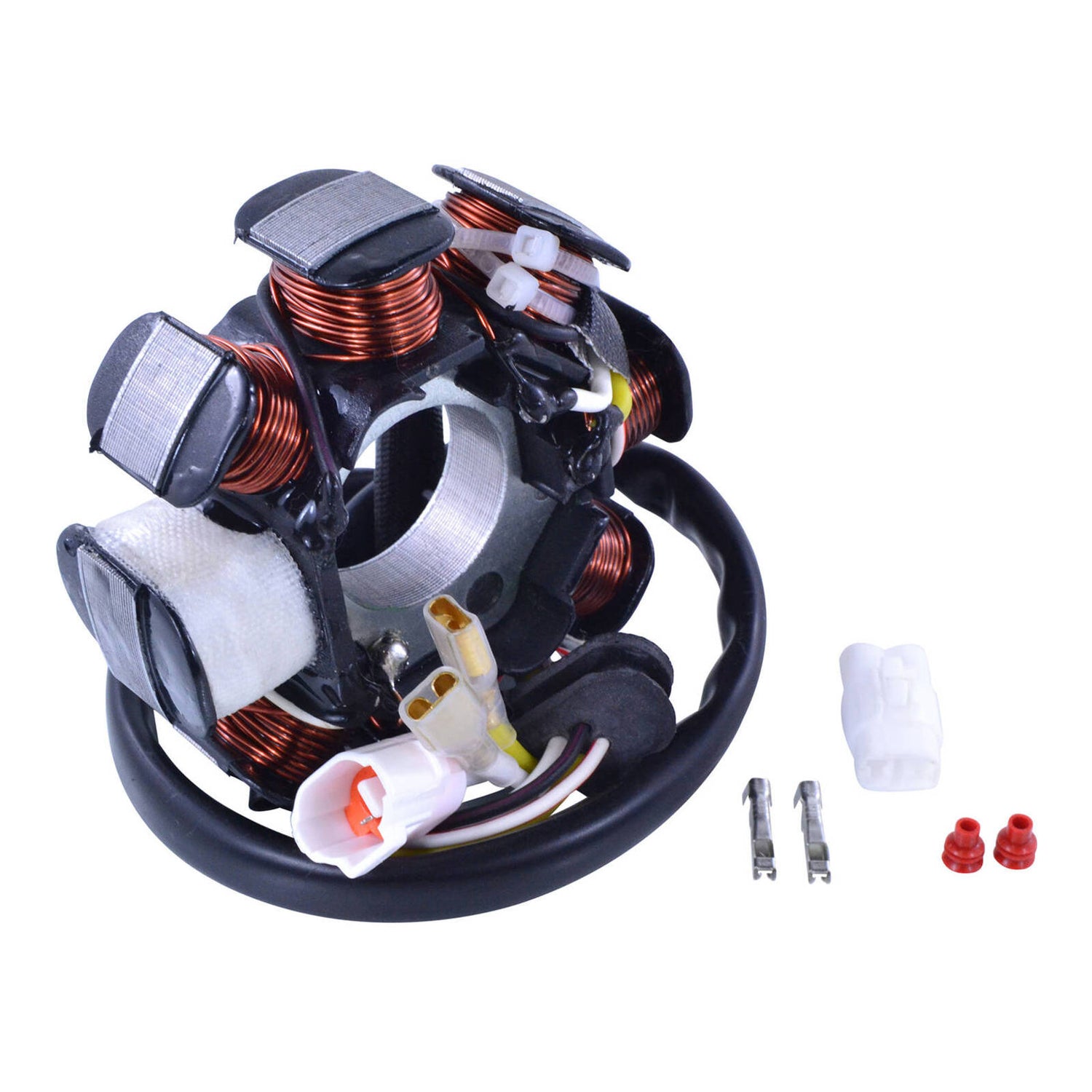

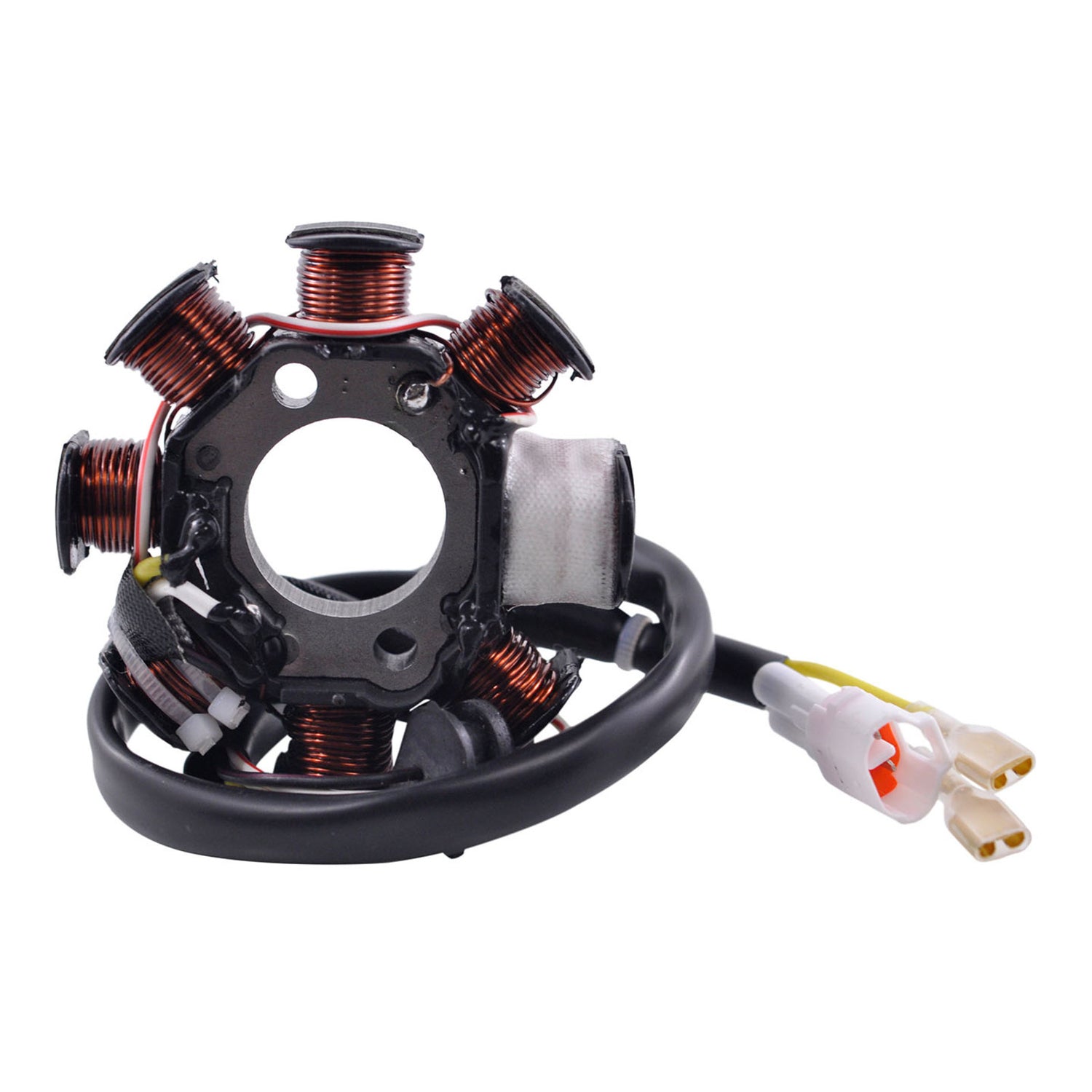

Brand new aftermarket Generator Stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Generator Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 83 mm
  • Thickness: 13 mm
  • Length of wires stator to grommet: 60 mm
  • Length of wires grommet to plug: 490 mm

Other Specifications:

  • Number of wires: 4
  • Number of plugs: 3
  • Number of pins: 4
  • Wire to wire resistance:
  • Alternator: White to Yellow = 0.5 ohms ±20%
  • Source: Black/Red to Red/White = 30 ohms ±20%

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
