GENERATOR STATOR KAW NINJA 400 18-20 (RMS010-107074)
GENERATOR STATOR KAW NINJA 400 18-20 (RMS010-107074) is backordered and will ship as soon as it is back in stock.
Description
Description

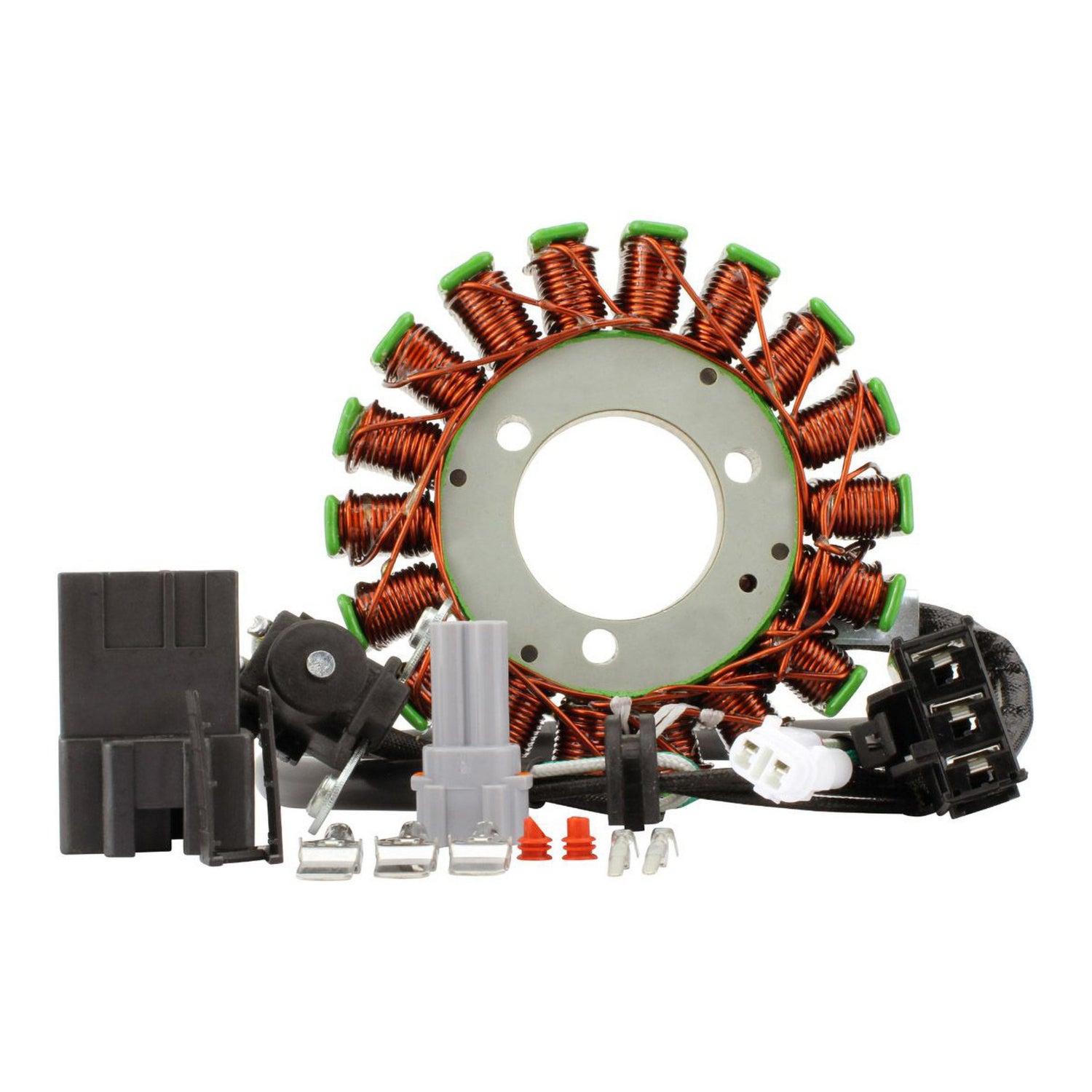

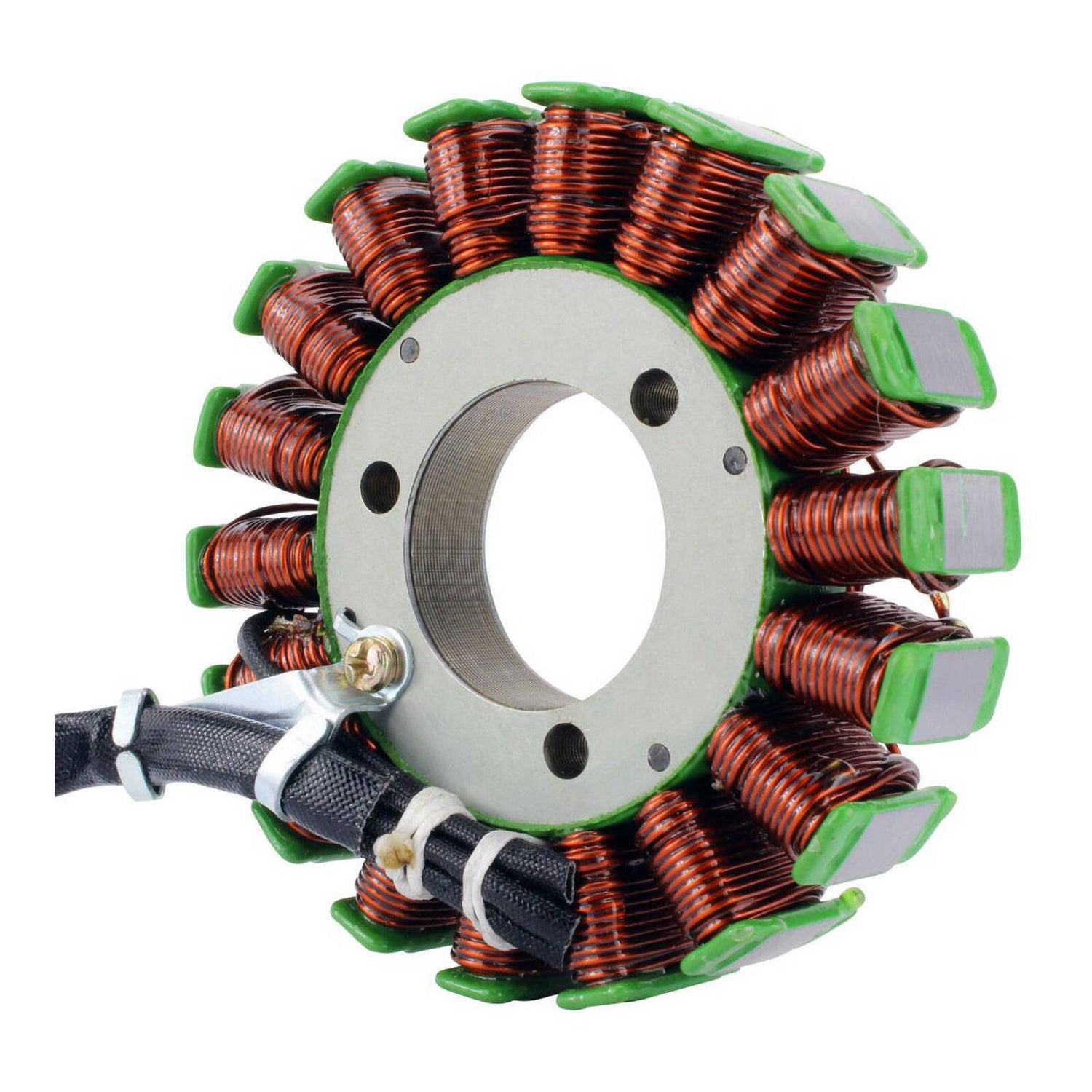

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 107 mm
- Thickness: 16 mm
- Length of wires stator to grommet: 95 mm
- Length of wires grommet to plug: 380 mm
- Length of pickup coil wire to grommet: 75 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of holes: 3
- Number of poles: 18
- Alternator: Black to Black = 0.6 ohms Β±20%
- Pickup: White to Green/White = 232 ohms Β±20%
