GENERATOR STATOR HONDA TRX250X 09-21 (RMS010-107110)
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS010107110
- Part type
- Stators
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS010107110 |
| Part type | Stators |
| Barcode | RMS010-107110 |
| Warranty | Full manufacturer warranty |

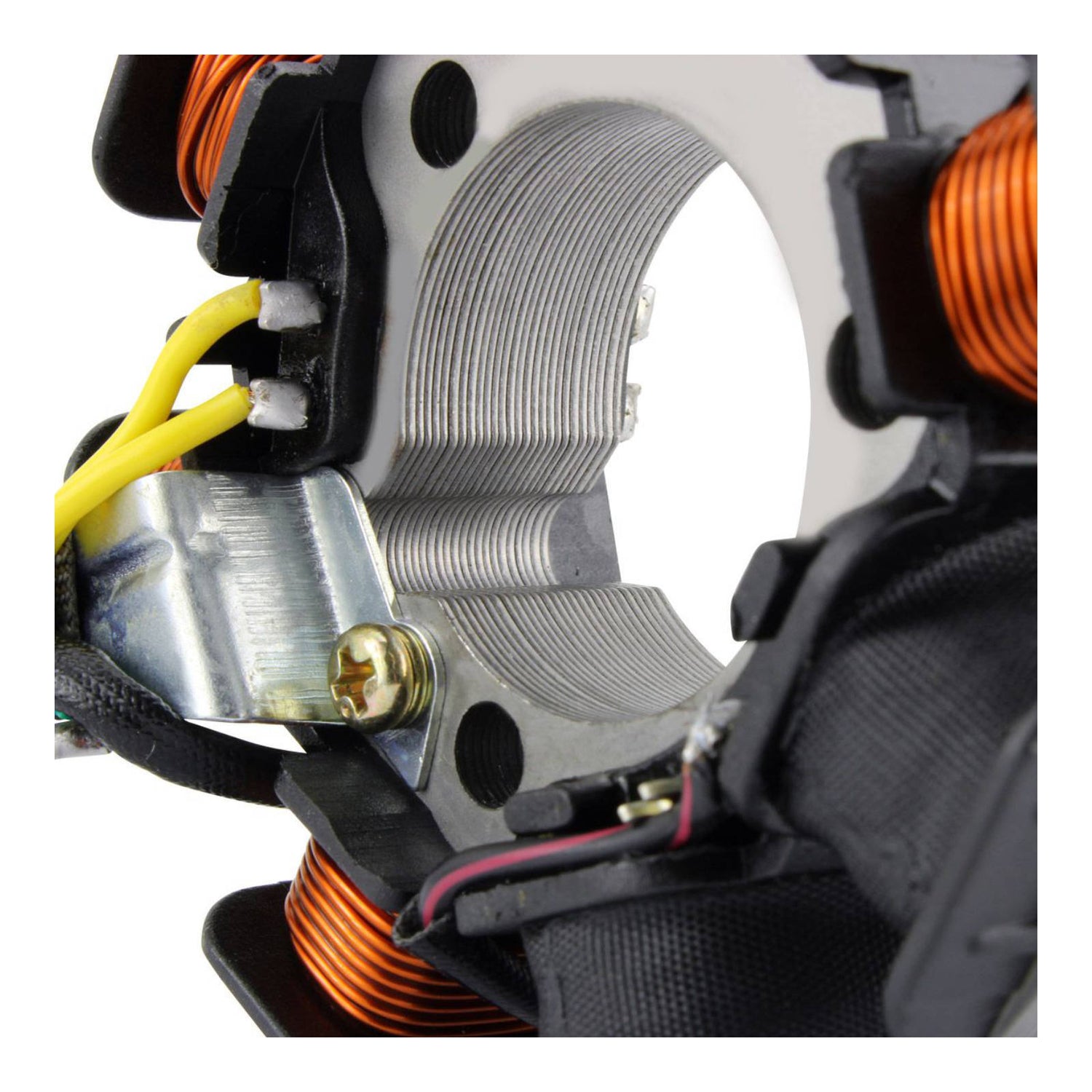

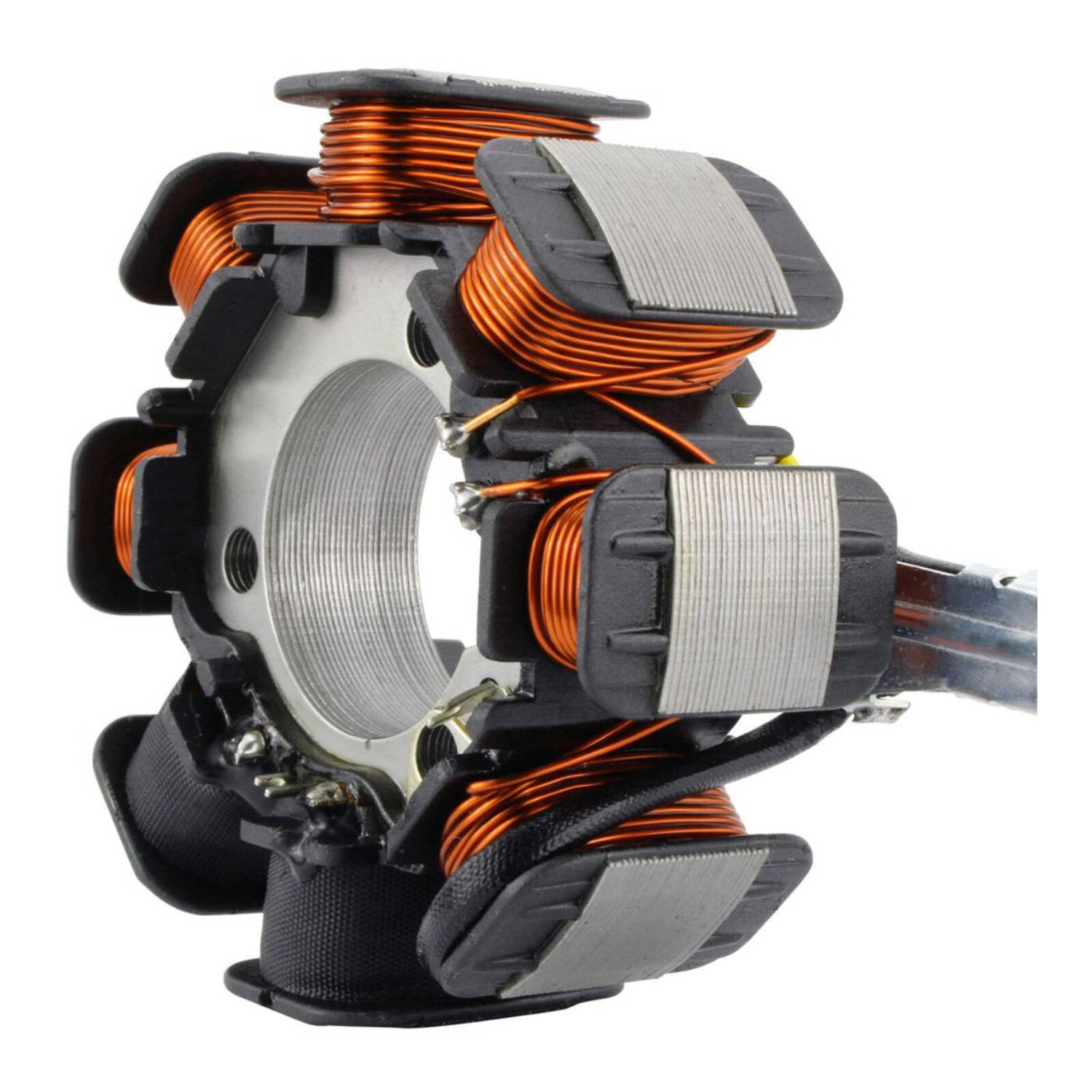

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

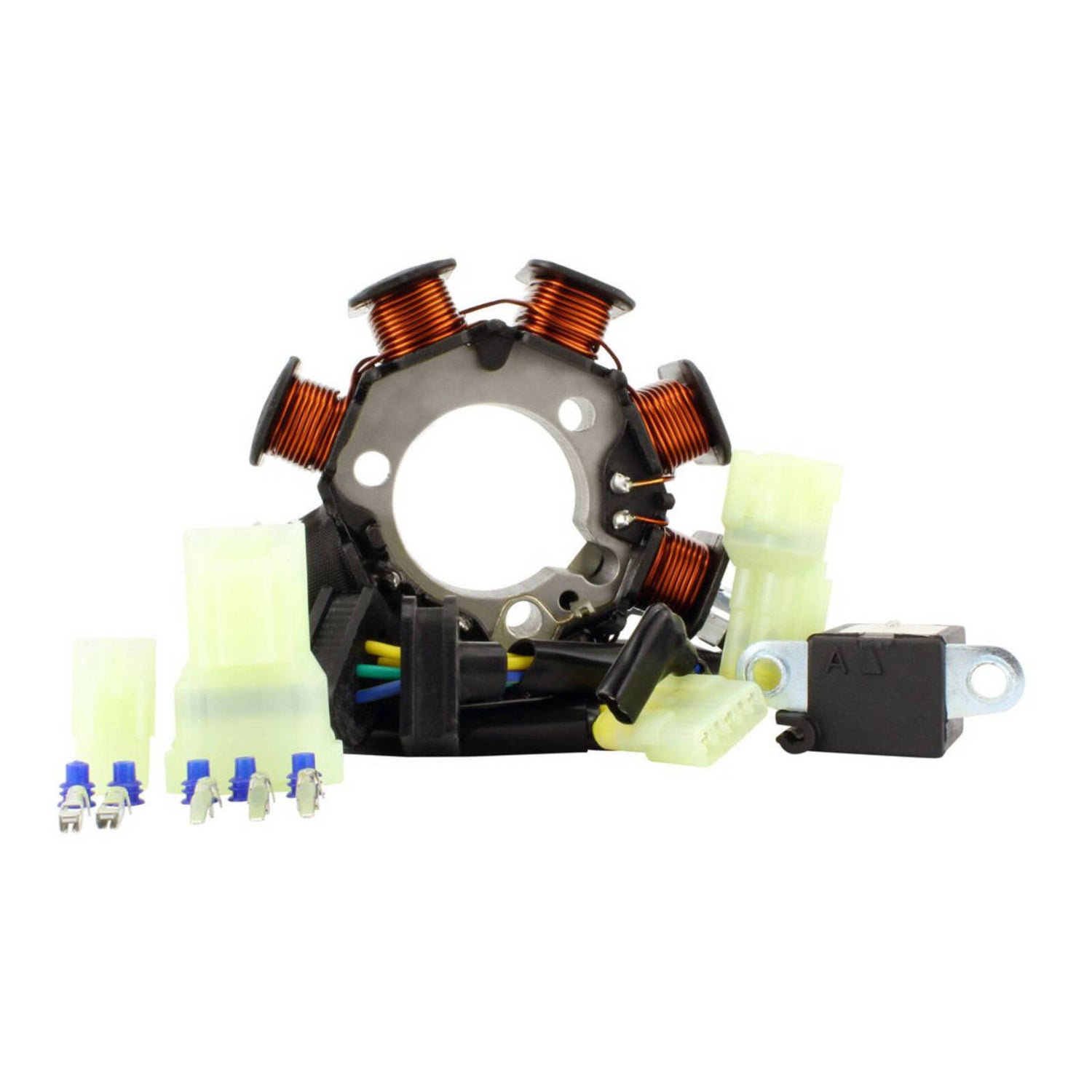

- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 35 mm
- Exterior diameter: 88 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 90 mm
- Length of wires grommet to plug: 140 mm
- Length of pickup coil wire to grommet #1: 330 mm
- Length of pickup coil wire to grommet #2: 370 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 8
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.7 ohms ±20%
- Pickup: Blue/Yellow to Ground = 336 ohms ±20%
- Source: Black/Red to Ground = 185 ohms ±20%
