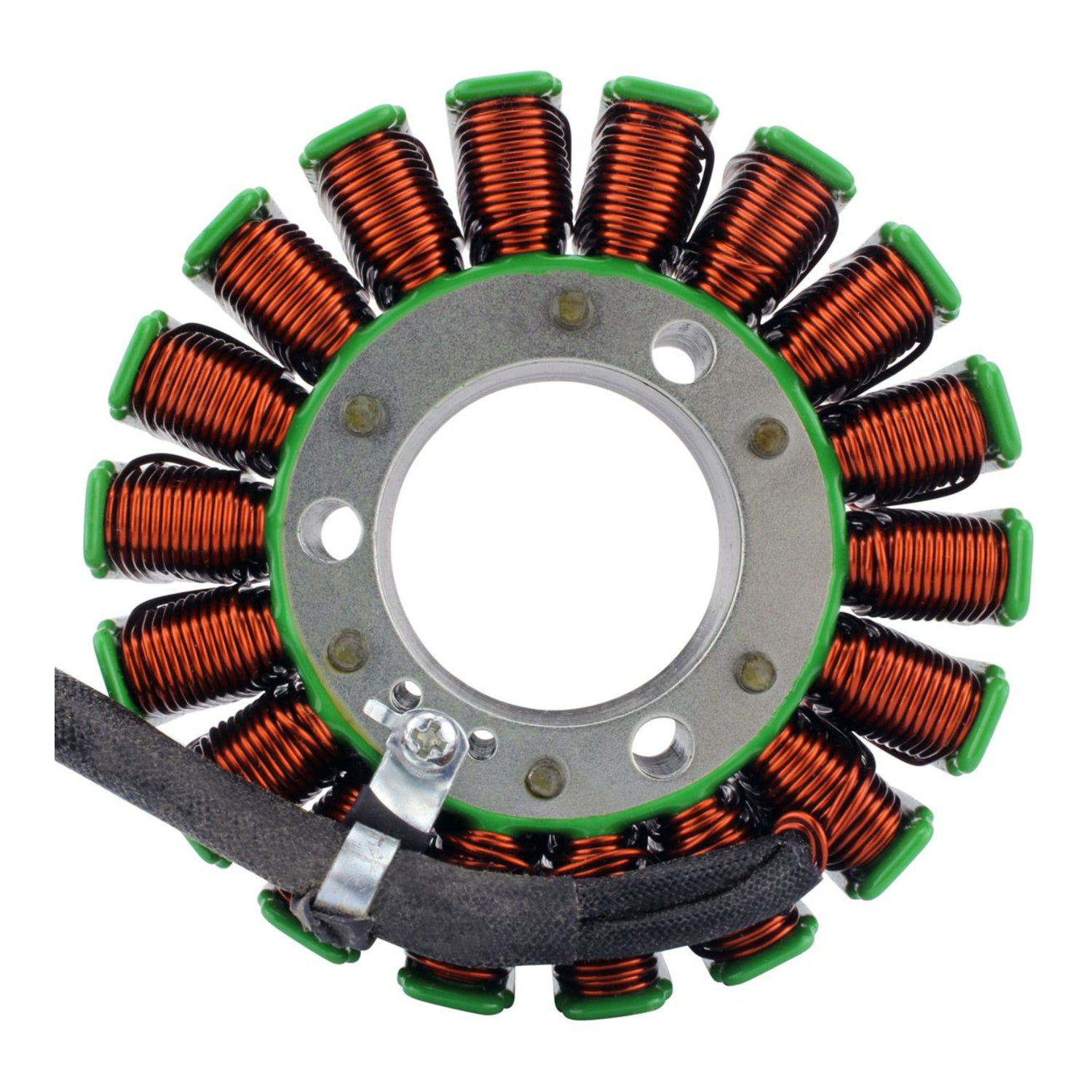

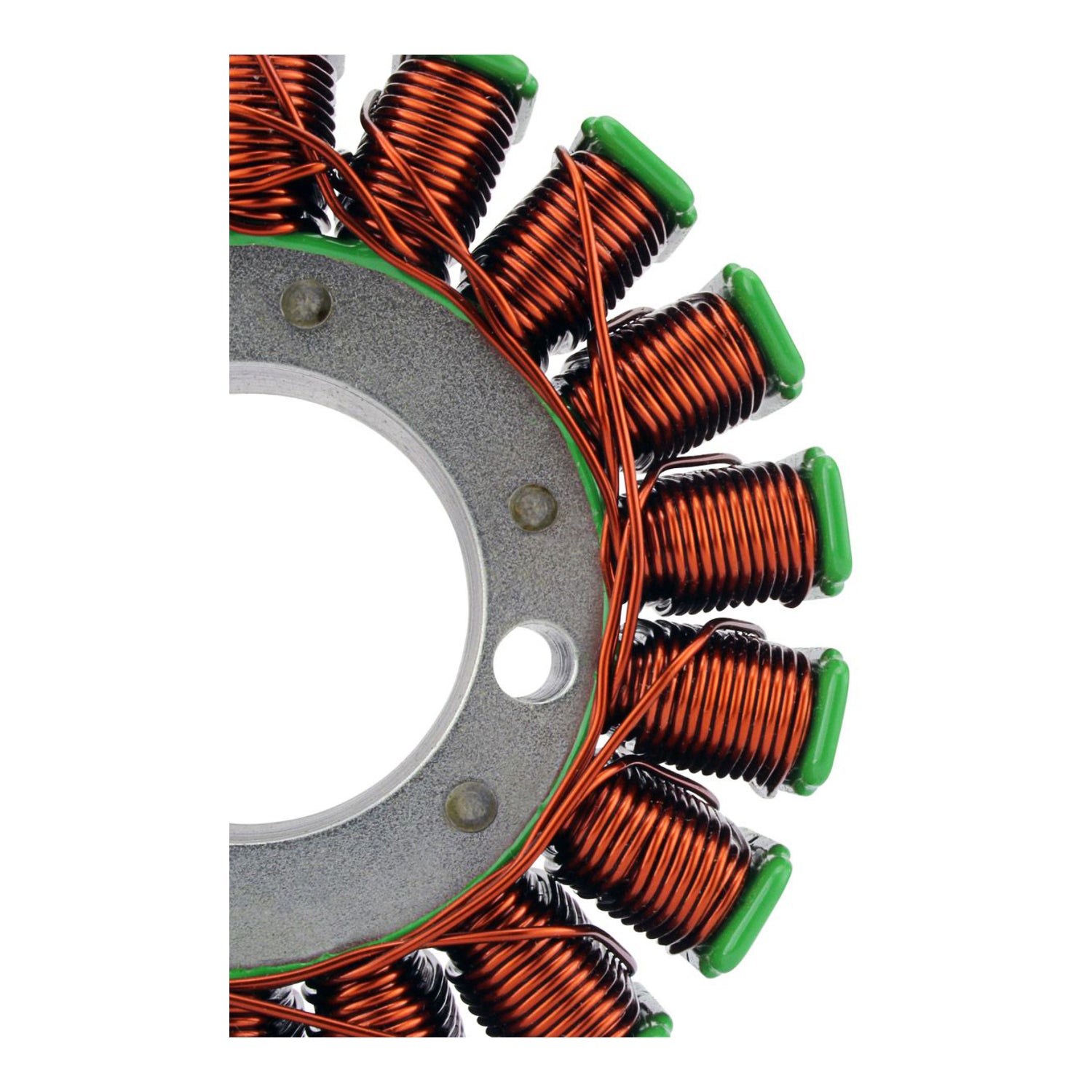

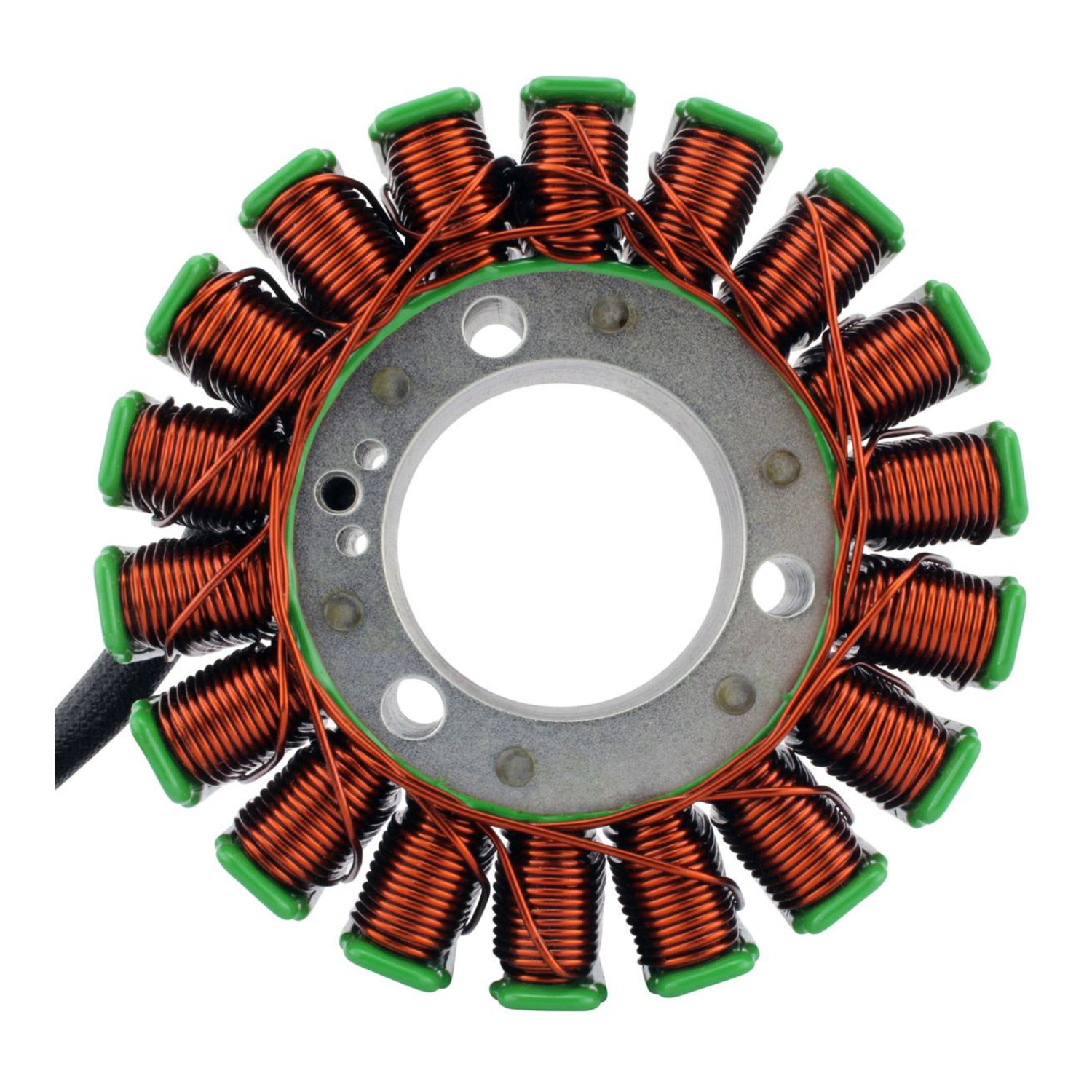

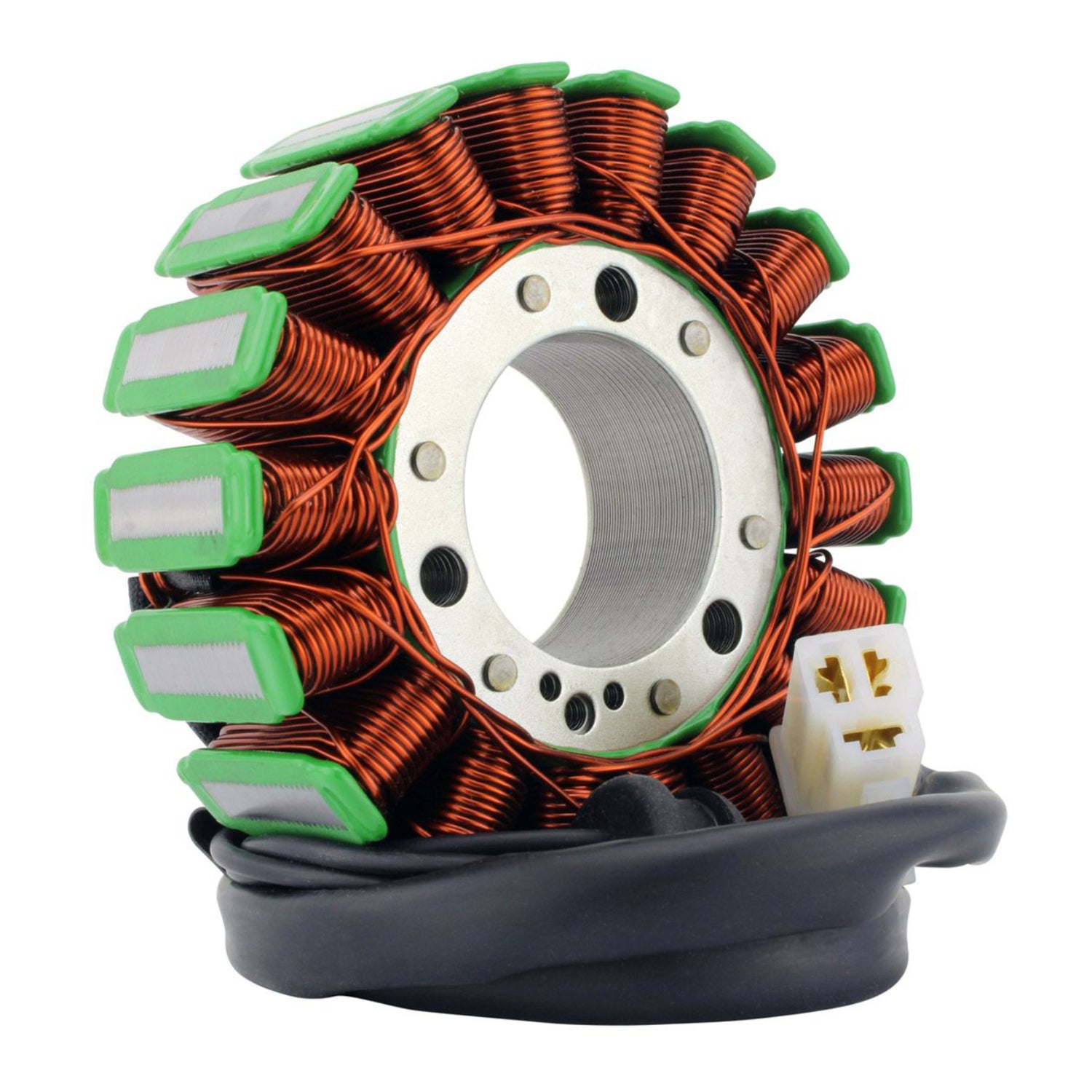

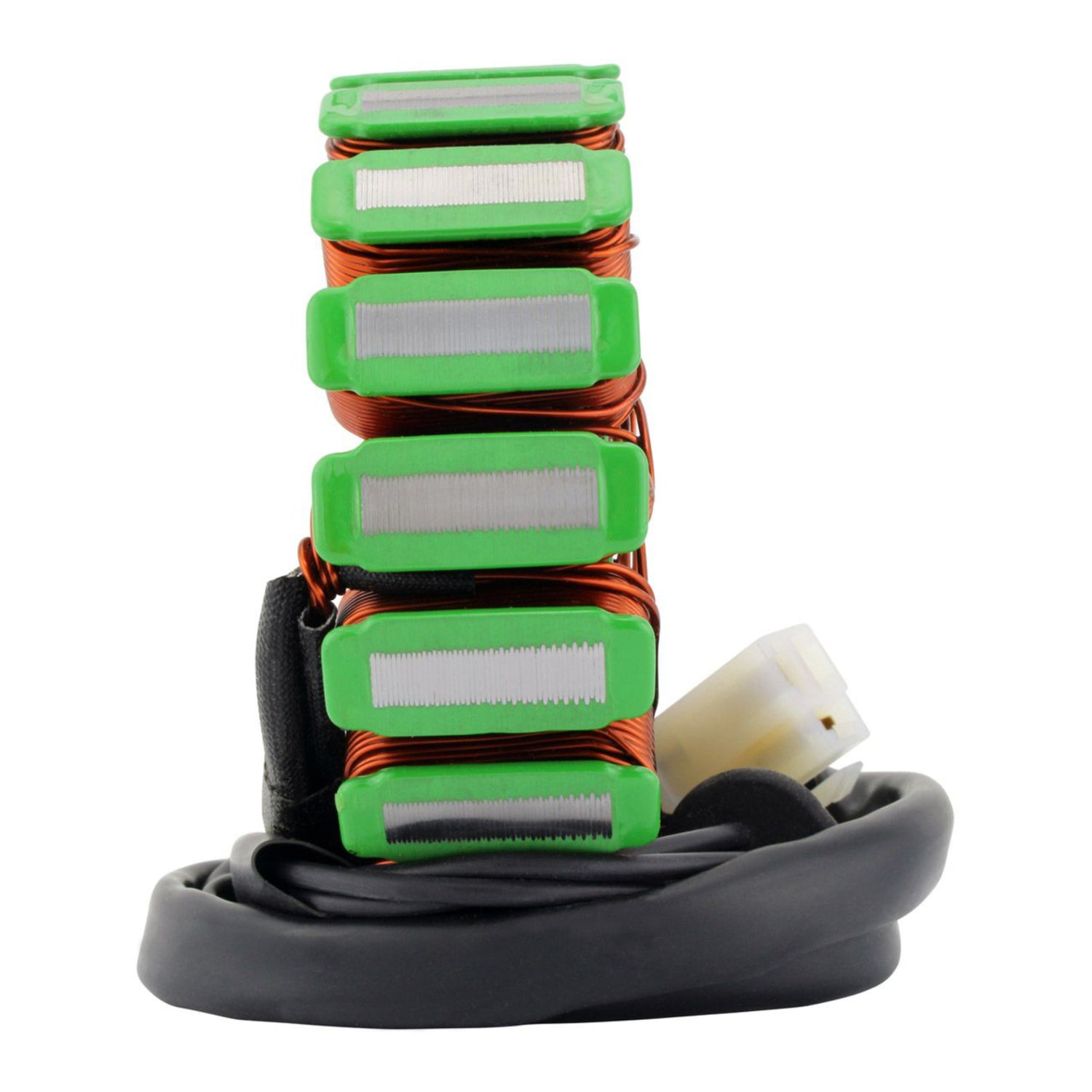

GENERATOR STATOR SUZ GSXR 600 1997-2000/GSXR 750 1996-1999
- Brand
- RMSTATOR
- Part number
- RMS010107518
- Part type
- Stators
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS010107518 |
| Part type | Stators |
| Barcode | RMS010-107518 |
| Warranty | Full manufacturer warranty |

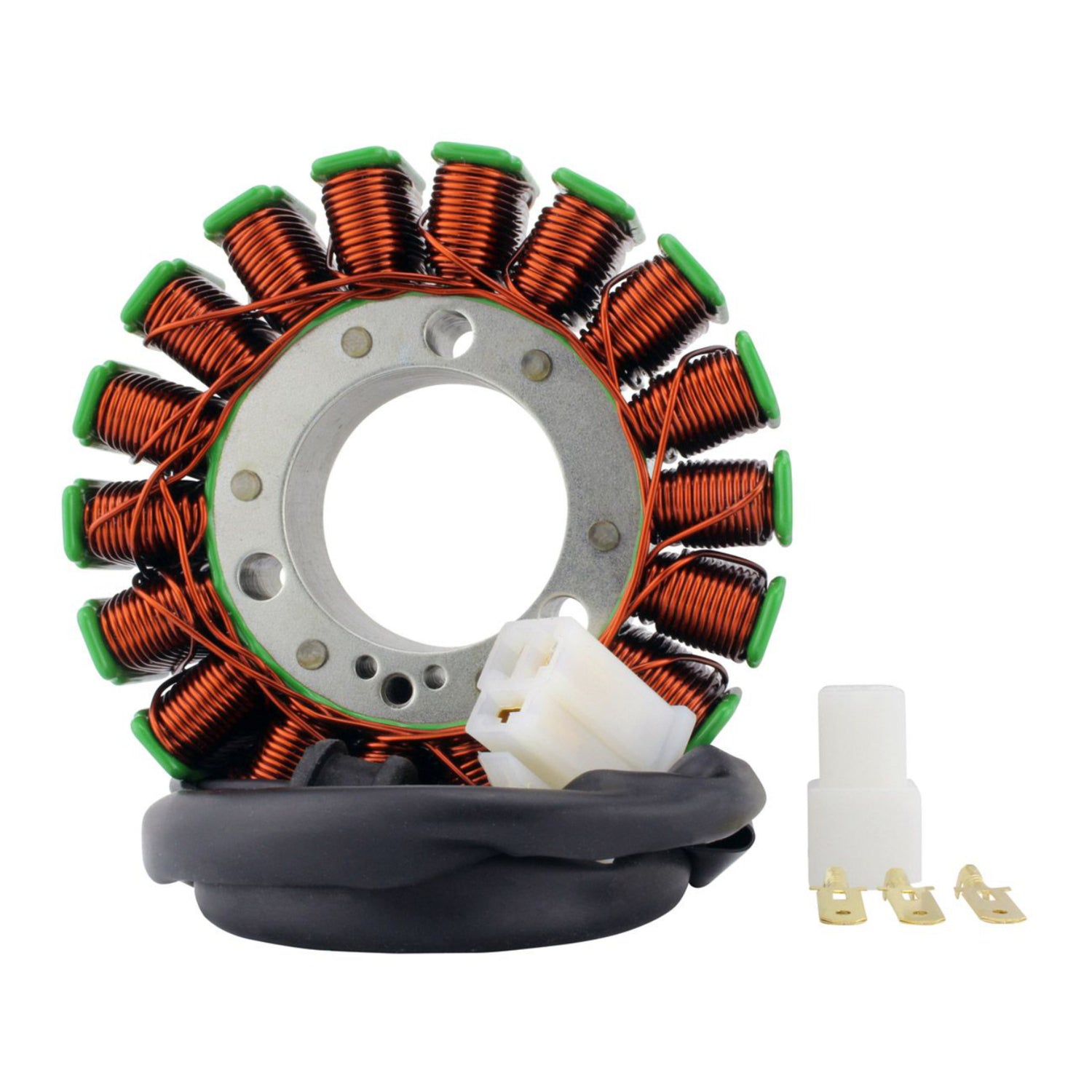

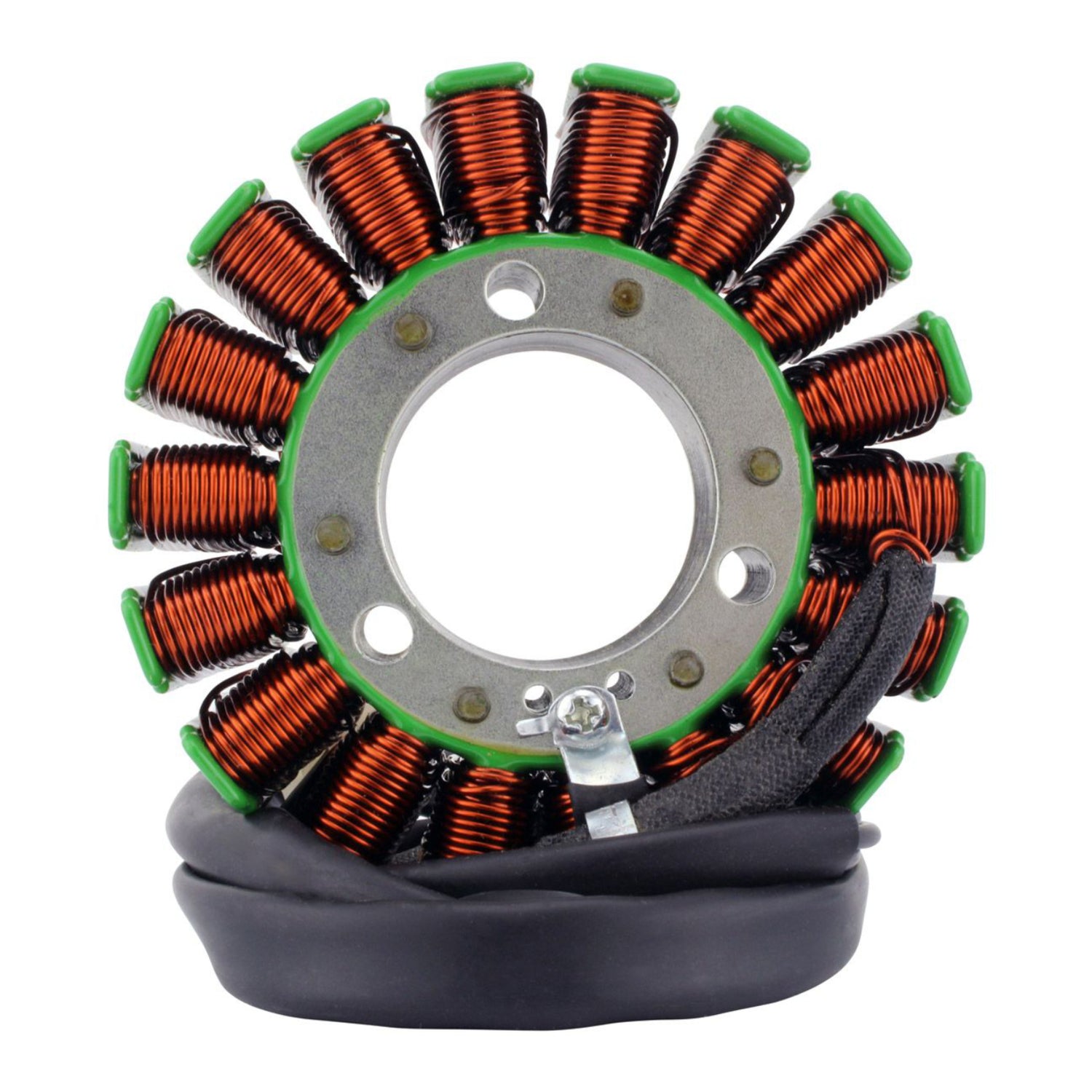

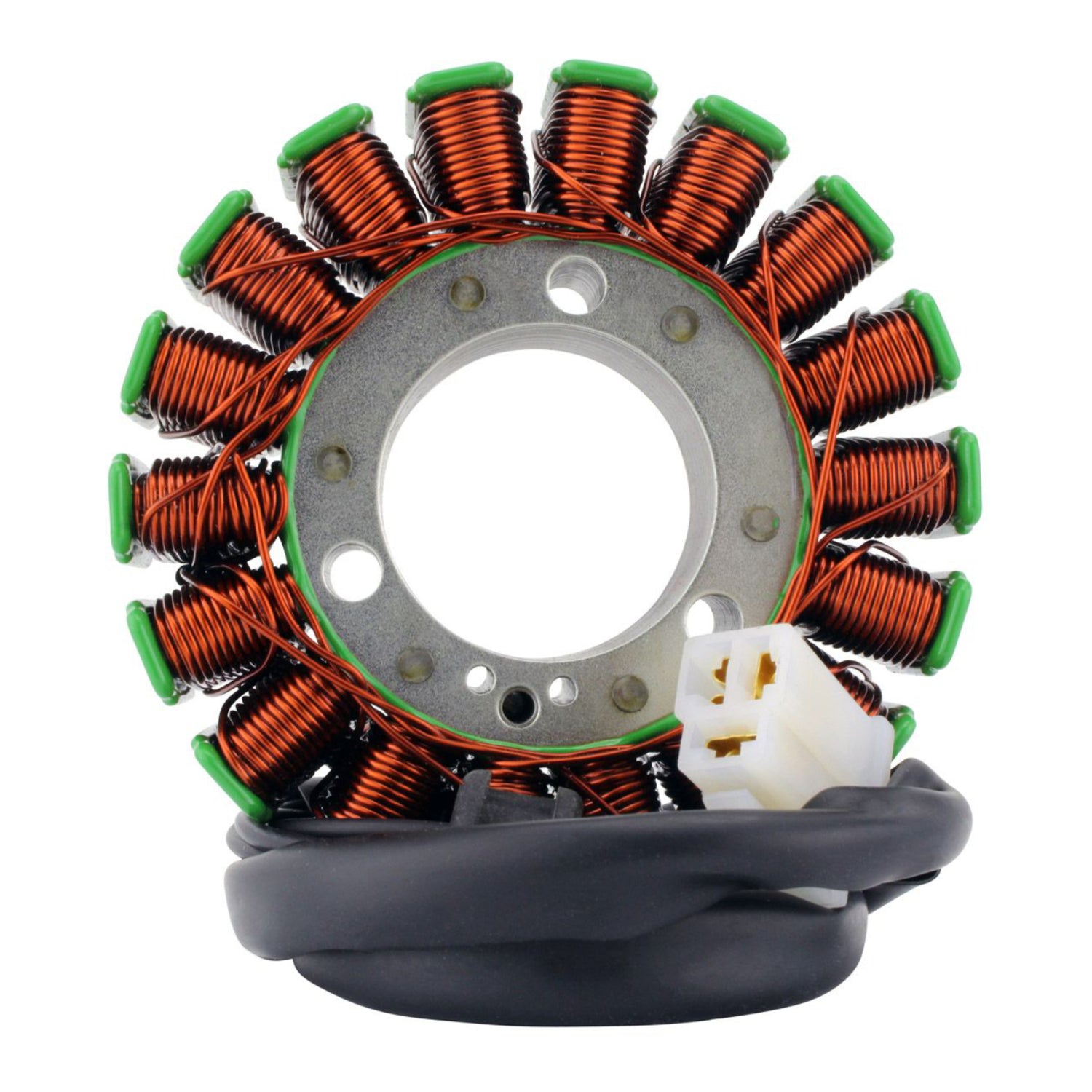

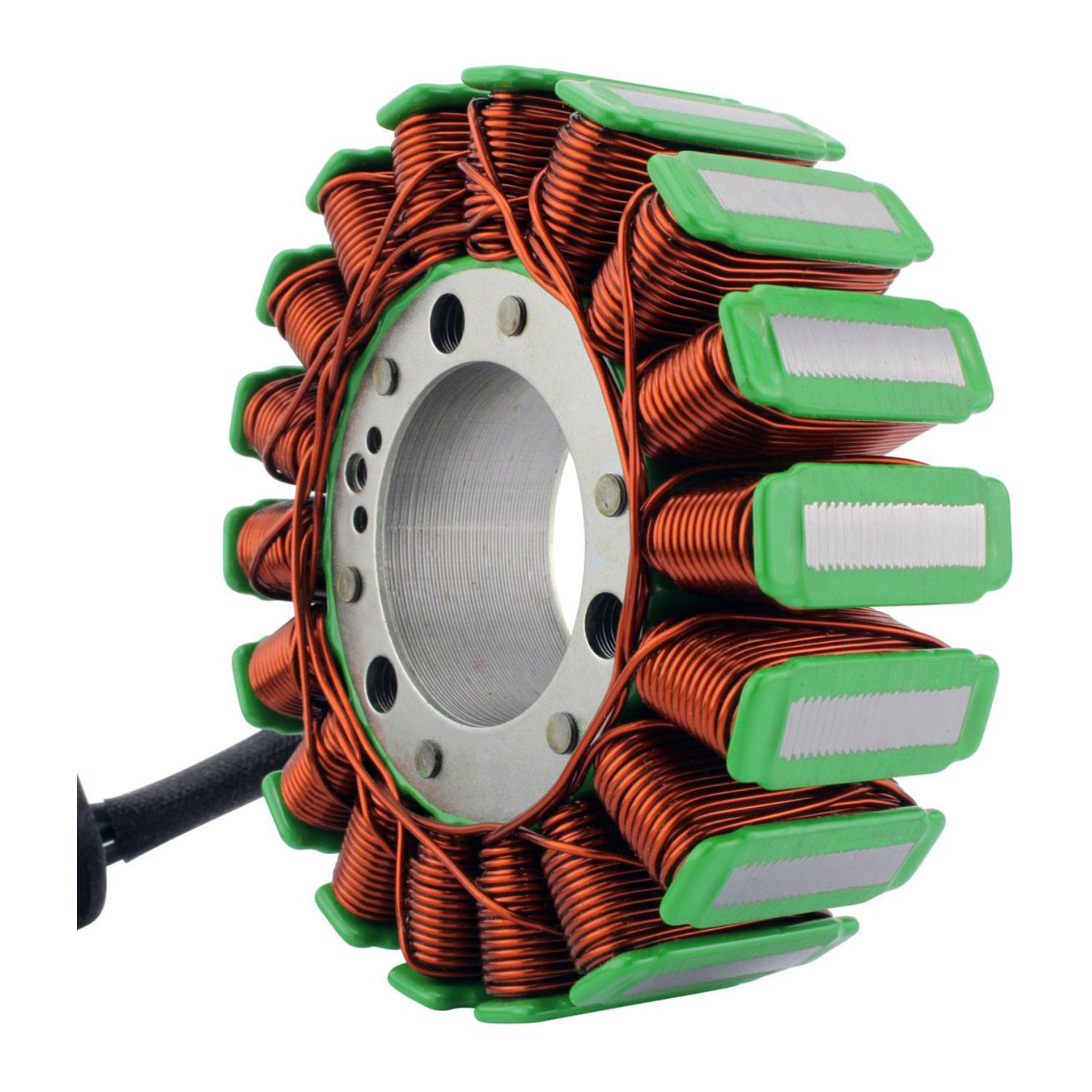

Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

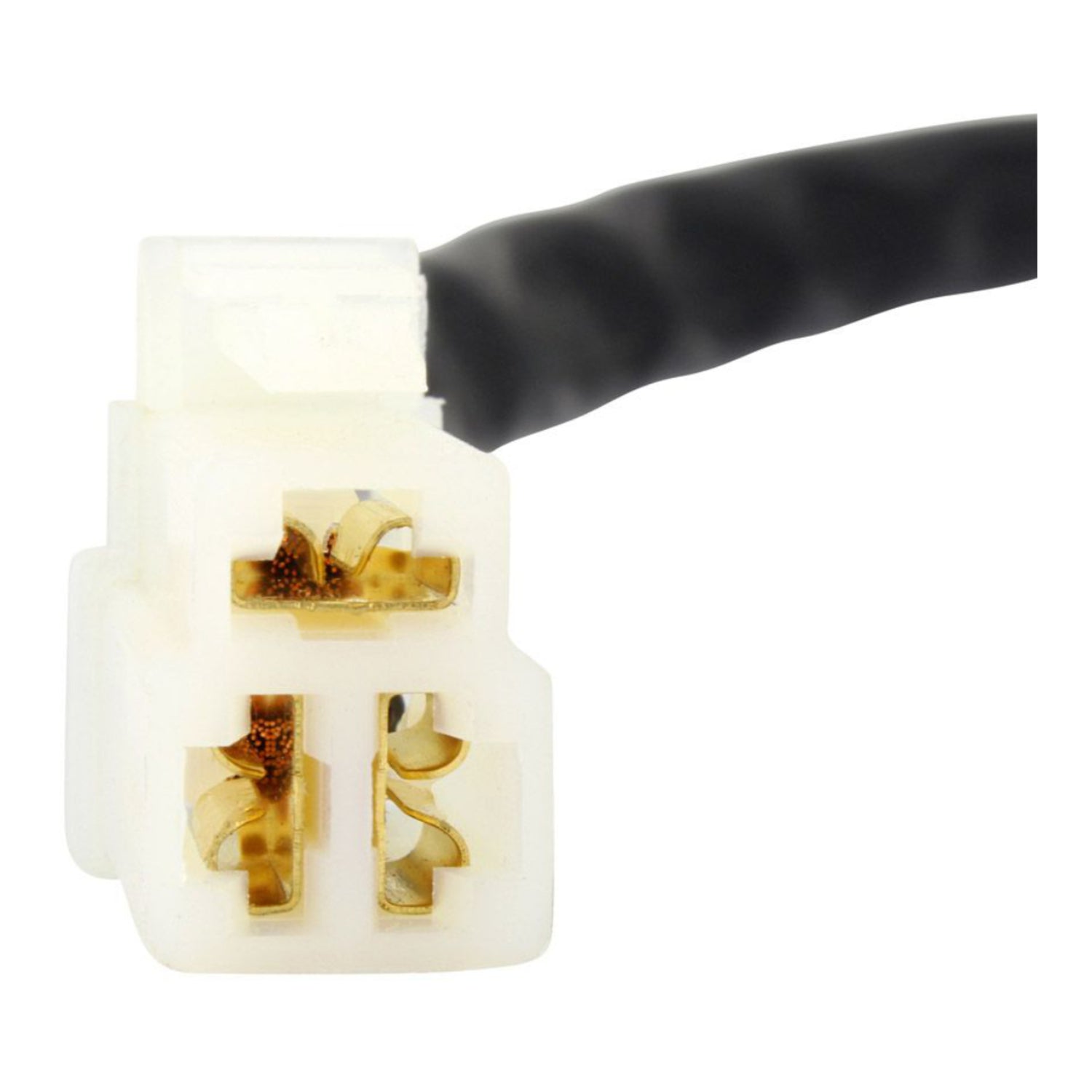

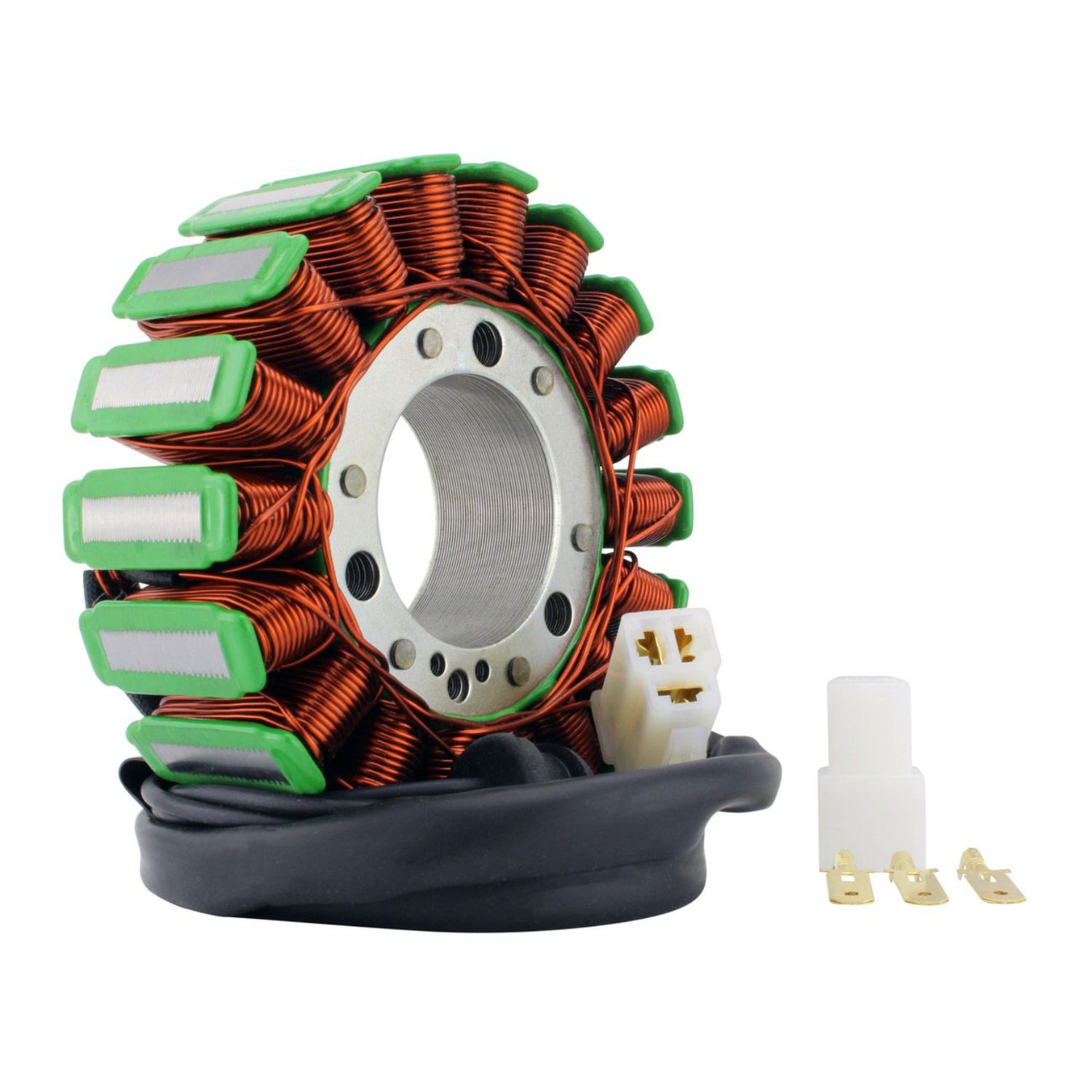

- Connectors included
- Rubber grommet included
- All products shipped are tested

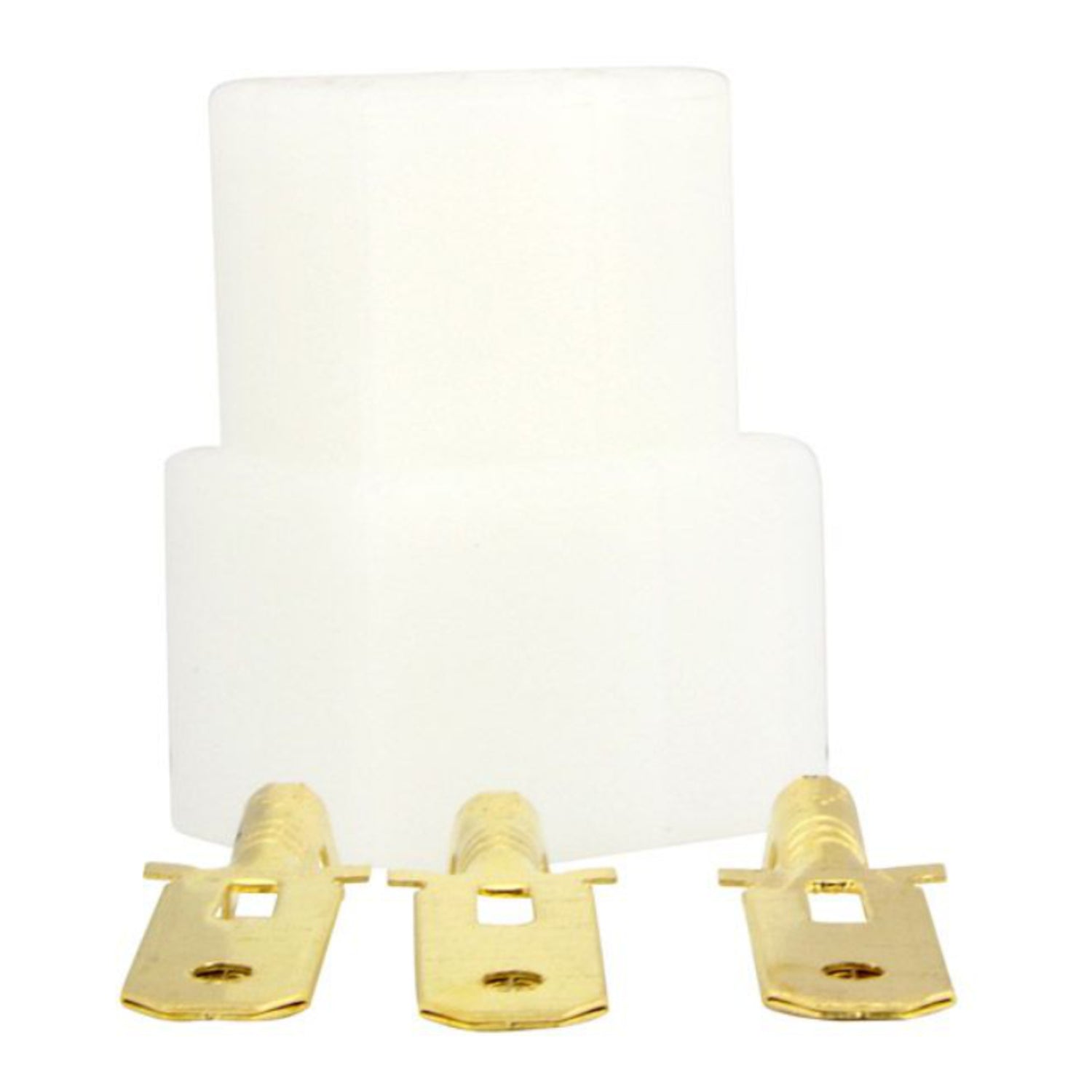

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
The stator may use a different wire colThe code than the original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 99 mm
- Thickness: 27 mm
- Length of wires stator to grommet: 100 mm
- Length of wires grommet to plug: 650 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.6 ohms +/-20%
- Alternator: to ground = O.L
