RMSTATOR

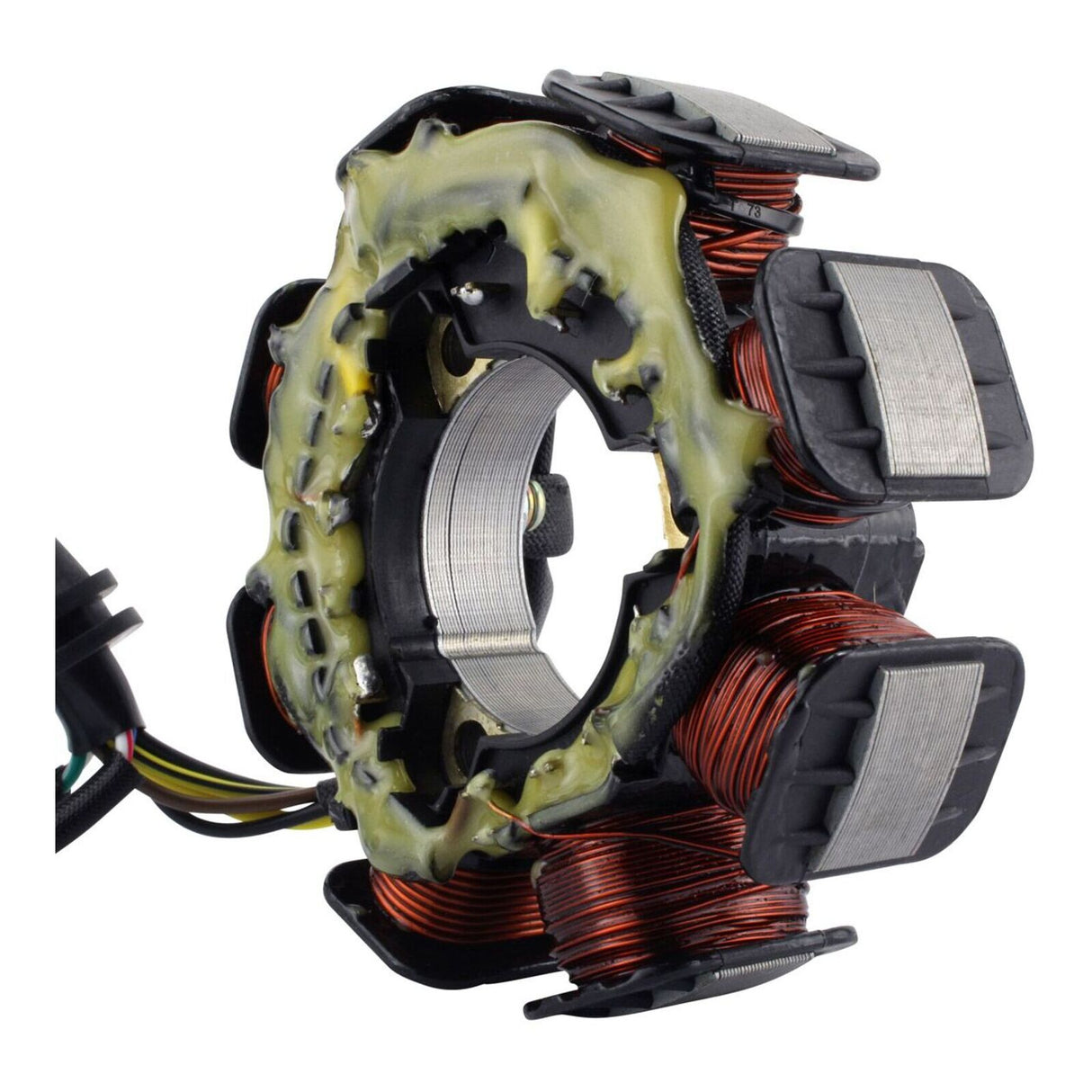

RM Stator Assorted Yamaha Models '95-'97 (Refer to Fitments) (RMS010-107836)

Part no.RMS010107836
Checking fitment…
$449.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS010107836
Part type
Stators
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

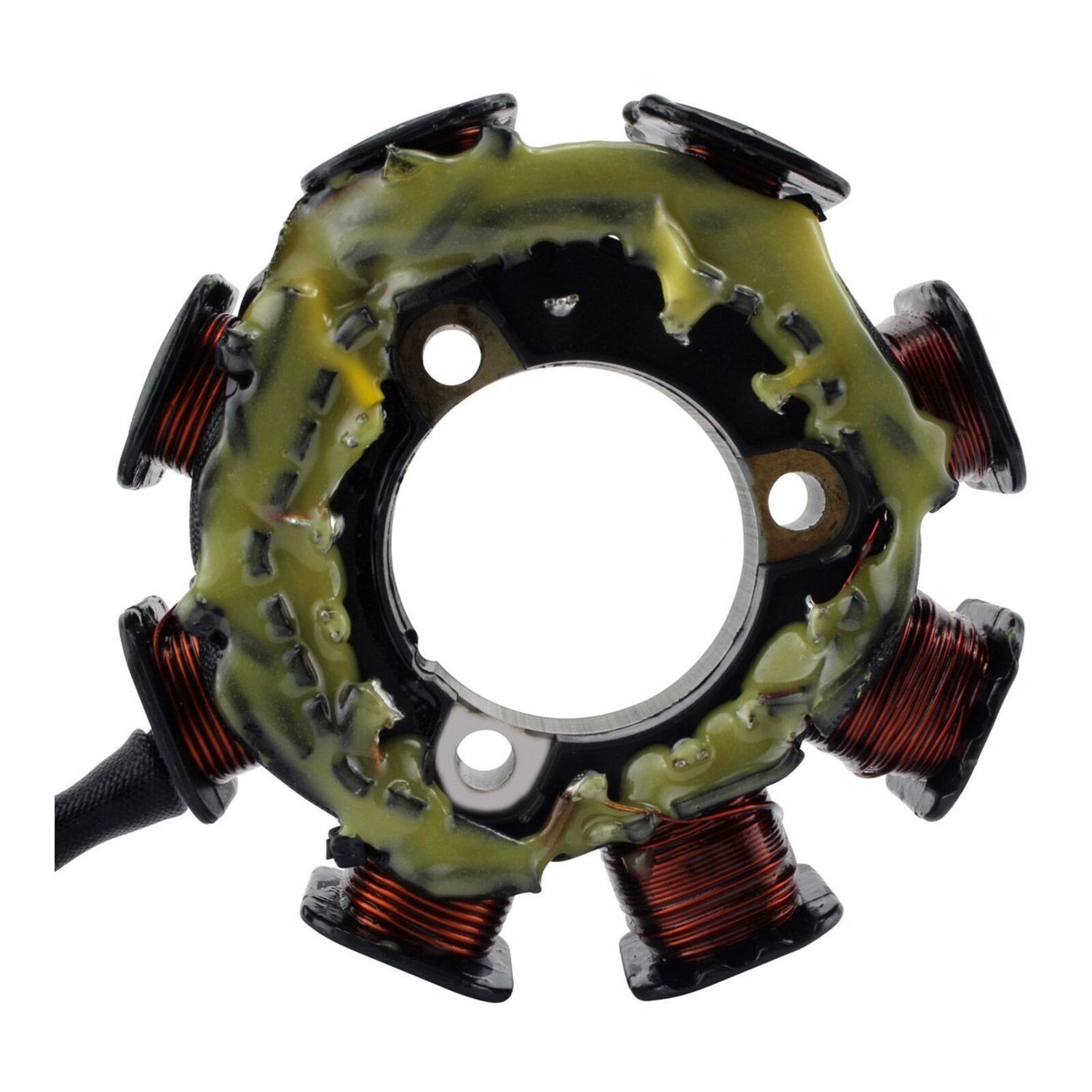

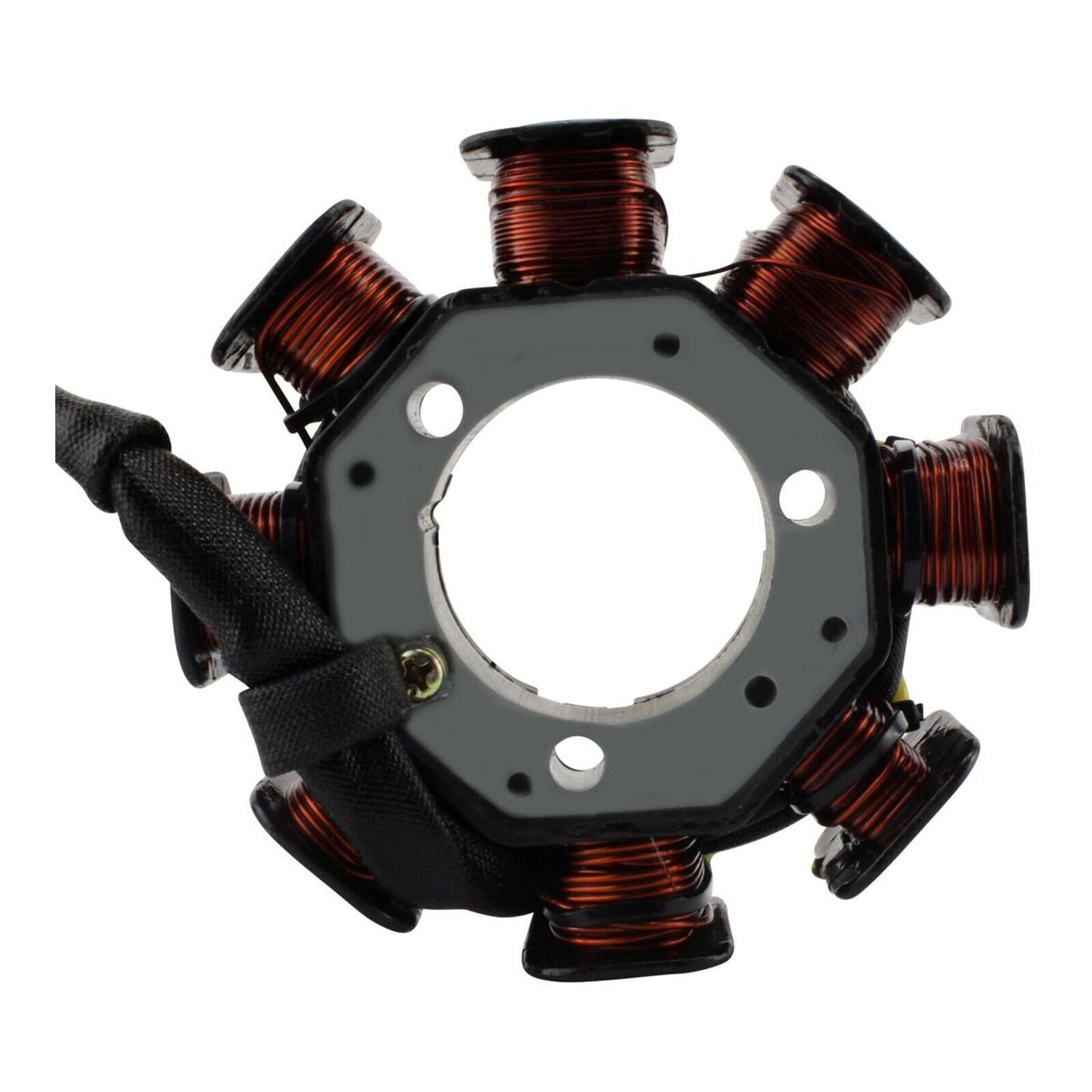

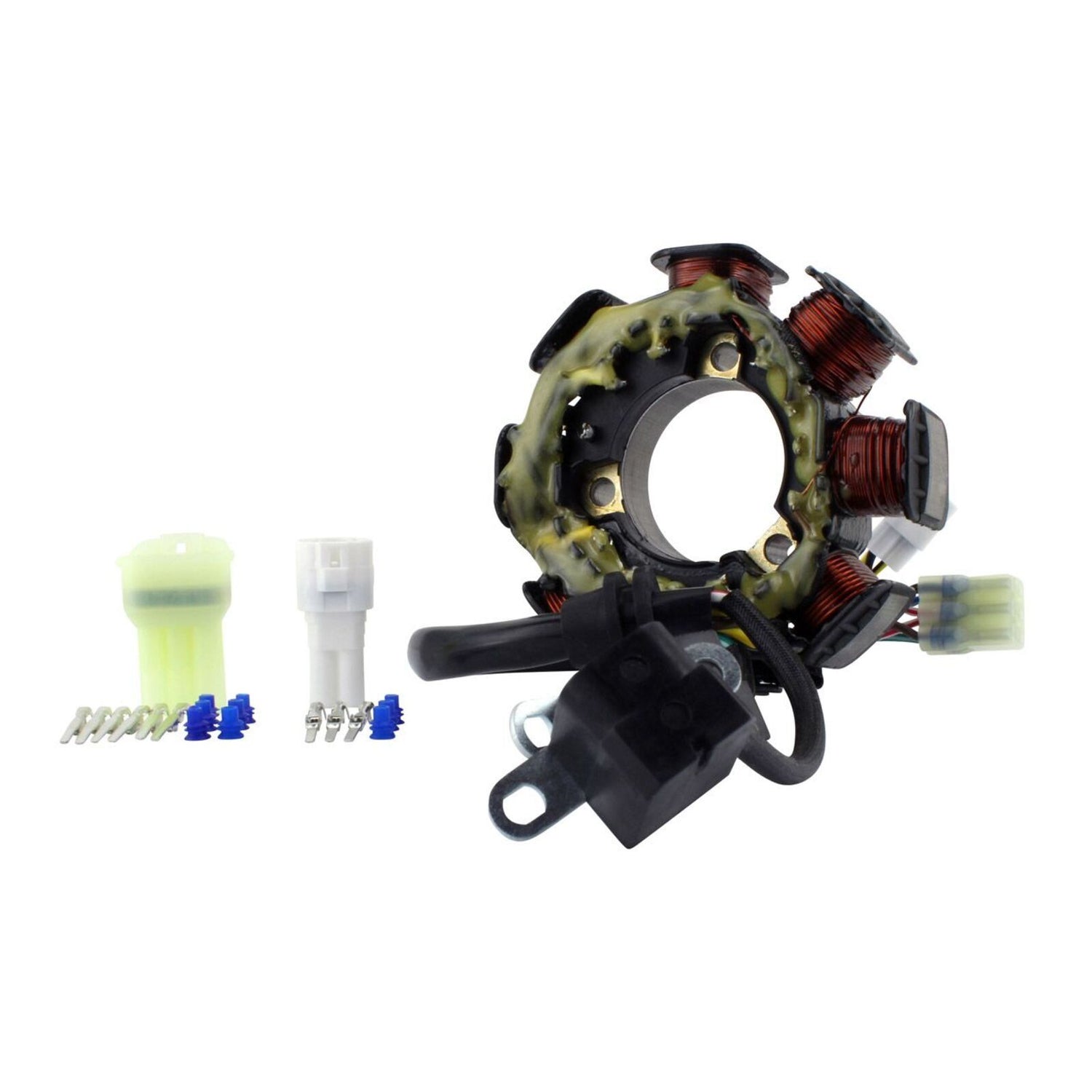

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation

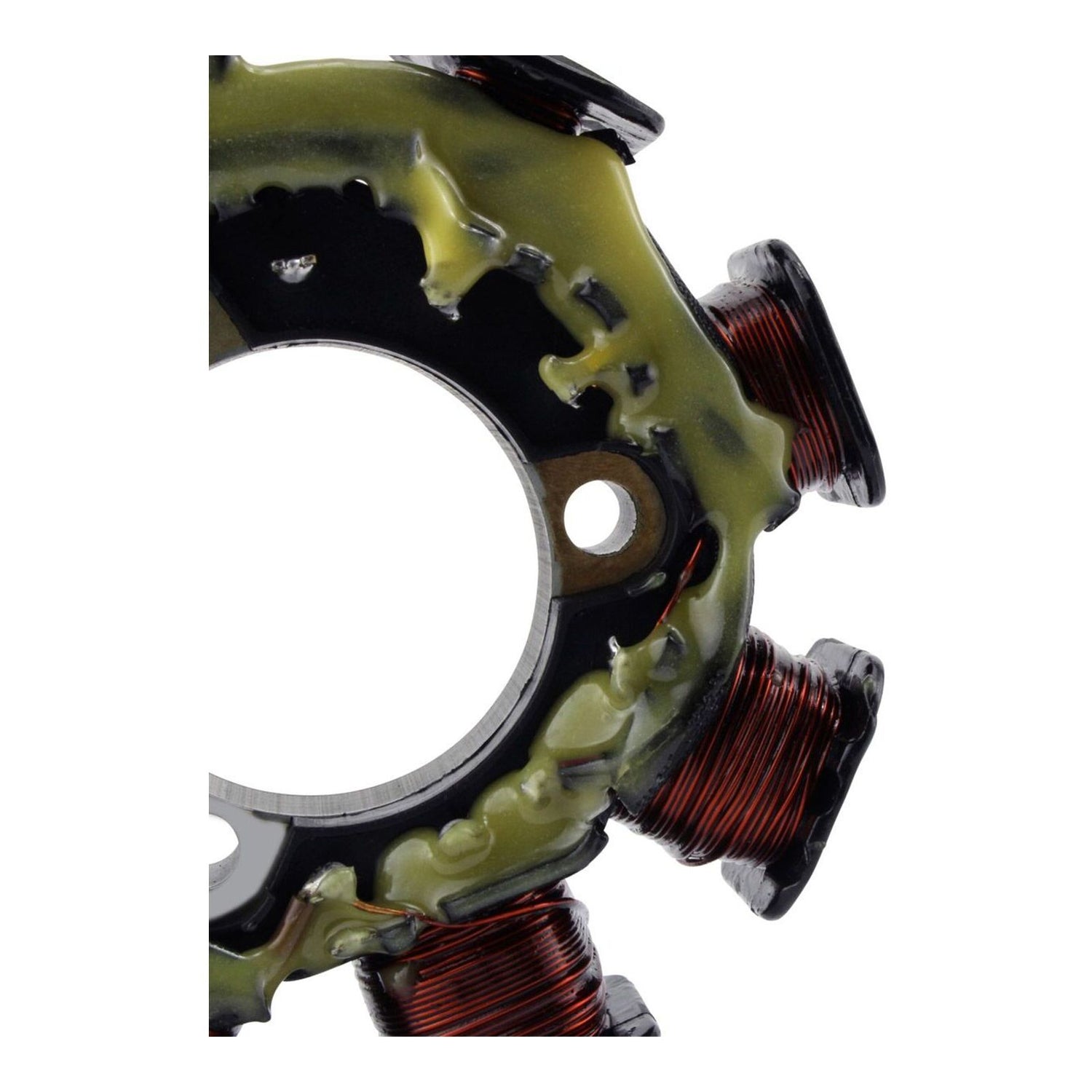

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

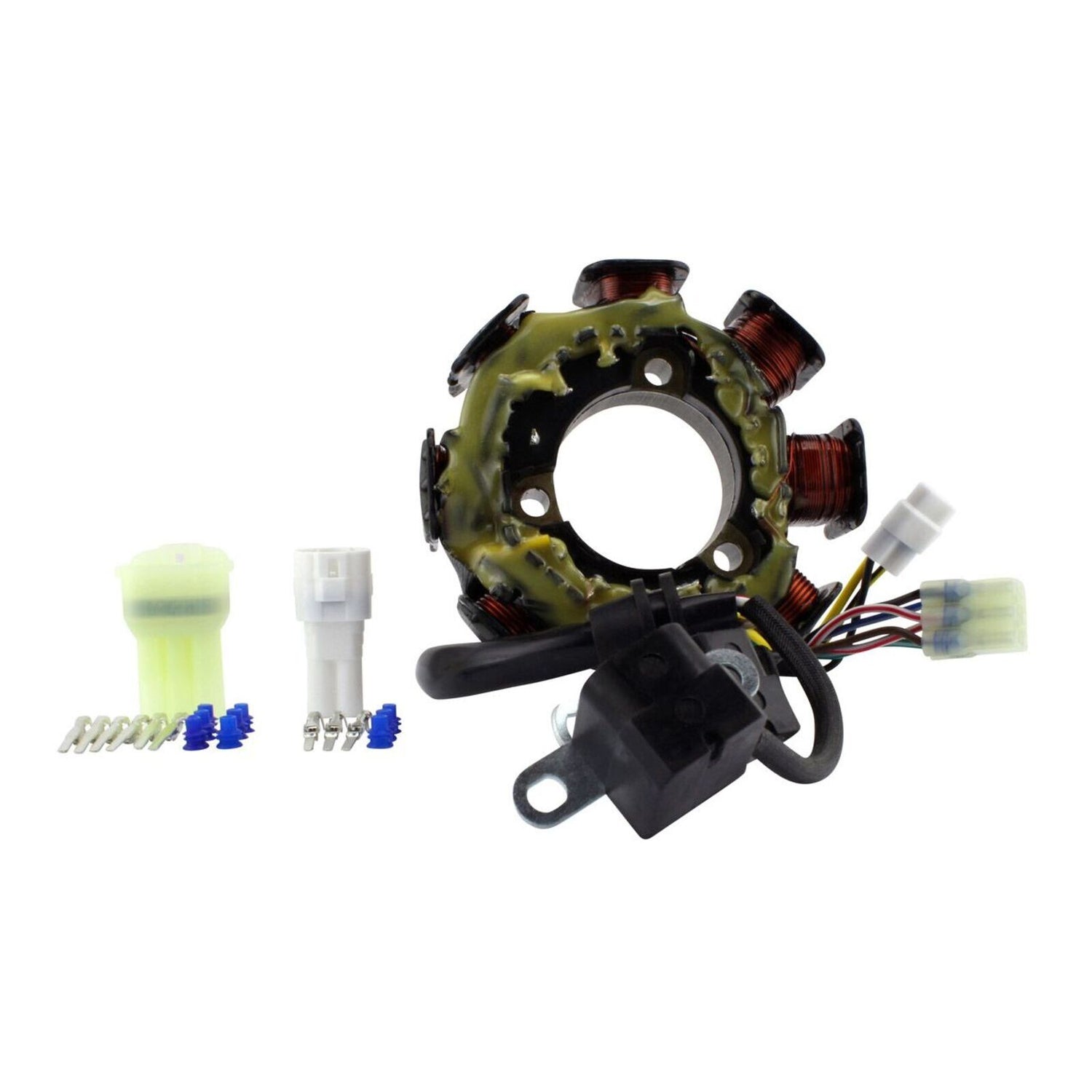

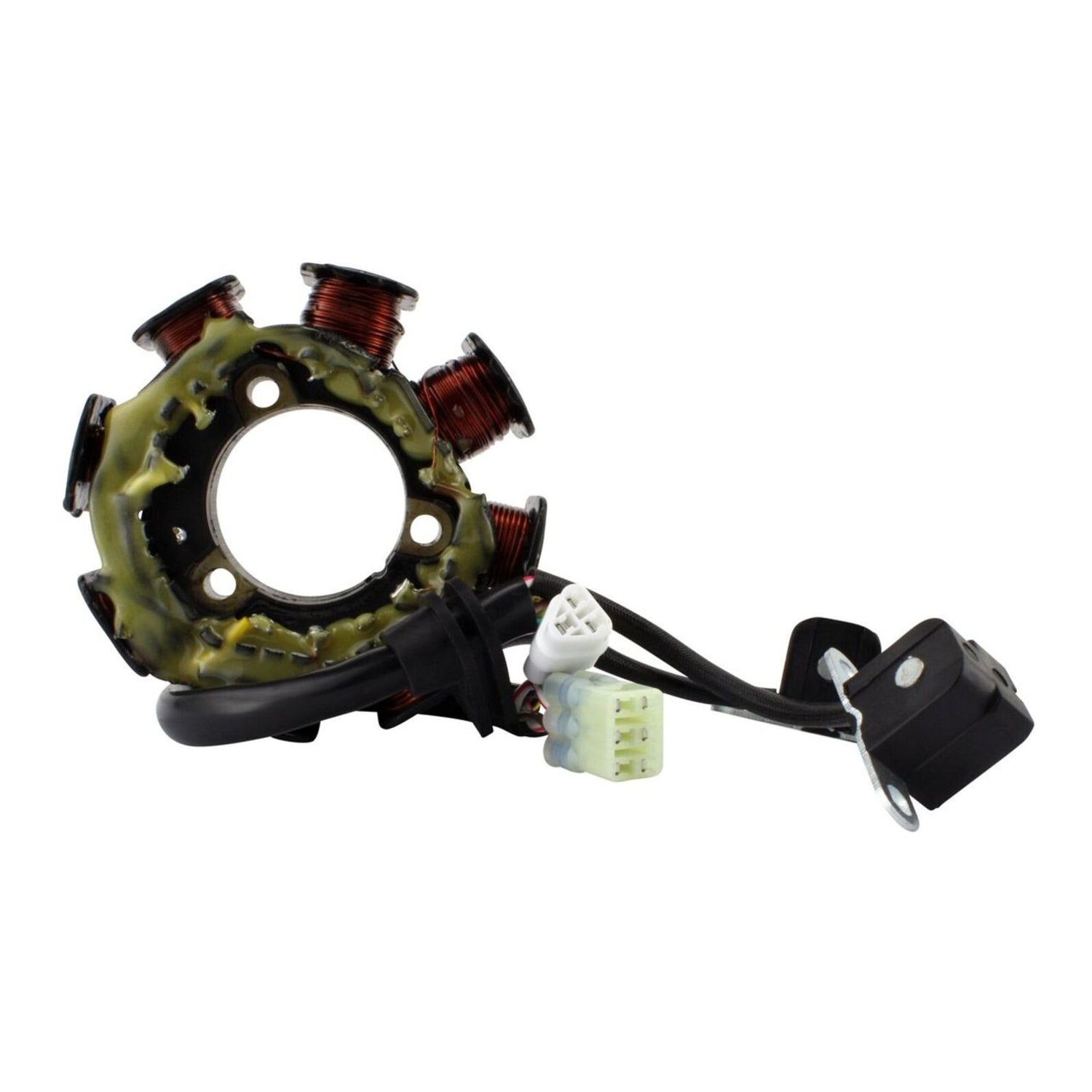

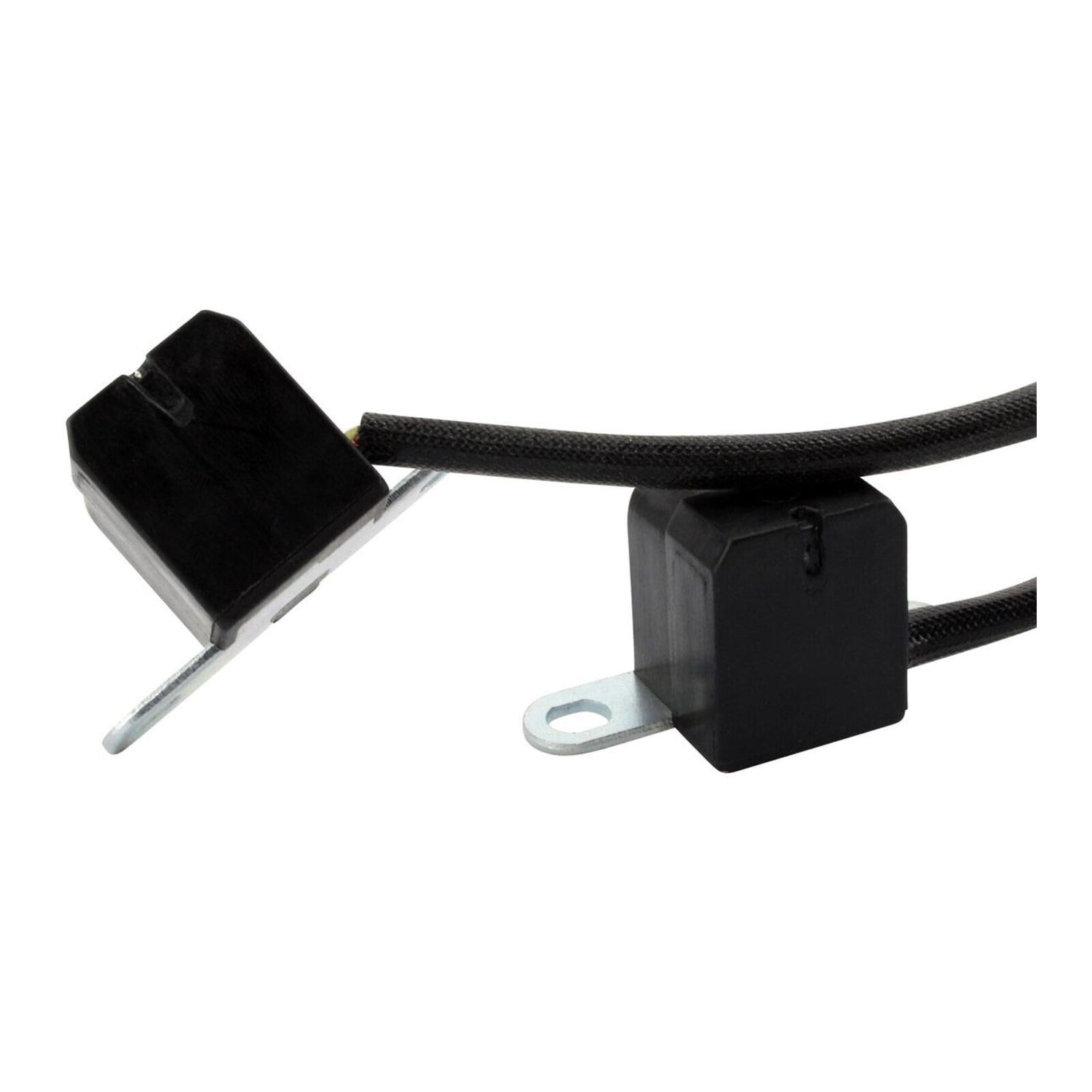

  • Pick up pulsar coil included

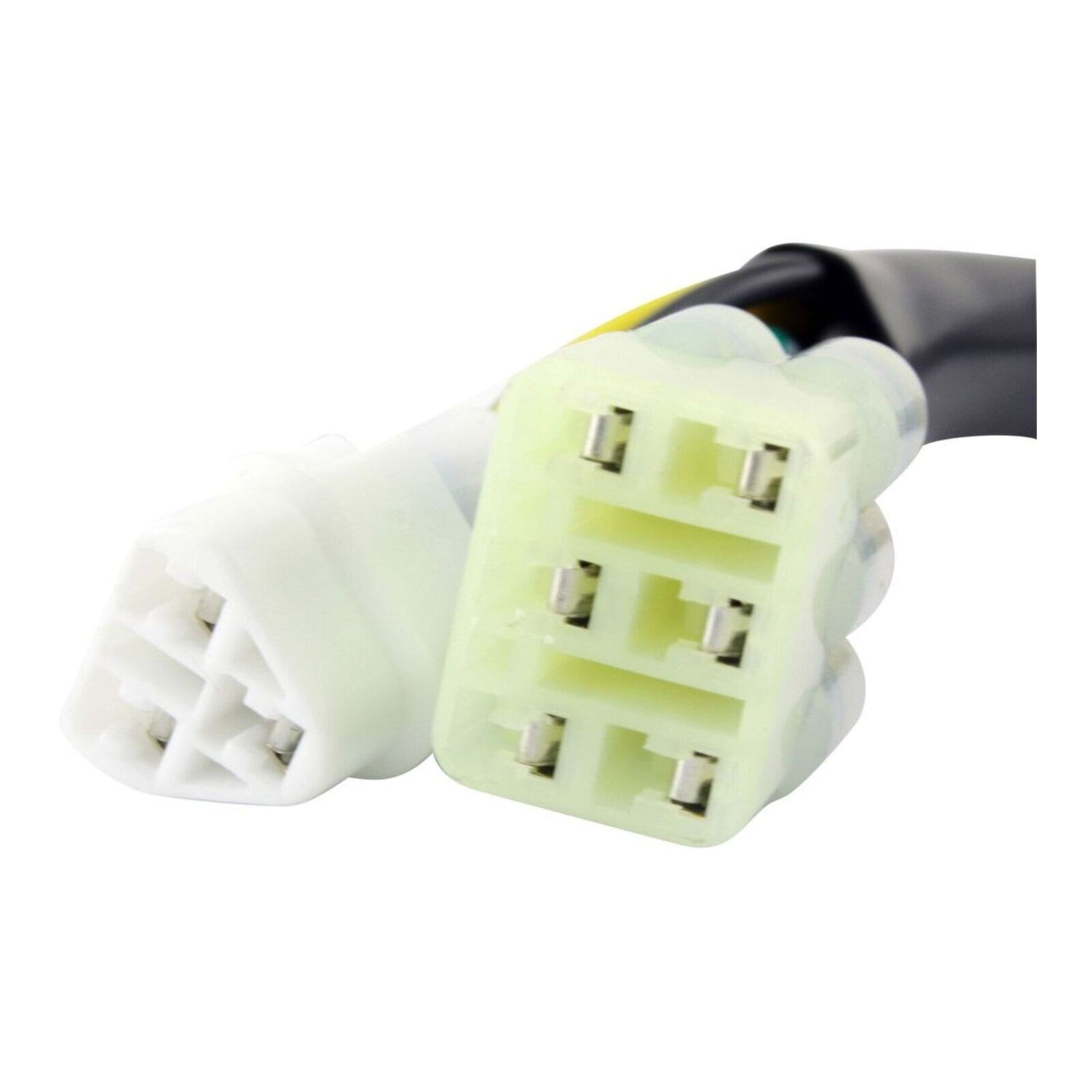

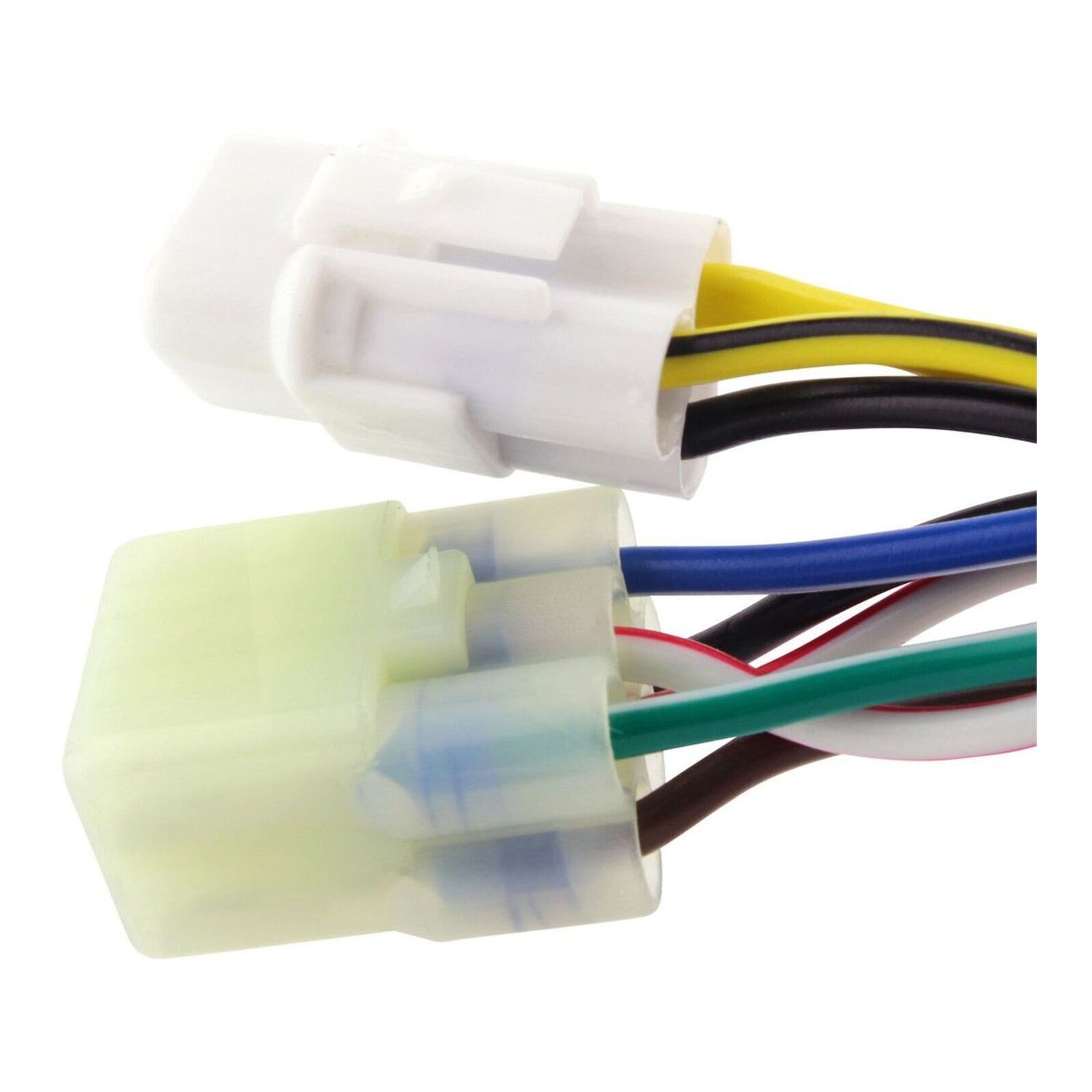

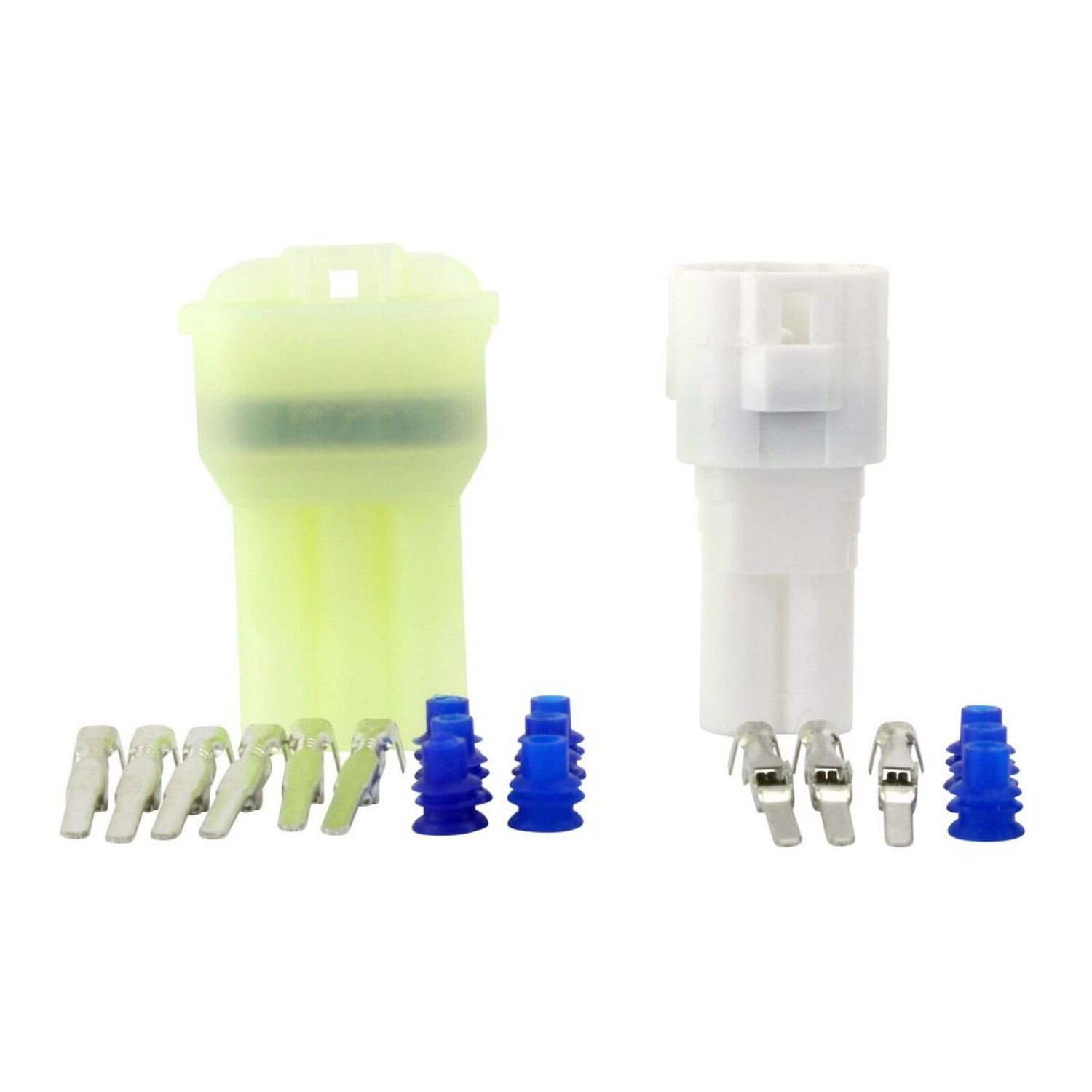

  • Connectors included

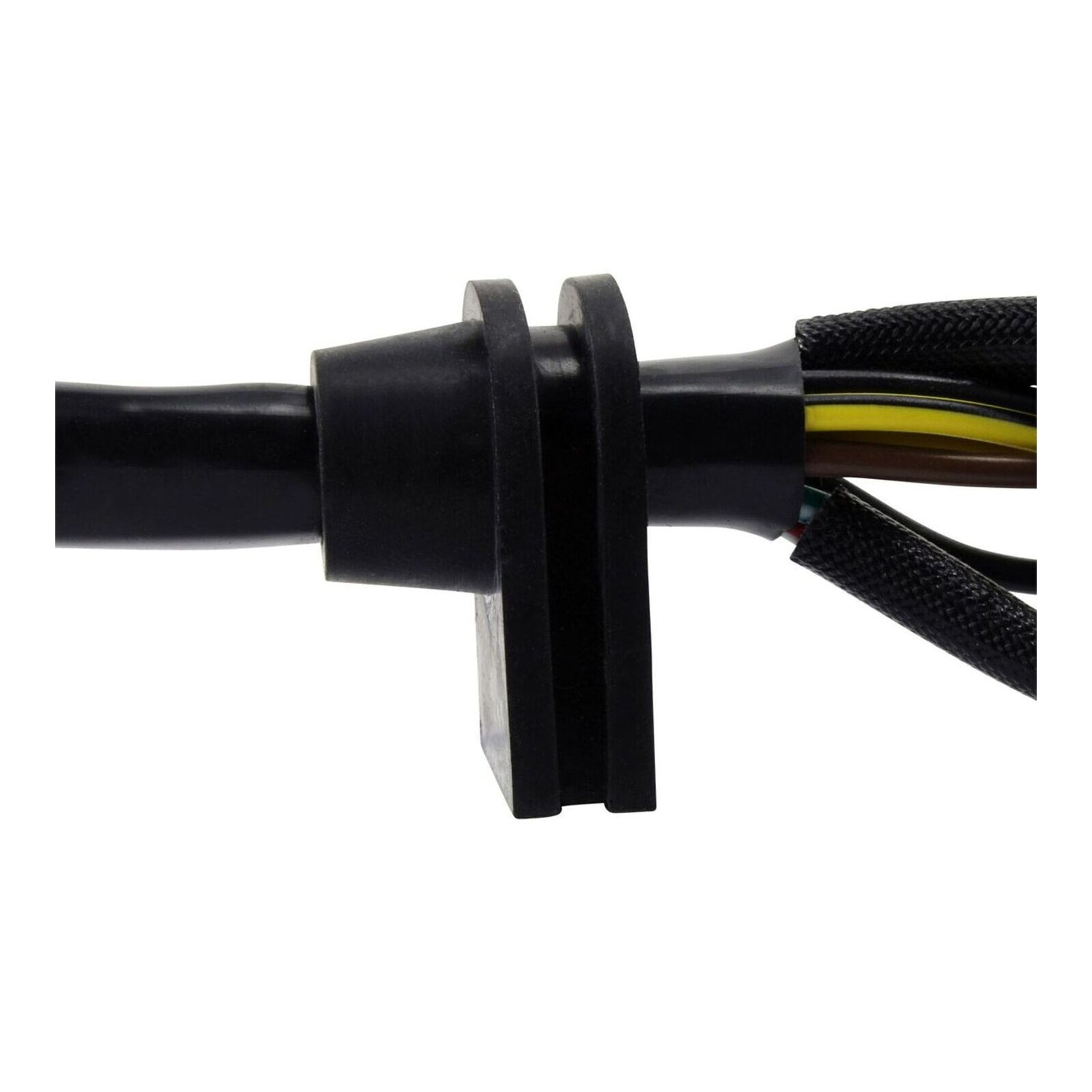

  • Rubber grommet included
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new stator:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

The stator may use a different wire colThe code than the original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 41.5 mm
  • Exterior diameter: 103 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 90 mm
  • Length of wires grommet to plug: 245 mm
  • Length of pickup coil's wire to grommet: 120 mm

Other specifications:

  • Number of wires: 9
  • Number of plugs: 2
  • Number of pins: 9
  • Number of poles: 8
  • Wire to wire resistance:
  • Alternator: Yellow to Yellow/Black = 2 ohms +/-20%
  • Black wire is grounded to core
  • Pickup 1: White/Red to White/Green = 500 ohms +/-20%
  • Pickup 2: White/Red to White/Blue = 500 ohms +/-20%
  • Source: Red to Black/Red = 2.8 ohms +/-20%

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
