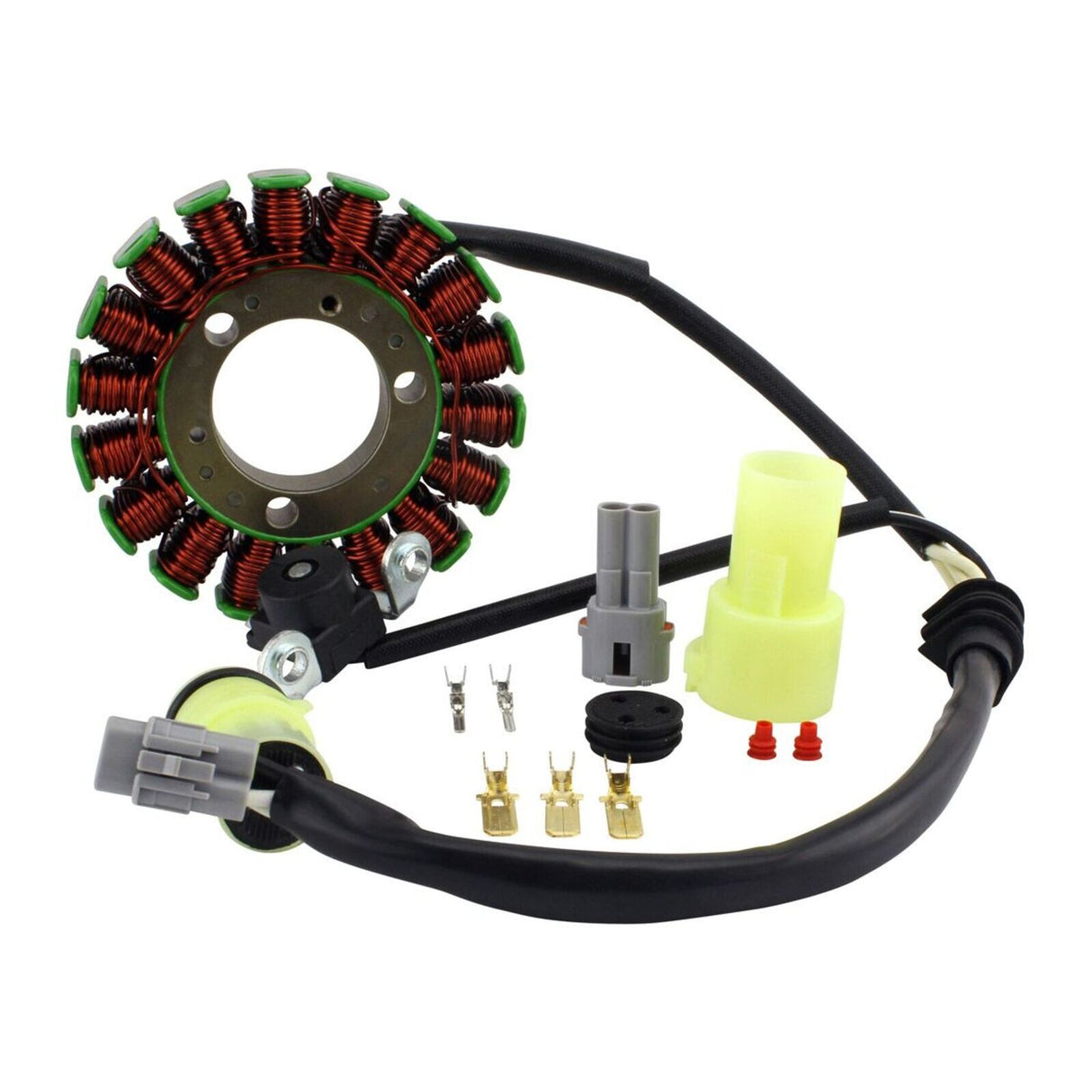

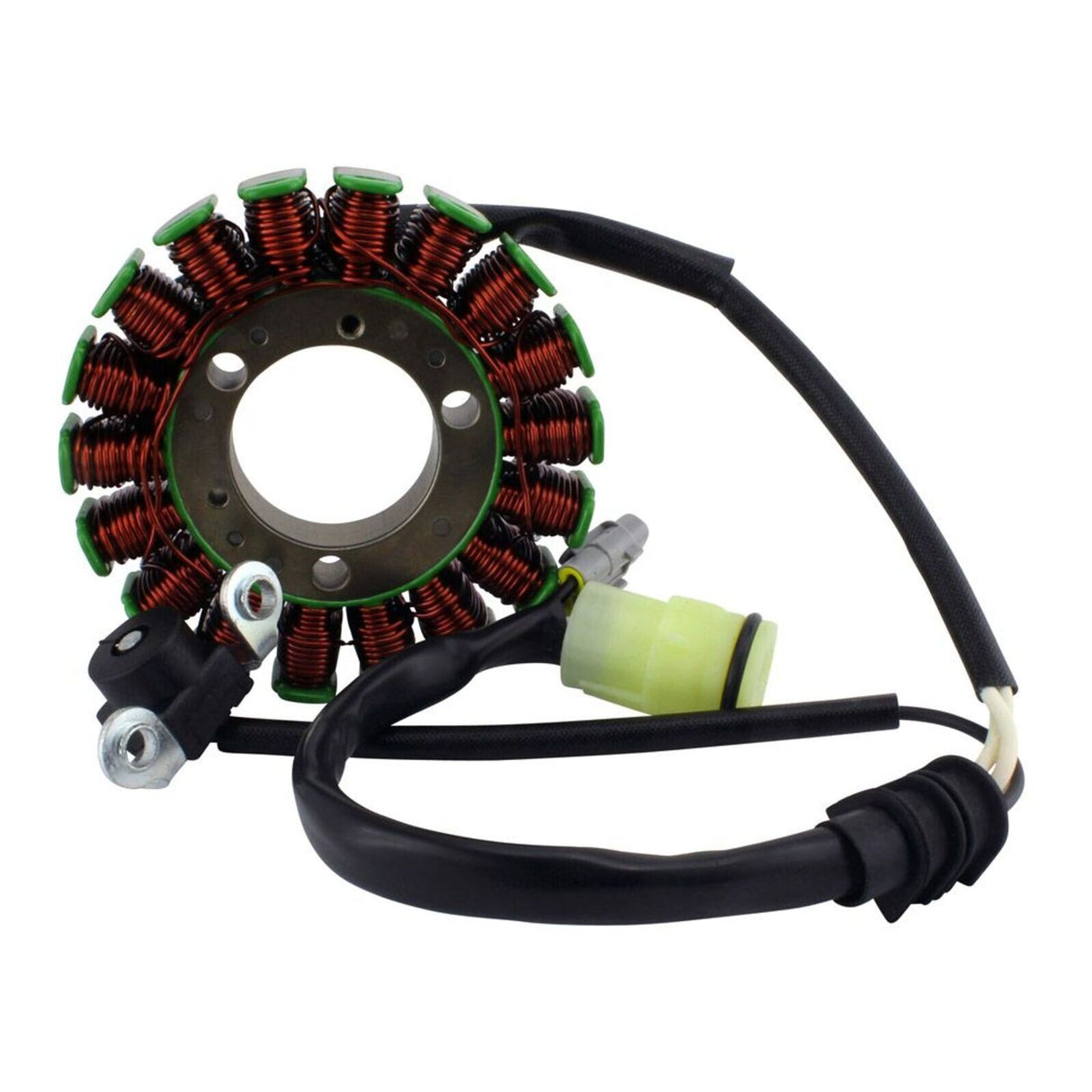

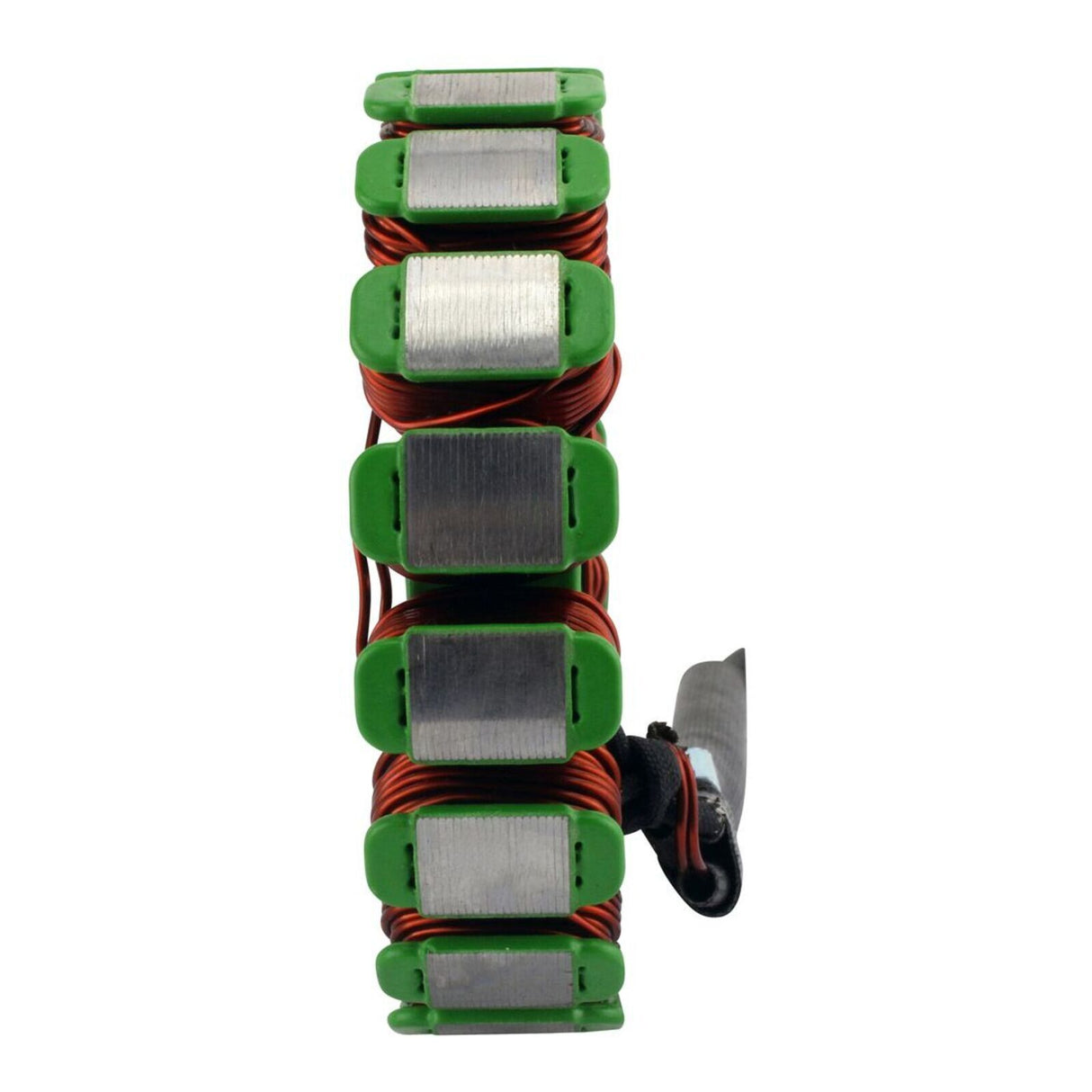

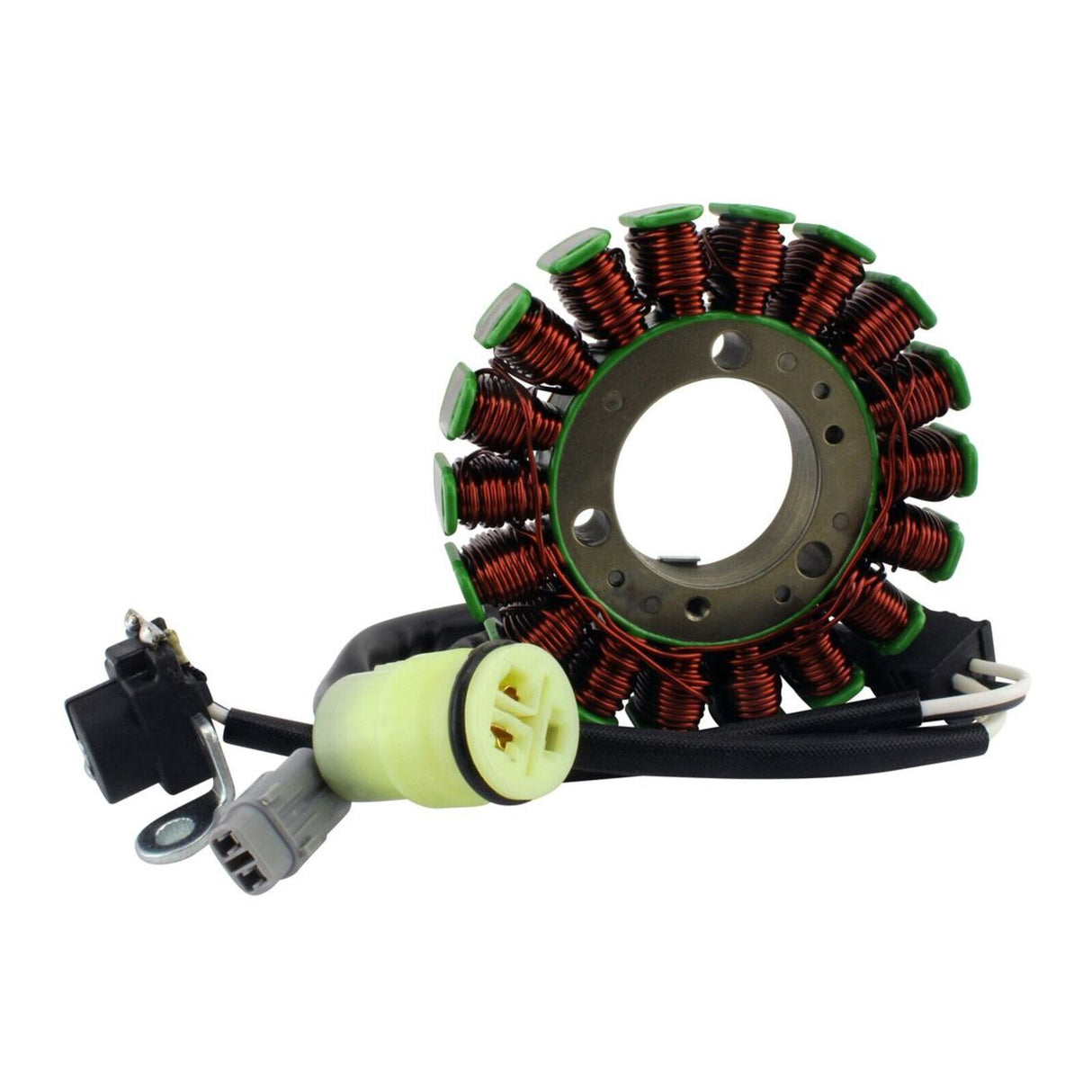

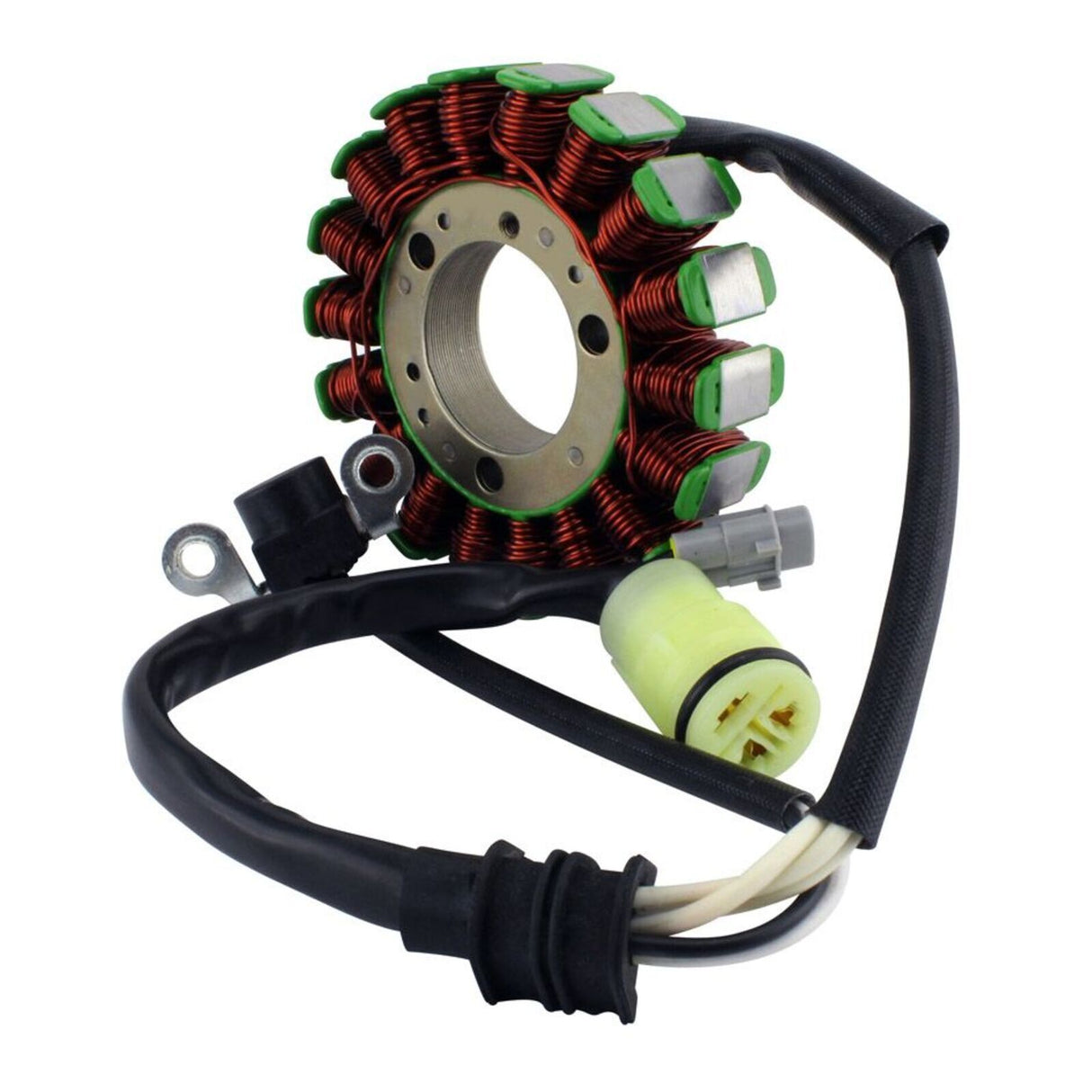

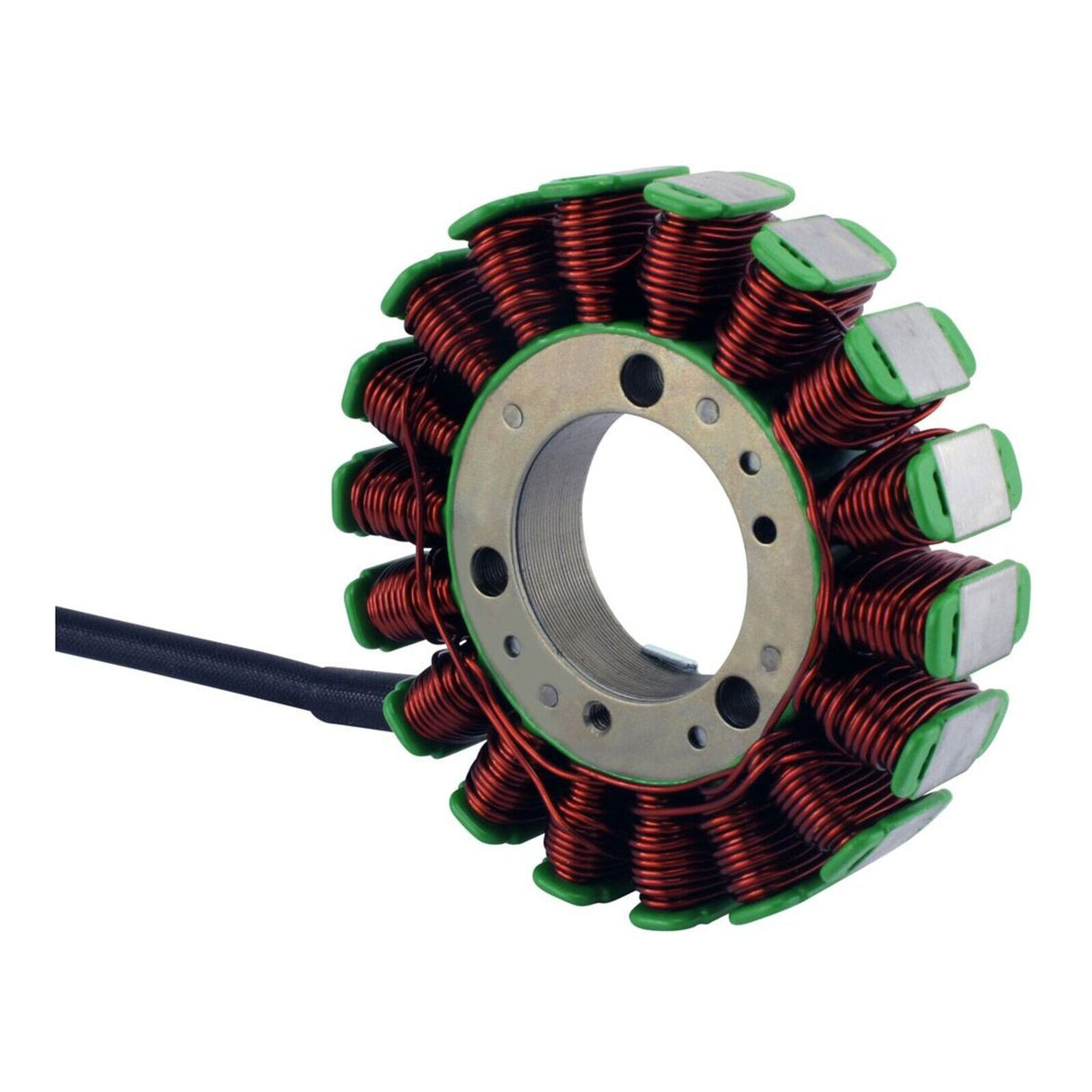

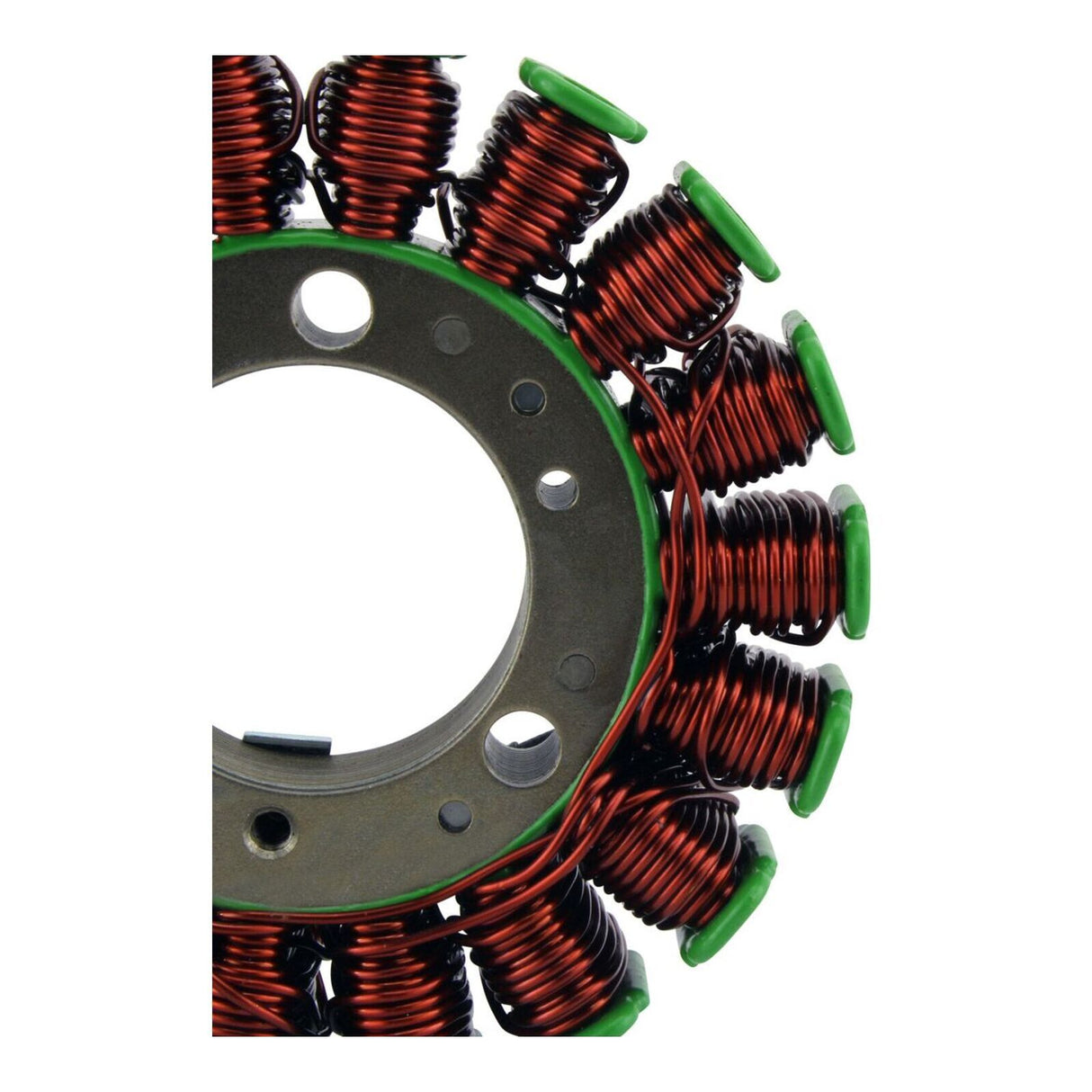

300W High Output RM Stator Yamaha YFZ450R/X '09-'24 (RMS010-107948)

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

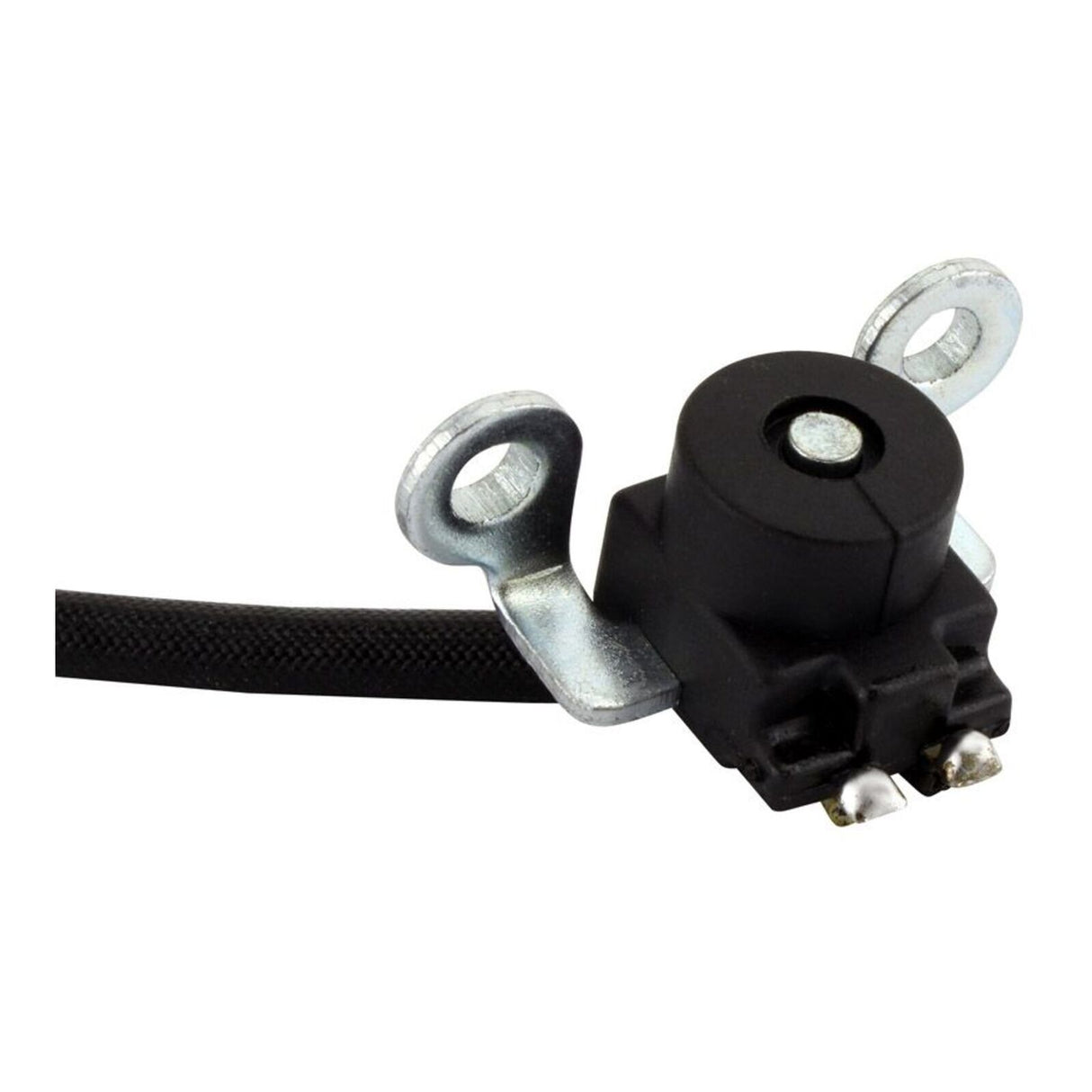

• Pick up pulsar coil included
• Connectors included

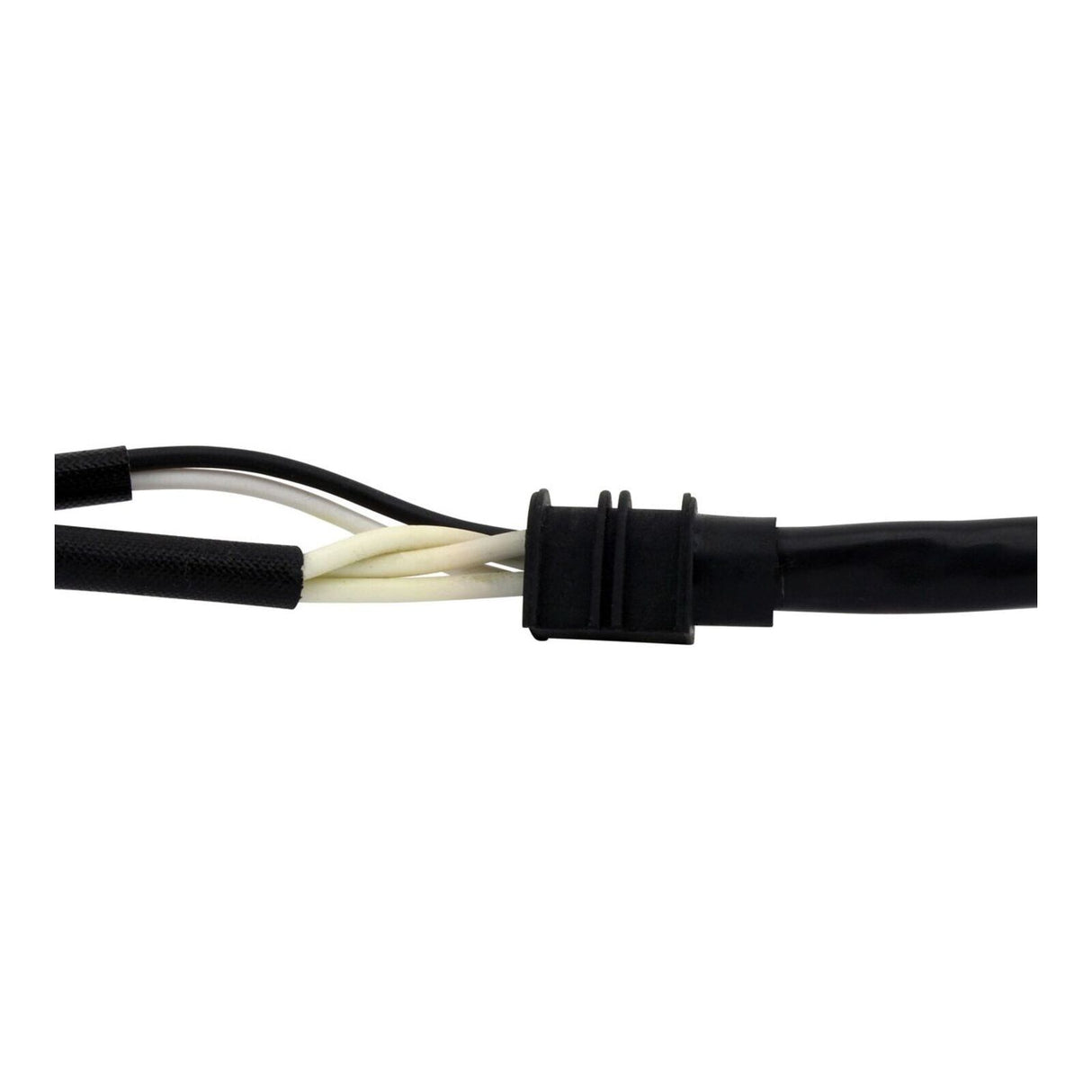

• Rubber grommet included
• All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

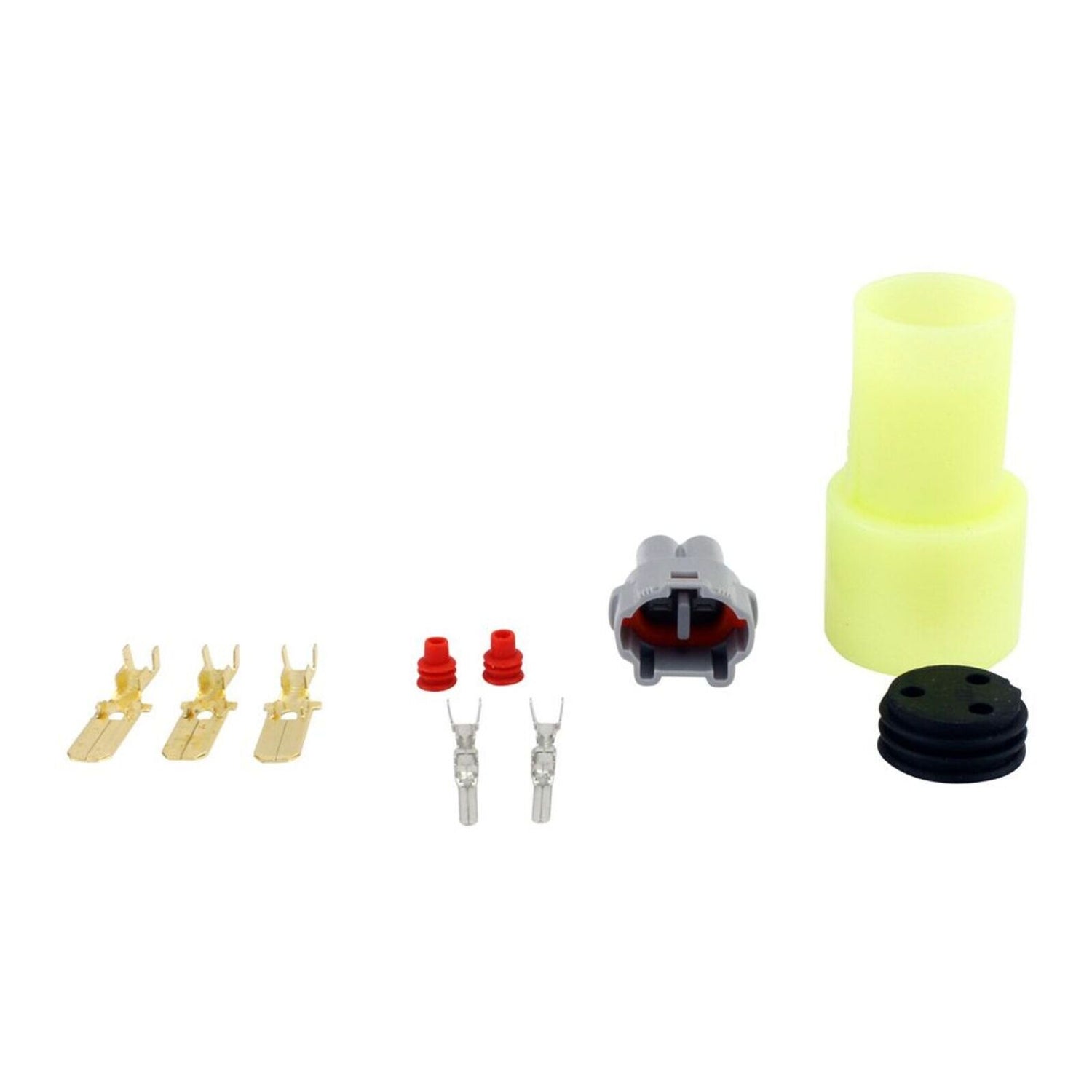

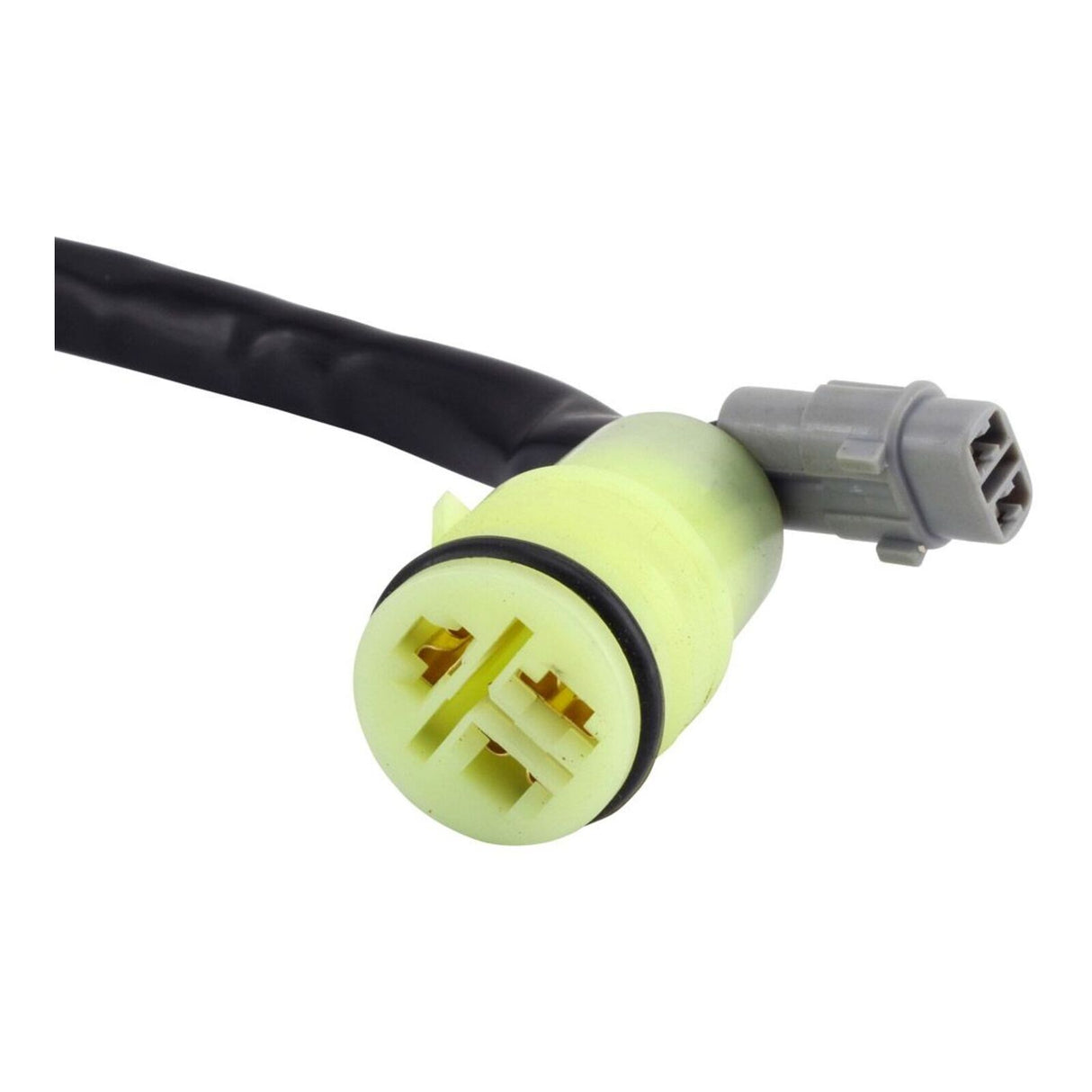

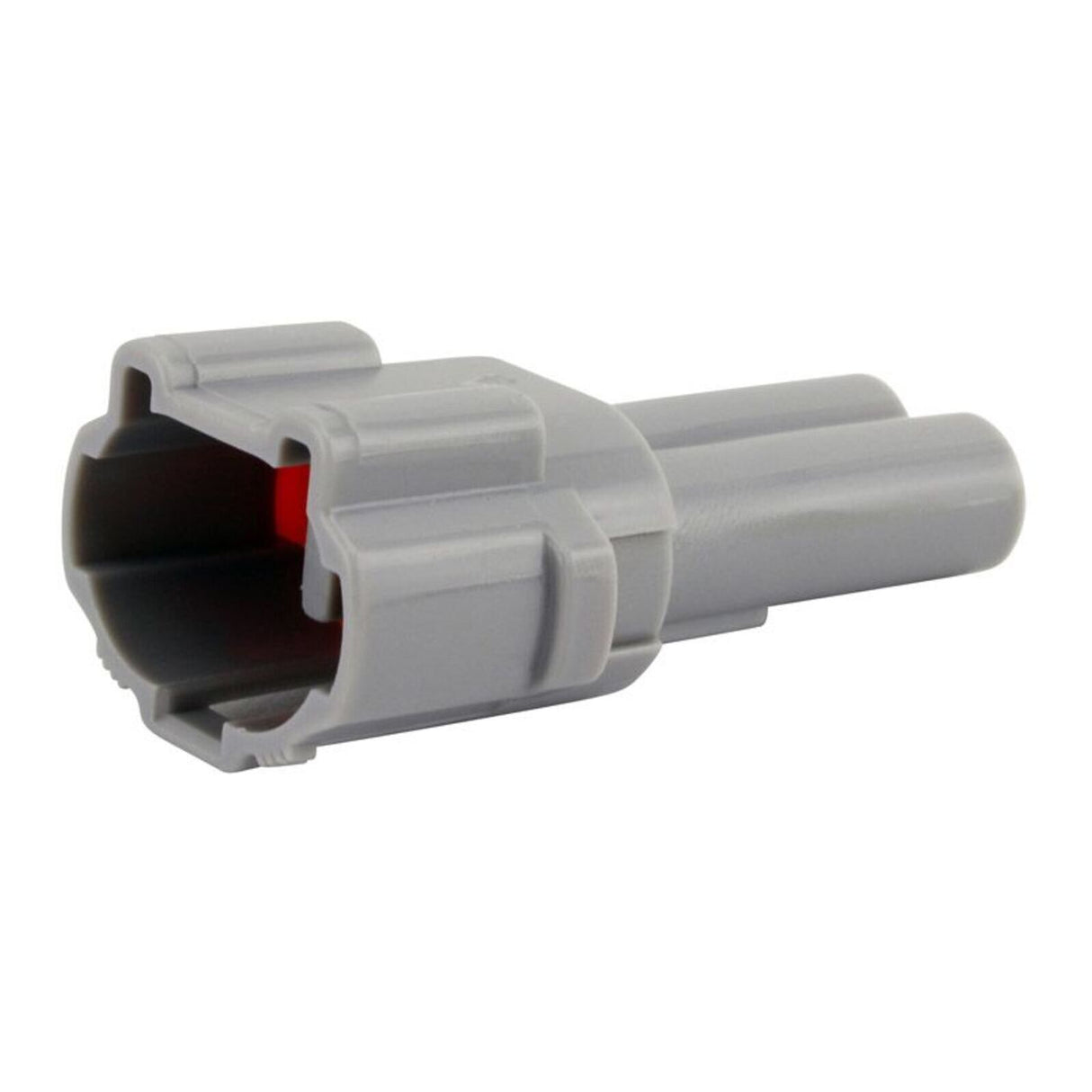

RM Stators has even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

• Interior diameter: 37 mm
• Exterior diameter: 97 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 180 mm
• Length of pickup coil's wire to grommet: 180 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: White to White = 0.2 ohms +-20%
  • Pickup: White to Black = 260 ohms +-20%
