RMSTATOR

High Output Stator 200W Honda CRF450 X/L/RL (RMS010-108786)

Part no.RMS010108786
Checking fitment…
$344.99
GST included
In stock – ships from Brisbane Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS010108786
Part type
Stators
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

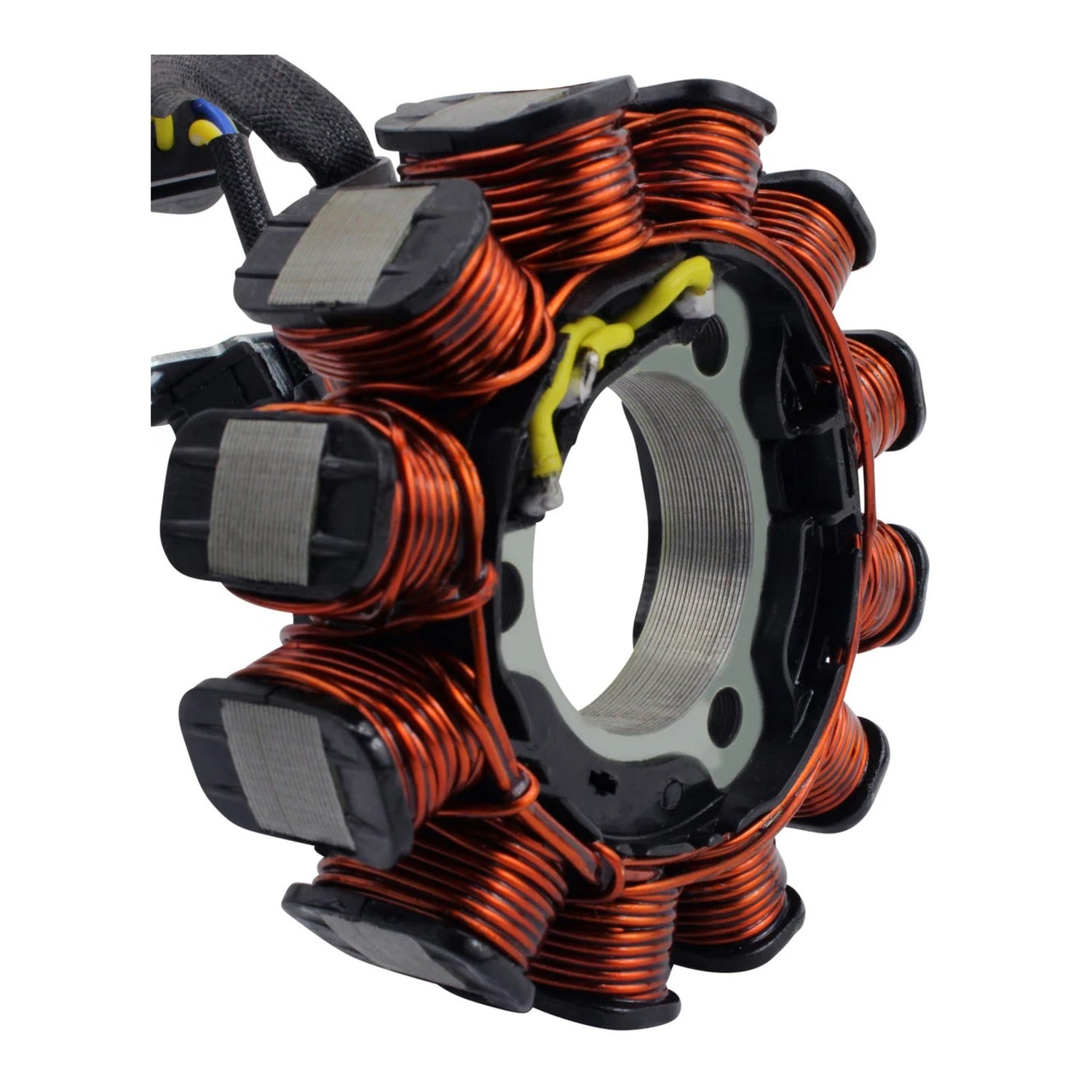

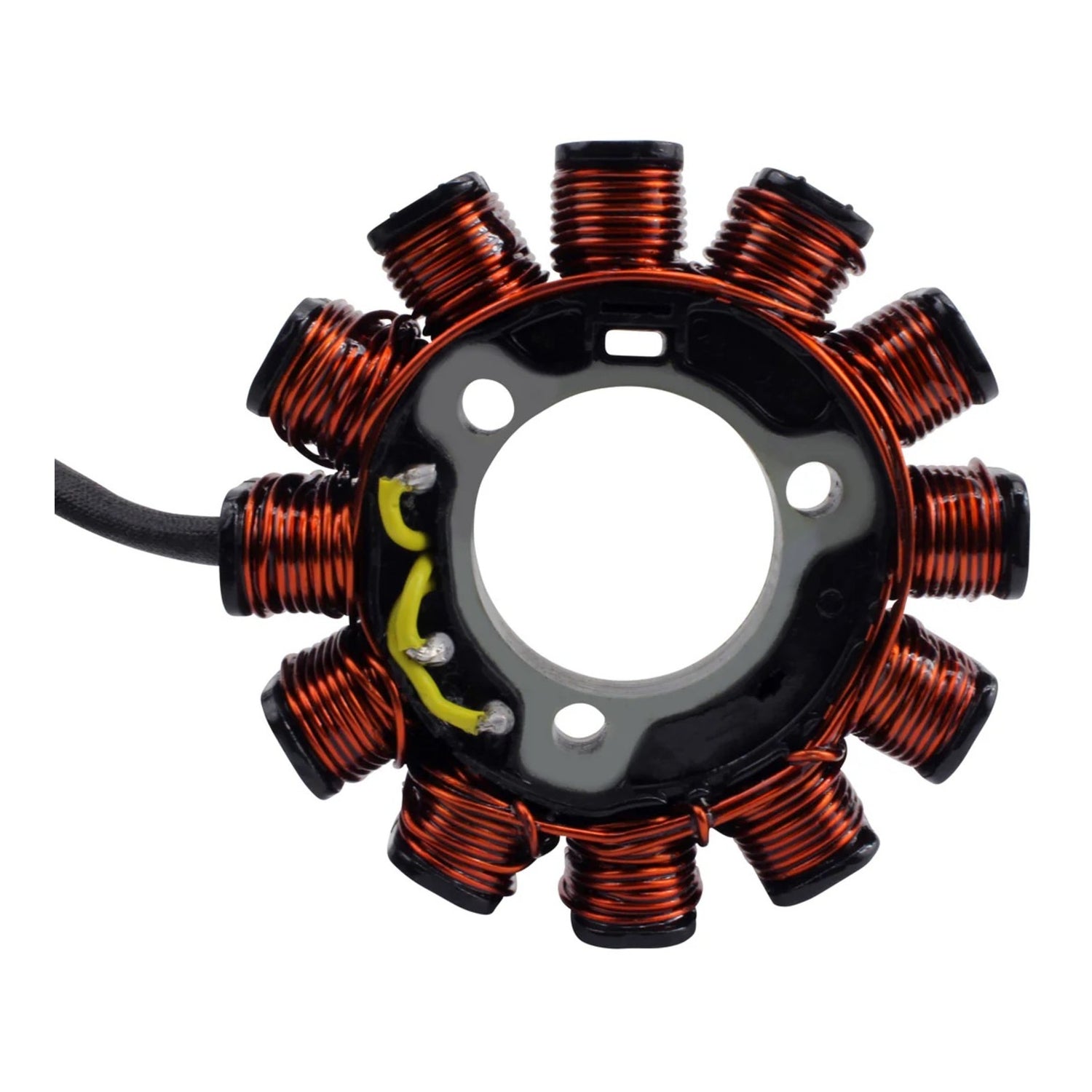

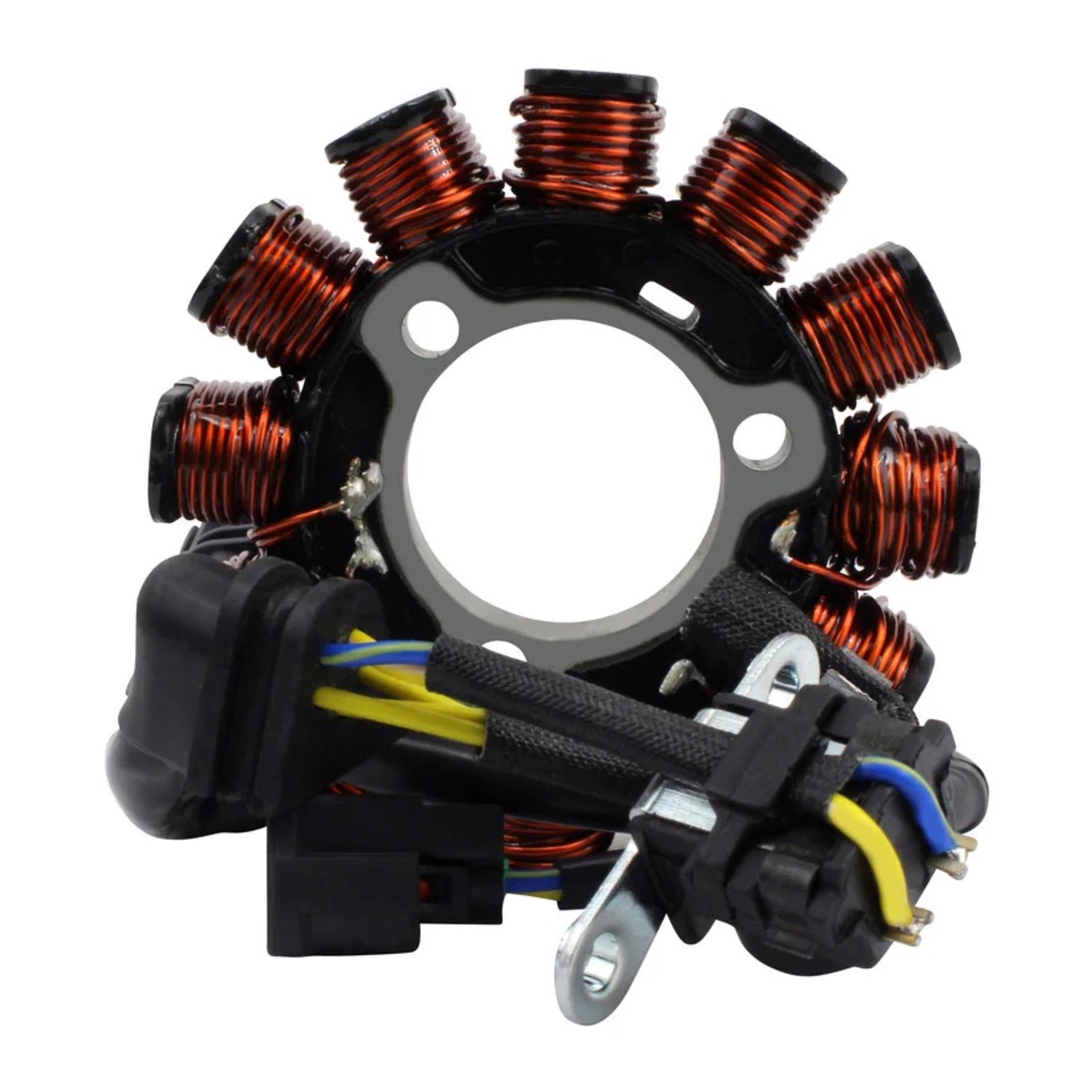

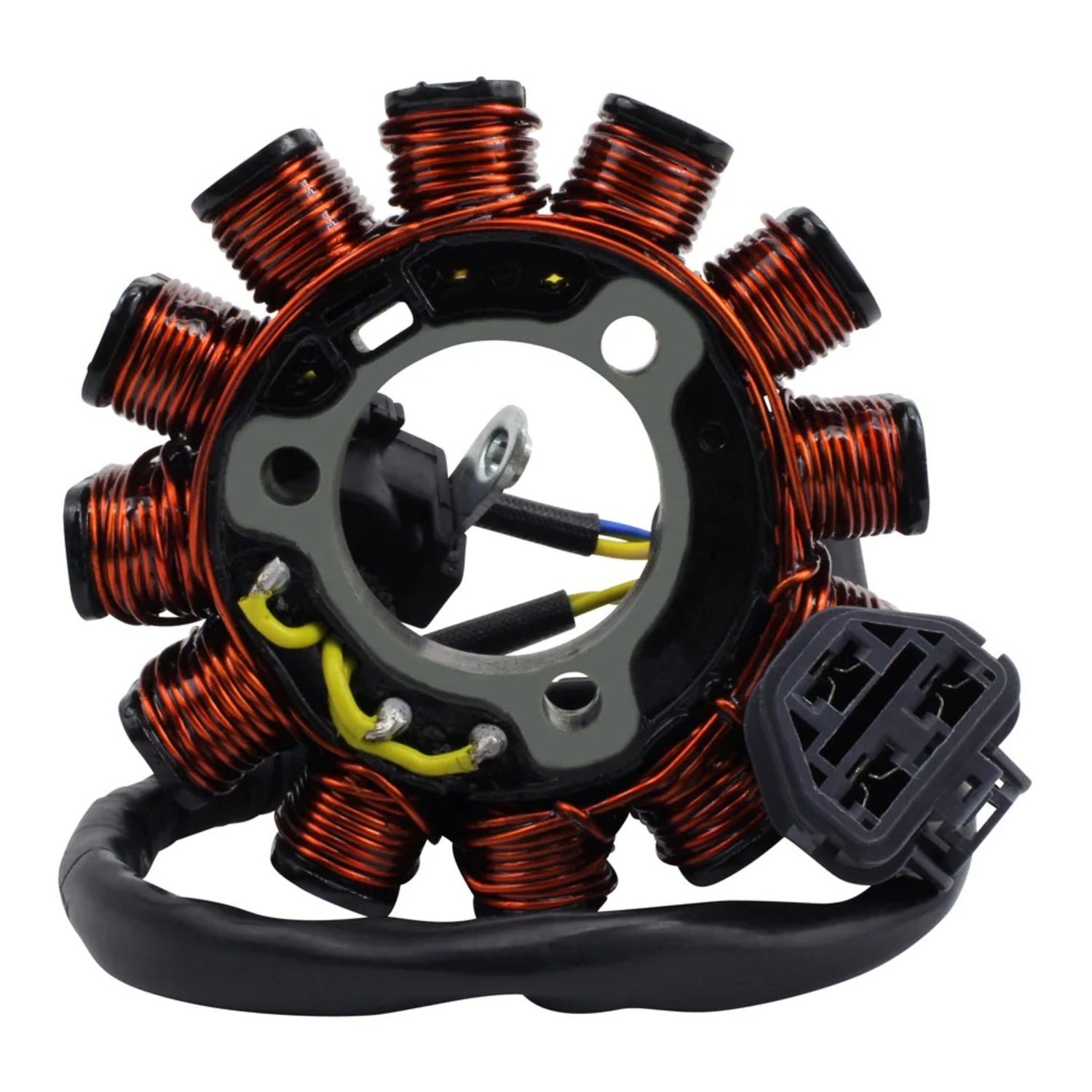

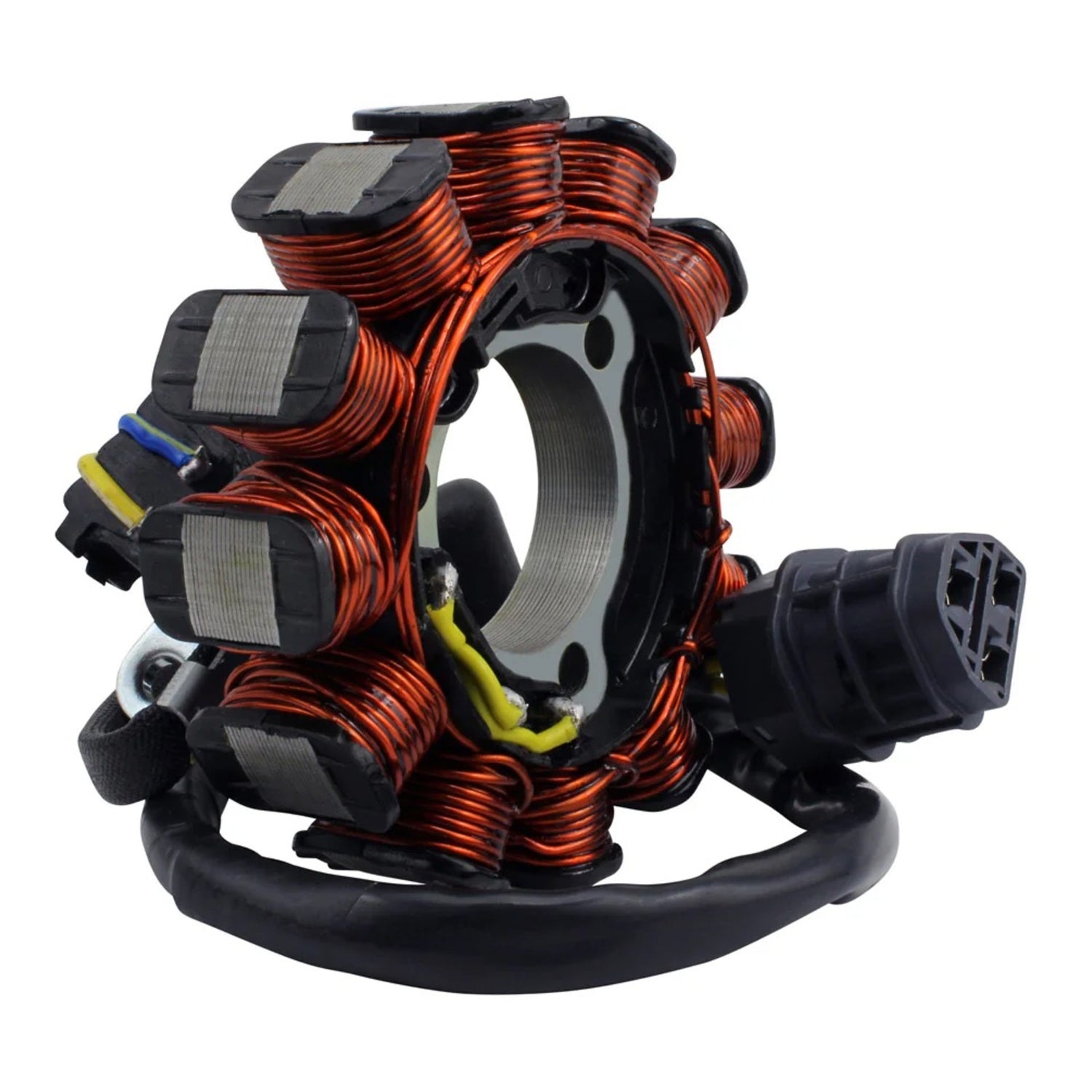

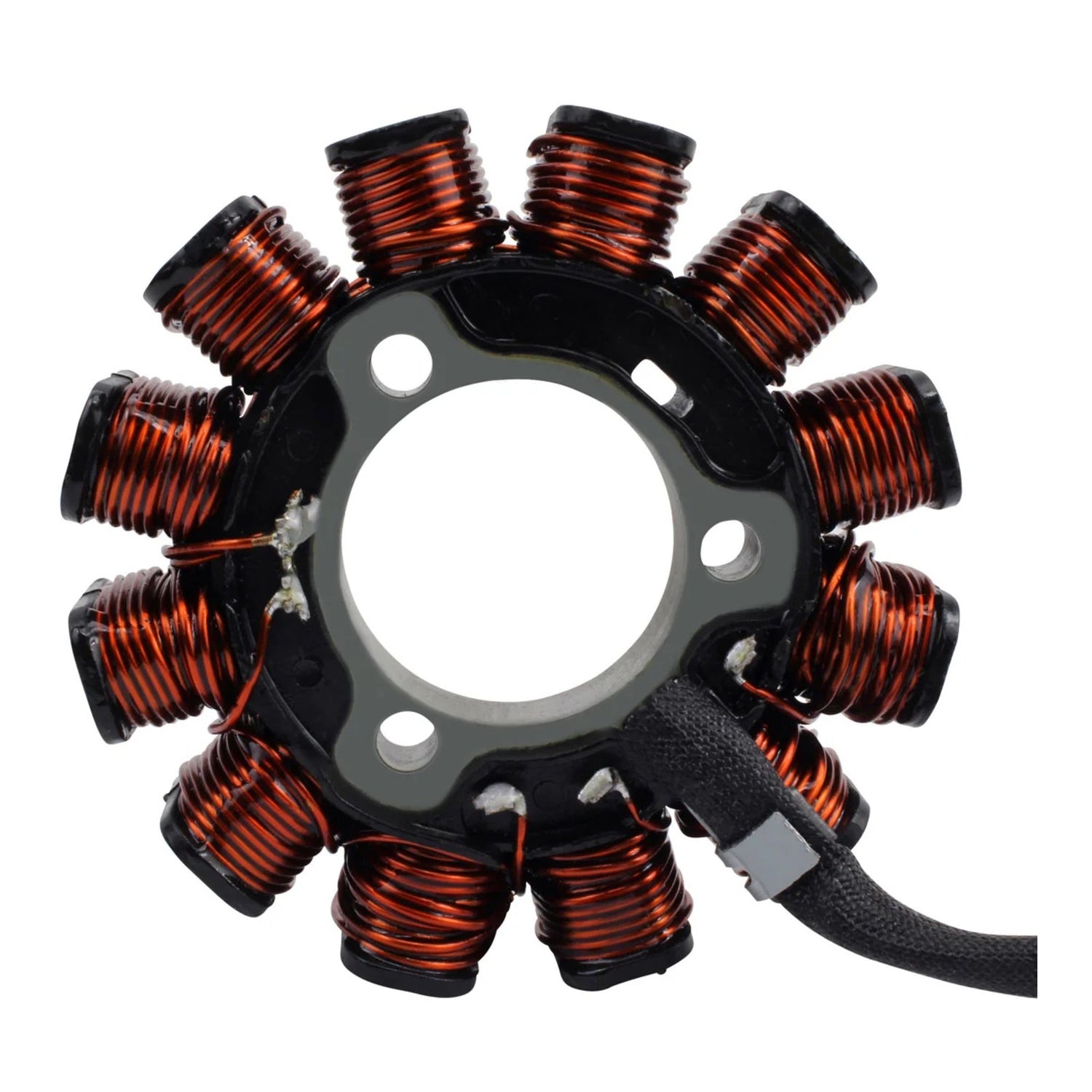

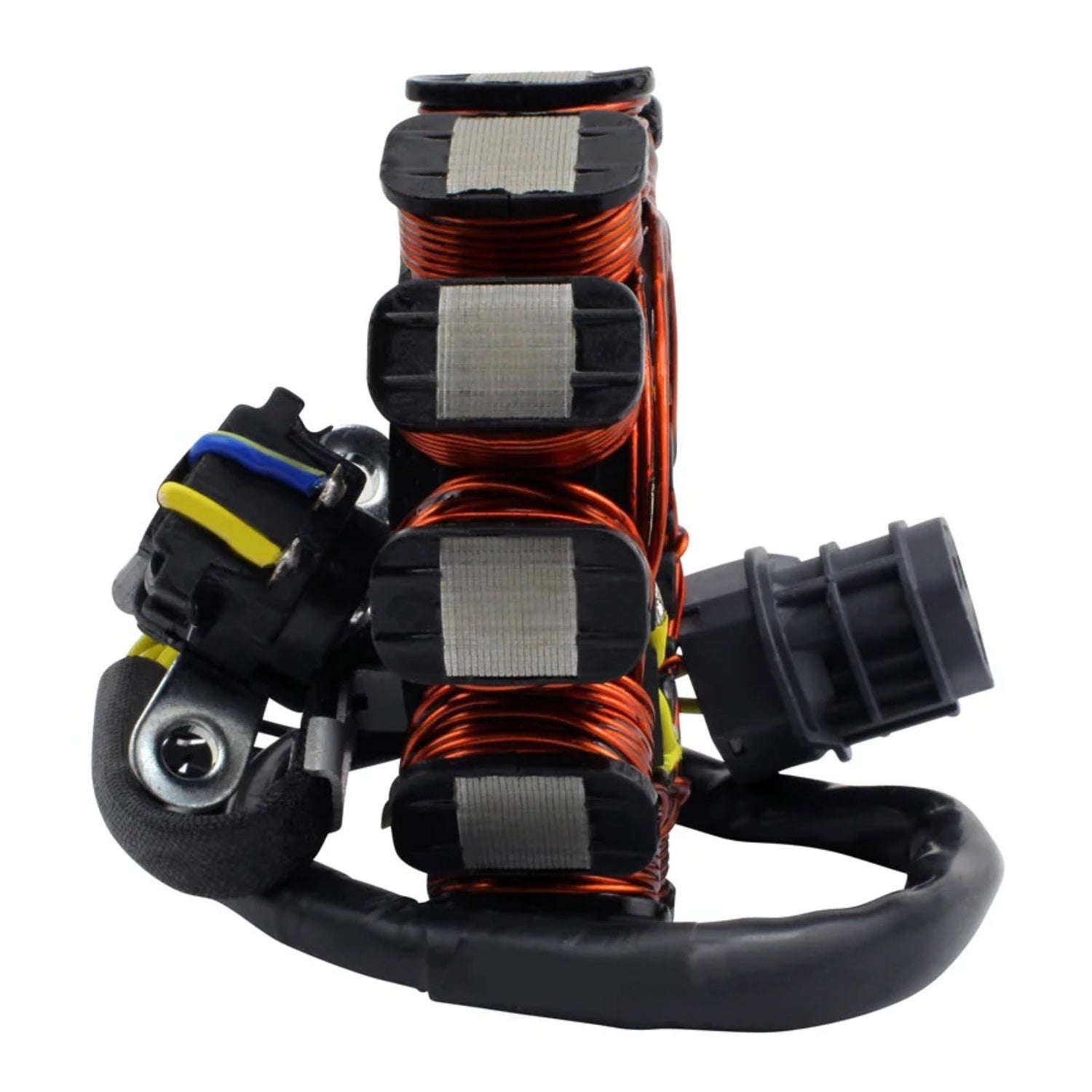

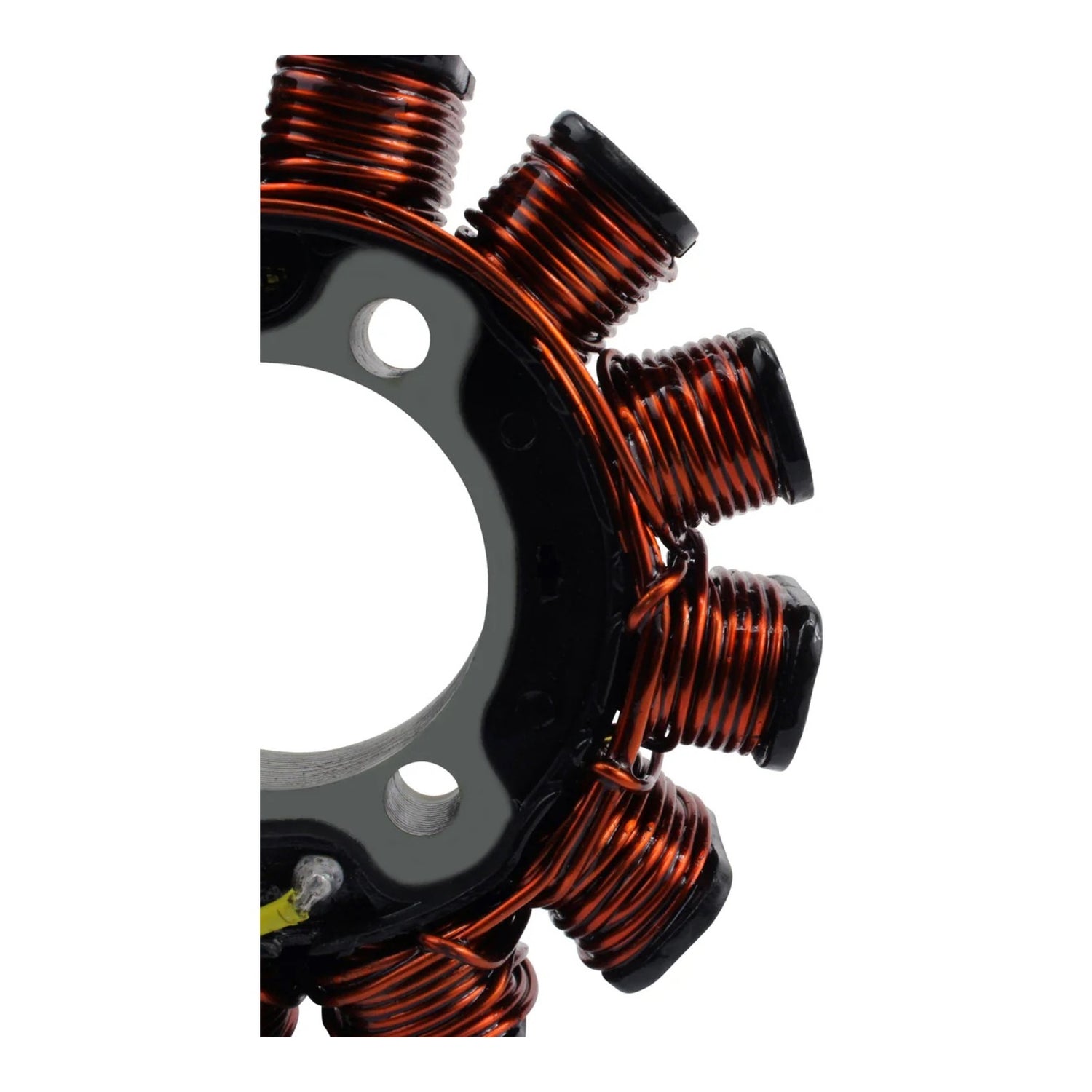

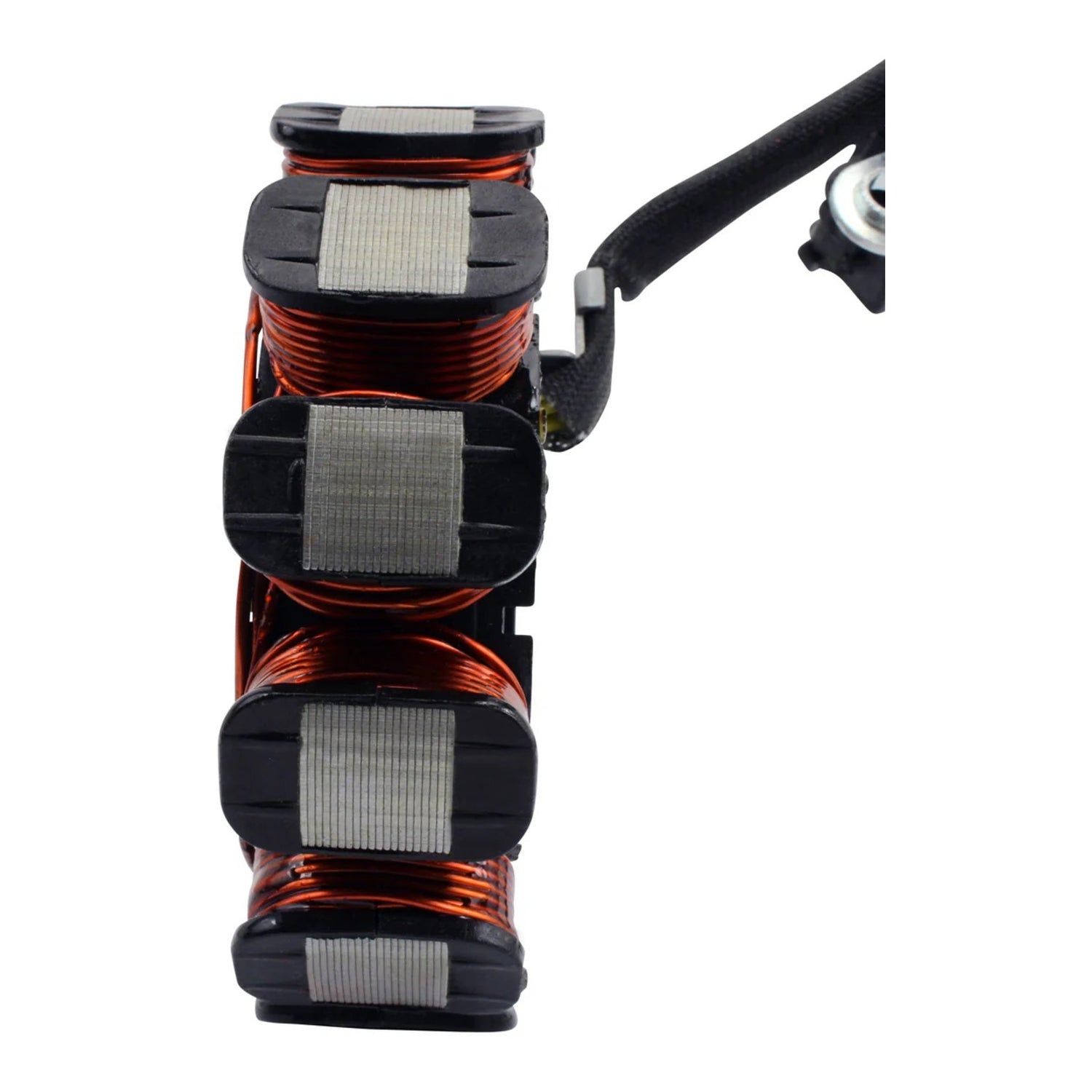

Brand new aftermarket high output stator 200W.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

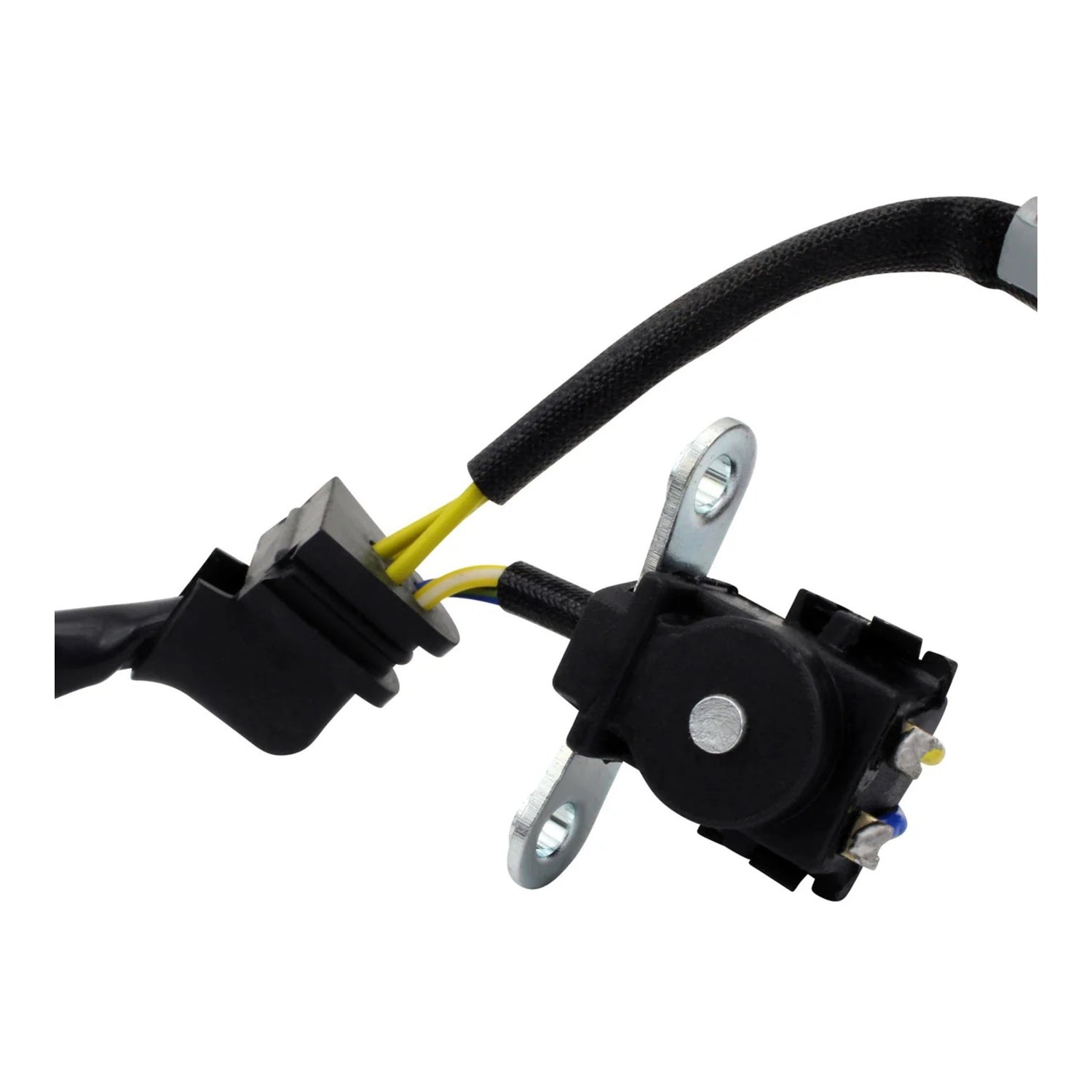

  • Pick up pulsar coil included

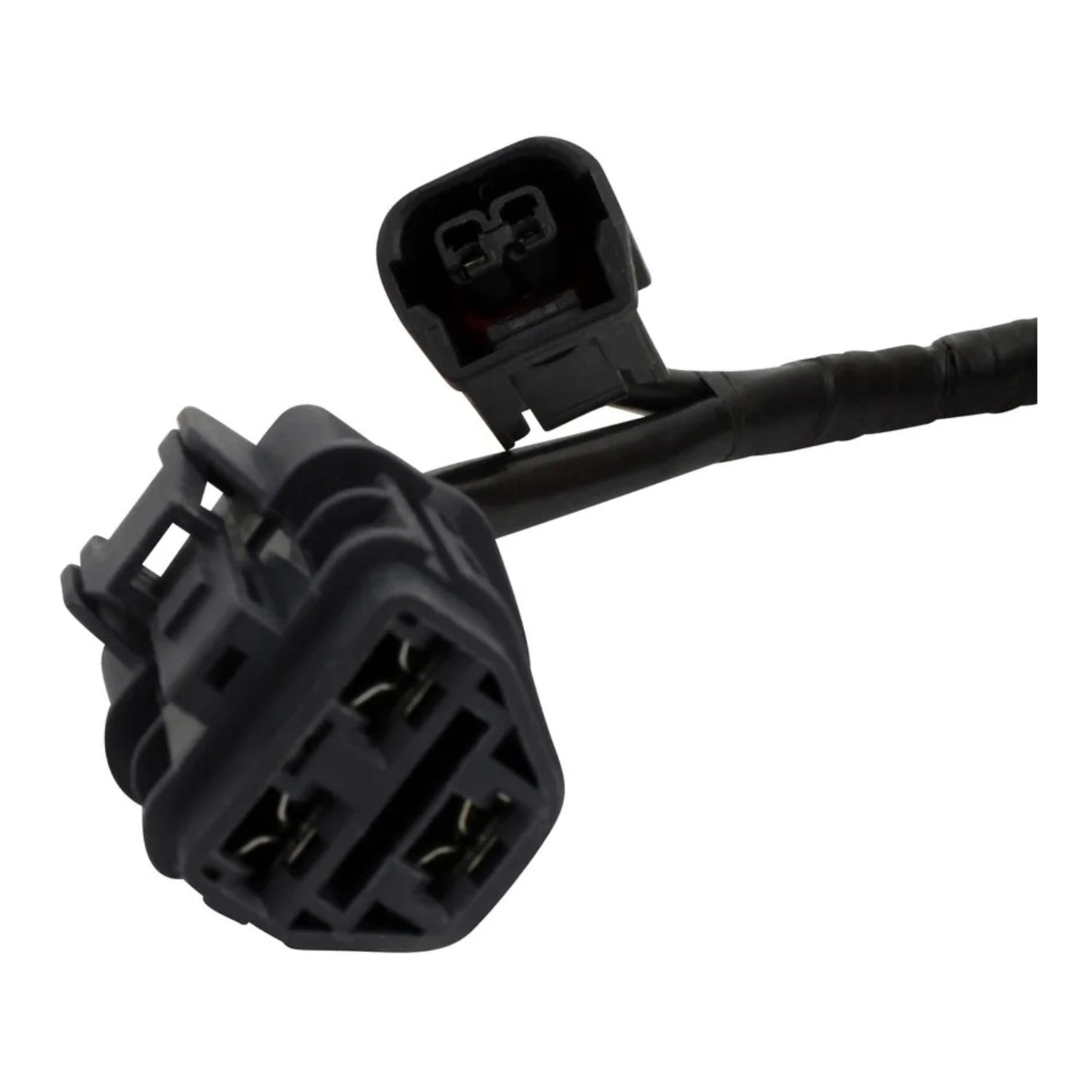

  • Connectors included

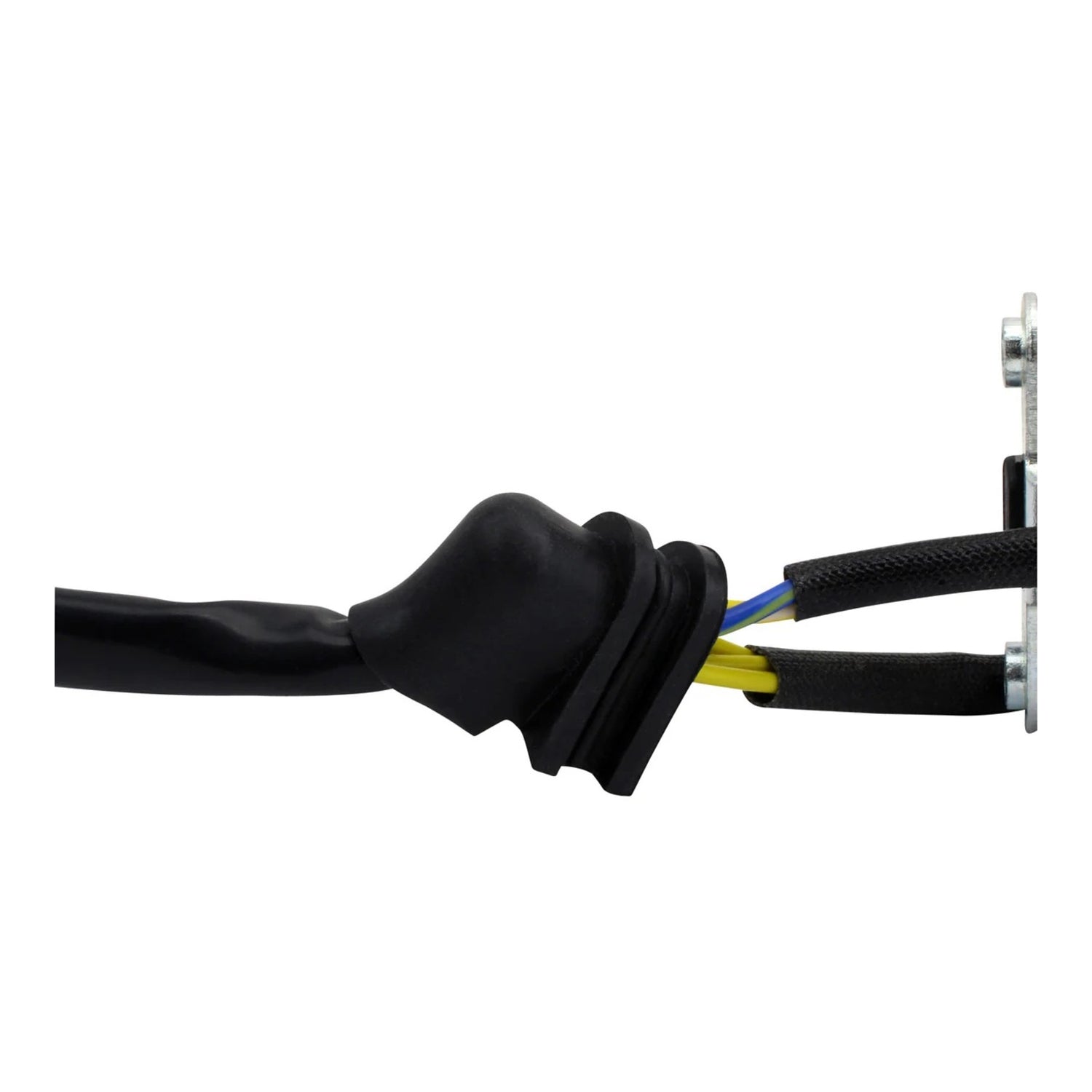

  • Rubber grommet included
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new high output stator 200W:

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 89 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 250 mm and 310 mm
  • Length of pickup coil's wire to grommet: 45 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 12
  • Wire to wire resistance:
  • Alternator: Yellow to Yellow = 1.3 ohms +/-20%
  • Alternator: Yellow to ground = O.L
  • Pickup: Blue/Yellow to White/Yellow = 240 ohms +/-20%

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
