RMSTATOR

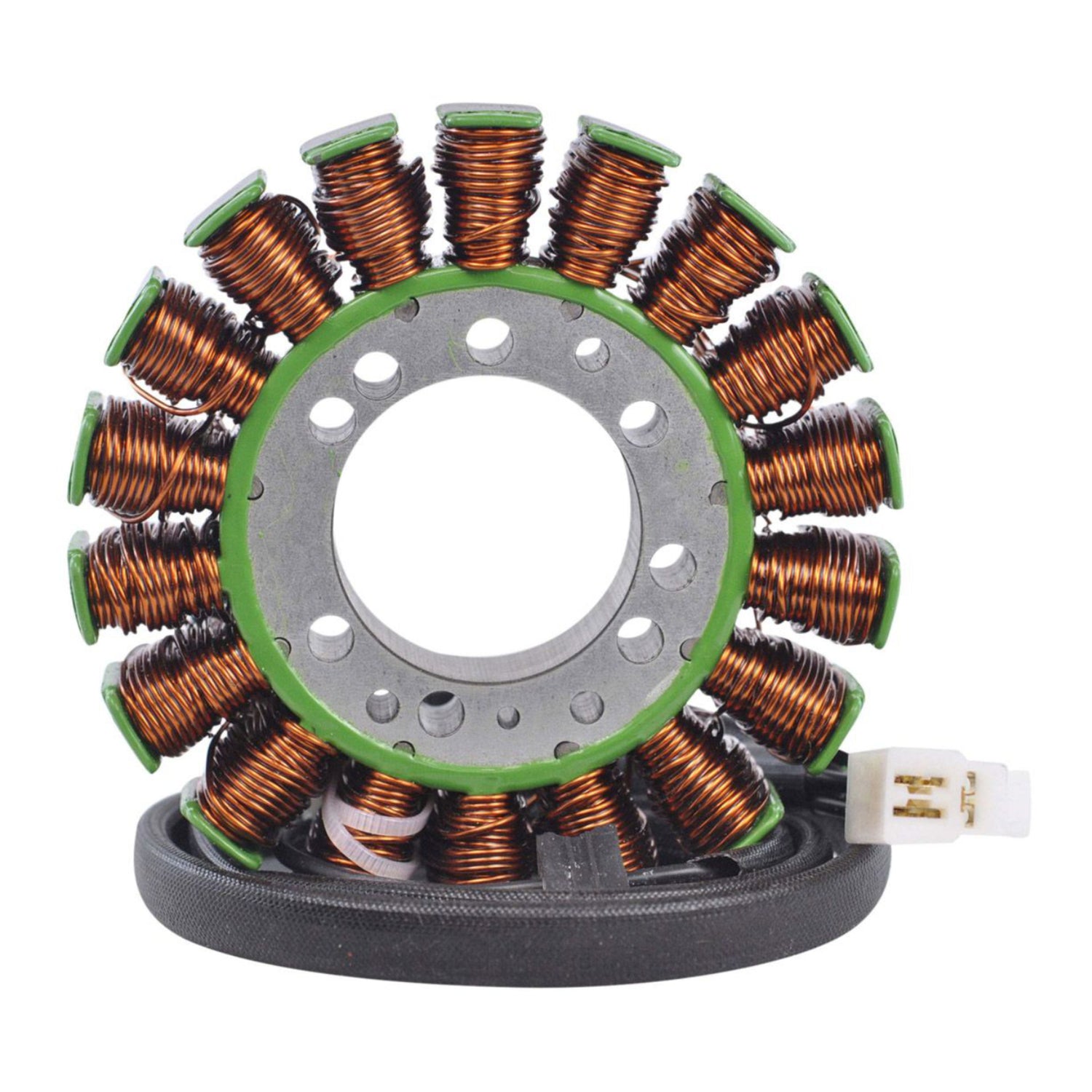

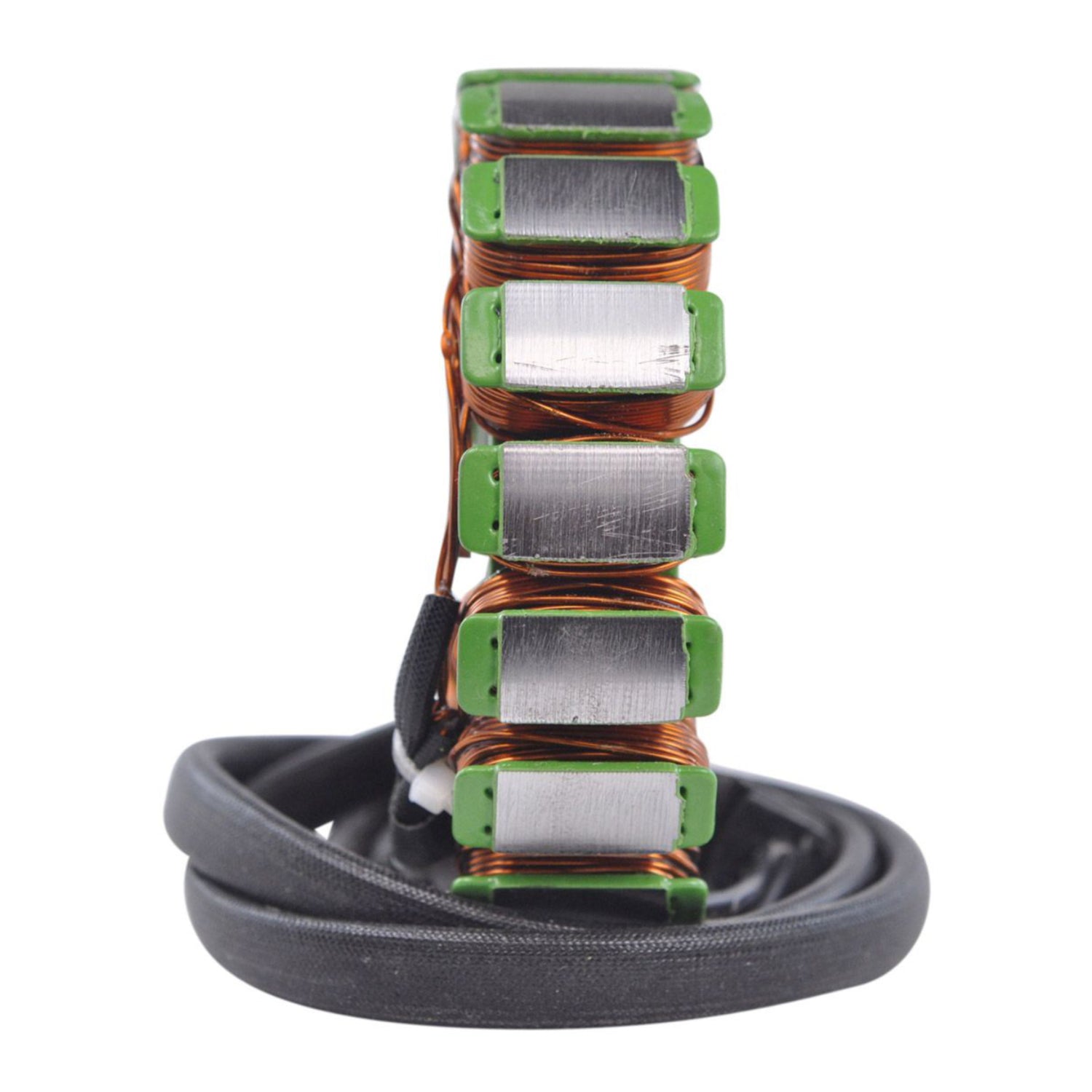

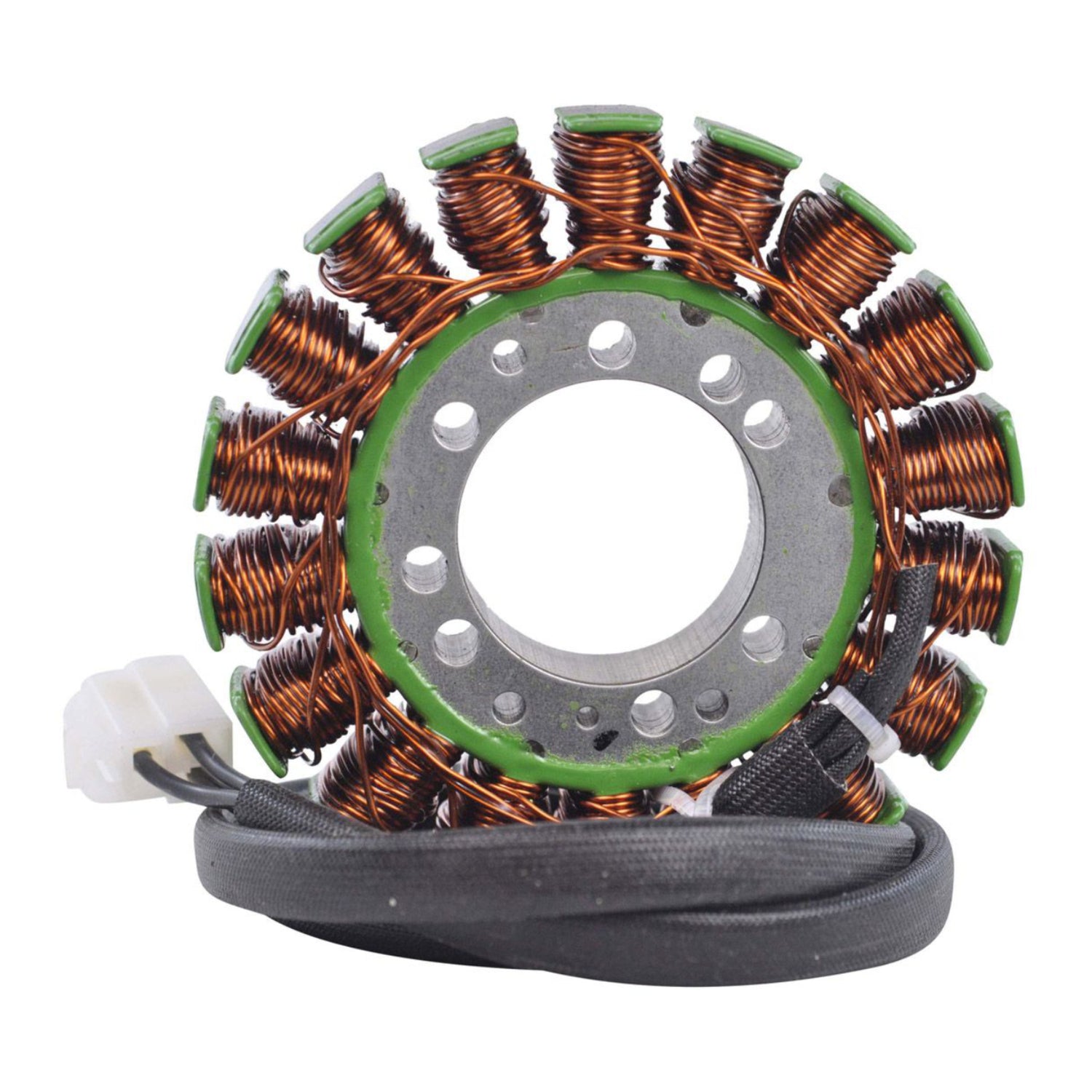

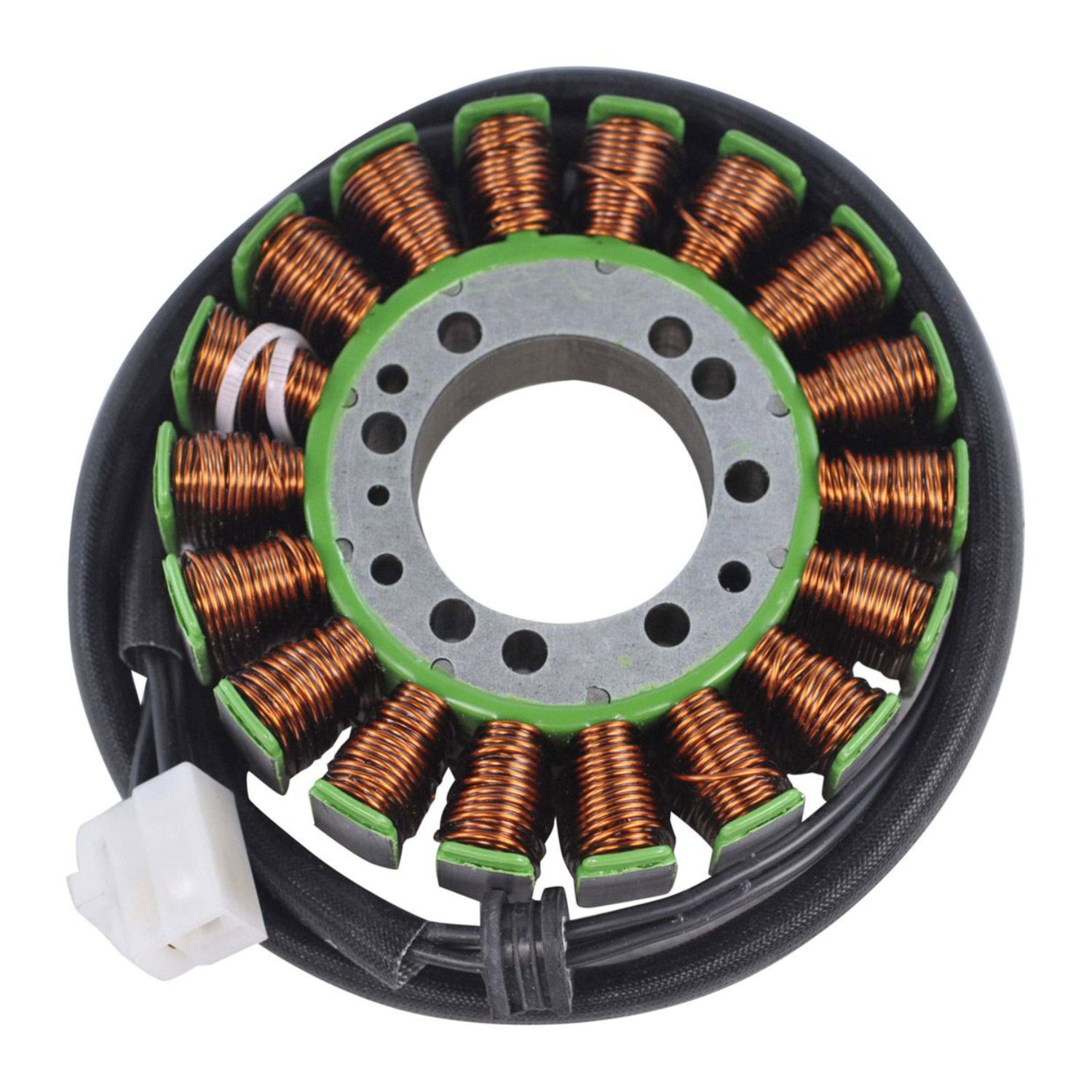

GENERATOR STATOR TRIUMPH DAYTONA 955i 02-06'

Part no.RMS01388S
Checking fitment…
$319.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS01388S
Part type
Stators
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Width: 21 mm

Other specifications:

  • Number of wires: 3

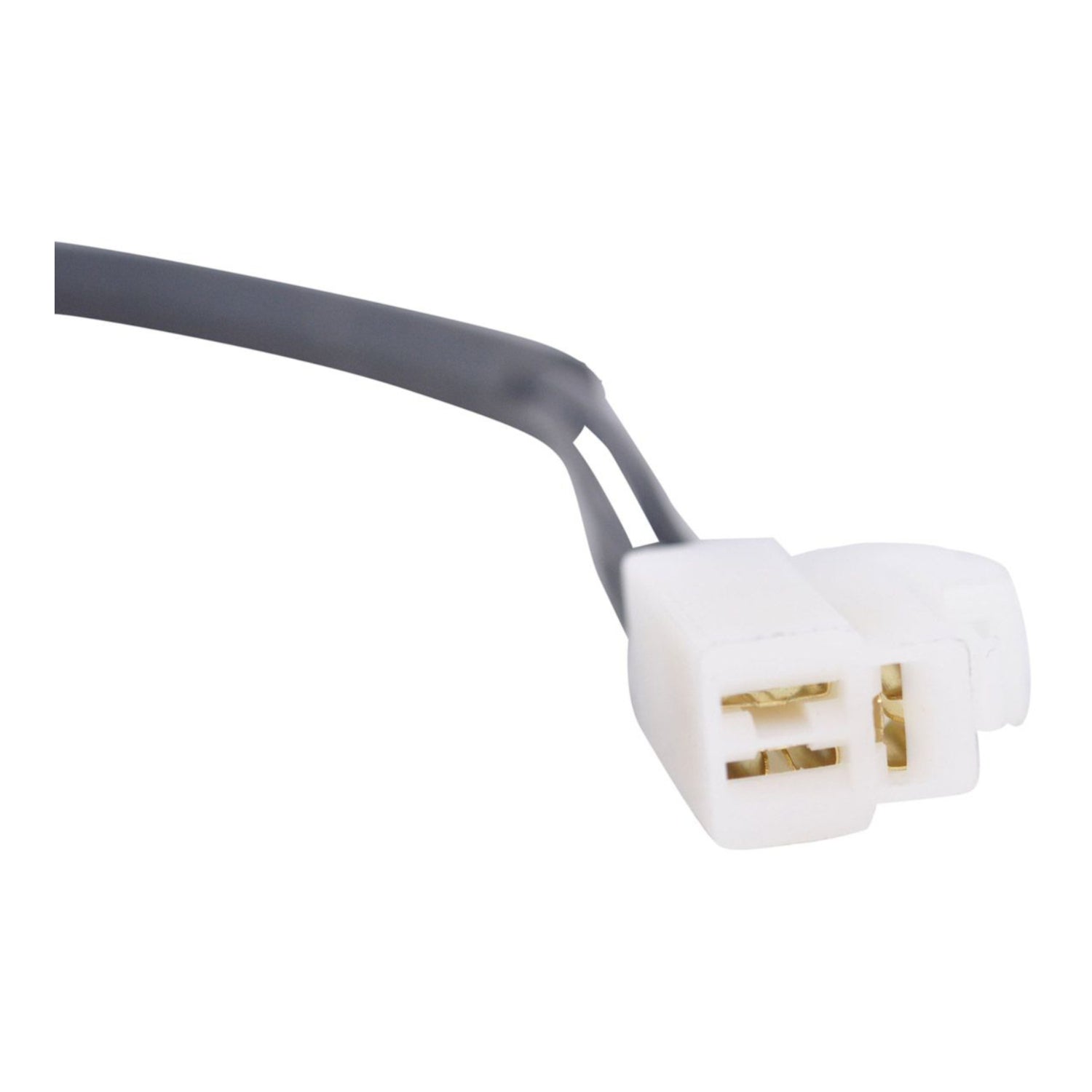

  • Number of plugs: 1
  • Number of terminals: 3
  • Harness length Stator to grommet: 80 mm
  • Harness length grommet to plug: 650 mm

Wire to wire resistance:

  • Alternator: Between each Black = 0.5 ohms +/- 20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. There are 2 possibles stators for Triumph Daytona 955i 2002-2006, our product RM01388S fits on serial number #179431 and below. The other possible Stator is RM01395.

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
