RMSTATOR

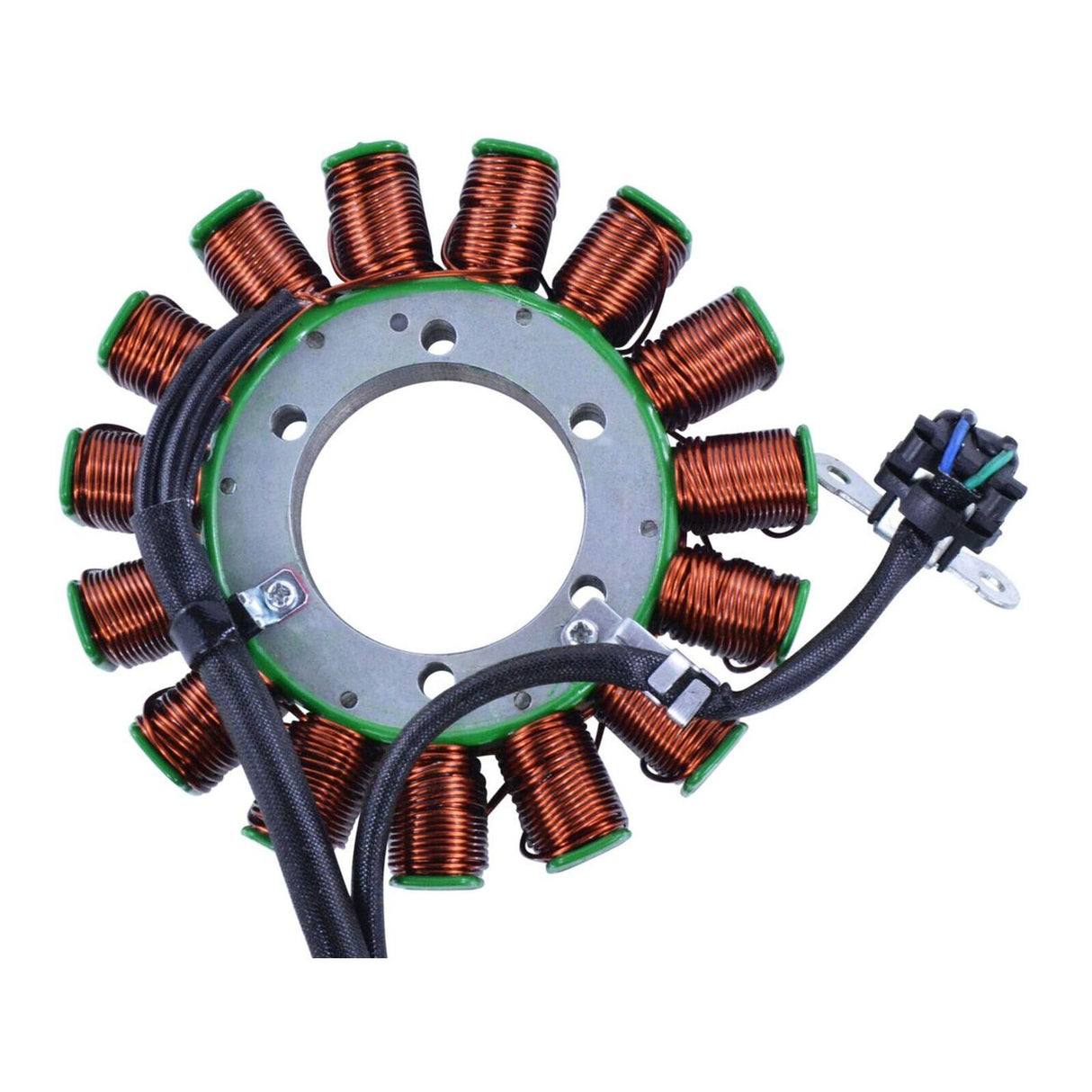

Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

Part no.RMS01596
Checking fitment…
$439.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS01596
Part type
STATOR
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

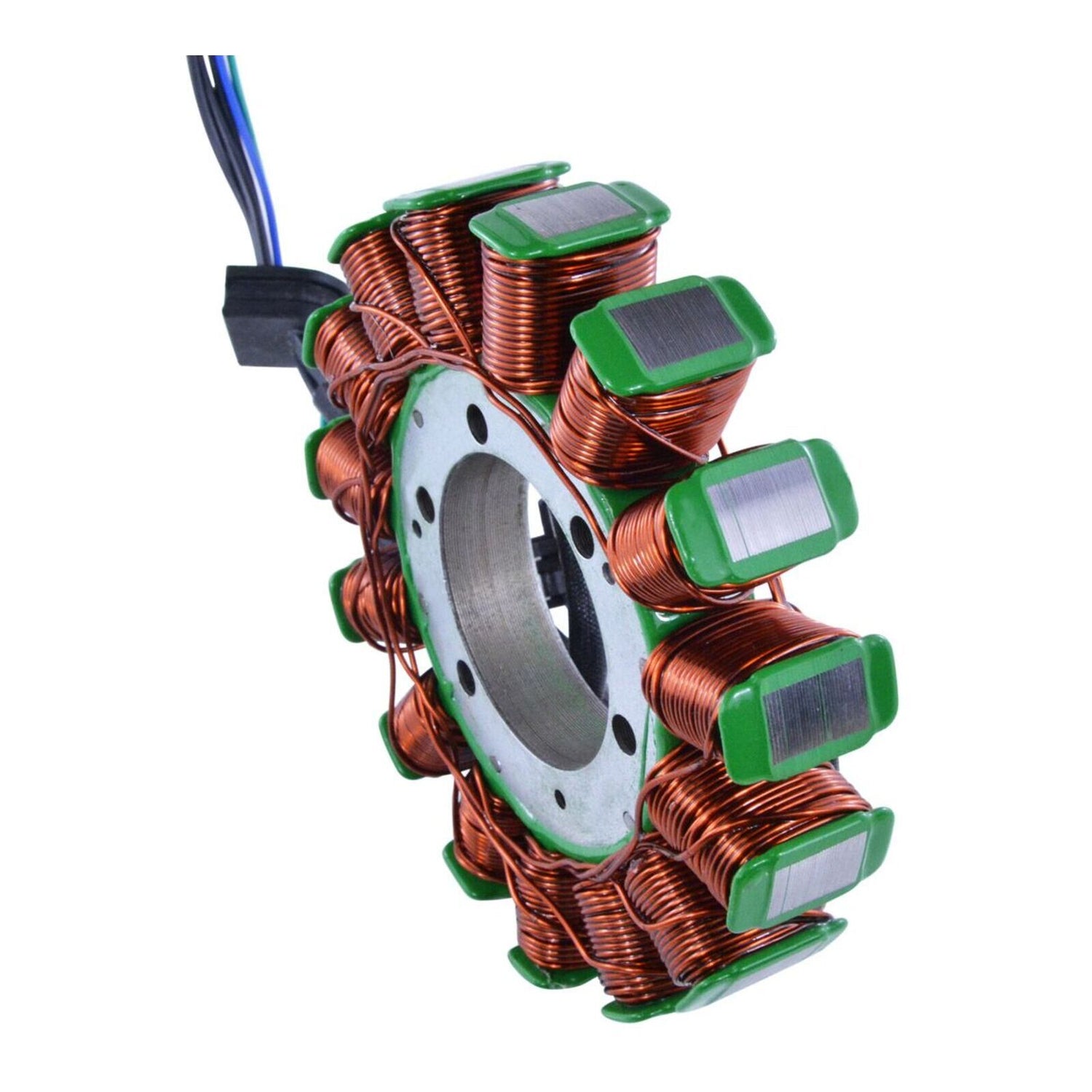

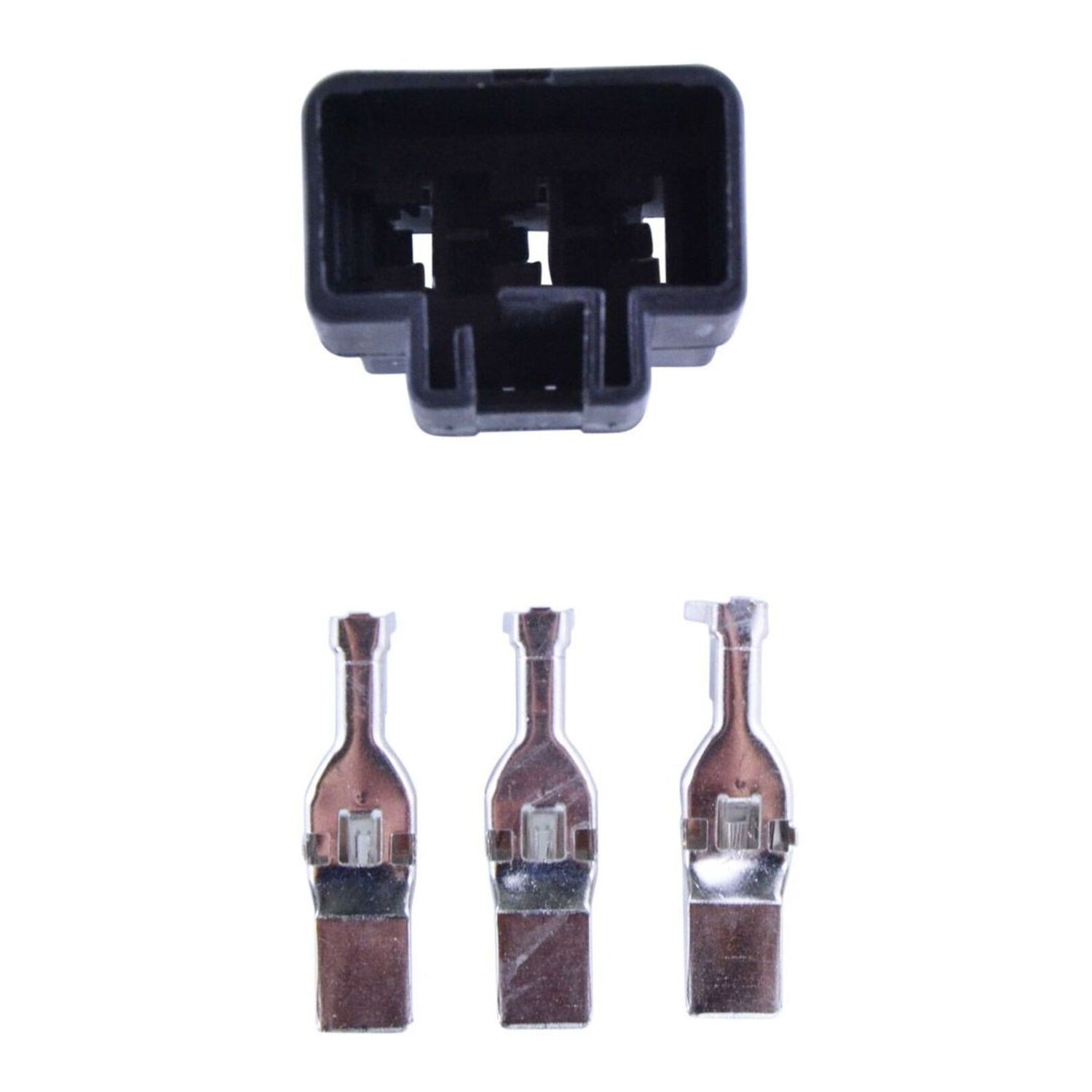

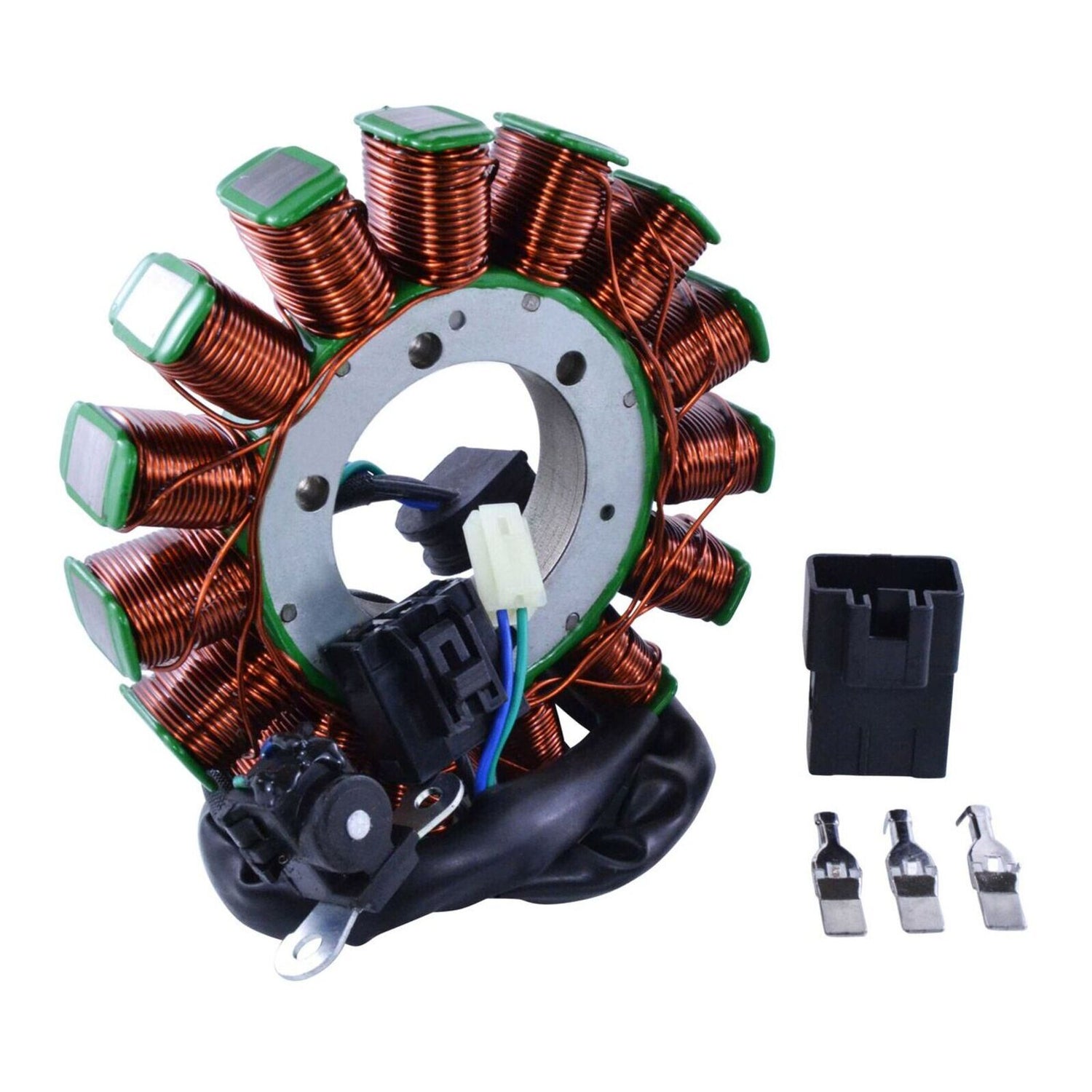

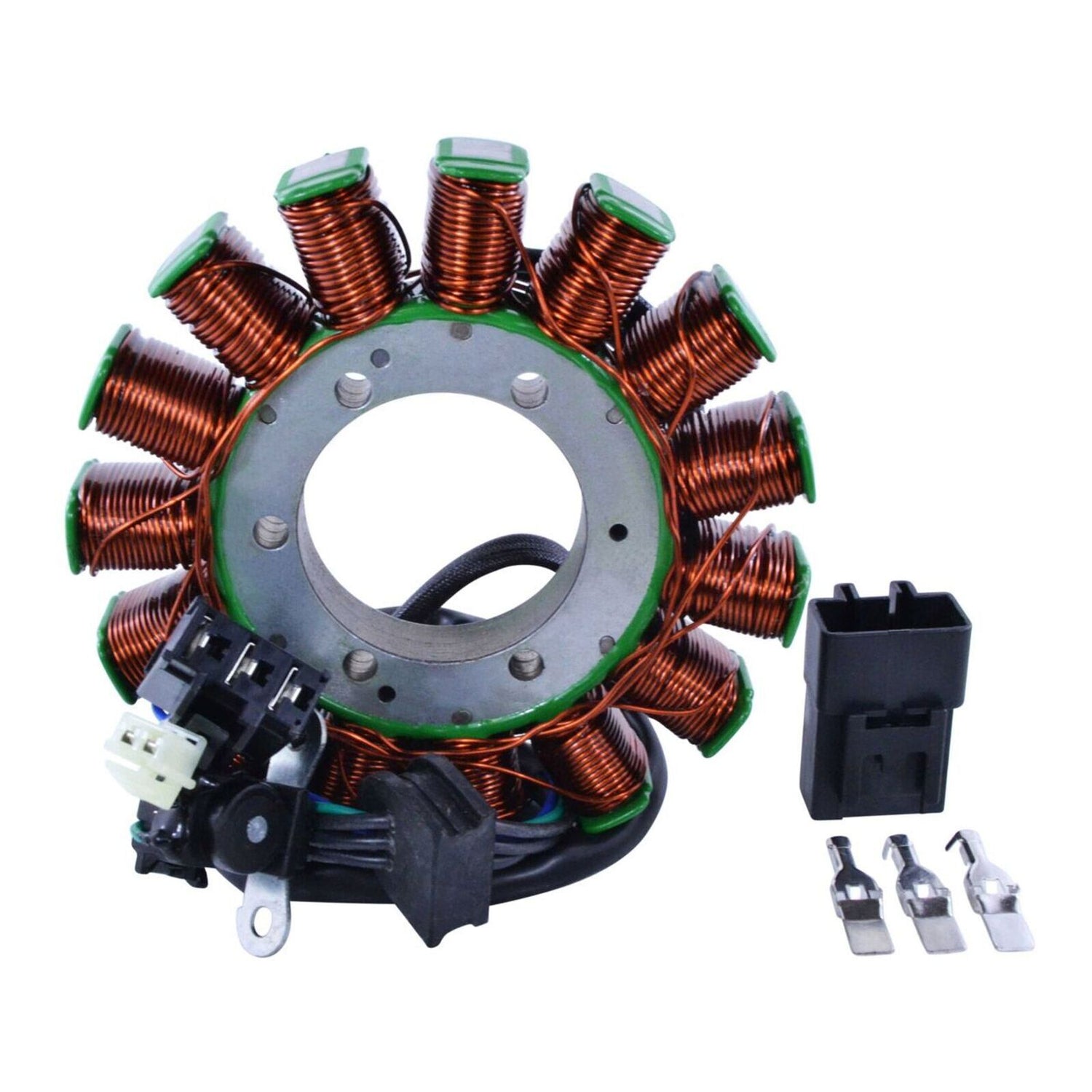

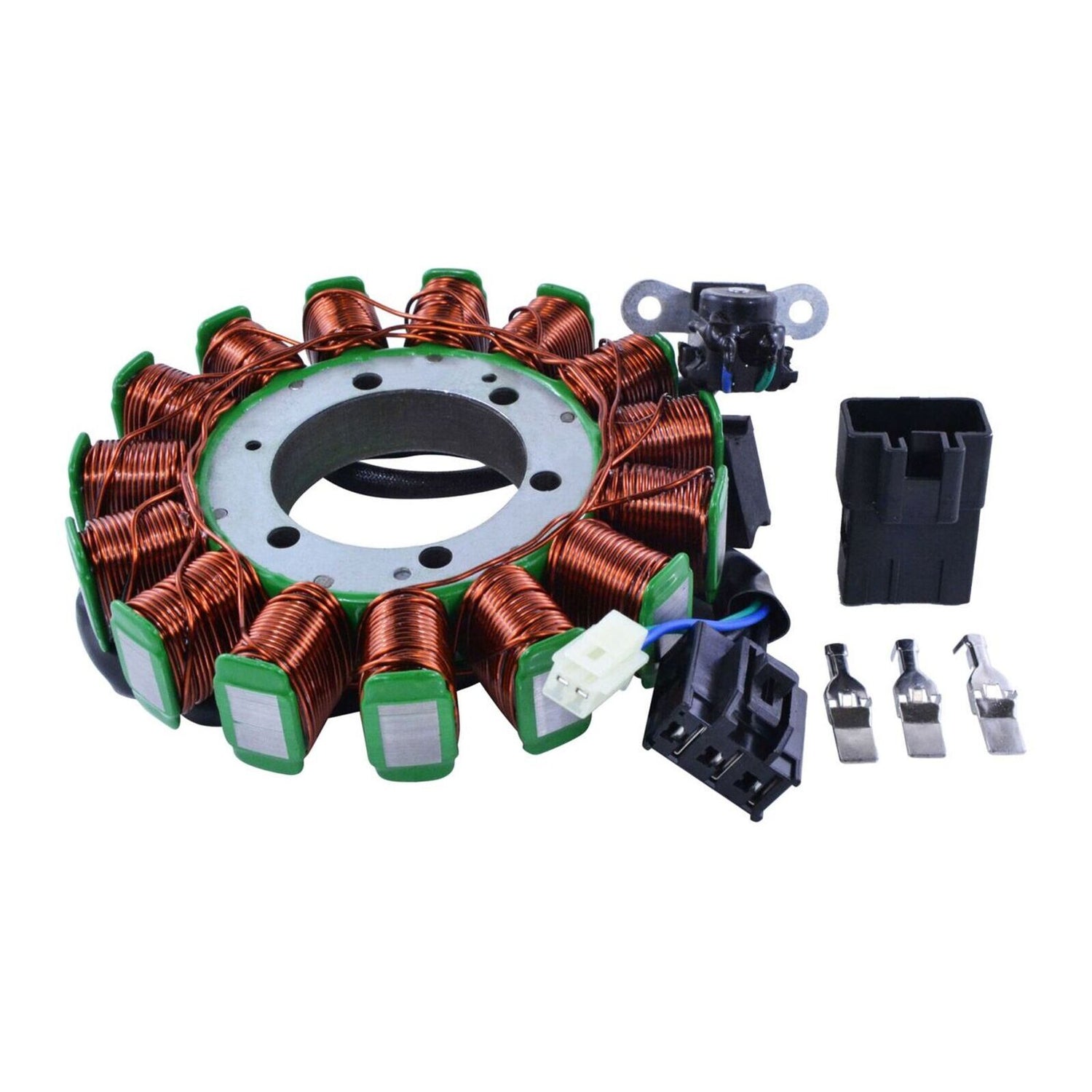

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest-grade lamination materials.

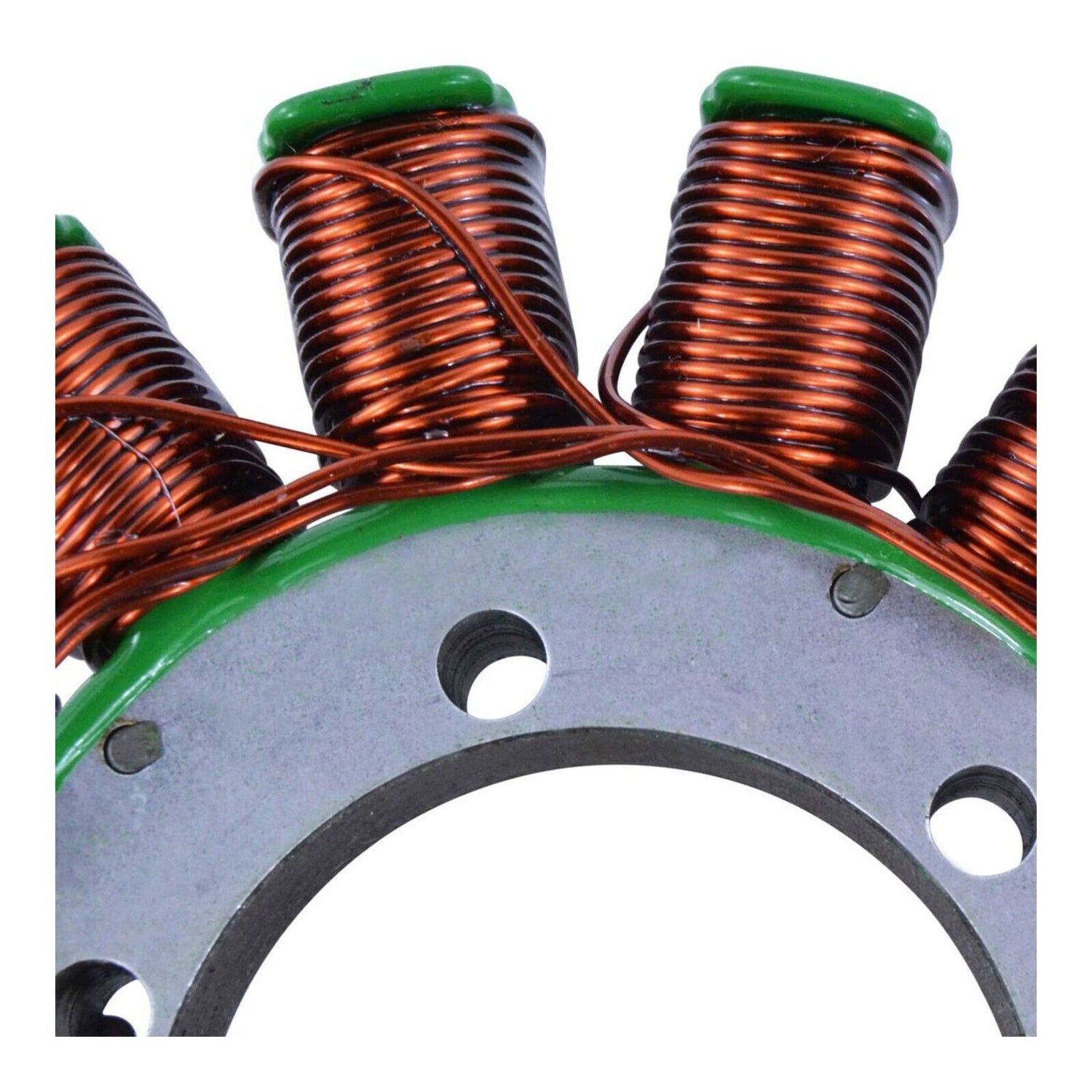

  • Highest grade copper windings, resistant to 200 degrees Celsius.

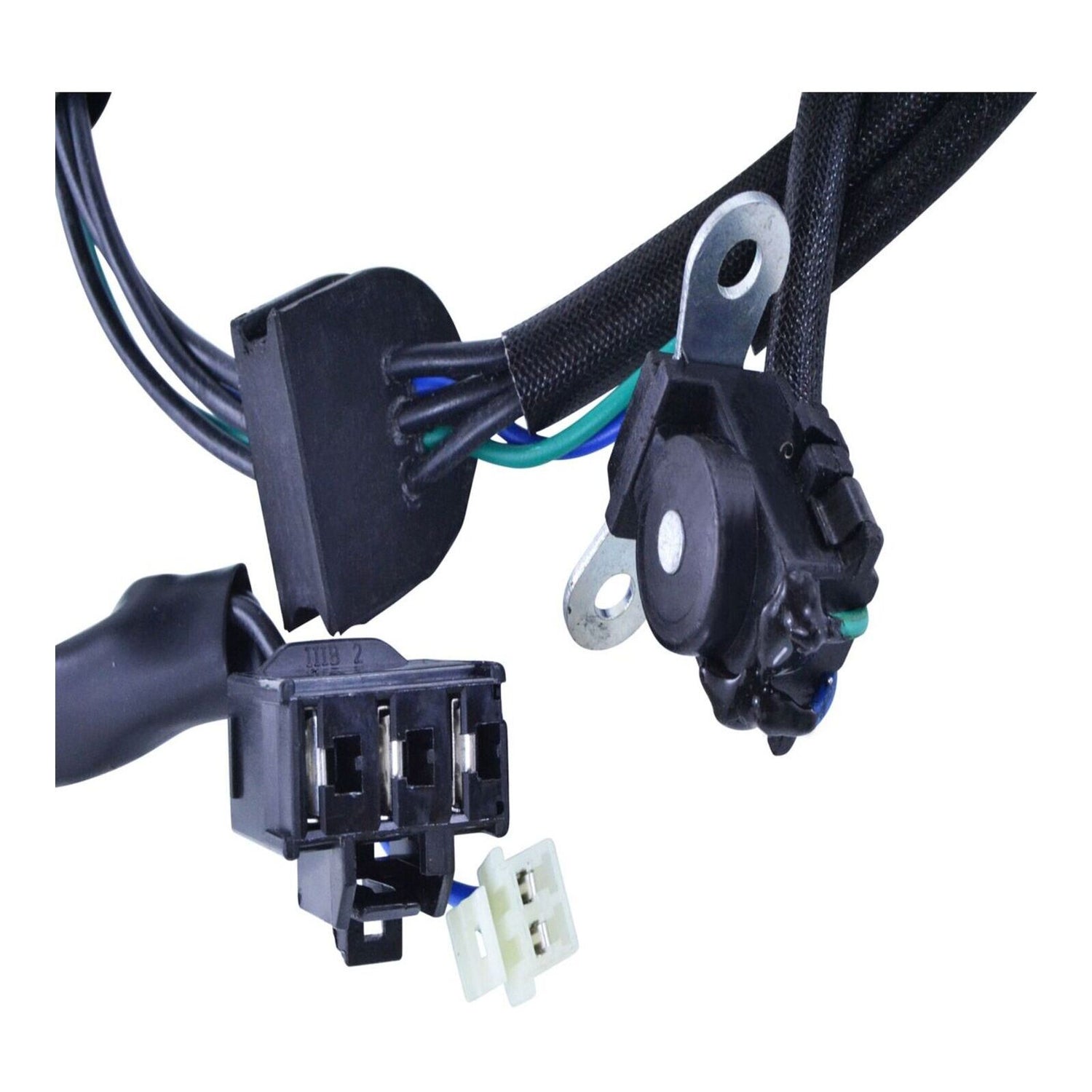

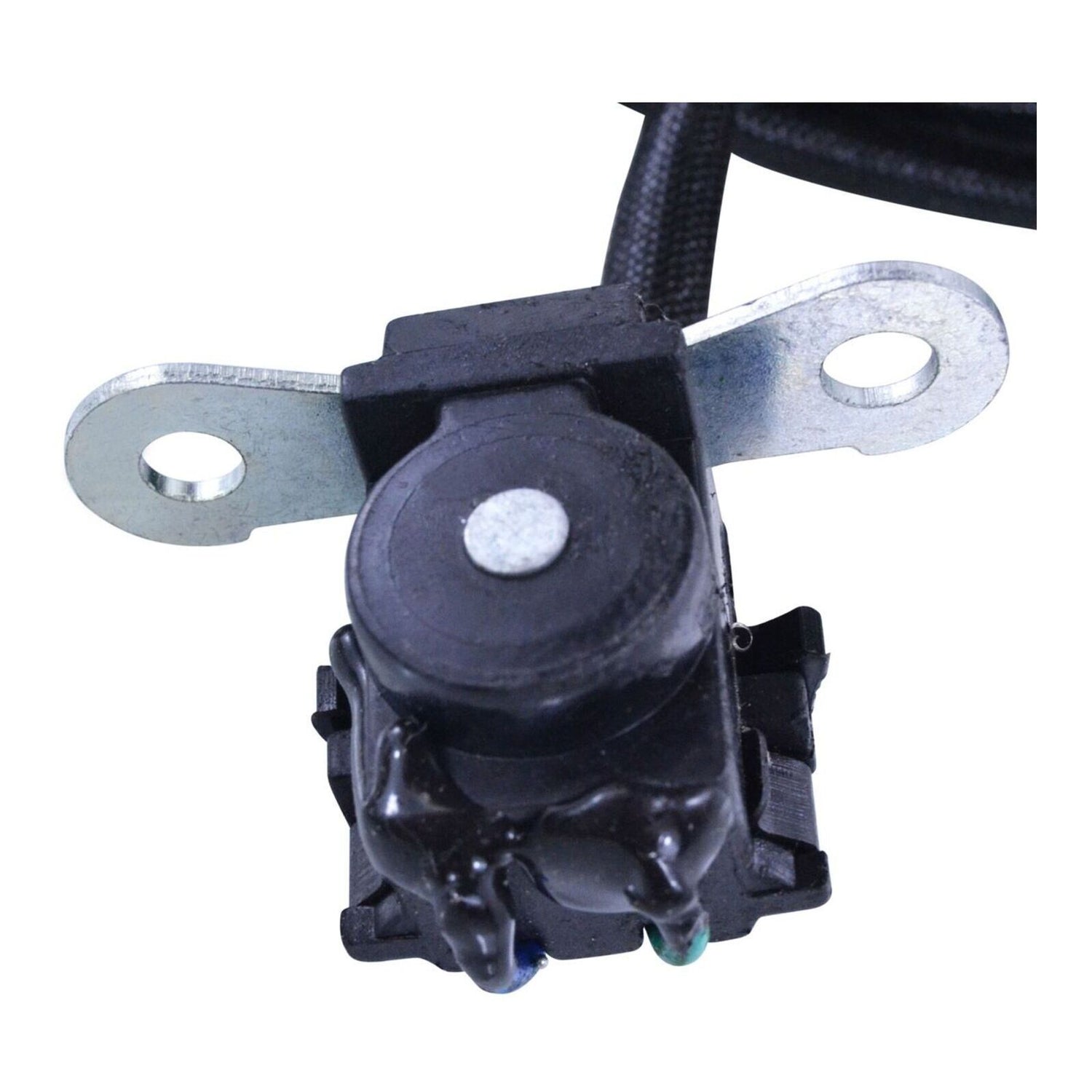

  • Pick up pulsar coil included.

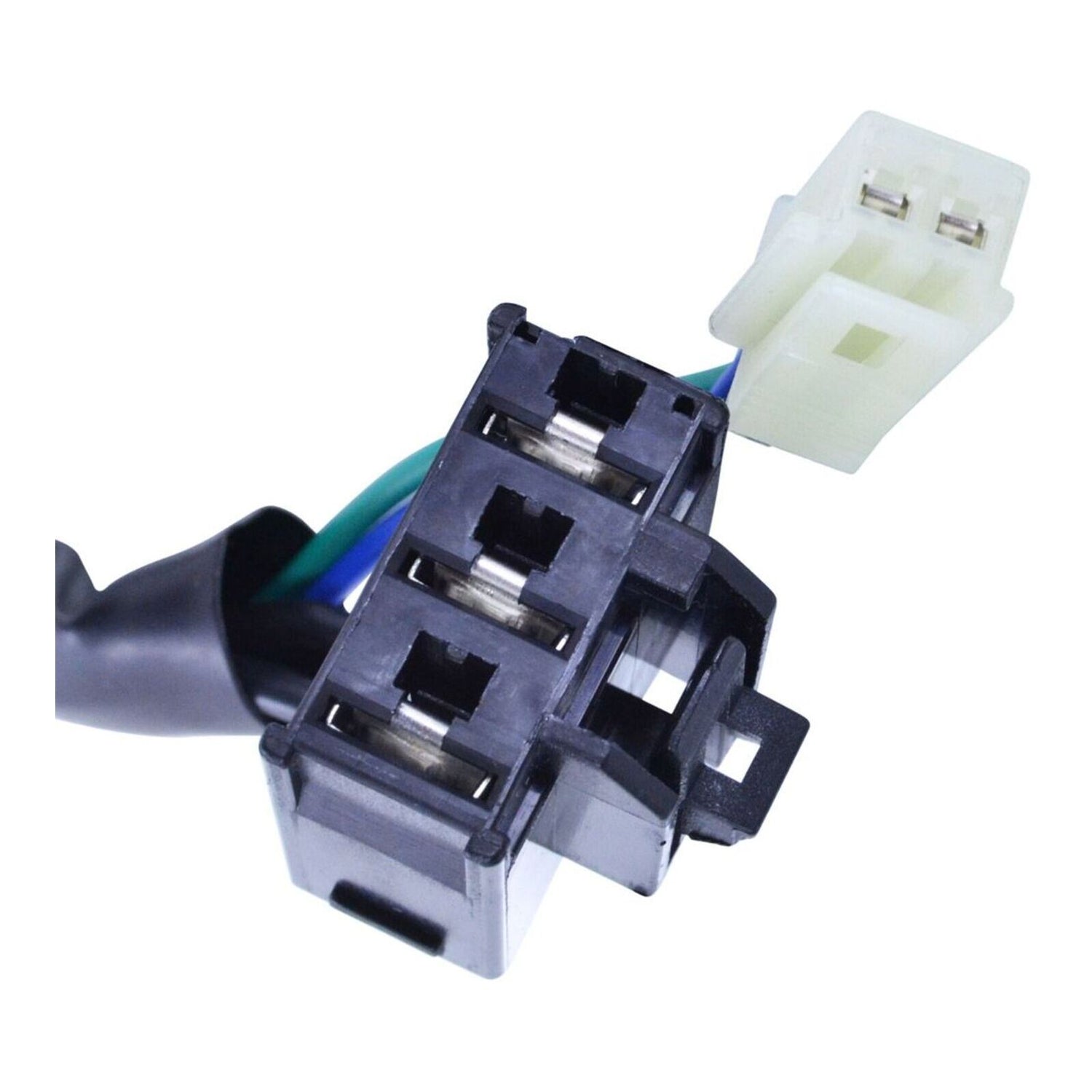

  • Connector included.

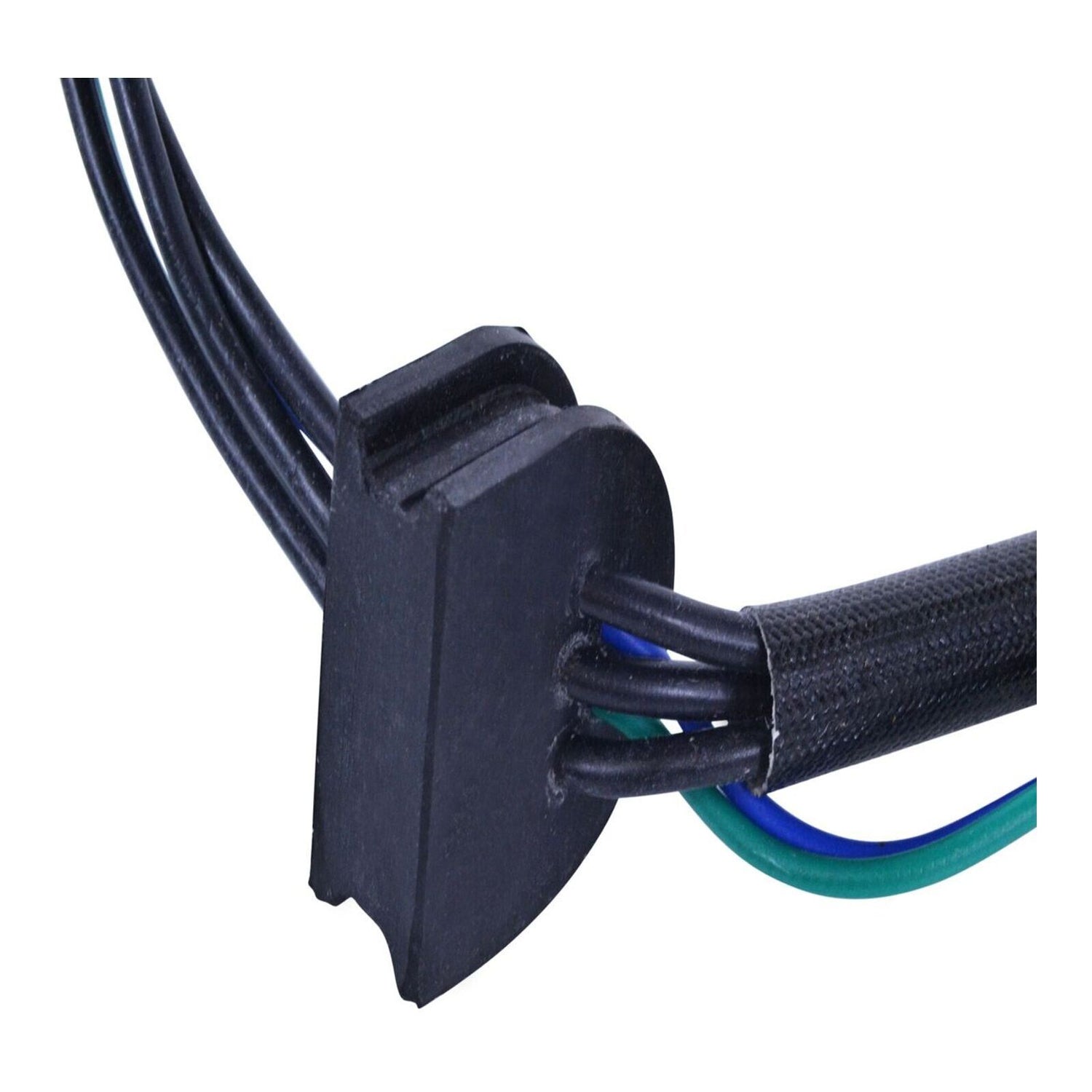

  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r diameter: 54 mm
  • Exterior diameter: 140 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 420 mm
  • Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Wire to Wire Resistance:

  • Alternator: Black to Black = 0.5 ohms ±20%
  • Pickup: Blue to Green = 239 ohms ±20%

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
