Rectifier - Yamaha Outboard (RMS020-102113)
- Brand
- RMSTATOR
- Part number
- RMS020102113
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020102113 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-102113 |
| Warranty | Full manufacturer warranty |
Brand new aftermarket voltage regulator rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested

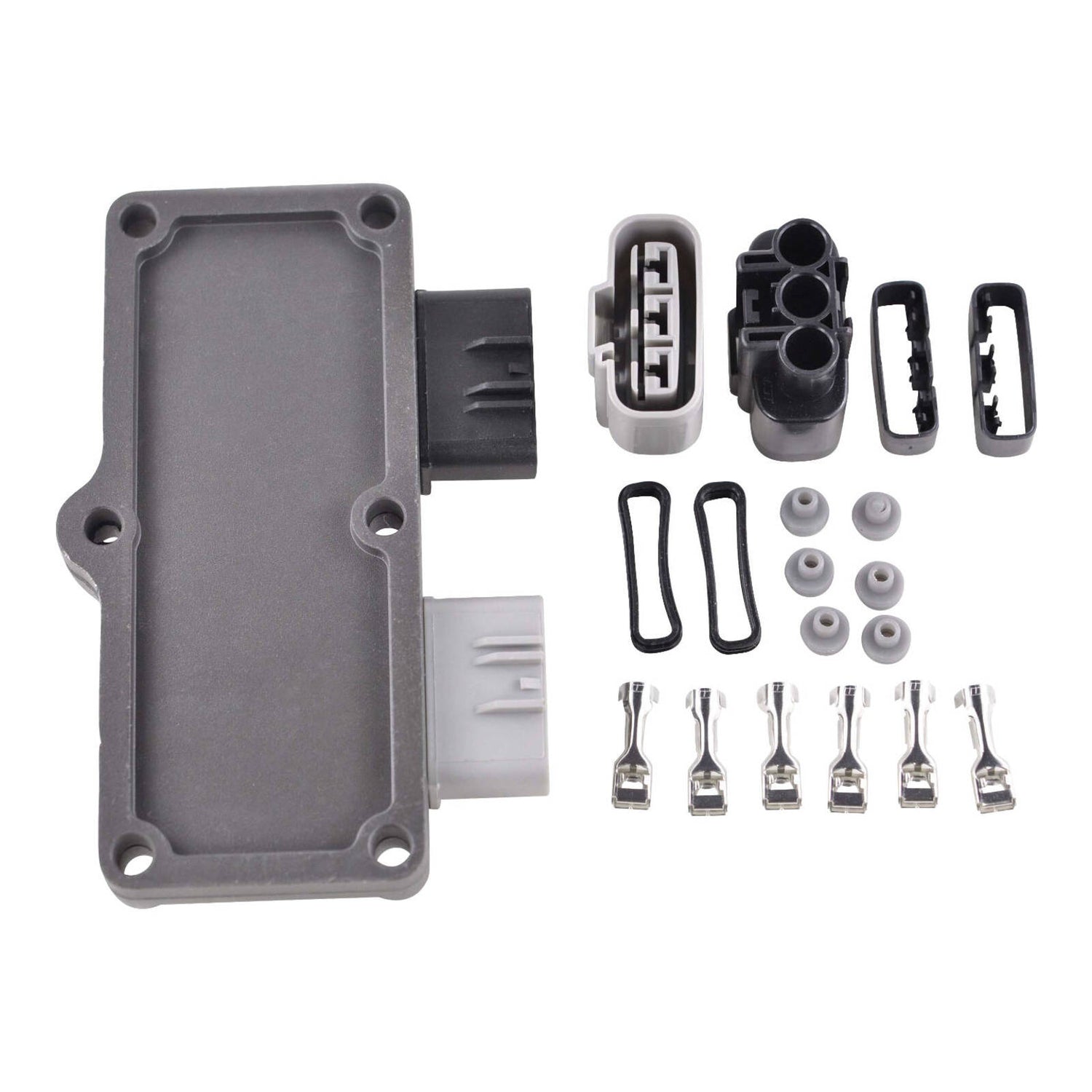

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

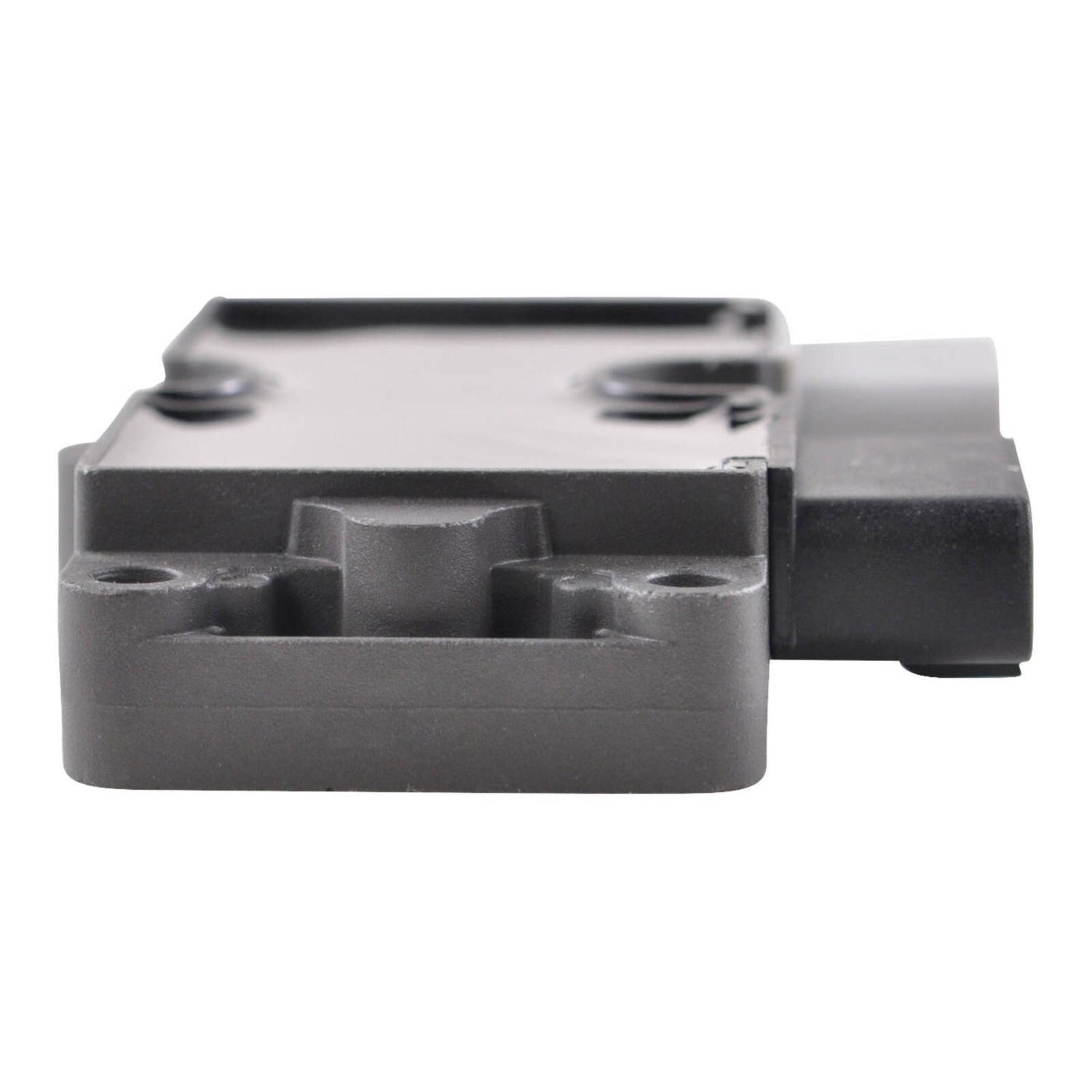

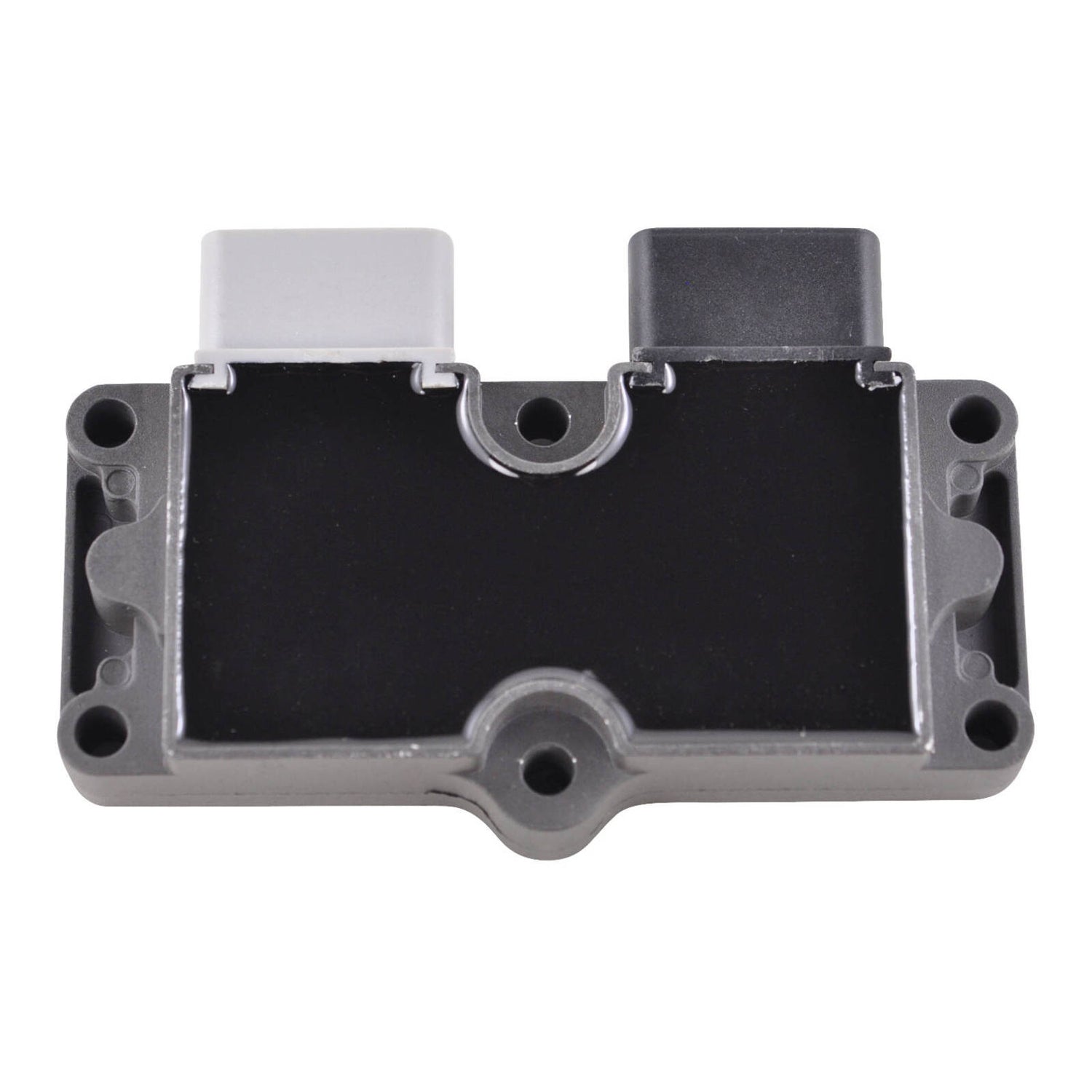

Dimensions:
- Width: 58 mm
- Length: 136 mm
- Height: 25 mm
- Wires length: 110 mm
- Distance between fixation holes centre to centre: 46 mm, 62 mm, 125 mm
Other specifications:

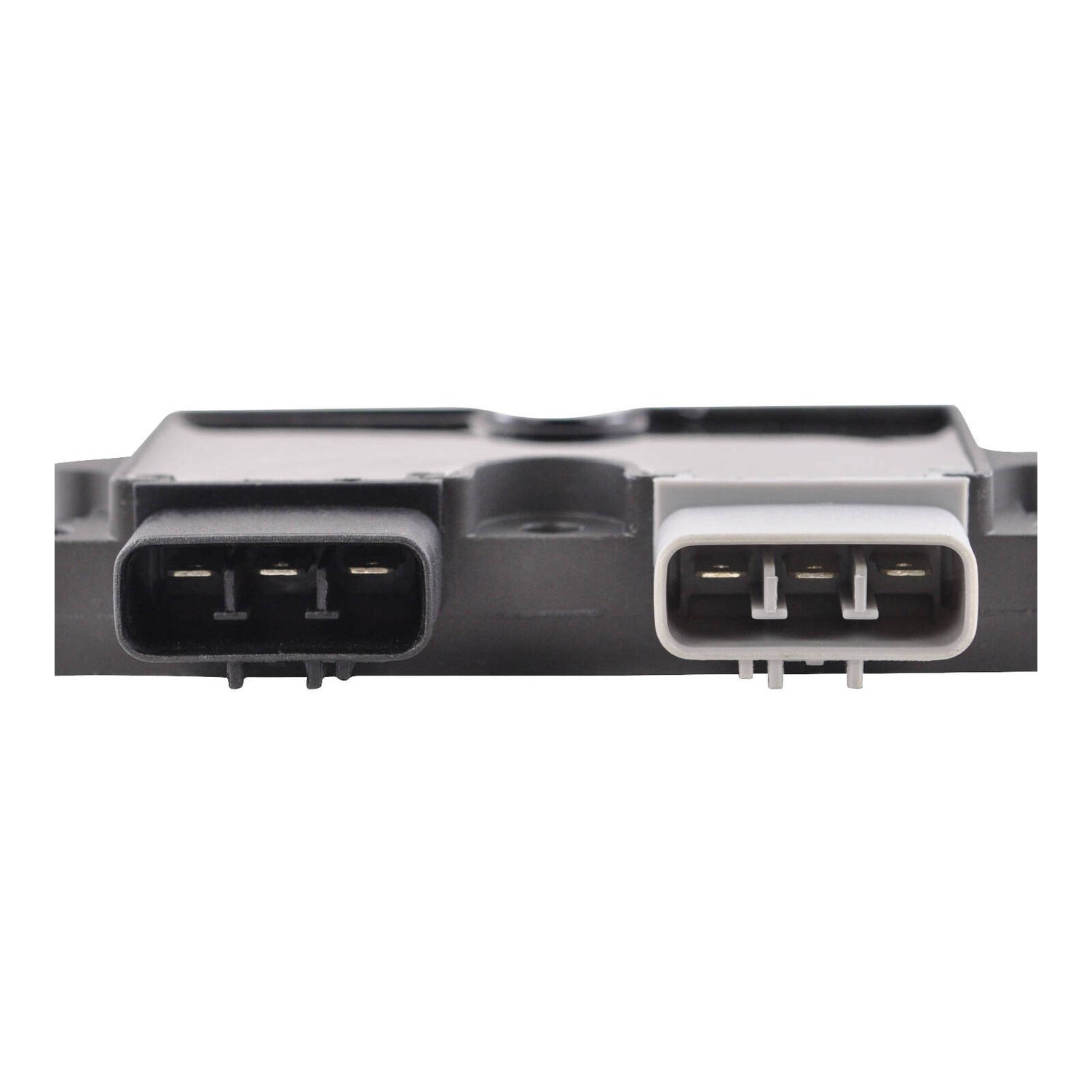

- Number of plugs: 2
- Number of pins: 6
- Number of wires: 6
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
