RMSTATOR

Mosfet Regulator Assorted Honda RFR Fitments (RMS020-102340)

Part no.RMS020102340
Checking fitment…
$229.99
GST included
In stock – only 3 left – ships from Brisbane Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS020102340
Part type
Regulator / Rectifiers
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

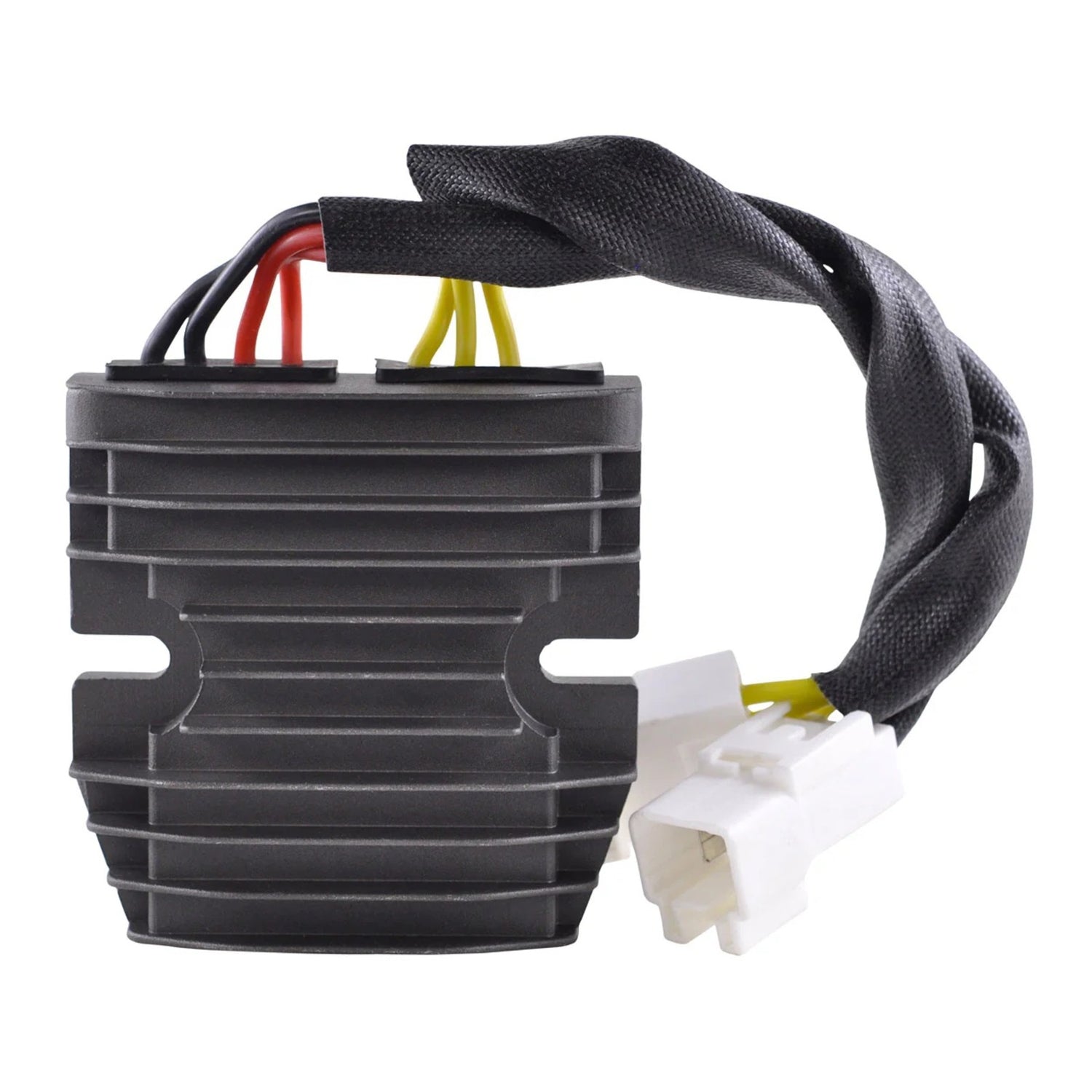

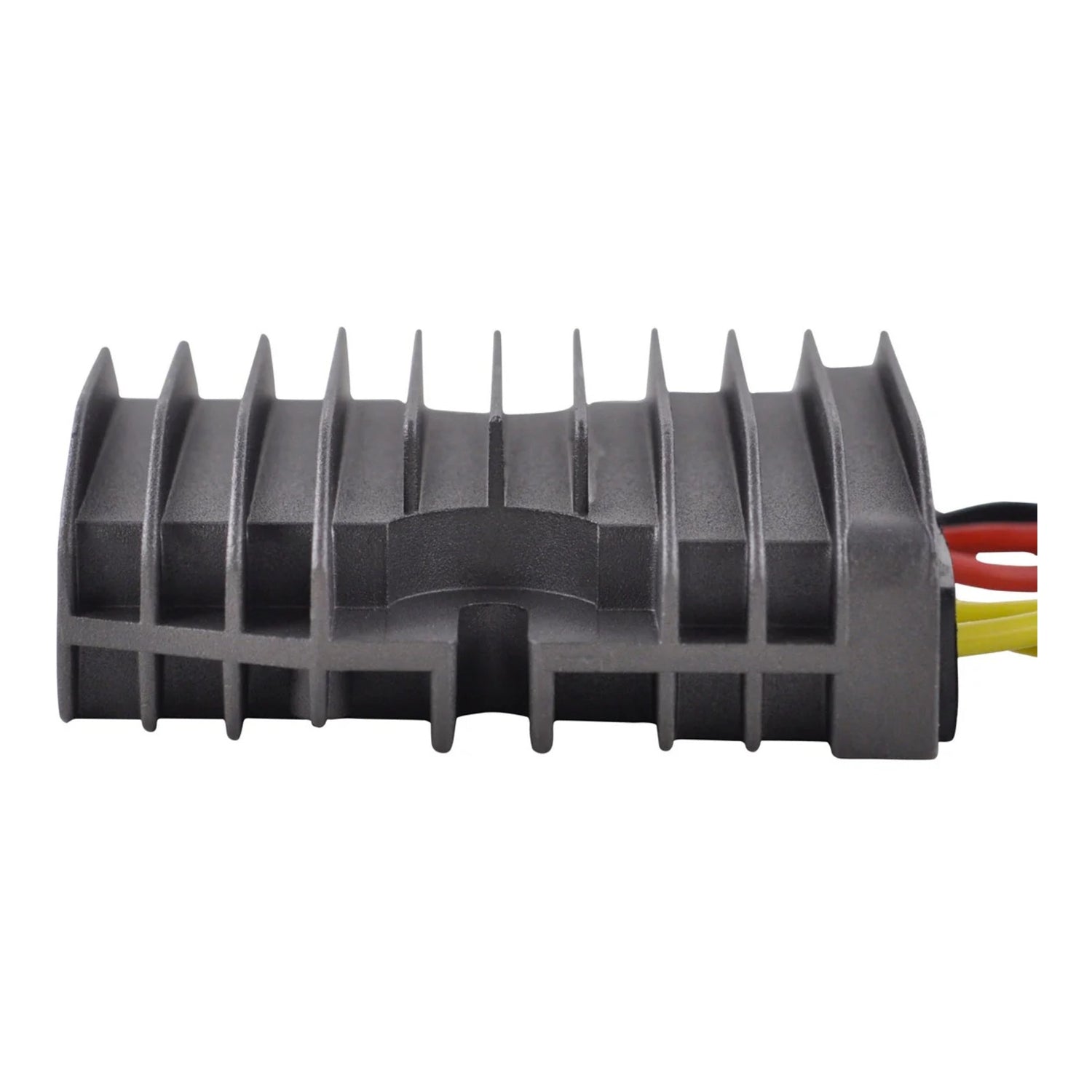

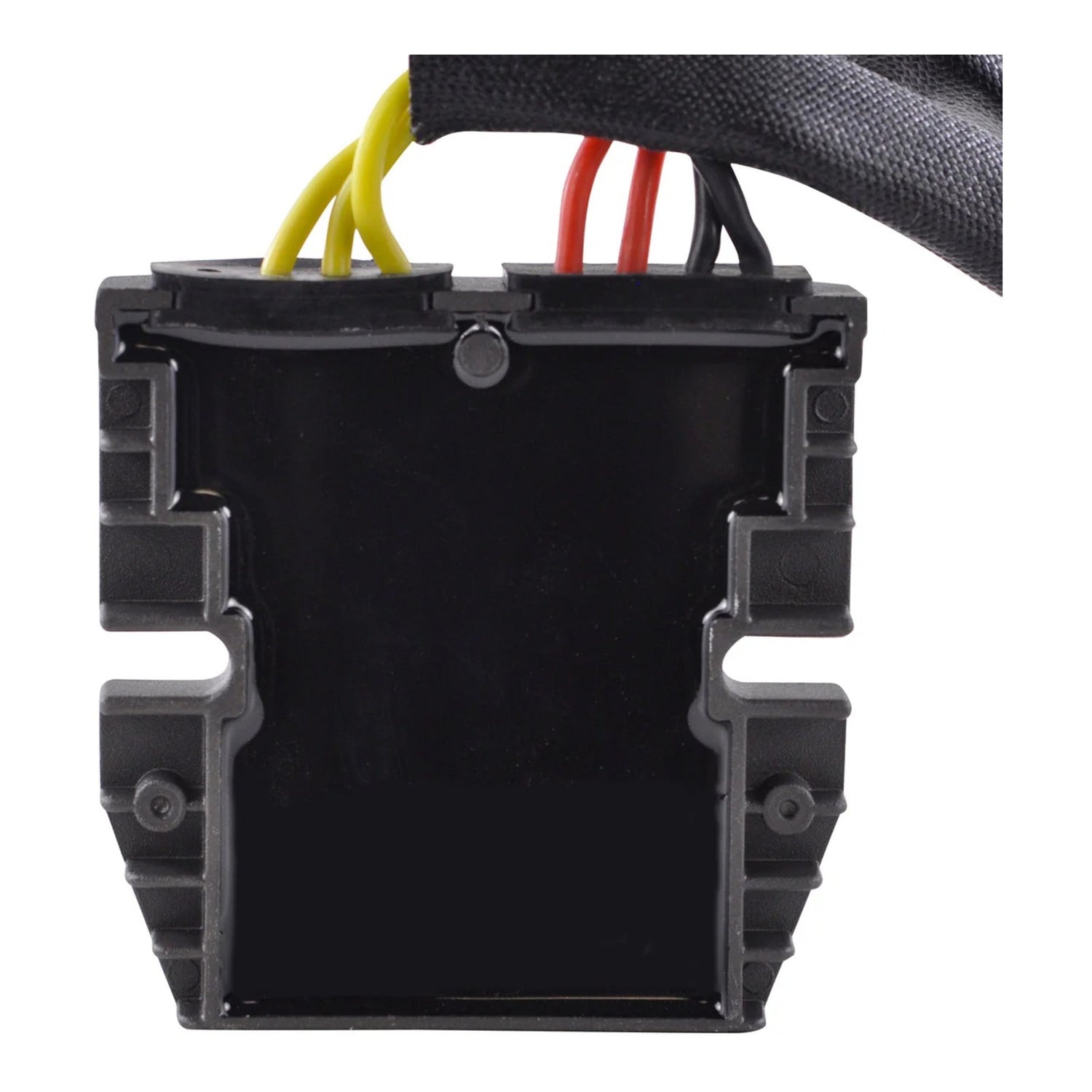

Brand new MOSFET voltage rectifier regulator.

STOP BURNING the REGULATOR RECTIFIER!
It is time to update or replace the voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection; rather than burn up it will simply turn off for a while and cool off.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate and compare The item to the original part.

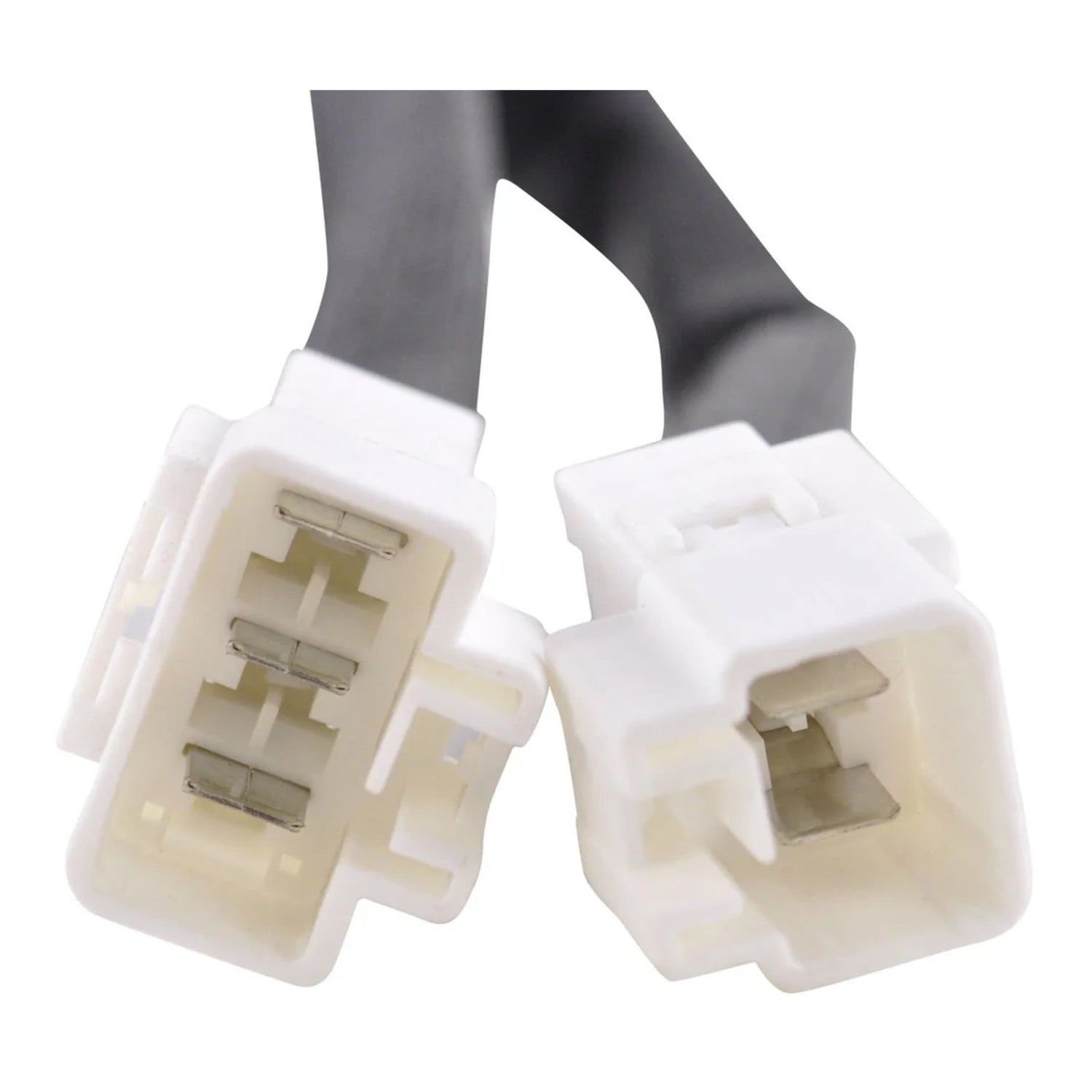

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Why use MOSFET Enhanced technology?

  • Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
  • Saves gas: Less load on the stator, less work, less fuel is used and you save.
  • Regulated energy: The power charging the battery is steadier and smooth.
  • Extended battery life: Extends the battery's life and cold cranking capacity.
  • More engine power: Removes stator load resulting in more engine power.
  • Optimised power: Optimise power delivery by switching the stator coils on or off.

With enhanced technology design: This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Before installing the new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Width: 90 mm
  • Length: 90 mm
  • Height: 30 mm
  • Wires length: 220 mm & 210 mm
  • Distance between fixation holes centre to centre: 75 mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

Vehicle fitment

Check fitment before you buy

We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
