Regulator Rectifier for Honda CRF250R CRF450R '13-'17
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS020102958
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020102958 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-102958 |
| Warranty | Full manufacturer warranty |

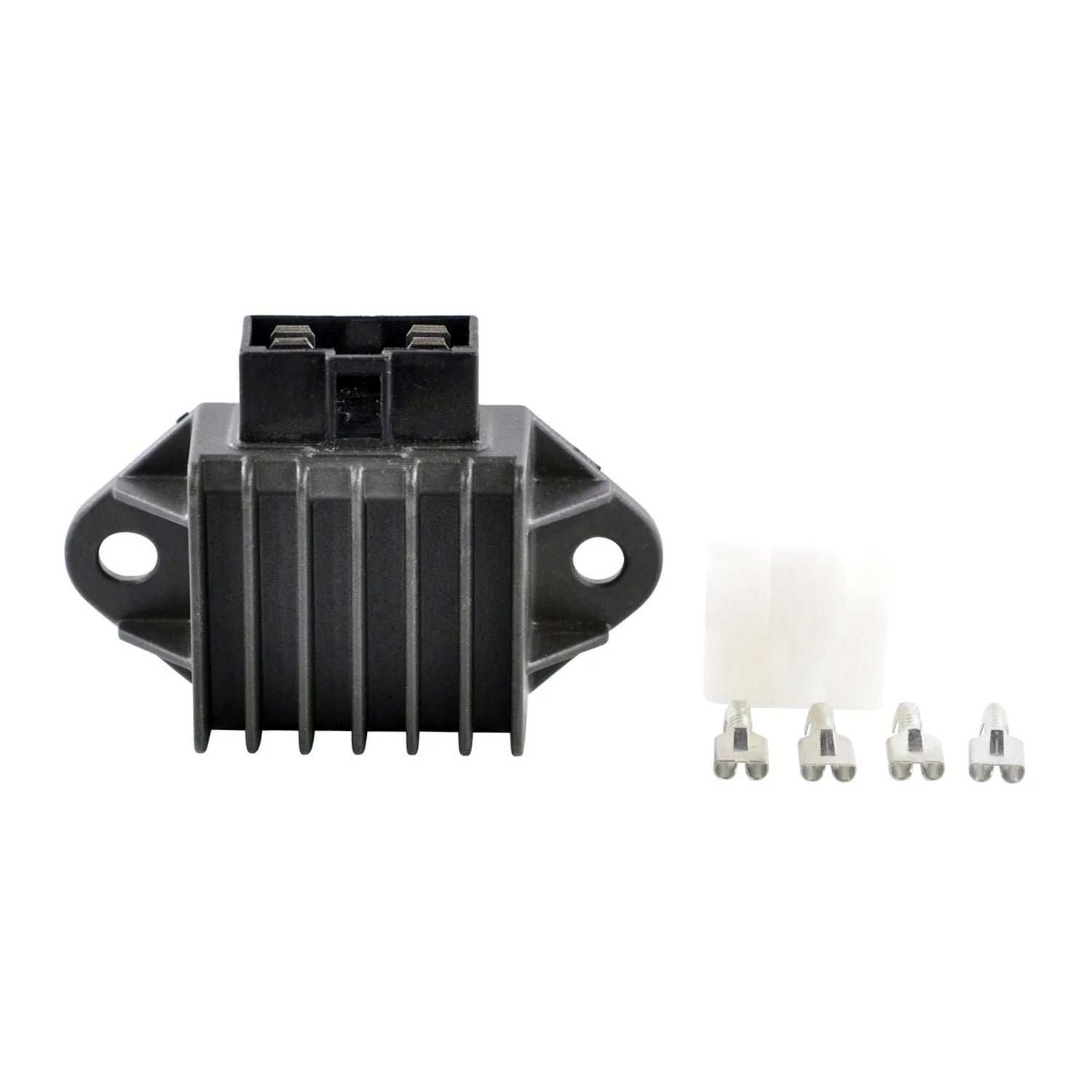

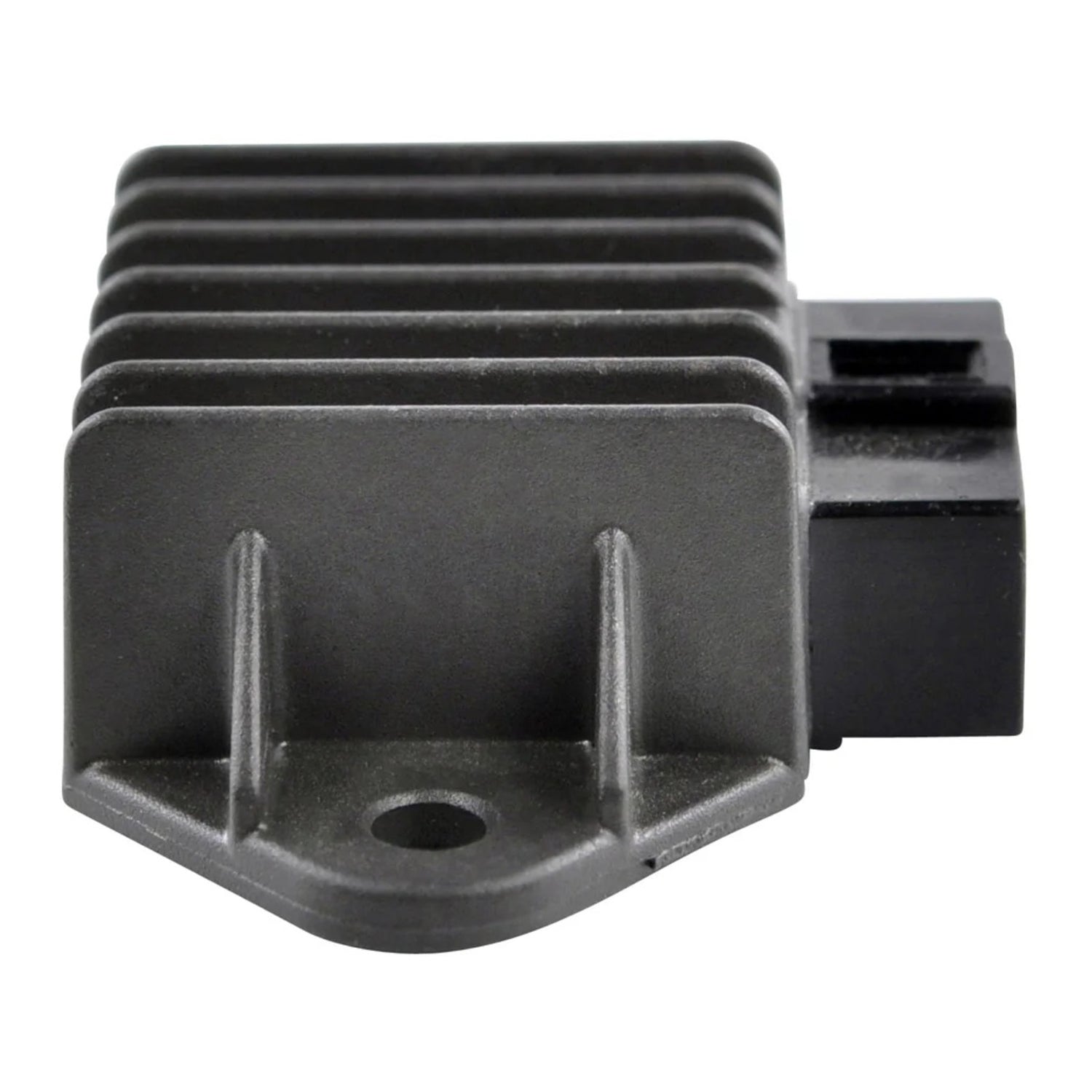

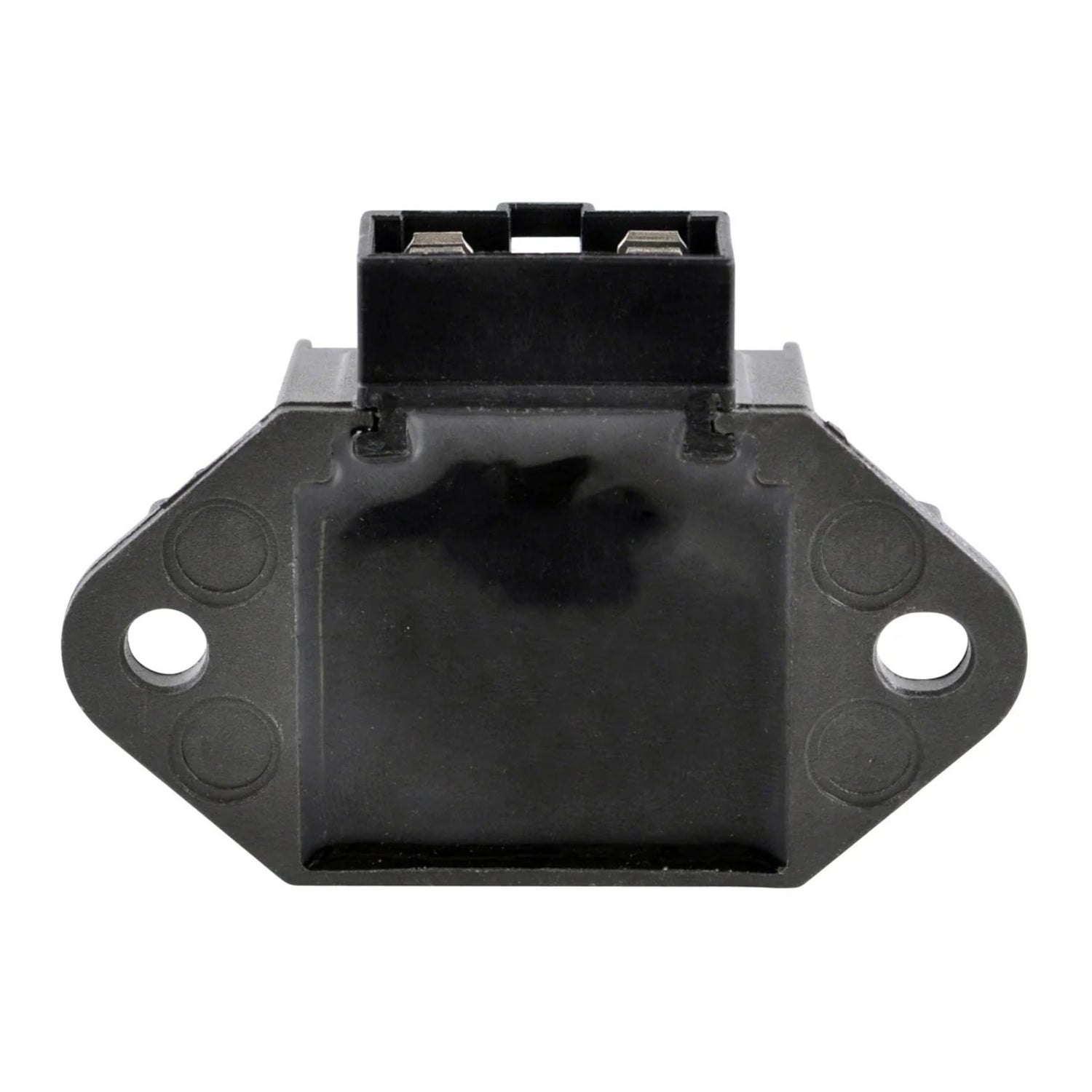

Brand new aftermarket voltage regulator rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate and compare The item to the original part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 82 mm
- Length: 56 mm
- Height: 25 mm
- Distance between fixation holes centre to centre: 65 mm
Other specifications:

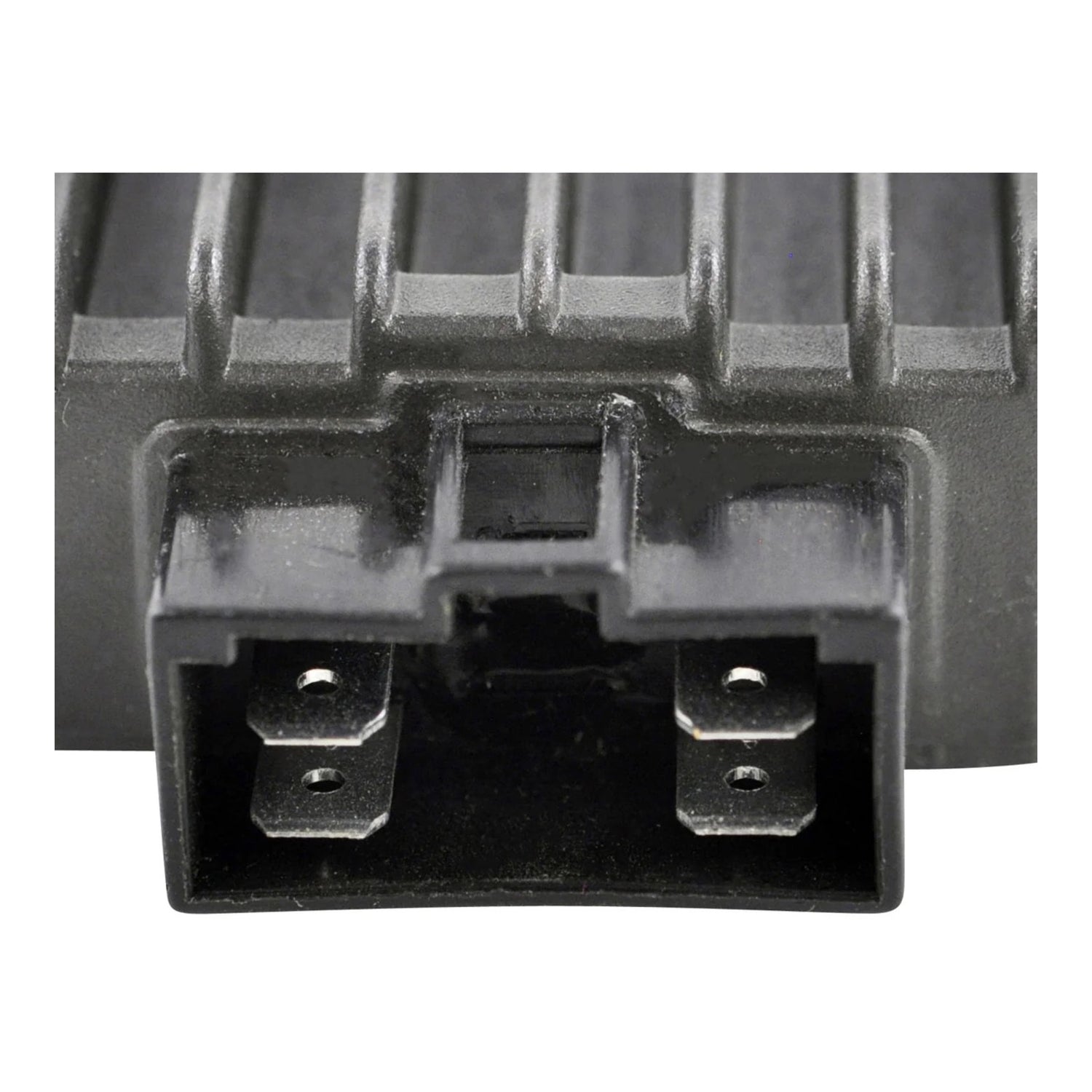

- Number of plugs: 1
- Number of pins: 4
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 20 A / 150 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
Free shipping on orders over $150 Australia-wide, for orders under 4.8 kg.
Click & Collect from 111 Beenleigh Road, Acacia Ridge QLD, Monday to Friday 8:30am–5:00pm.
Vehicle fitment
We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
