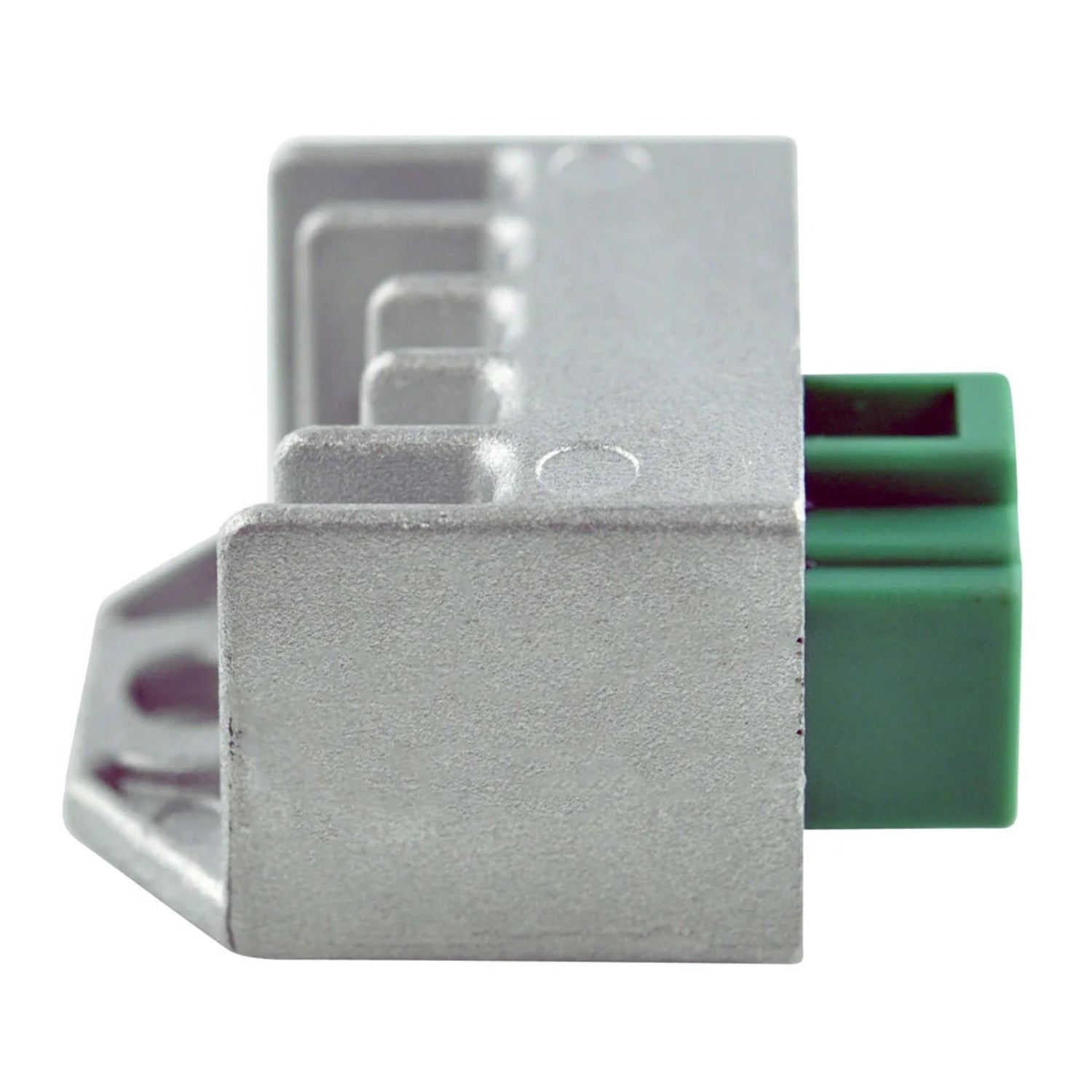

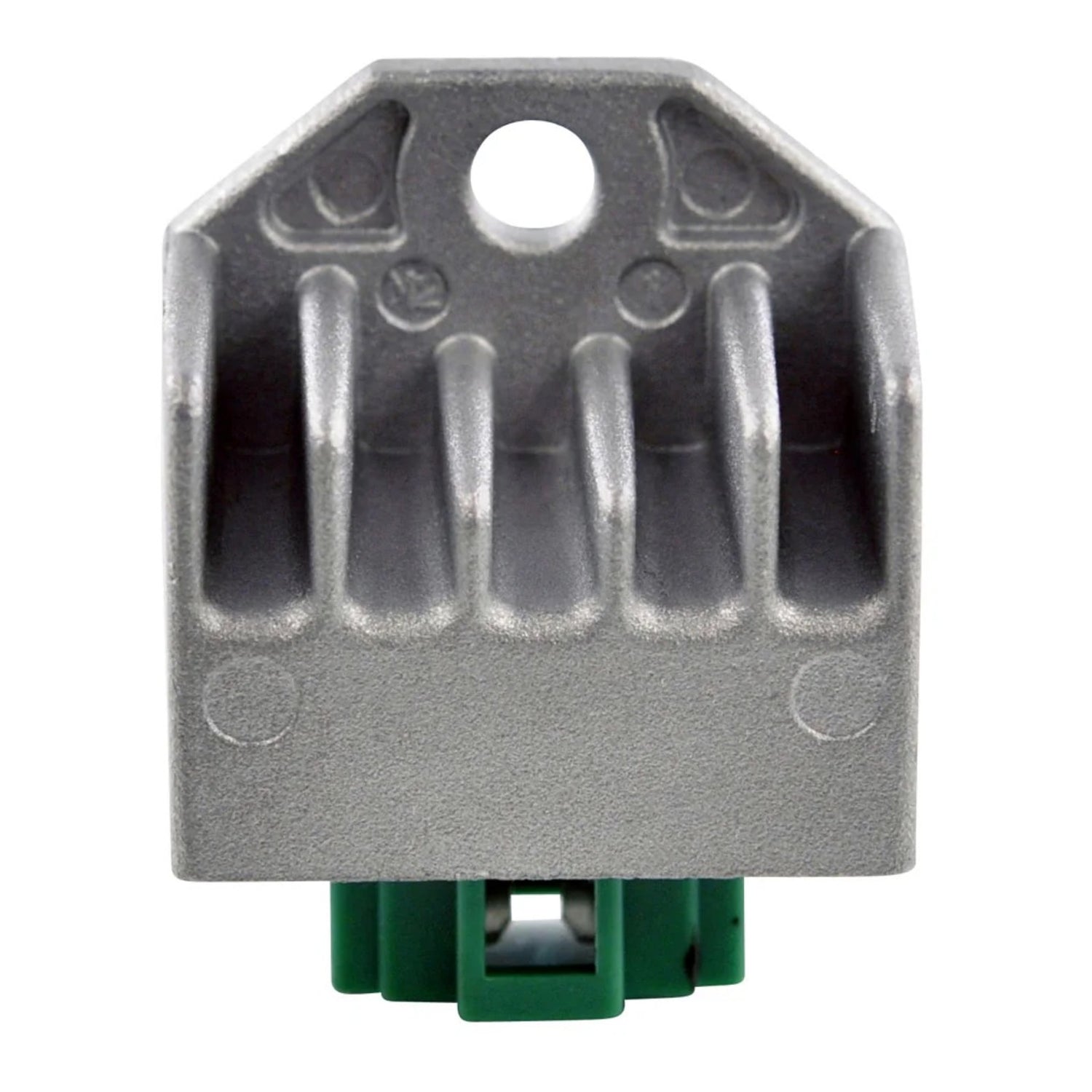

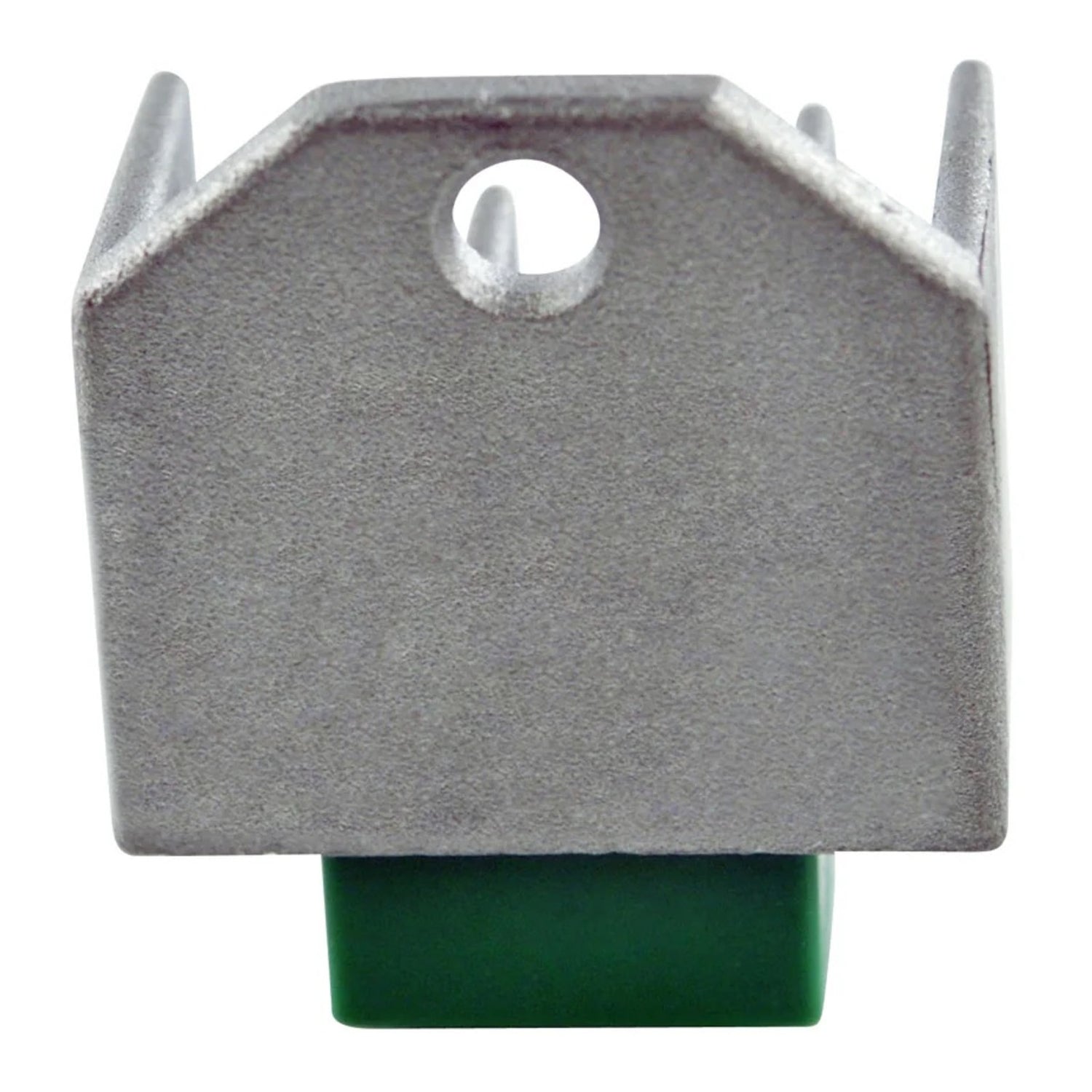

Voltage Regulator Yamaha TTR110 / 125 / 230 / KAW KLX140 / 450R '95-'24

Brand new aftermarket voltage regulator rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new voltage regulator rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 41 mm
• Length: 50 mm
• Height: 27 mm

Other specifications:

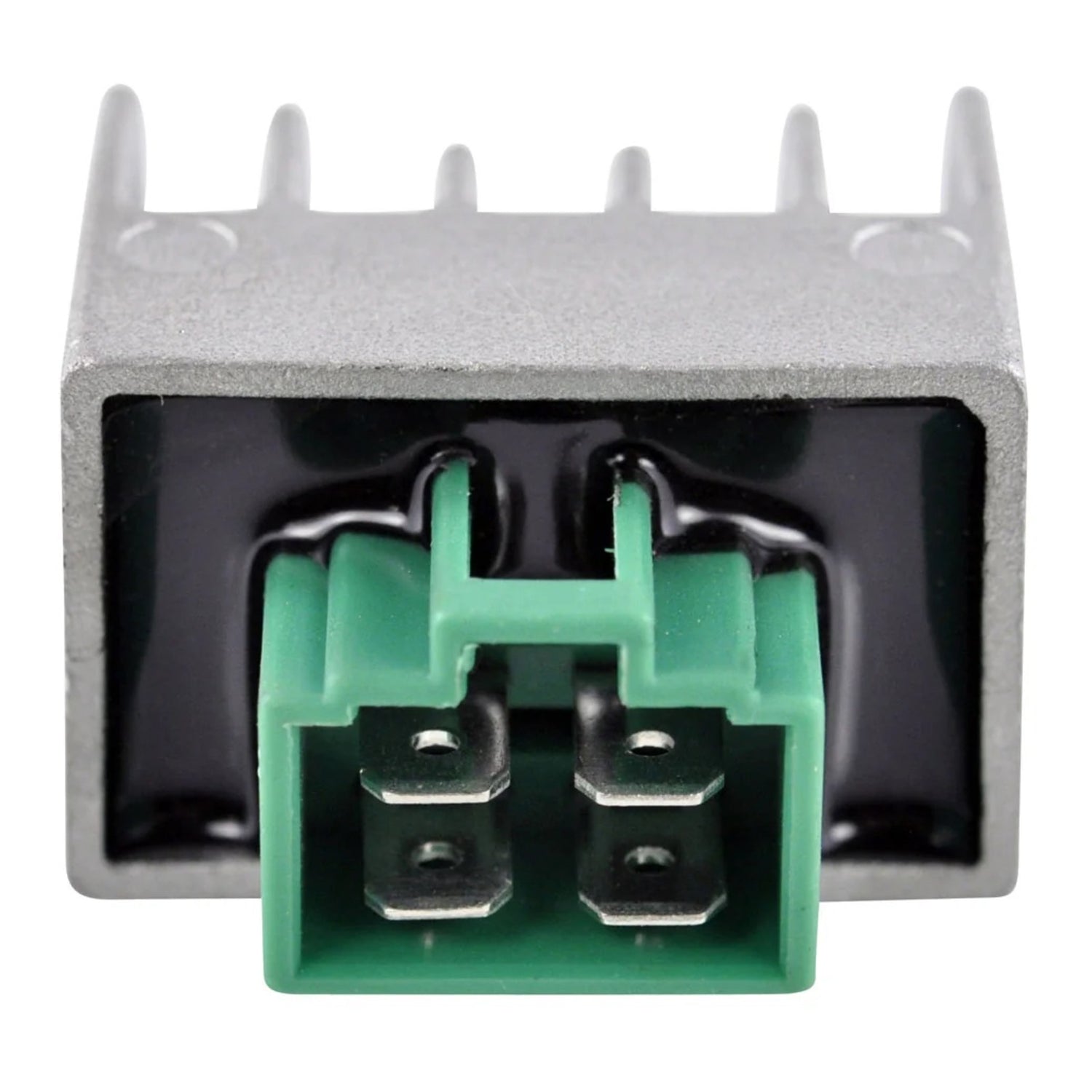

• Number of plugs: 1
• Number of pins: 4
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 20 A / 150 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
