MOSFET Regulator - Harley-Davidson (Assorted Fitments) (RMS020-106922)
- Brand
- RMSTATOR
- Part number
- RMS020106922
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020106922 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-106922 |
| Warranty | Full manufacturer warranty |

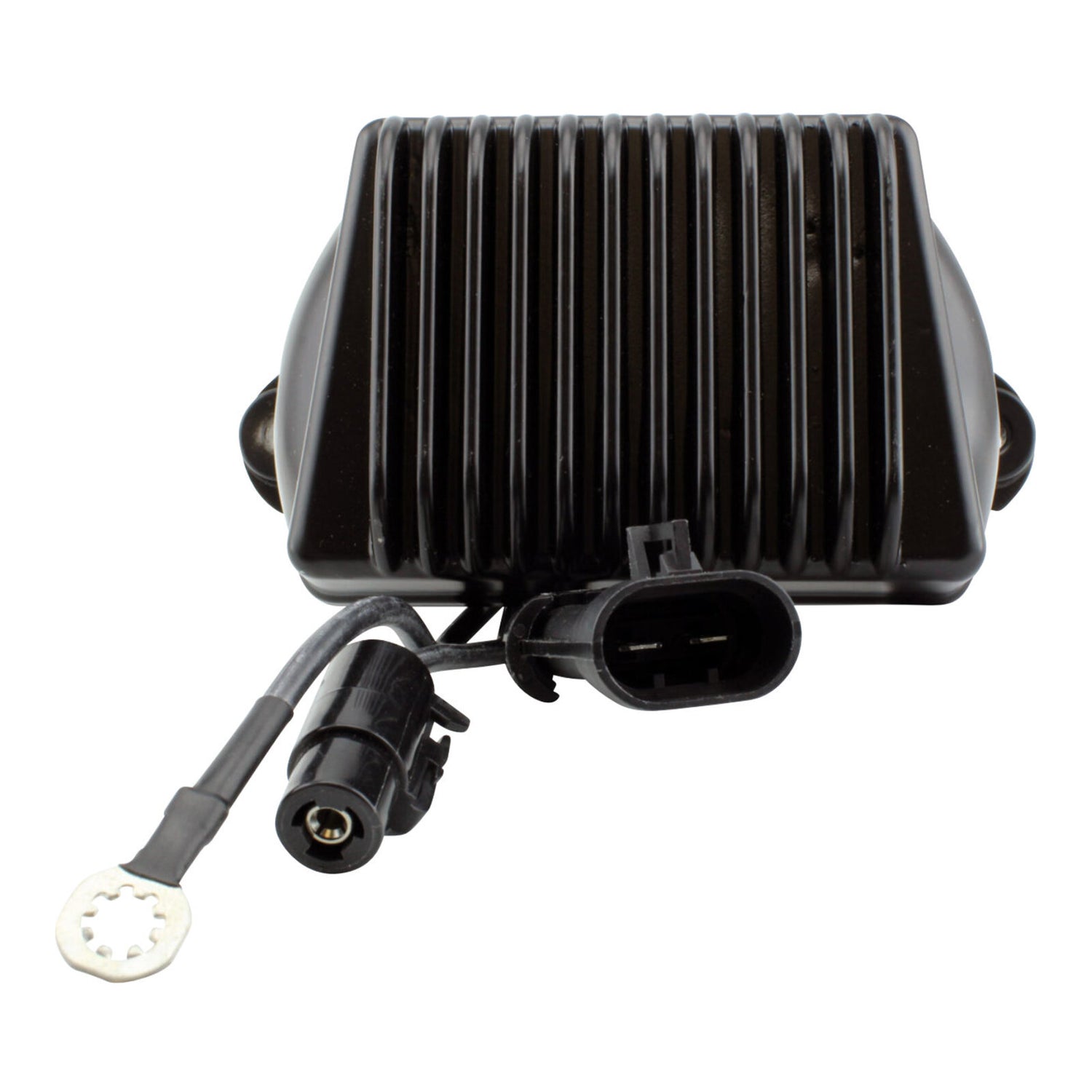

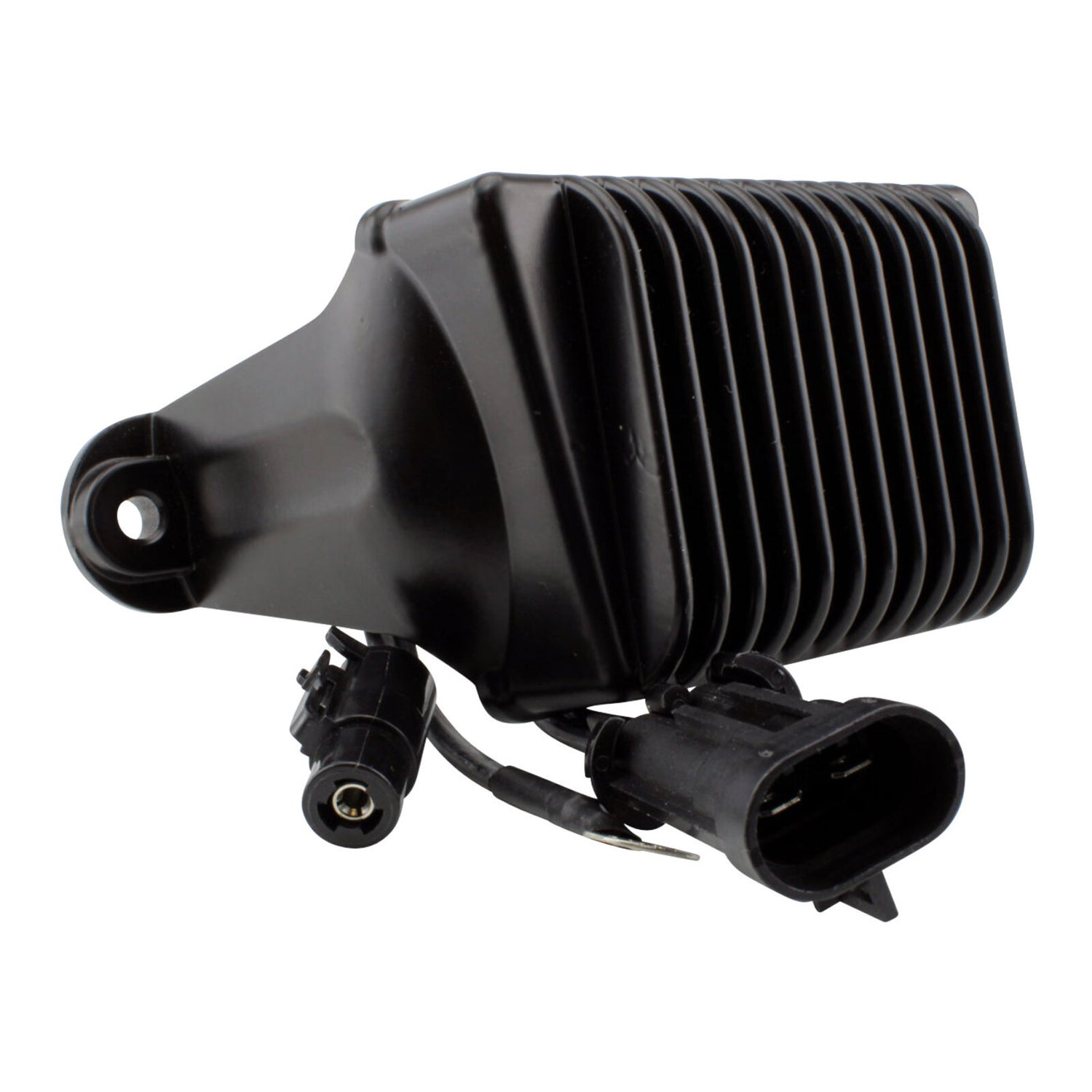

Brand new MOSFET voltage rectifier regulator
STOP BURNING the REGULATOR RECTIFIER !It is time to update or replace the voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare The item to the original part.
Why use MOSFET Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging the battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
optimised power
optimise power delivery by switching the stator coils on or off.
How does a MOSFET regulator rectifier work?
With
design
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
Width: 87 mm
Length: 179 mm
Height: 113 mm
Wires length: 240 mm
Distance between fixation holes centre to centre: 155 mm
Other specifications:
Number of plugs: 3
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
