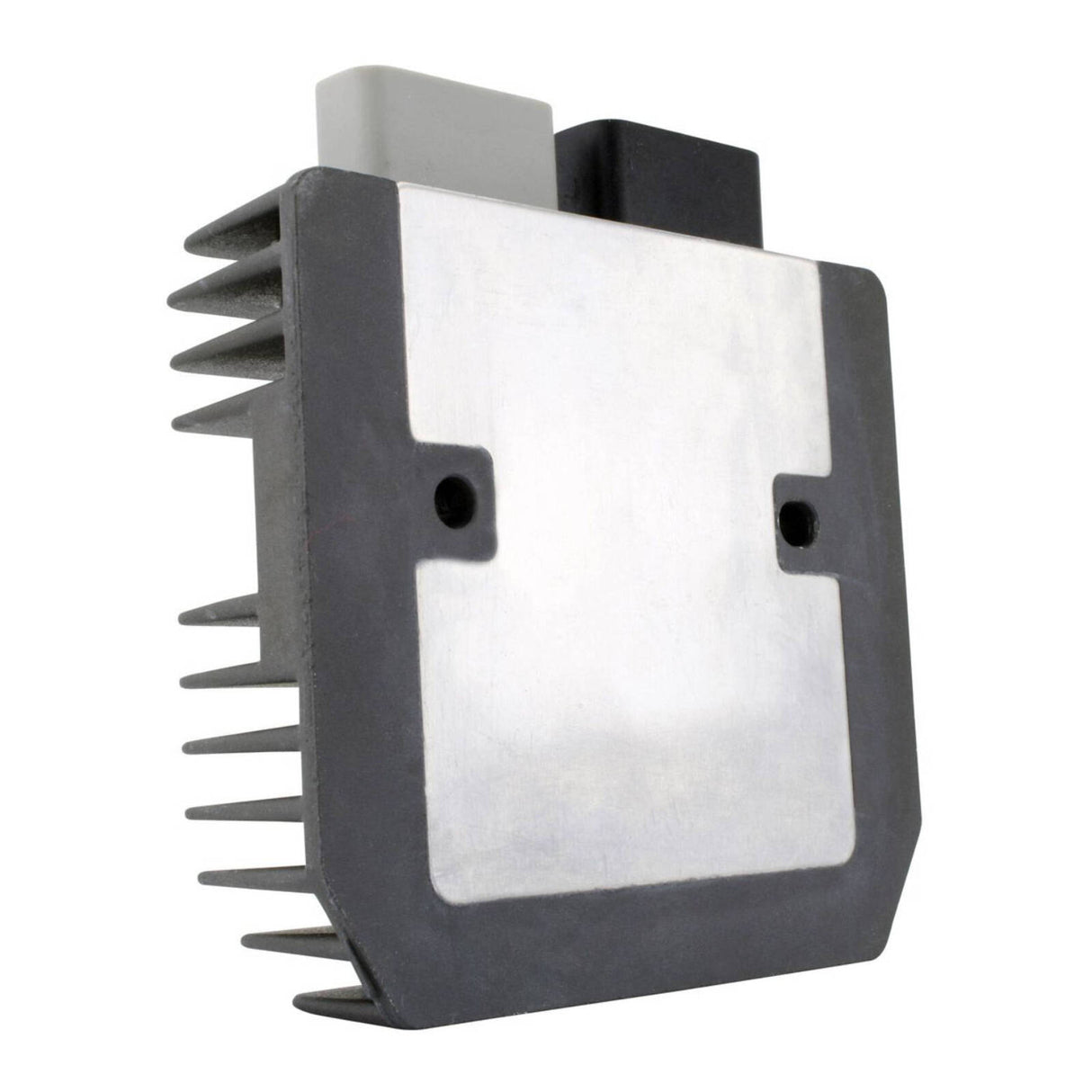

MOSFET Regulator - Can-Am Commander
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS020107179
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020107179 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-107179 |
| Warranty | Full manufacturer warranty |

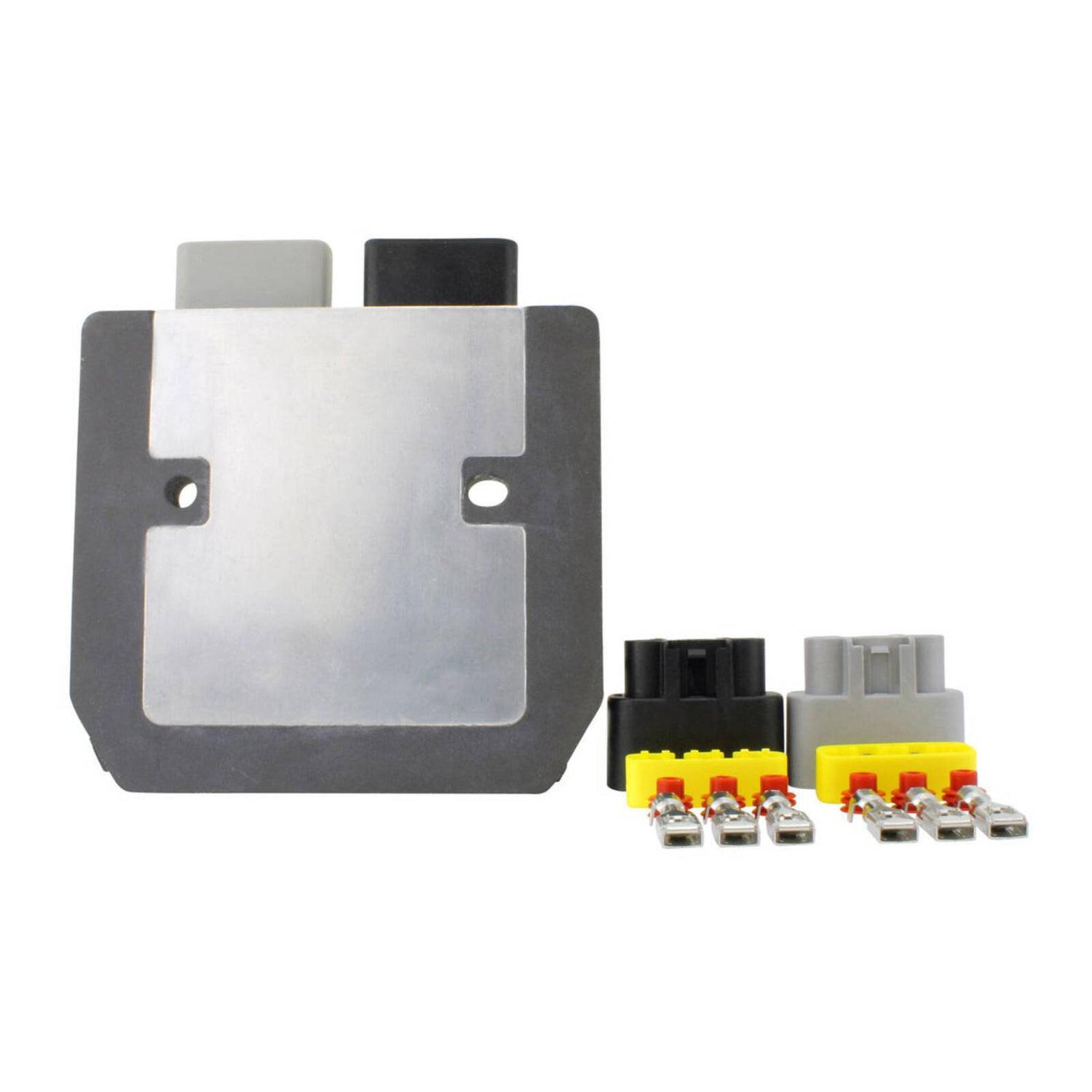

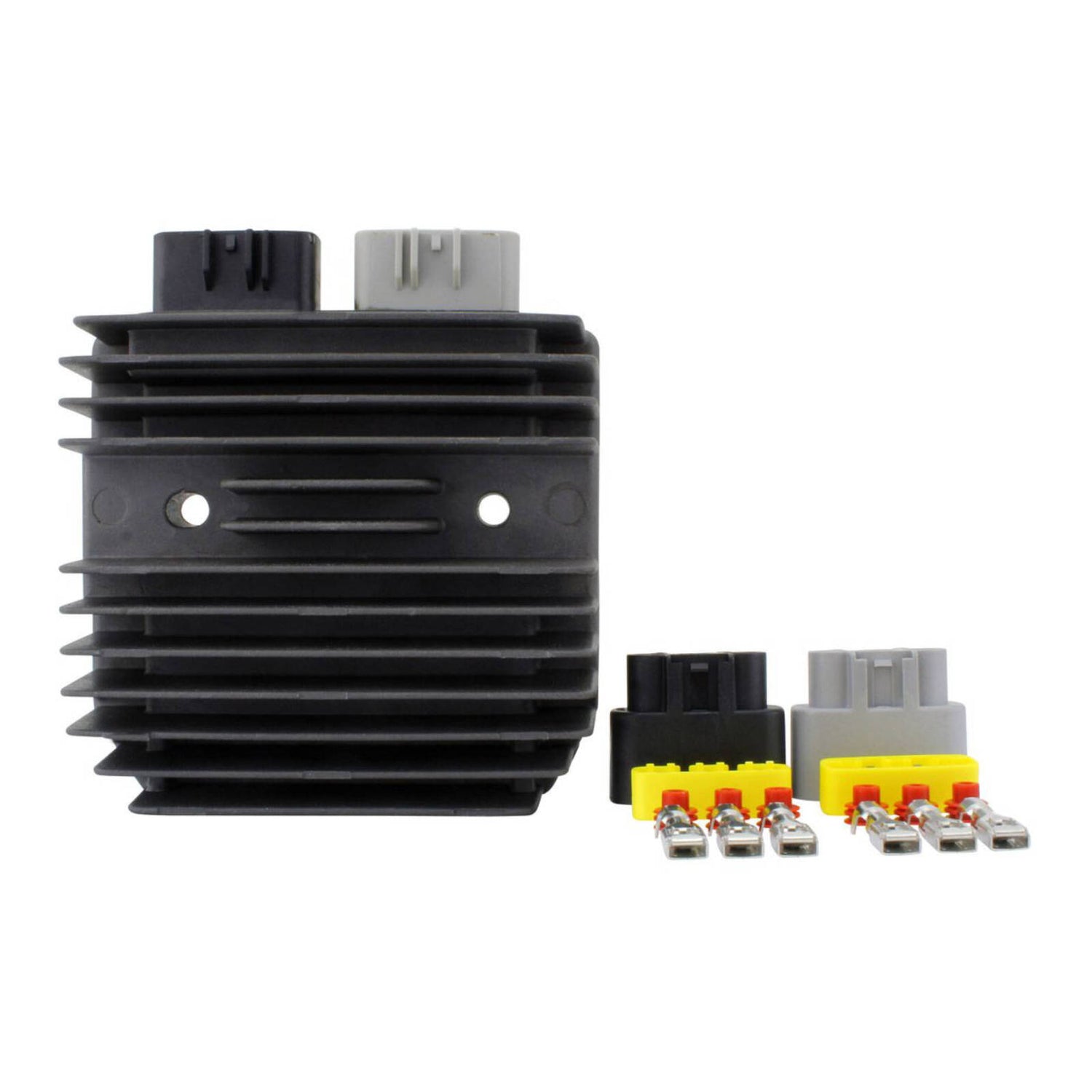

Brand new MOSFET Voltage Regulator Rectifier.
STOP BURNING THE REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than OEM diode-style regulators. In addition, this rectifier has overheat protection. Rather than burning out, it will simply turn off temporarily and cool down.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- The quality exceeds the OEM equipment.

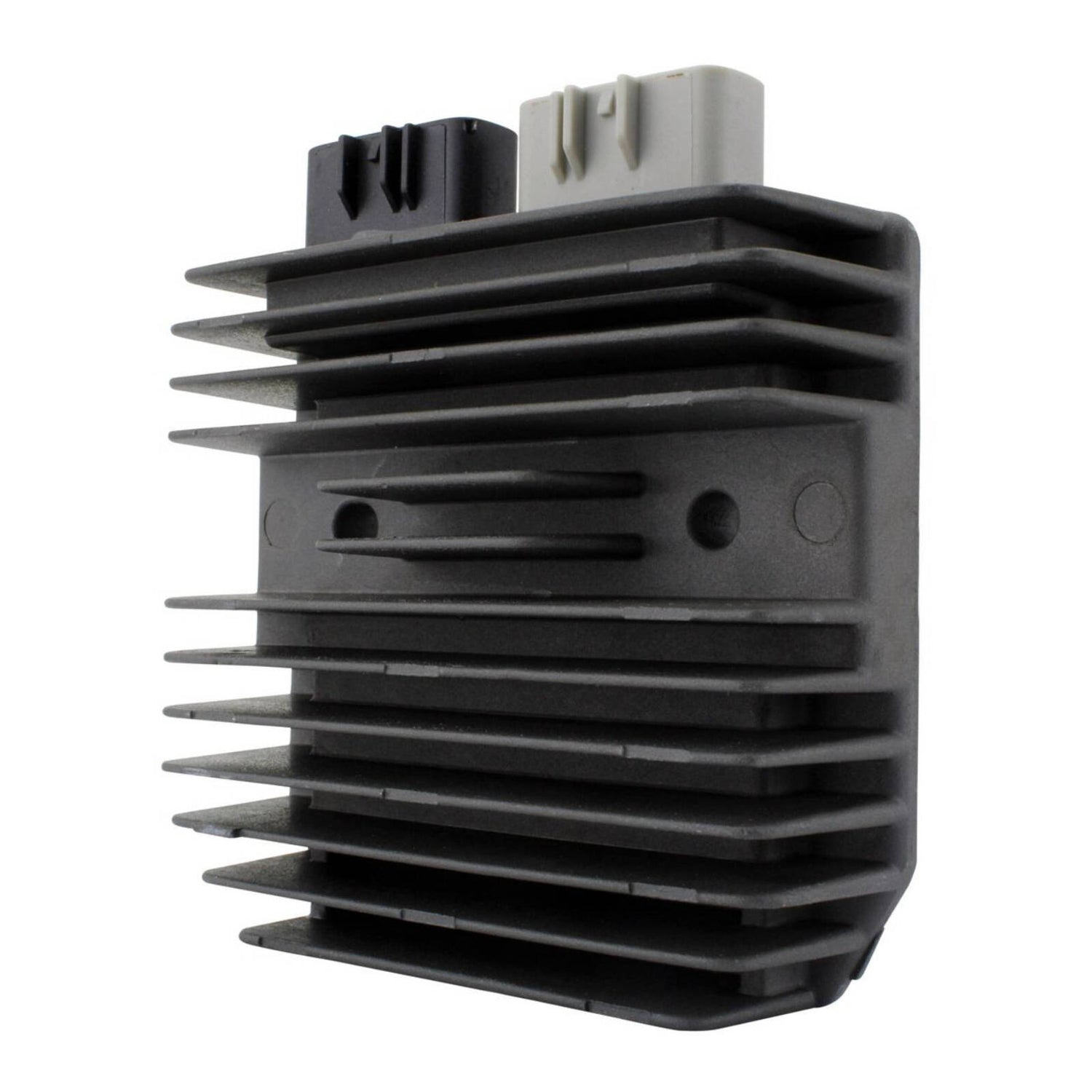

- Improved heat sink and charging capabilities.
- Higher-grade electrical components.
- All products shipped are tested.
All item pictures are accurate. If in doubt, do not hesitate to compare the item to the original part.
Why use MOSFET Enhanced Technology?
Runs cooler
Runs much cooler than the traditional shunt Voltage Regulator Rectifier.
Saves fuel
Less load on the stator means less work, less fuel consumption and savings.
Regulated energy
The power charging the battery is steadier and smoother.
Extended battery life
Extends the battery's life and cold-cranking capacity.
More engine power
Removes stator load, resulting in more engine power.
Optimised power
Optimises power delivery by switching the stator coils on or off.
How does a MOSFET Regulator Rectifier work?
Enhanced Technology design
This product features an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Use high-temperature dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 120 mm
- Length: 110 mm
- Height: 37 mm

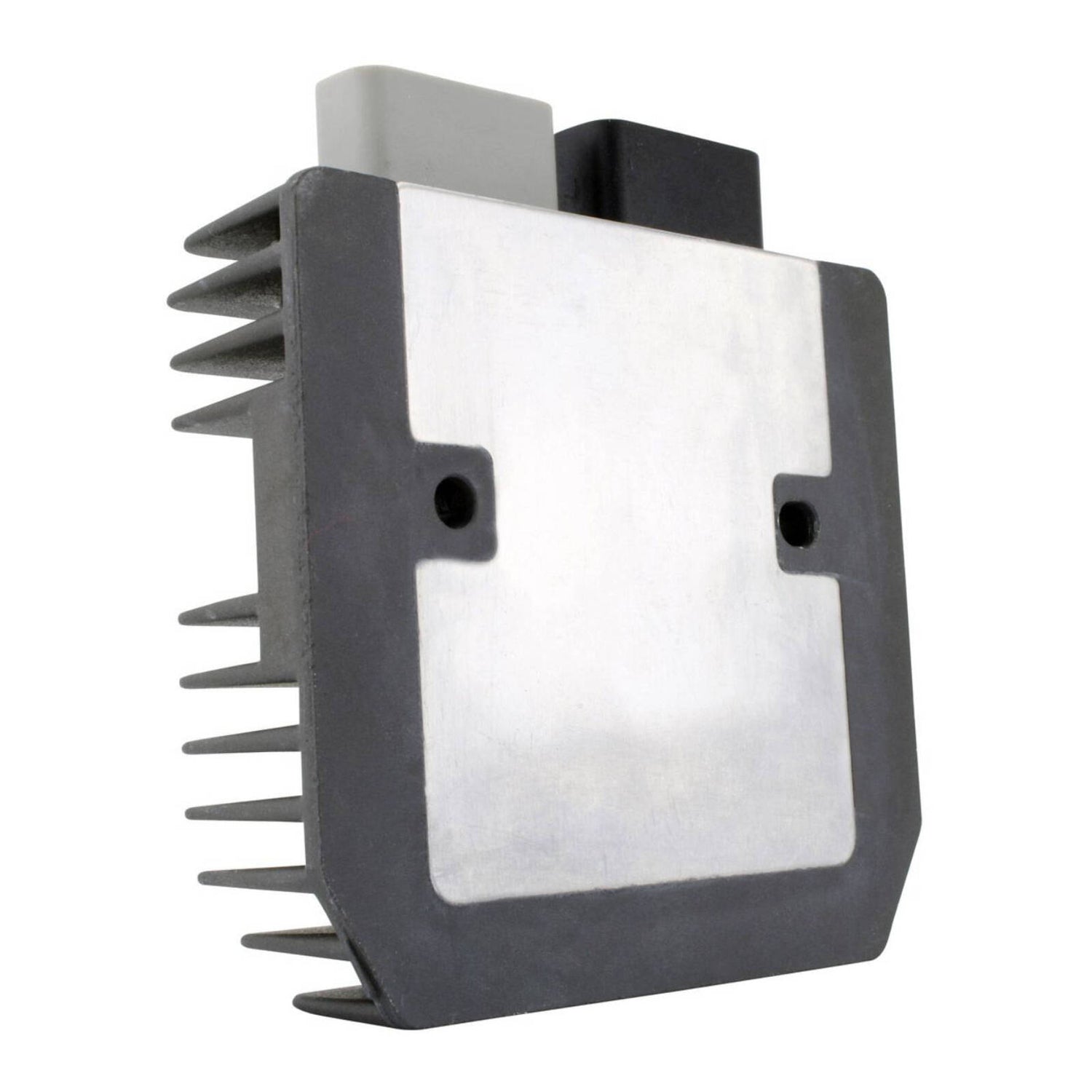

- Distance between fixation holes centre to centre: 69 mm
Other specifications:

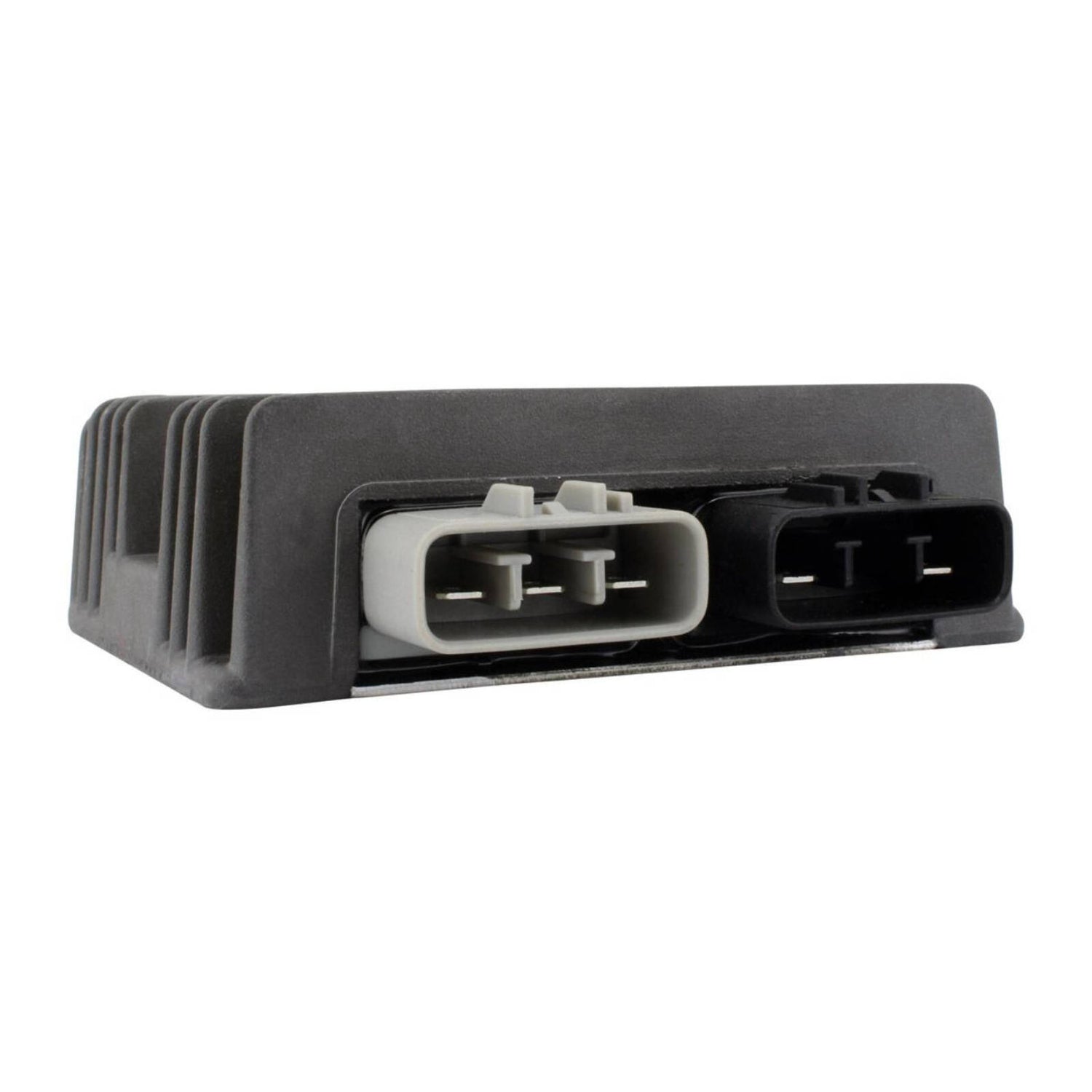

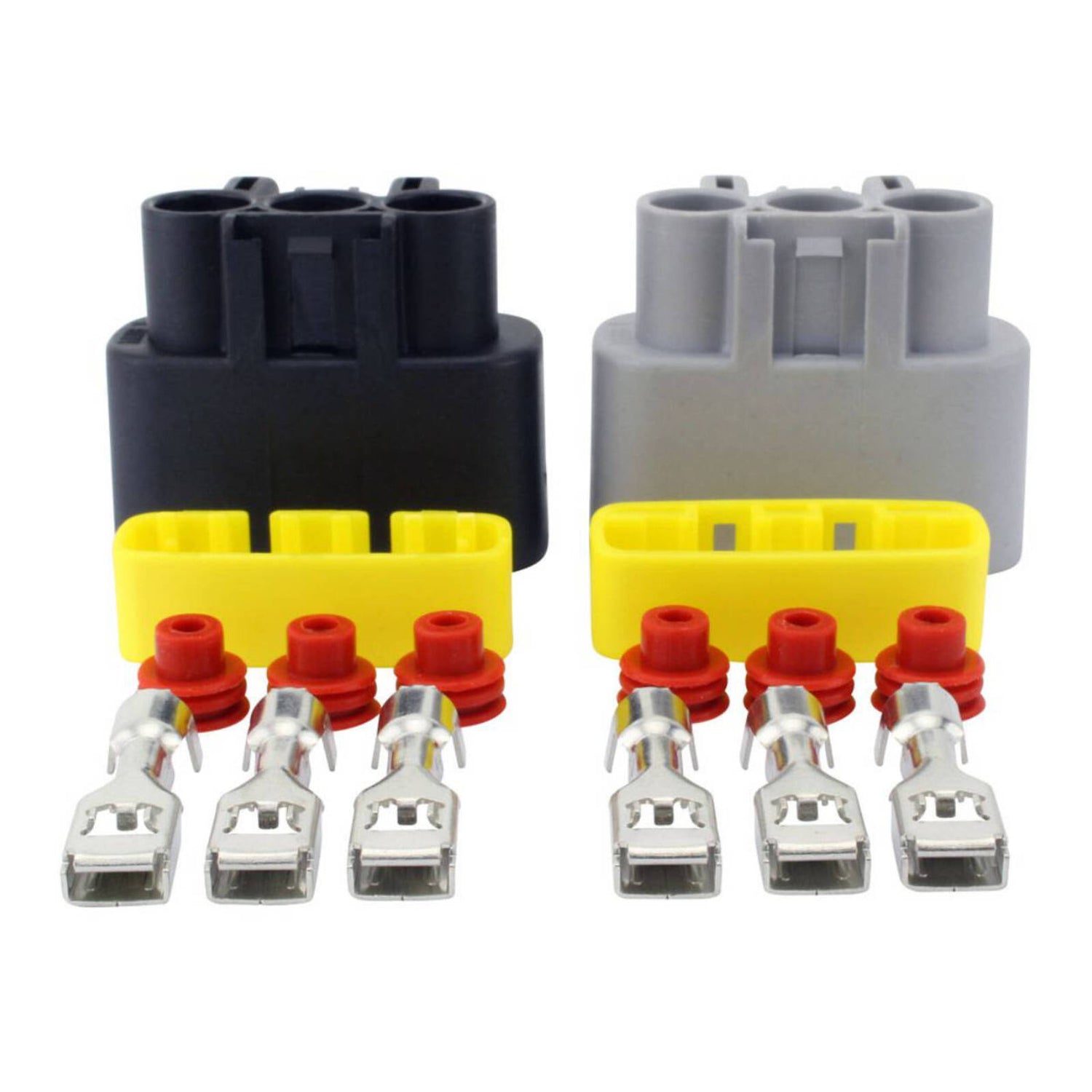

- Number of plugs: 2
- Number of pins: 5
- Minimum charging voltage: 14.5 V +/- 0.5 V
- Maximum charging current: 50 A / 500 W
- Open circuit voltage: < 15 V
- Operating temperature: -20°C to 85°C
Free shipping on orders over $150 Australia-wide, for orders under 4.8 kg.
Click & Collect from 111 Beenleigh Road, Acacia Ridge QLD, Monday to Friday 8:30am–5:00pm.
Vehicle fitment
We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
