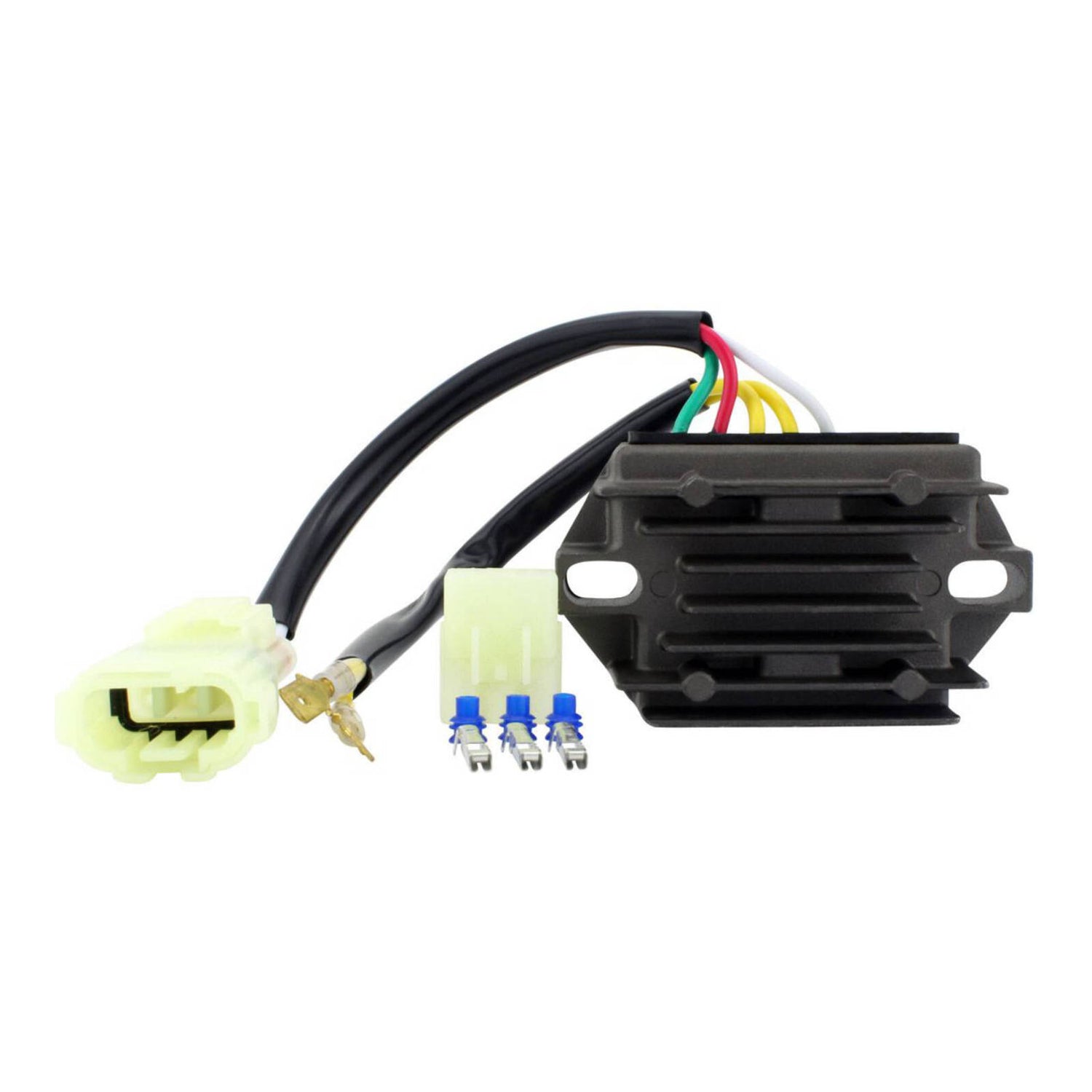

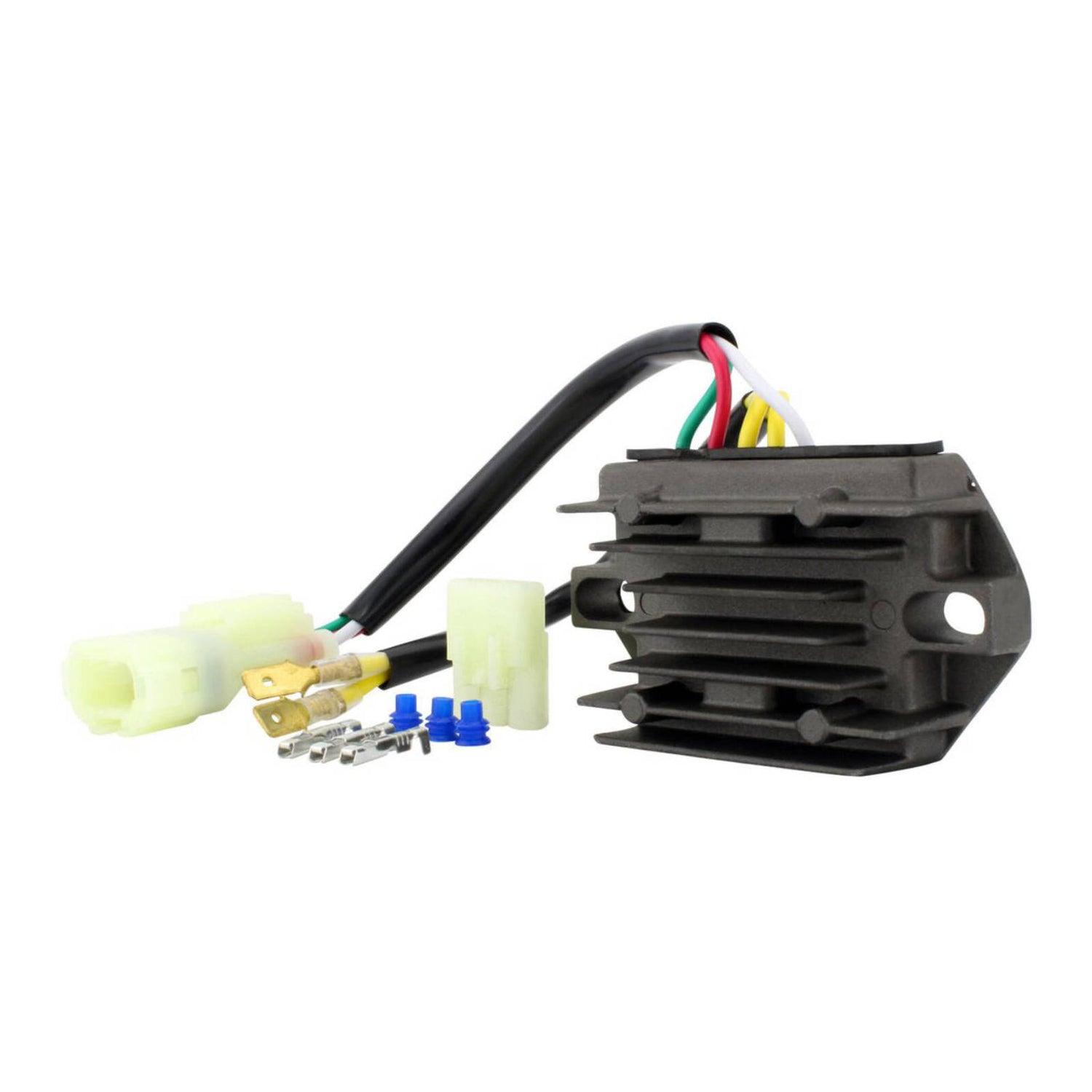

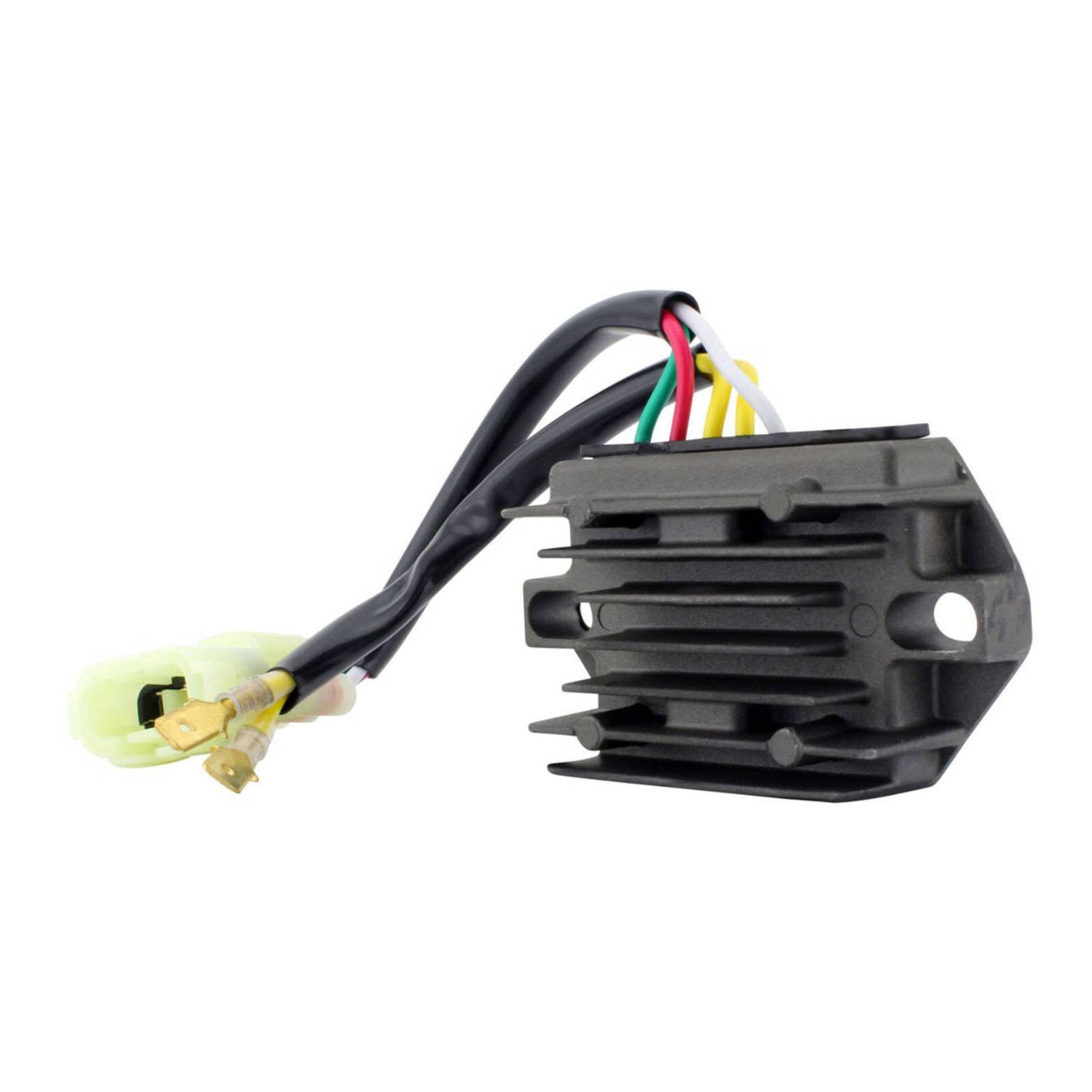

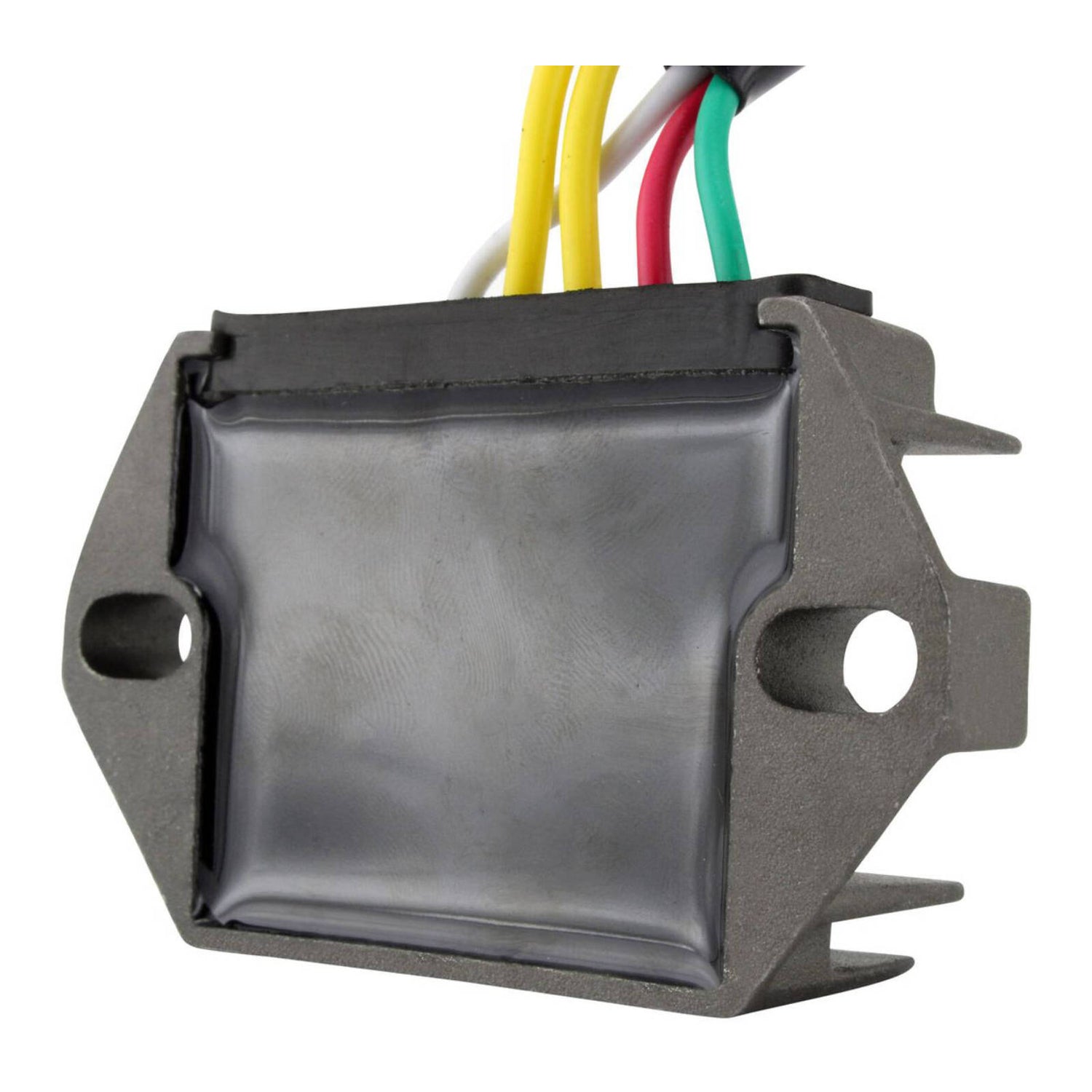

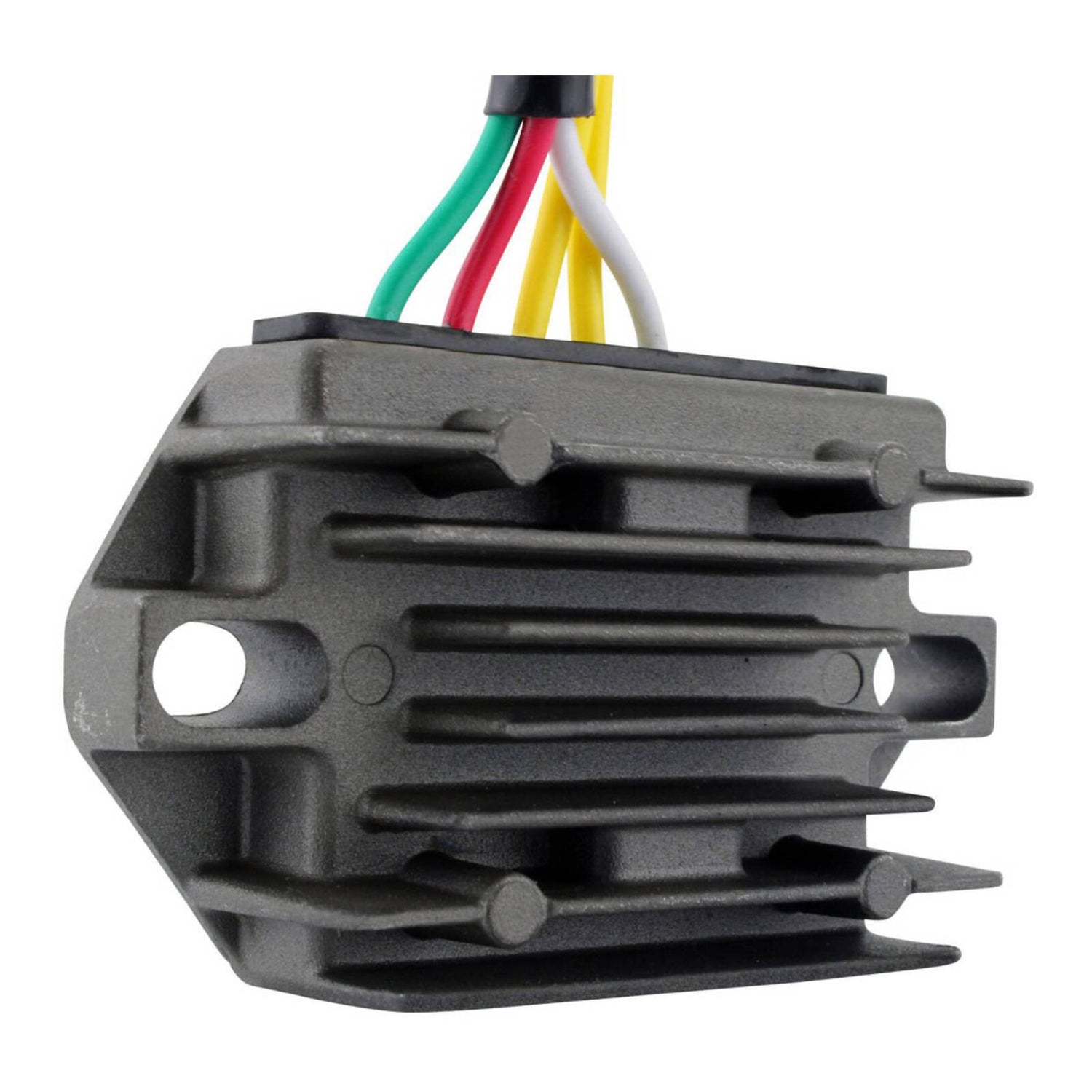

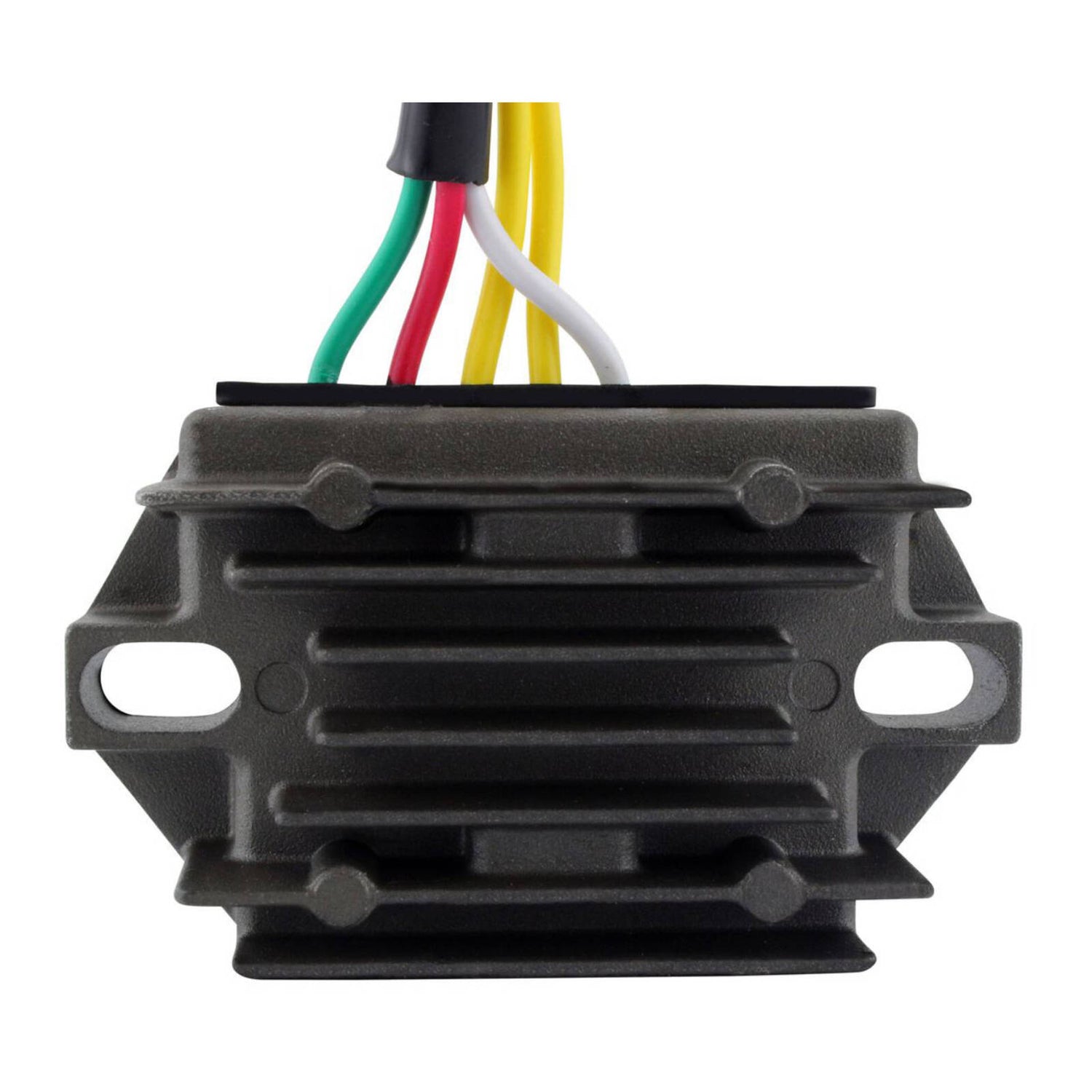

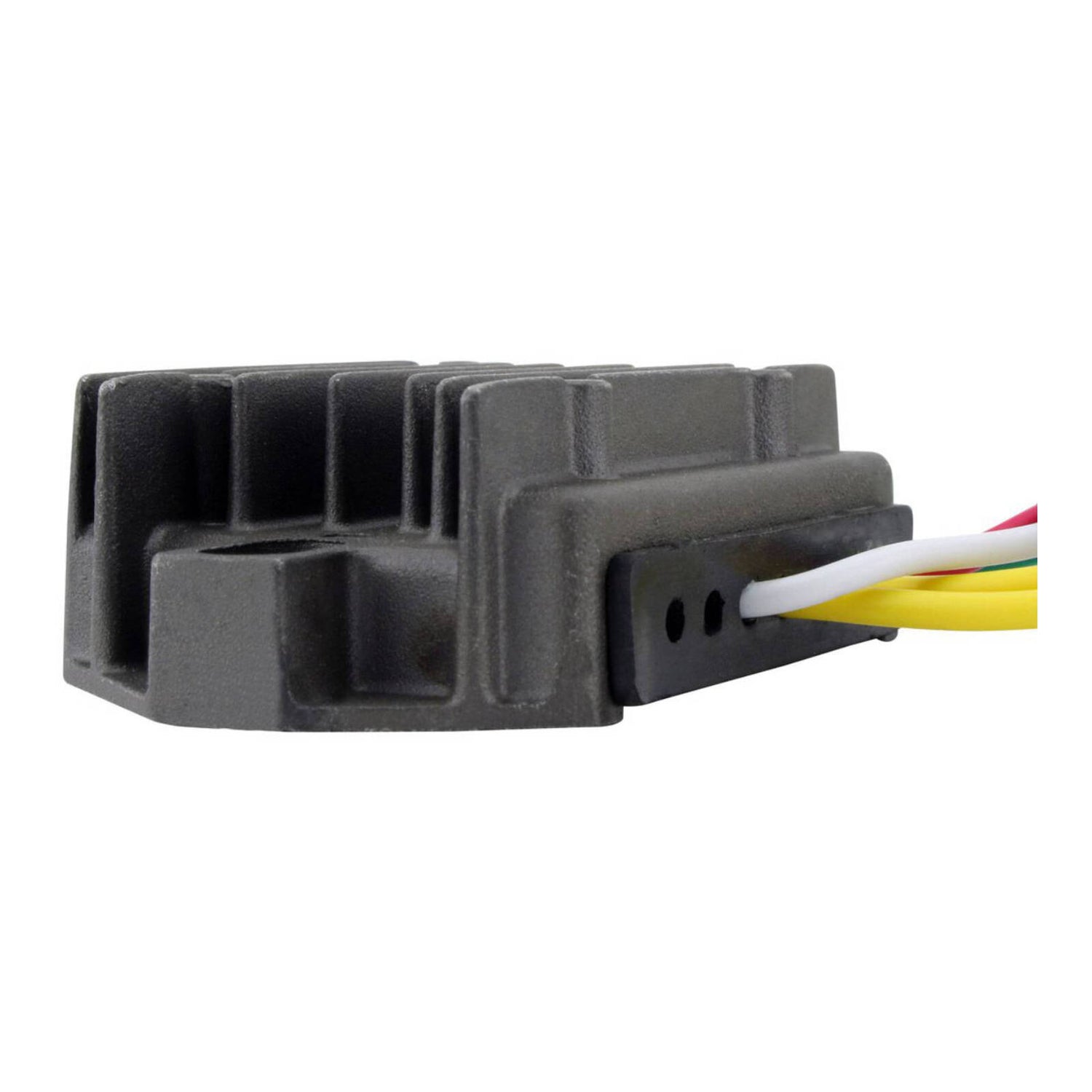

Voltage Regulator - KTM (Assorted Fitments)

Brand new aftermarket Voltage Regulator Rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

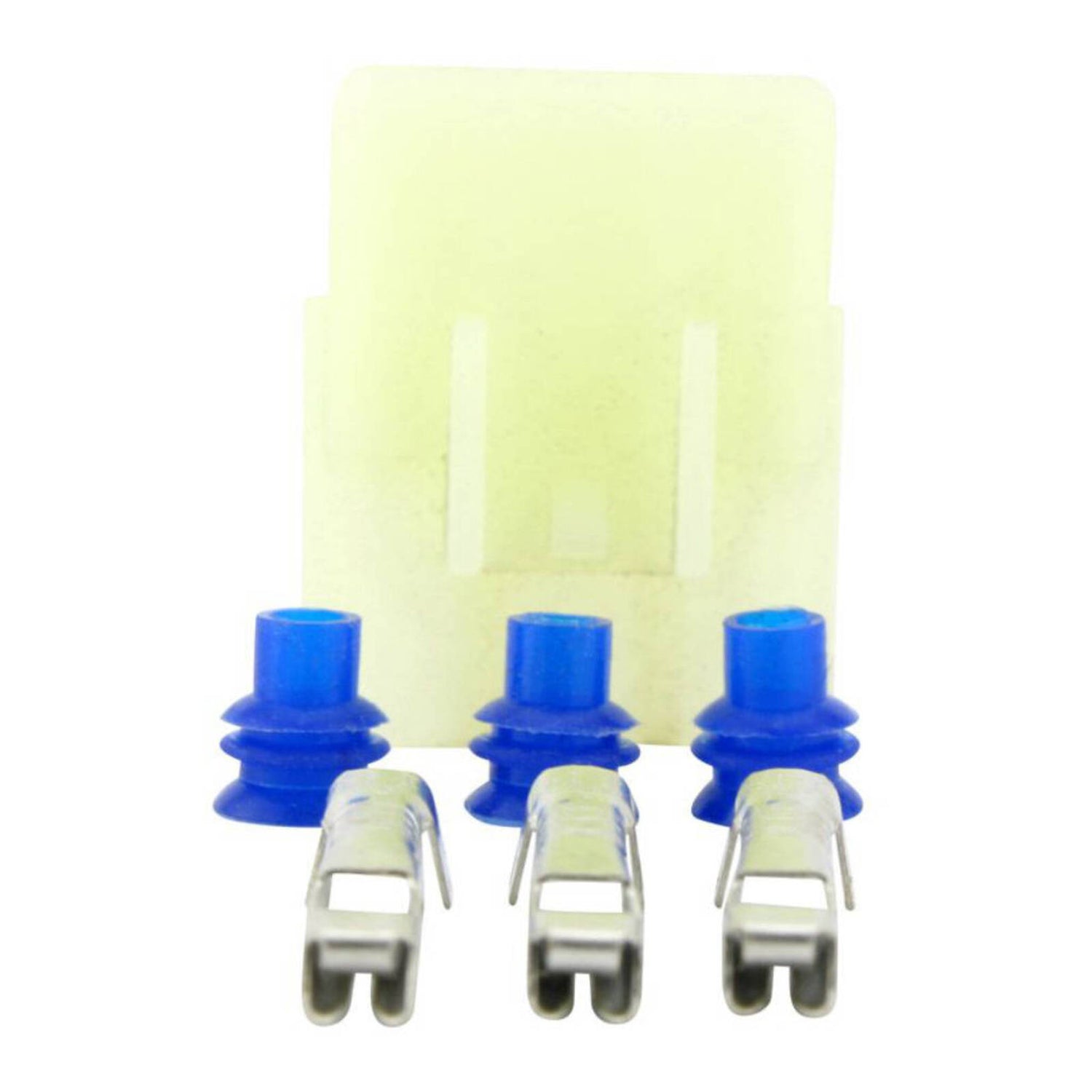

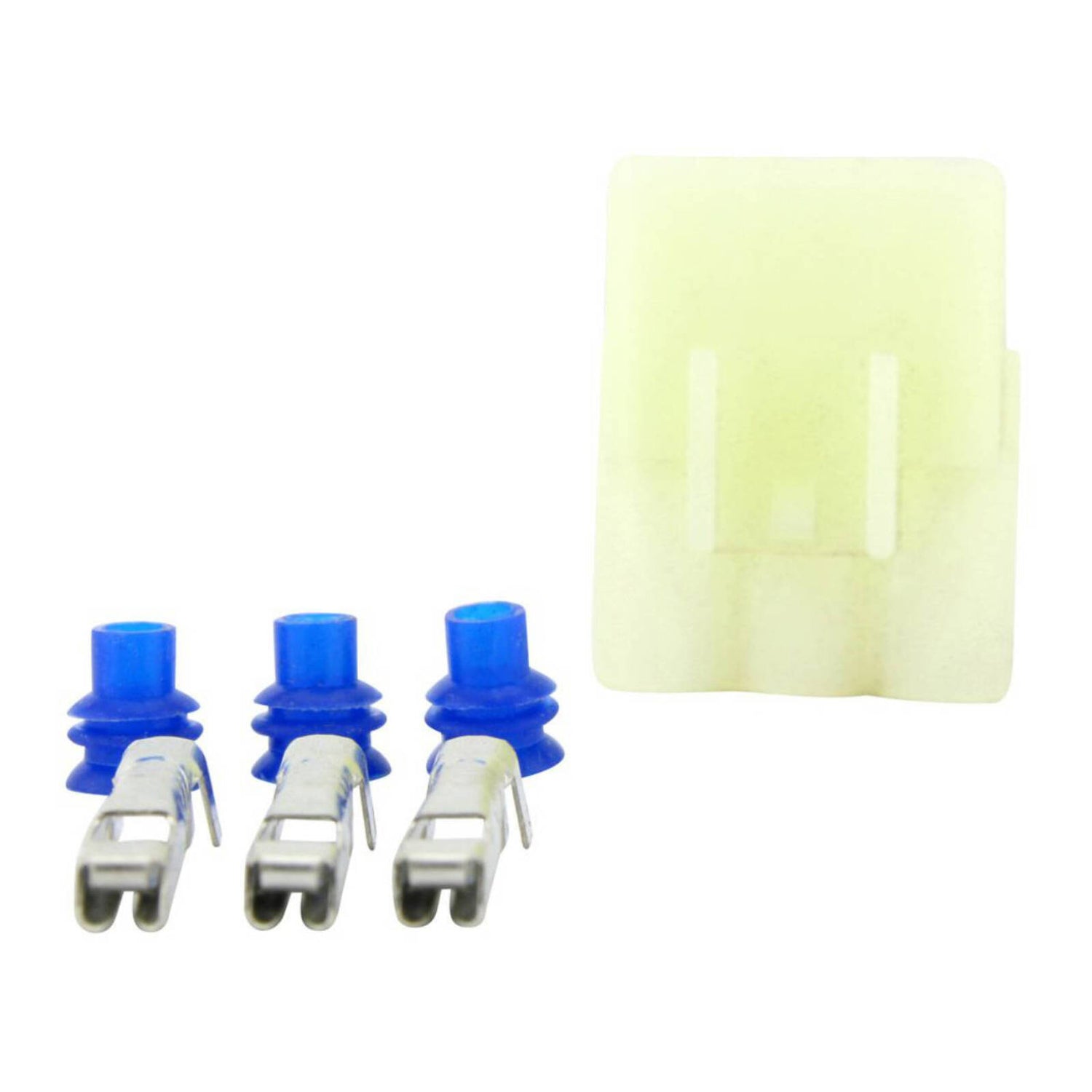

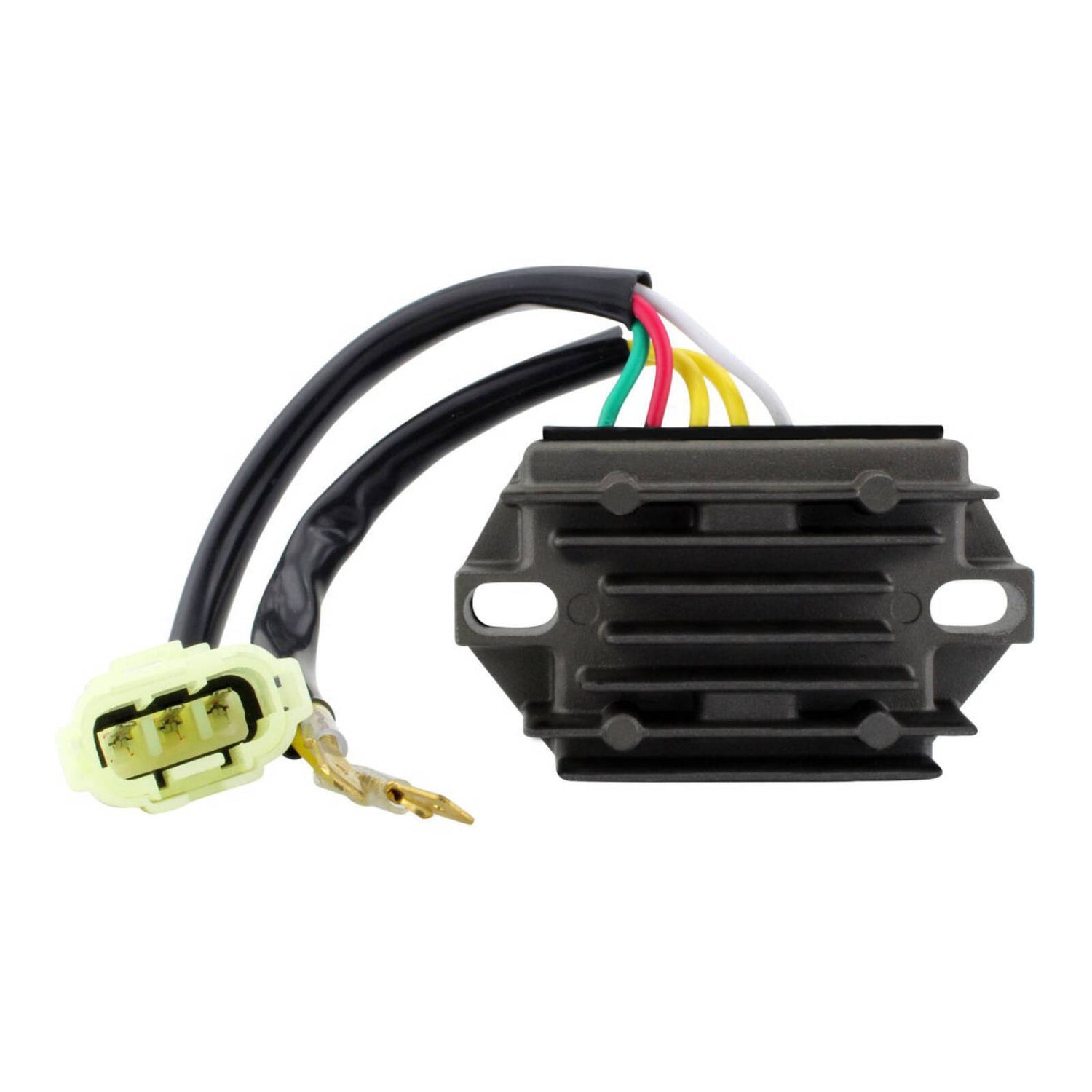

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new Voltage Regulator Rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 44 mm.
• Length: 76 mm.
• Height: 22 mm.
• Wires length: 120 mm.
• Distance between fixation holes centre to centre: 60 mm.

Other specifications:

• Number of plugs: 3.
• Number of pins: 5.
• Number of wires: 5.
• Minimum Charging Voltage: 14.5 V +/- 0.5 V.
• Maximum Charging Current: 50 A / 500 W.
• Open Circuit Voltage: < 15 V.
• Operation Temperature: -20°C to 85°C.
