Voltage Regulator - Suzuki DR-Z
- Brand
- RMSTATOR
- Part number
- RMS020107313
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020107313 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-107313 |
| Warranty | Full manufacturer warranty |

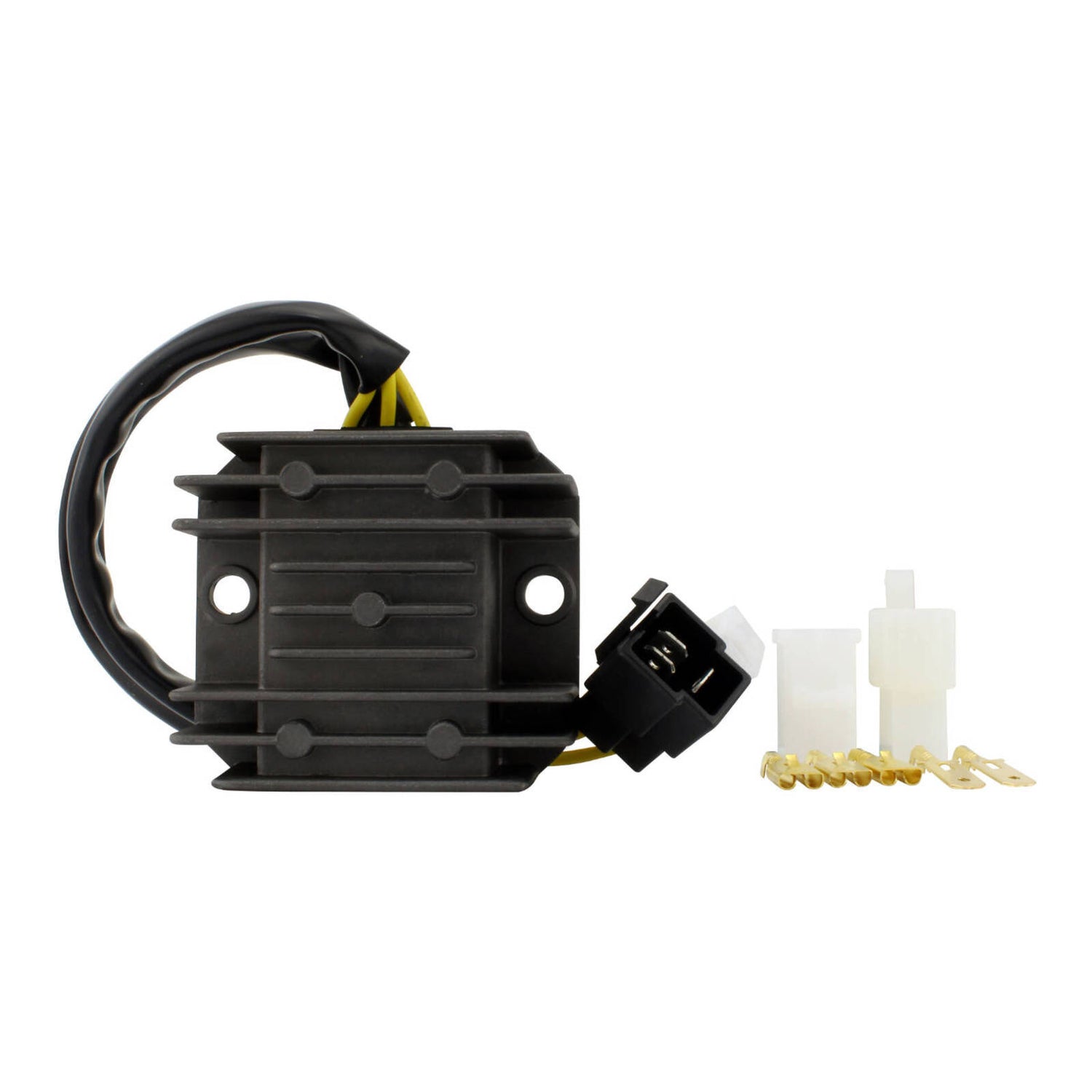

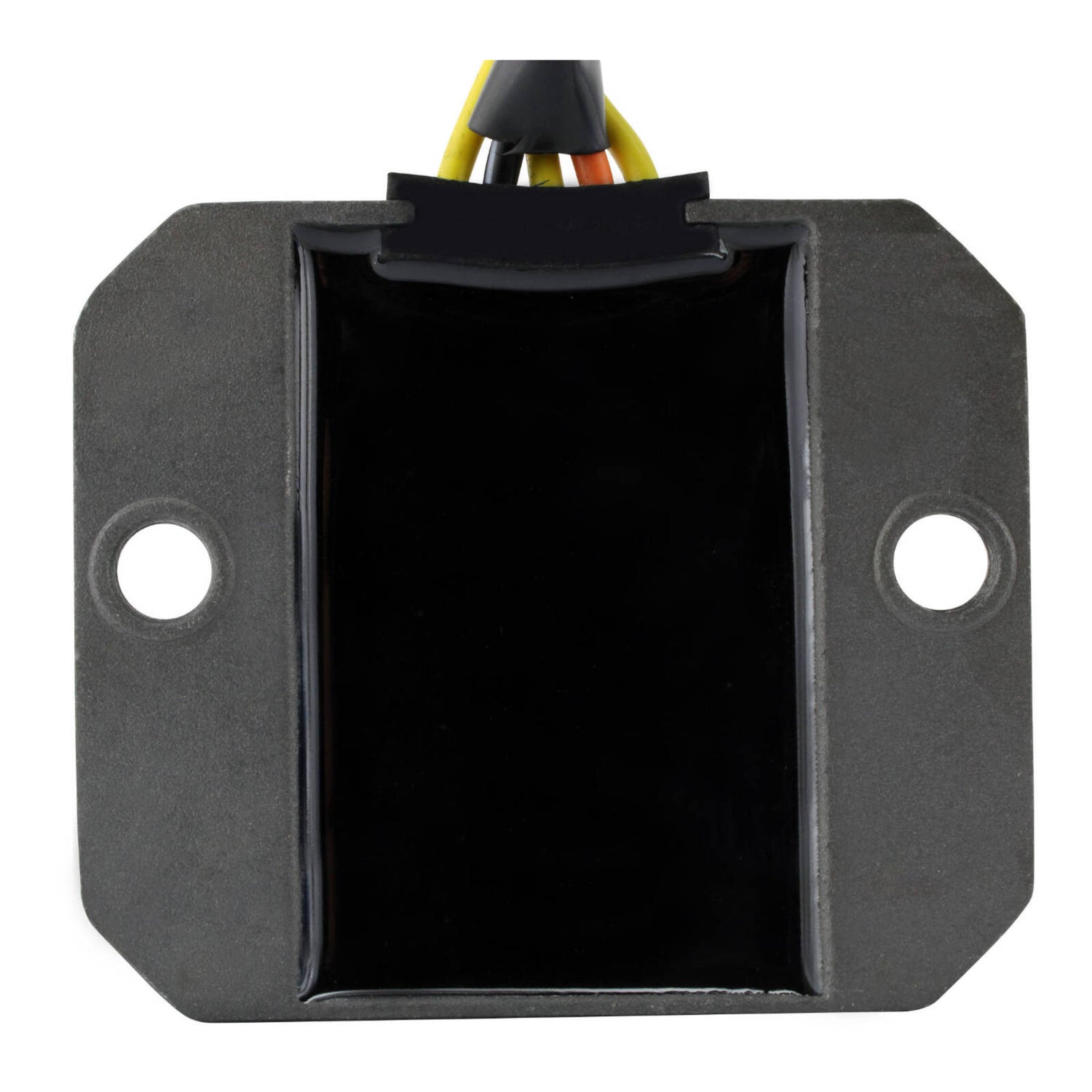

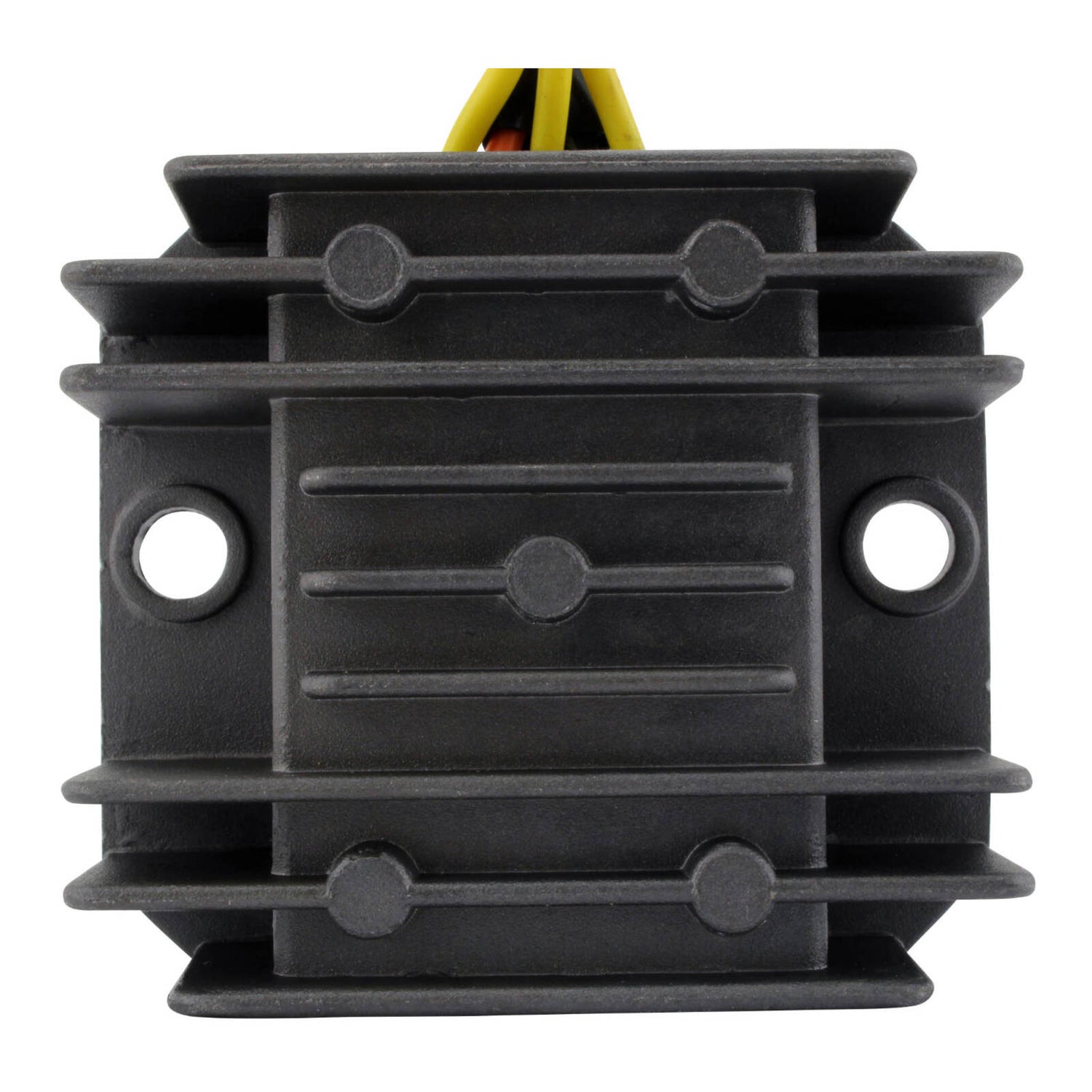

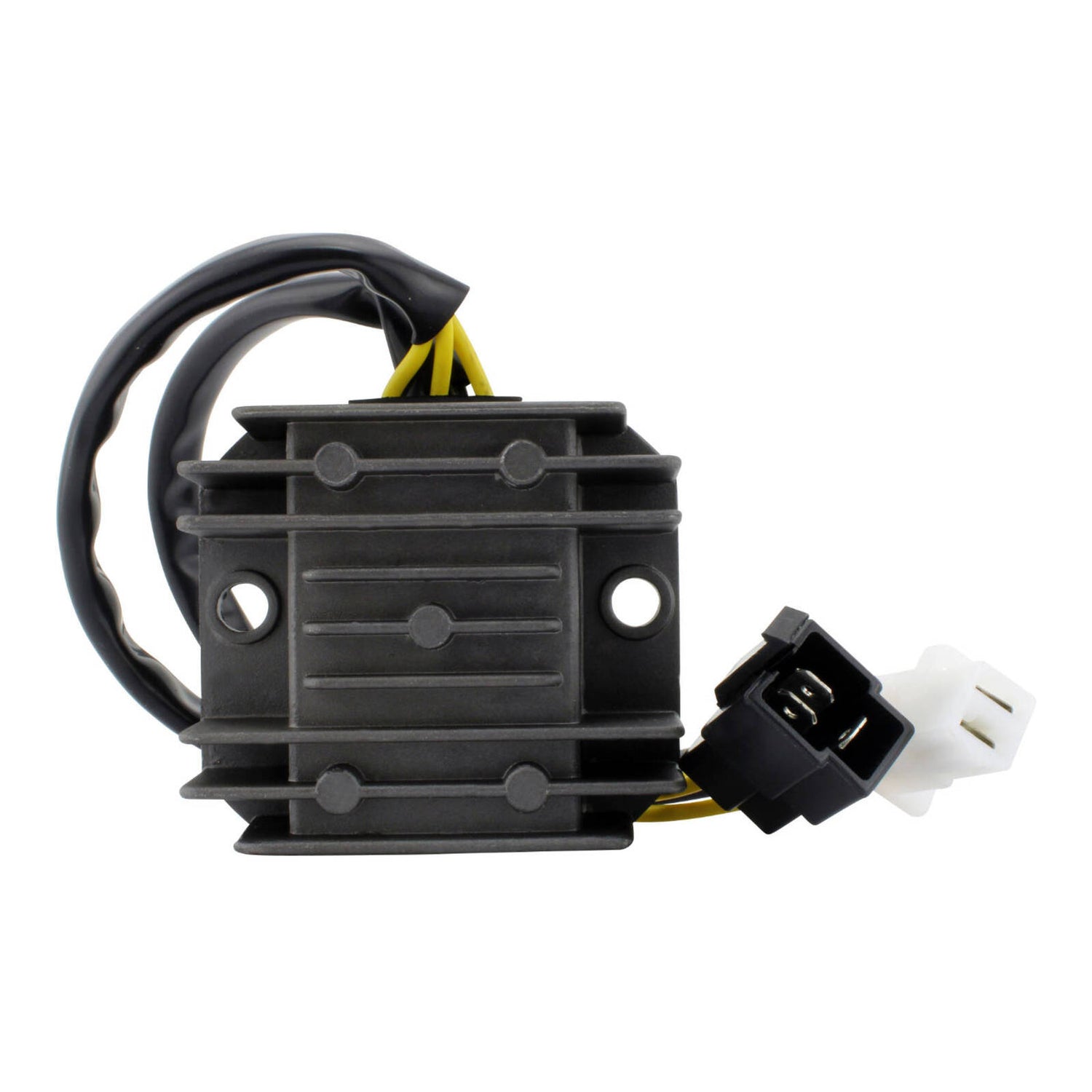

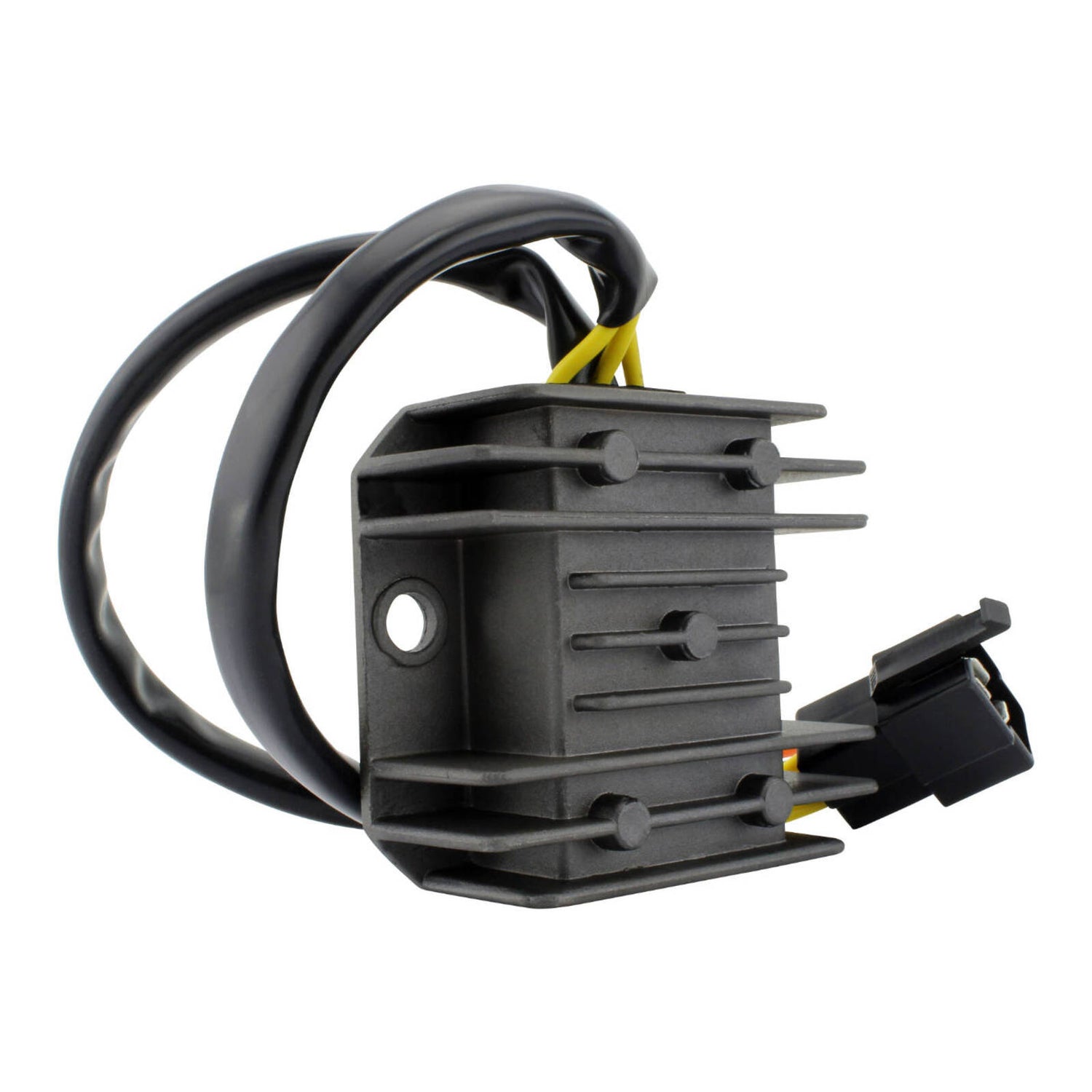

Brand new aftermarket Voltage Regulator Rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- The quality exceeds the OEM equipment.
- All products shipped are tested.

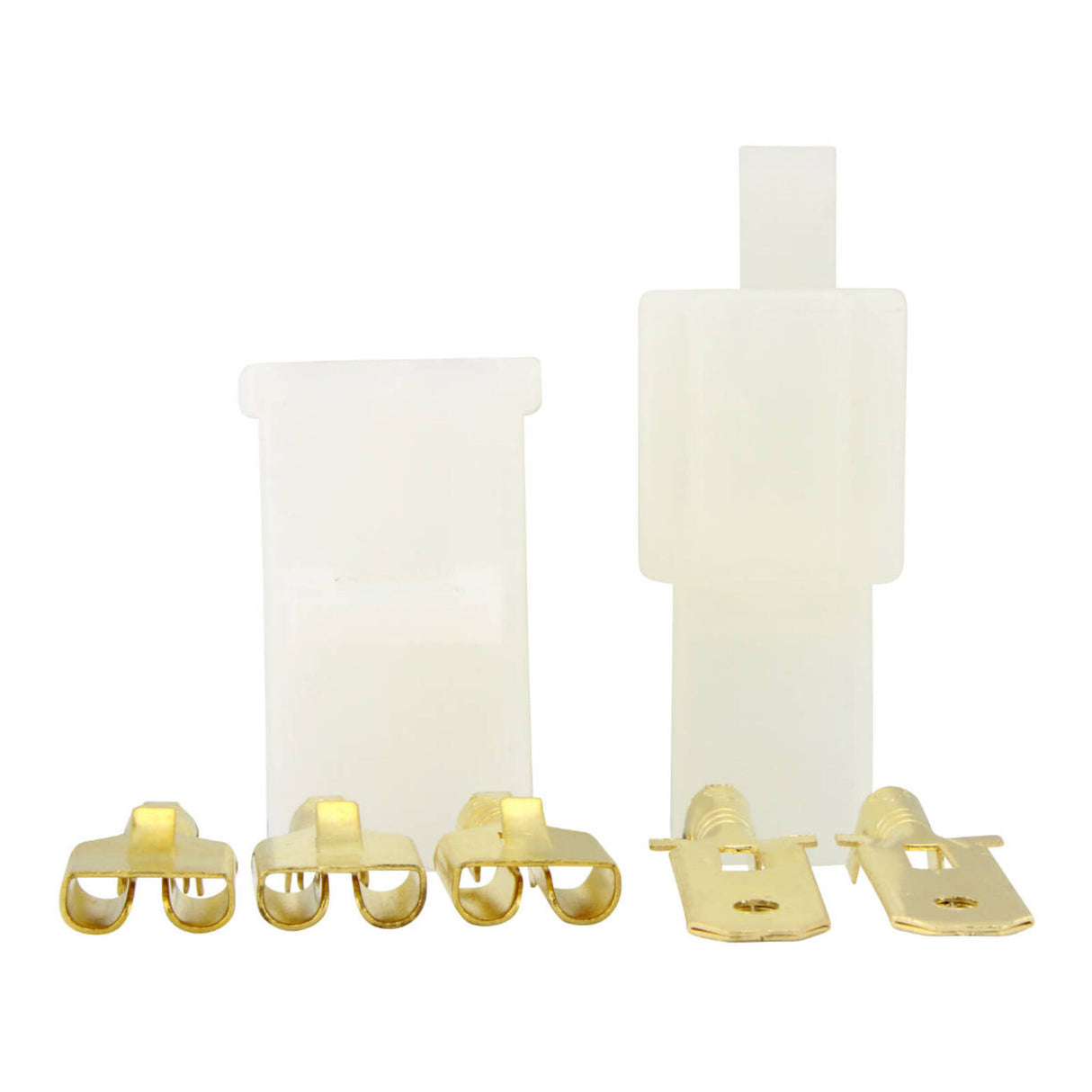

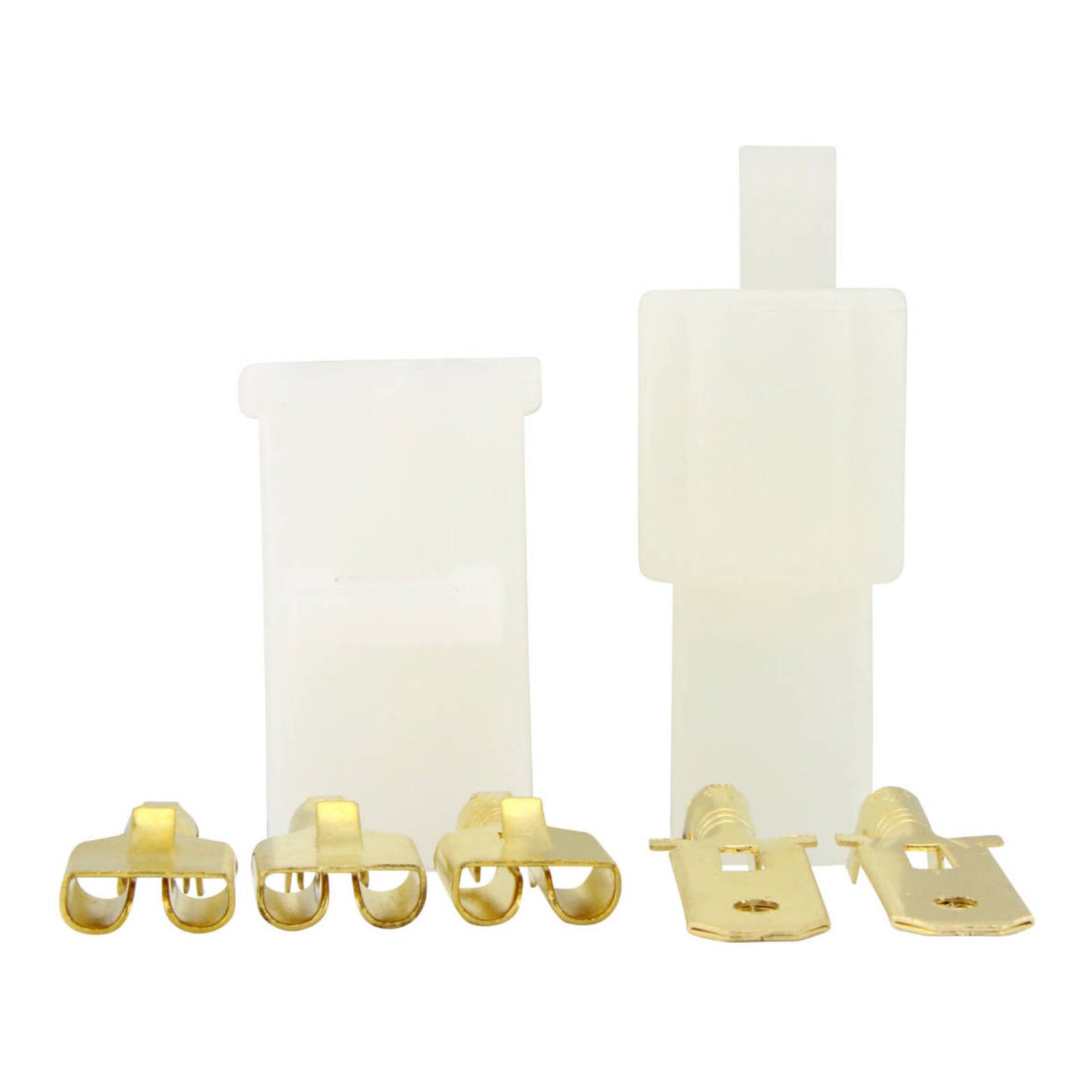

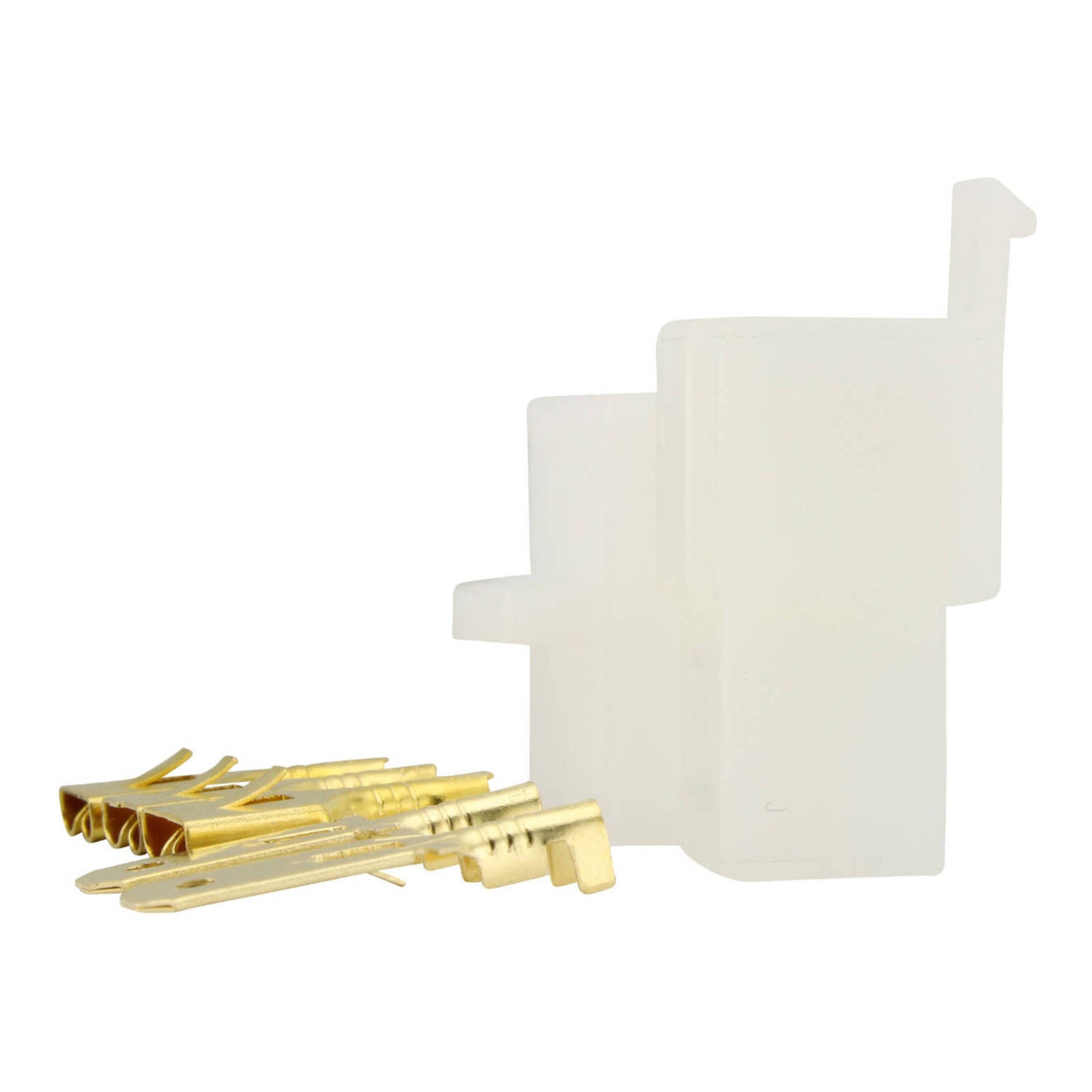

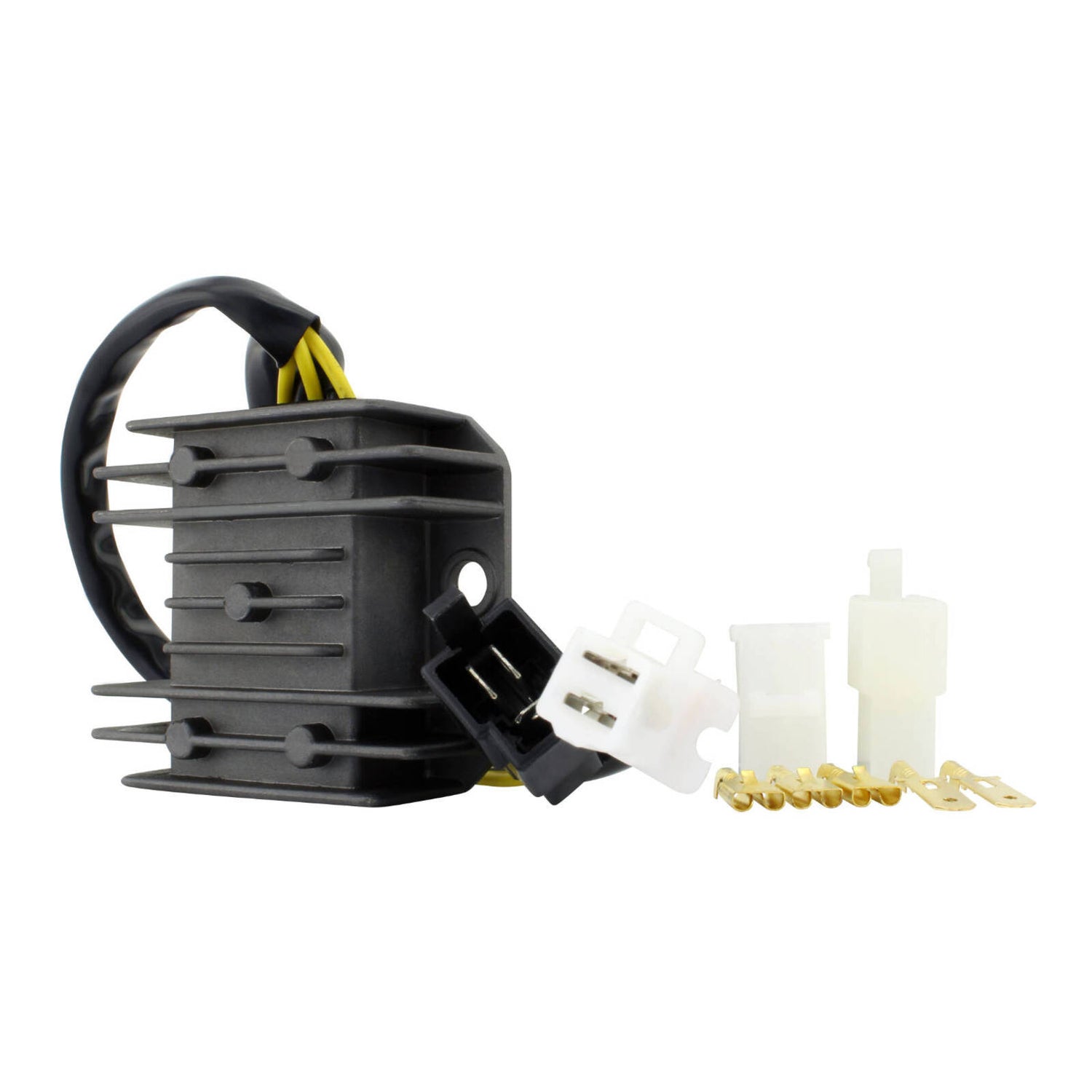

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

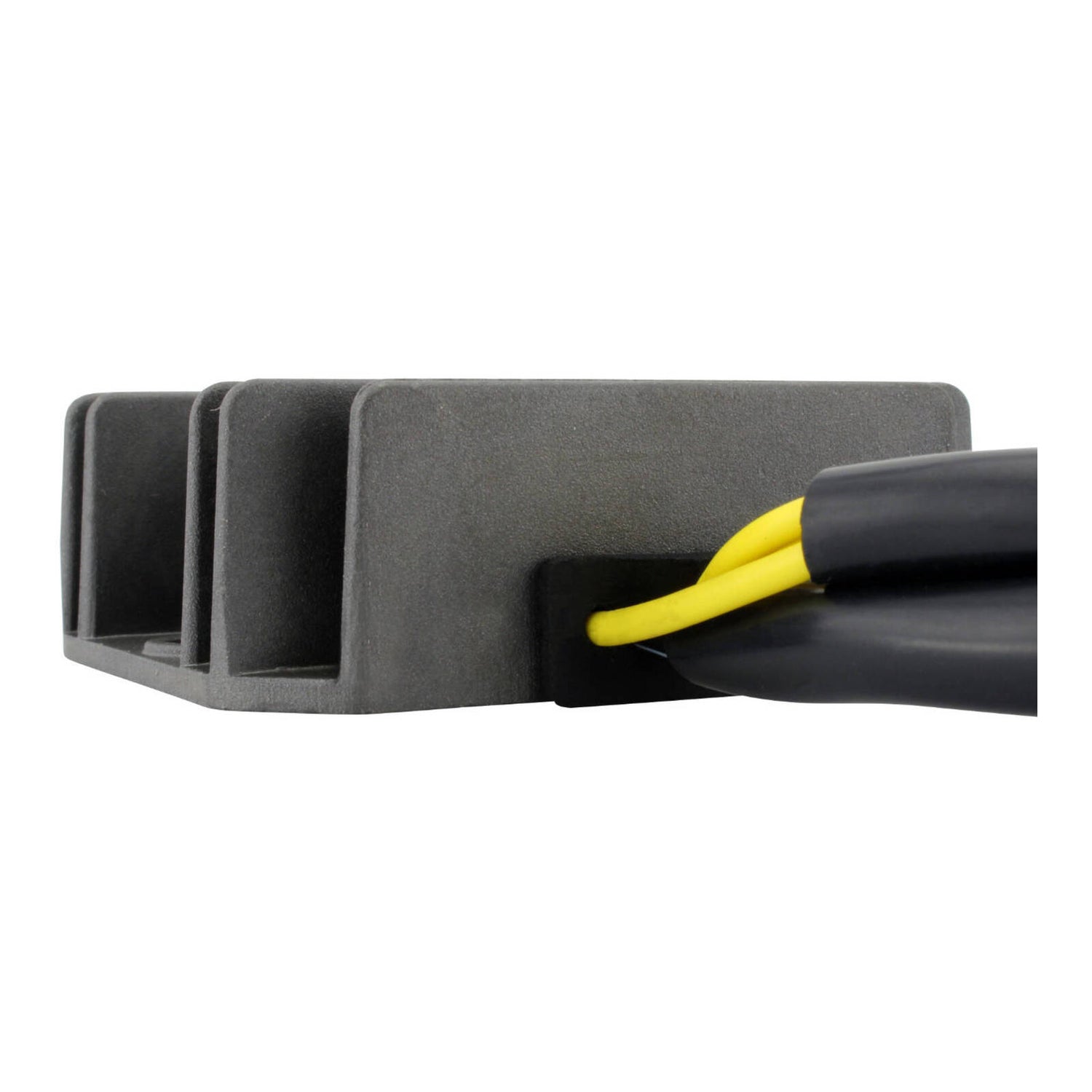

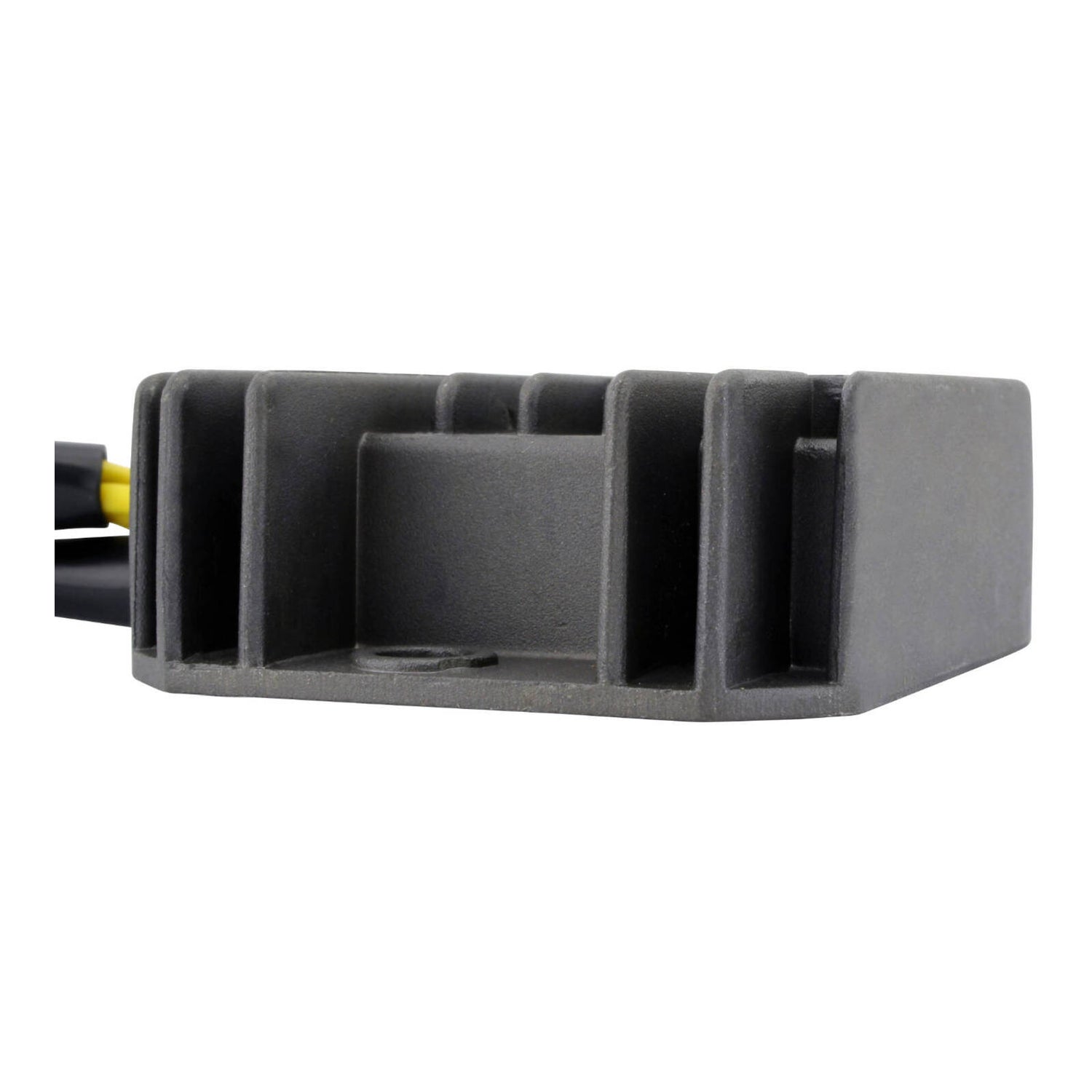

Dimensions:
- Width: 53 mm.
- Length: 70 mm.
- Height: 23 mm.
- Stator Wire Length: 210 mm.
- Battery Wire Length: 250 mm.
- Distance between fixation holes centre to centre: 55 mm.
Other specifications:

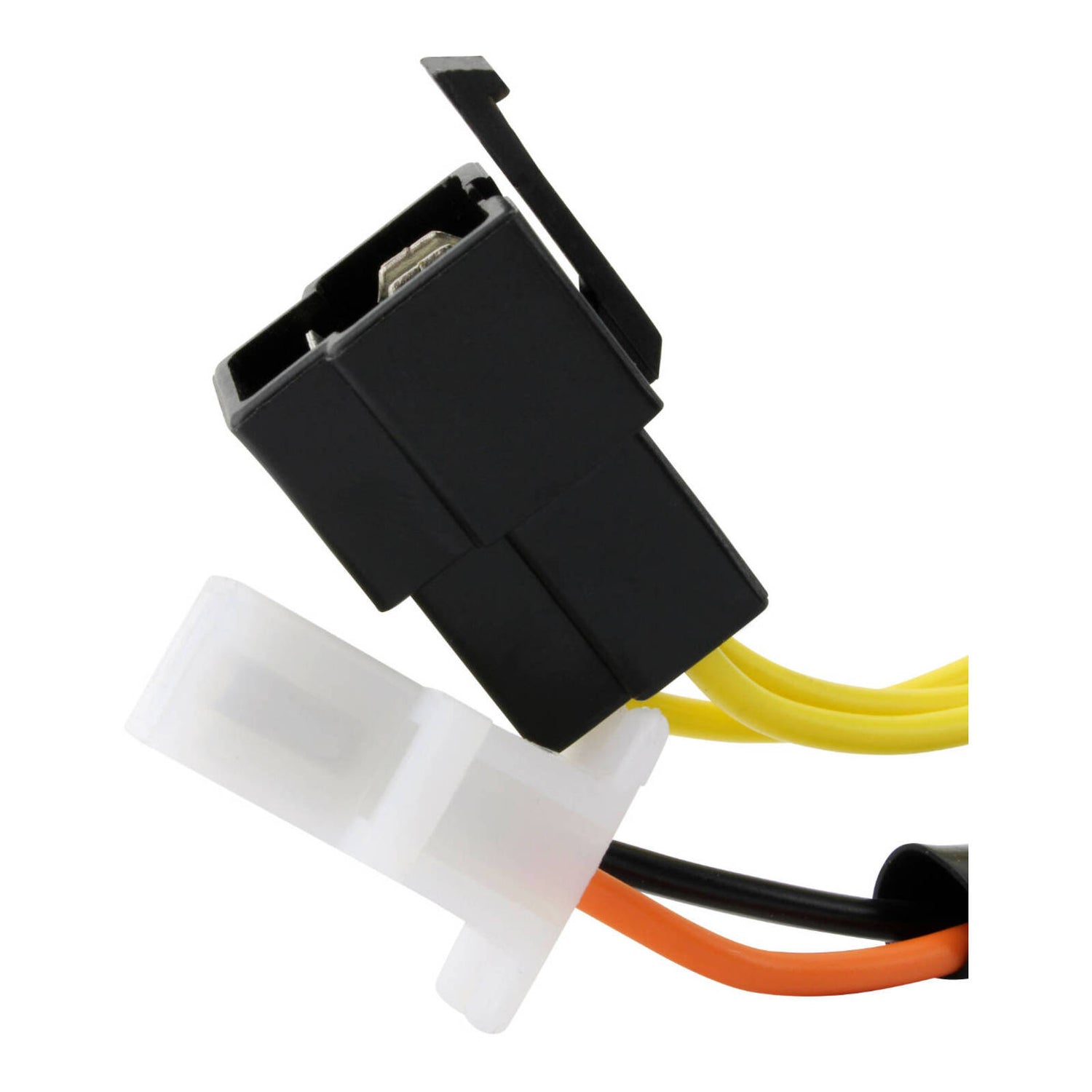

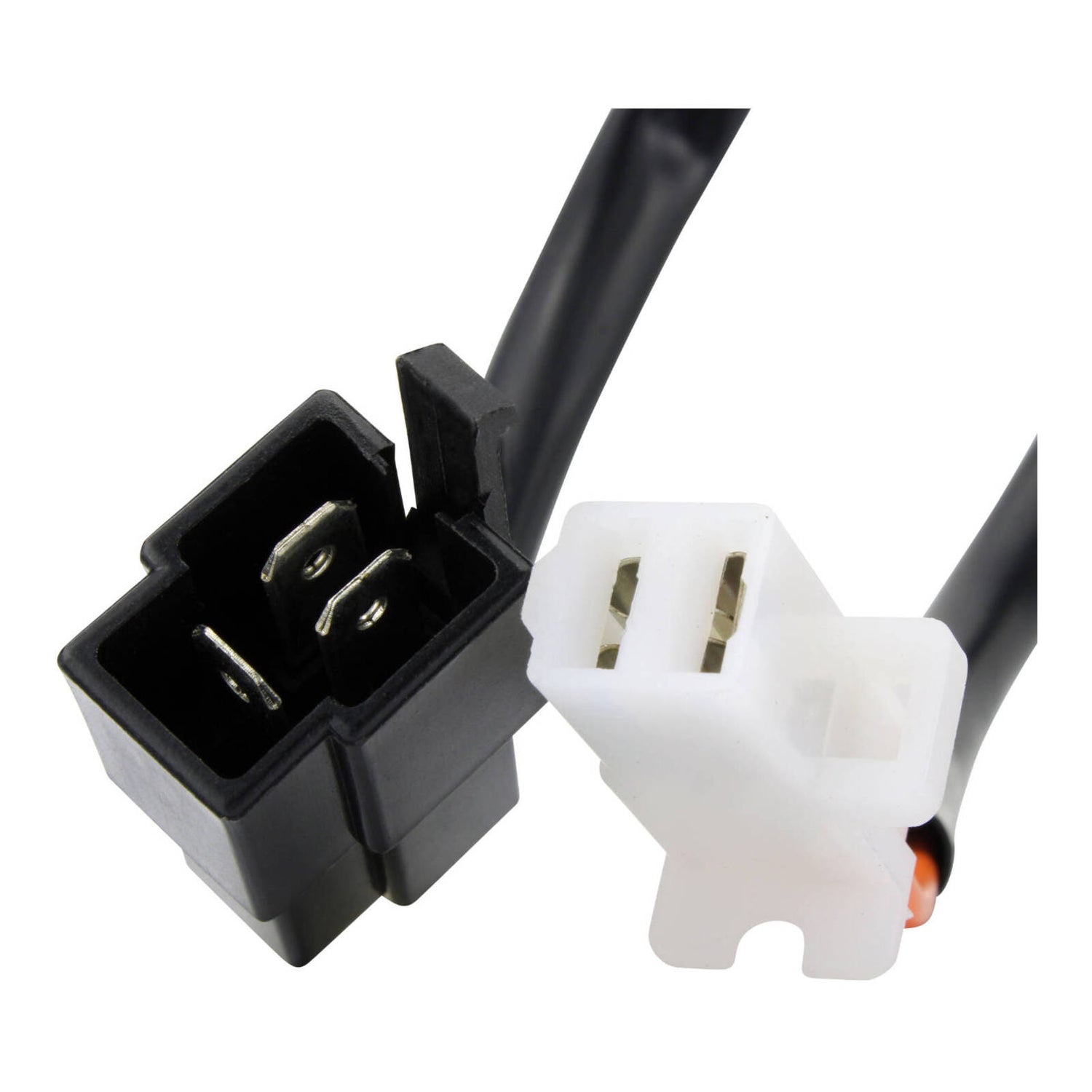

- Number of plugs: 2.
- Number of pins: 5.
- Number of wires: 5.
- Minimum Charging Voltage: 14.5 V +/- 0.5 V.
- Maximum Charging Current: 50 A / 500 W.
- Open Circuit Voltage: < 15 V.
- Operation Temperature: -20°C to 85°C.
