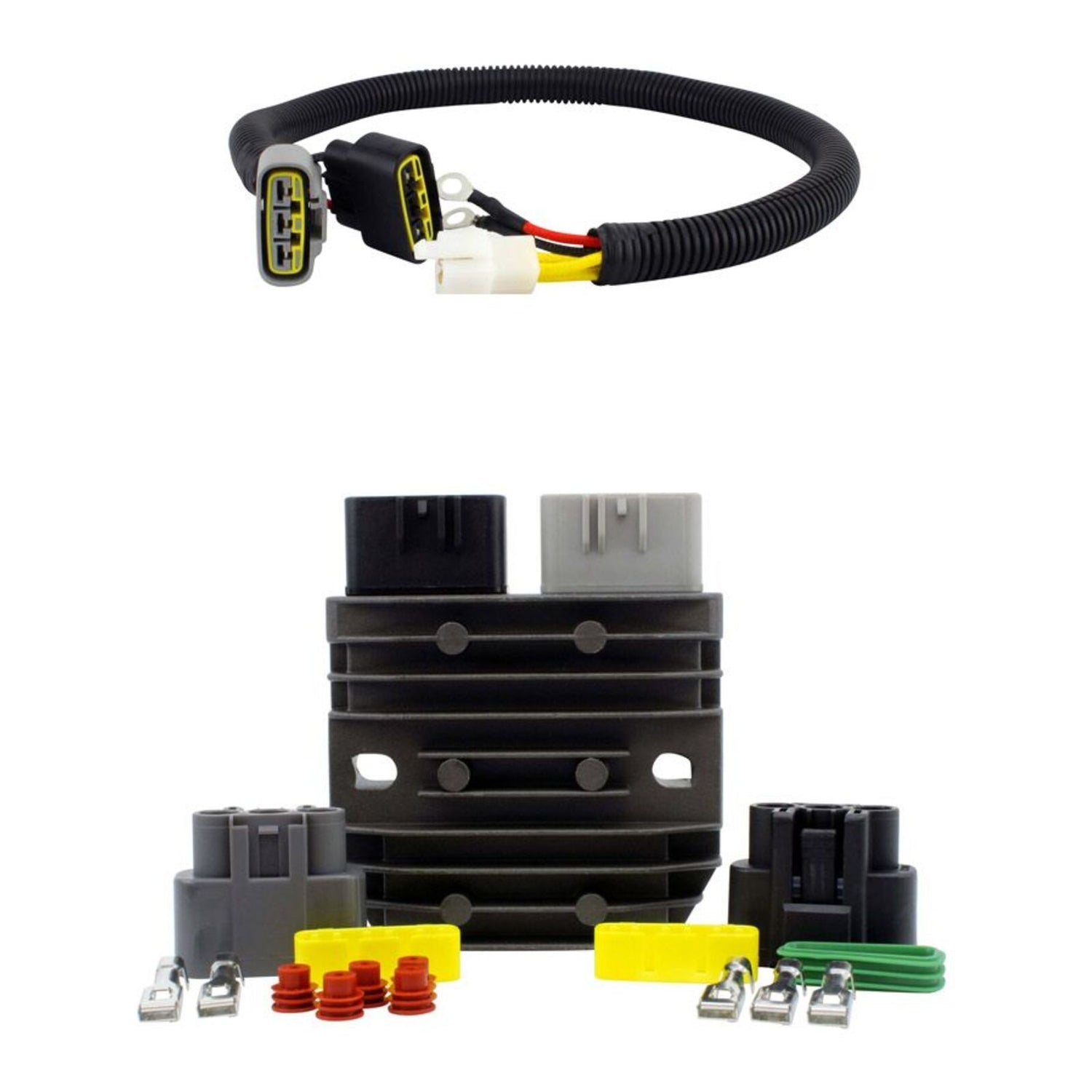

Series Regulator Bypass - Suzuki DRZ400 / Kawasaki KLX400

Part no.RMS020108148
Checking fitment…
$319.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS020108148
Part type
Regulator / Rectifiers
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way cooler than OEM parts.

  • Power only flows through the electrical components when the battery is charging.
  • Allows the stator to have lower current flowing when not used, extending its lifetime.
  • The regulator is easier to mount because it is smaller than the OEM one.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and onto the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.

INSTALL LIKE A PRO

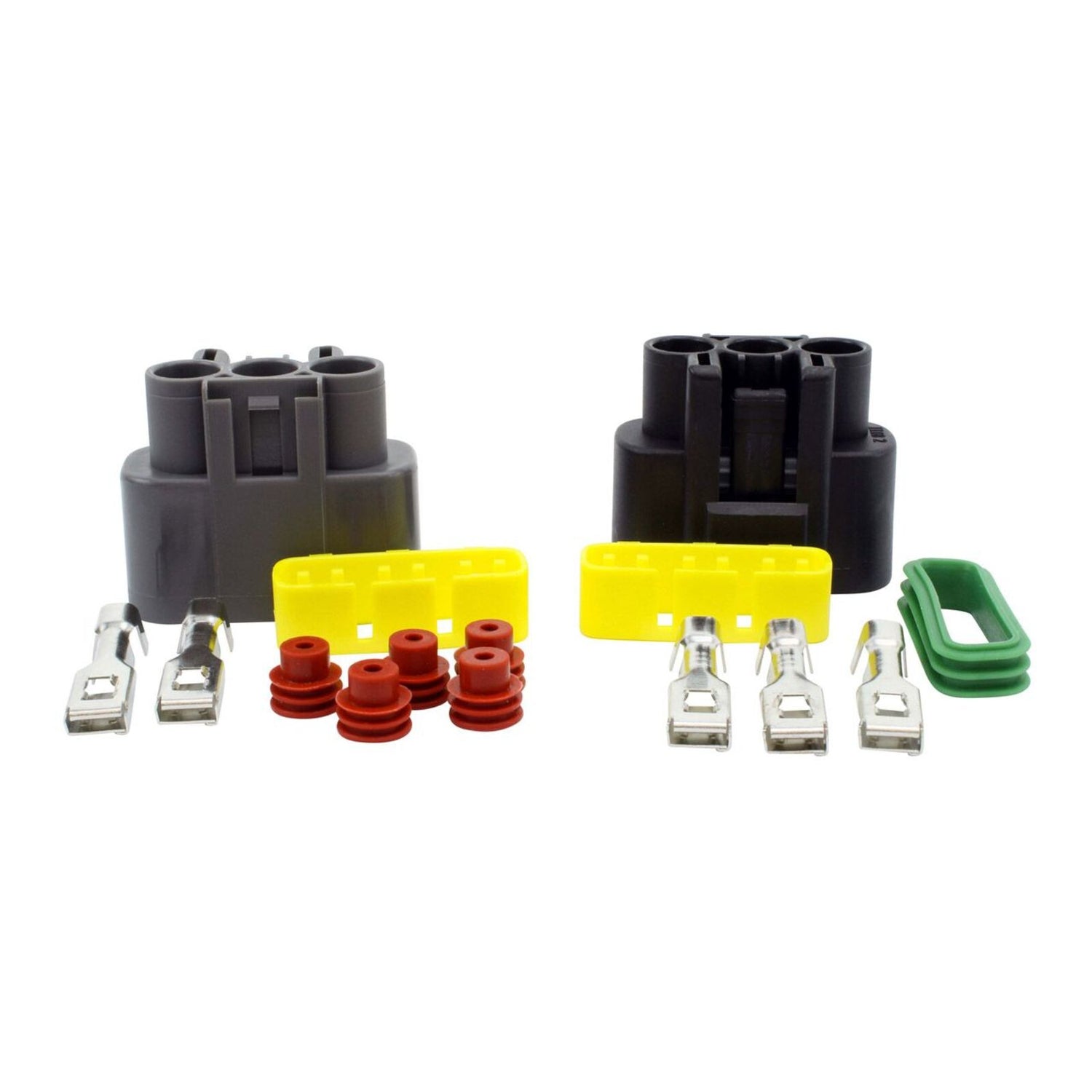

We include the opposite connector (main harness side) as we know these are often melted / corroded/defective. Defective connectors are a major cause for repetitive electrical issues.

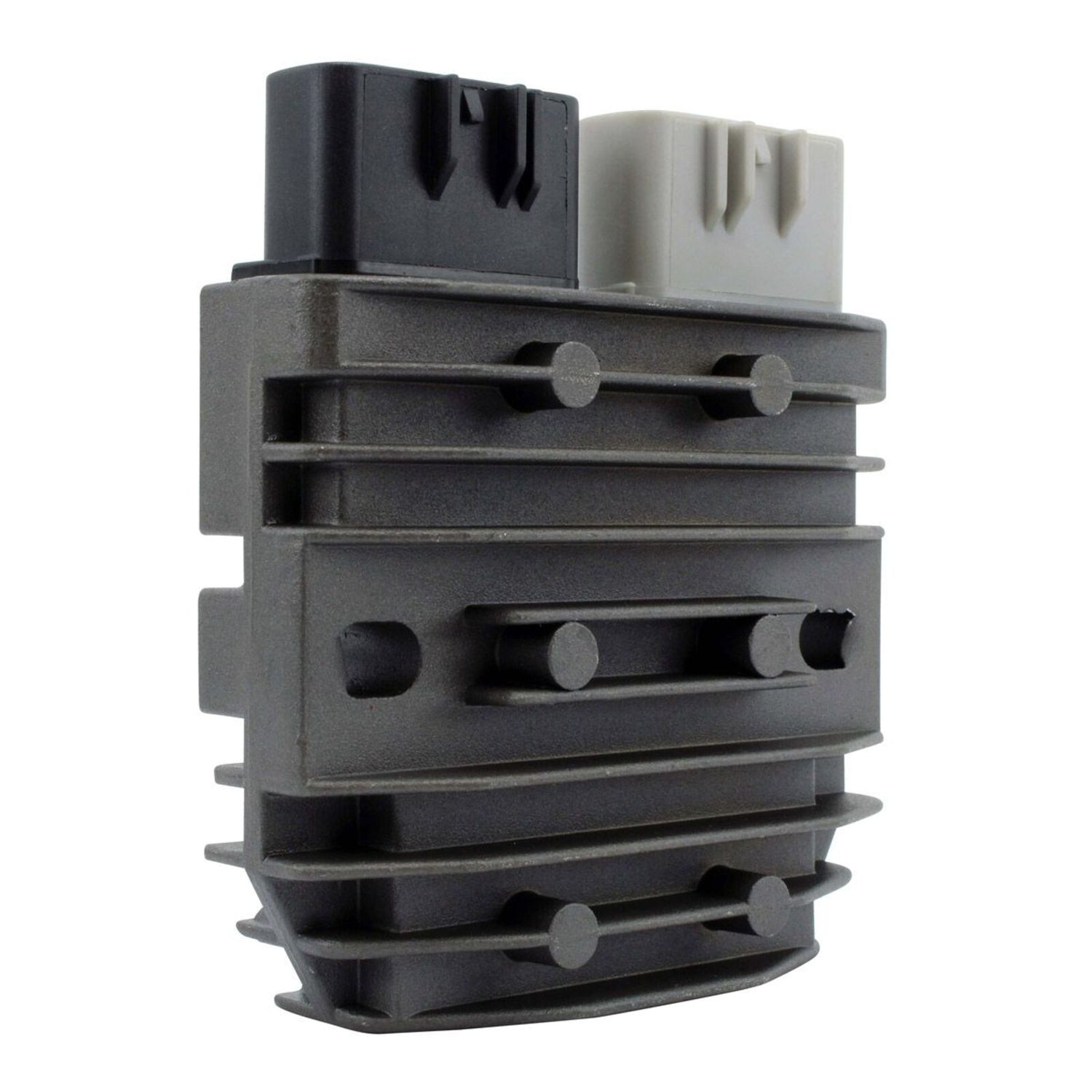

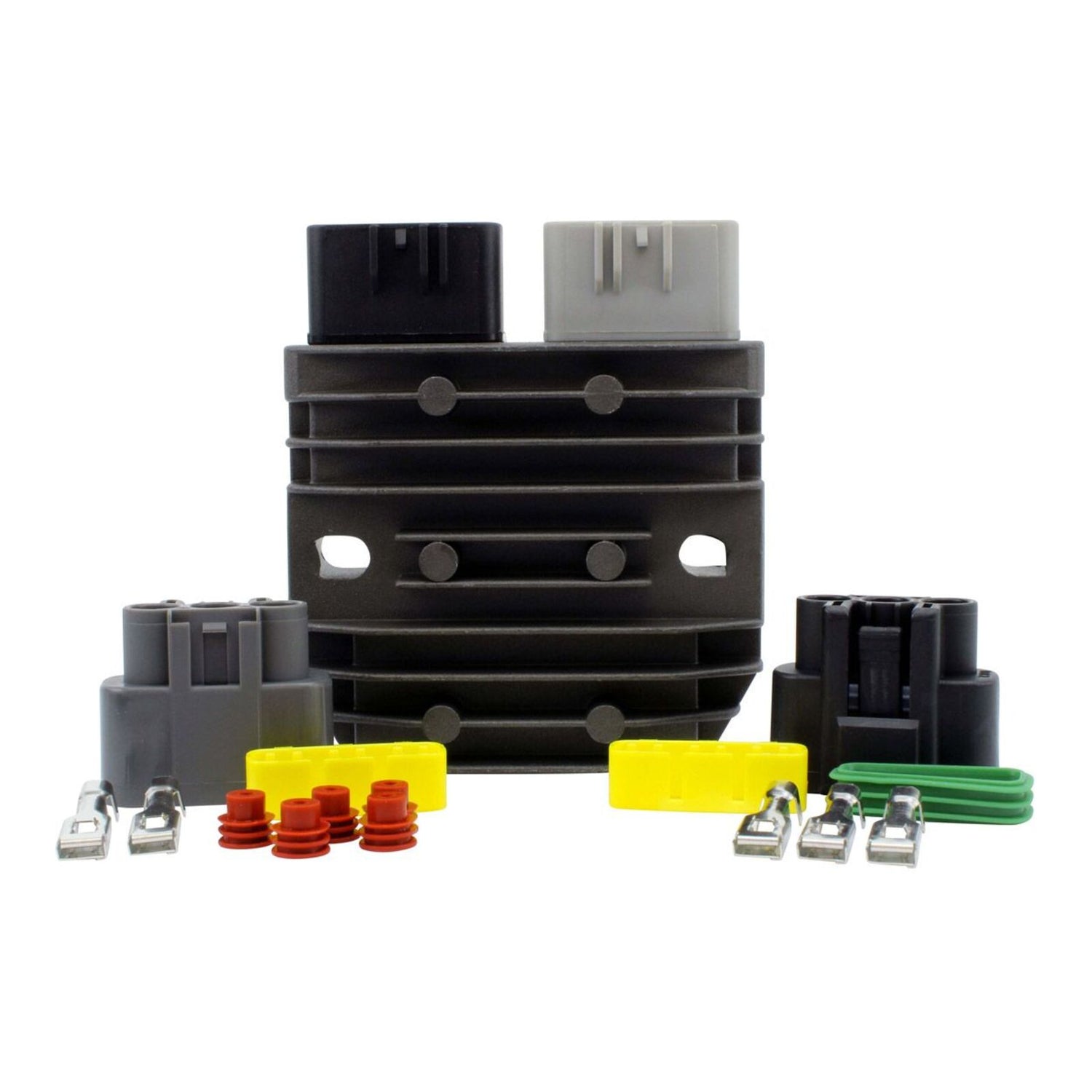

Before installing the new machined billet aluminium SERIES Voltage Regulator Rectifier :

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use high-temperature dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

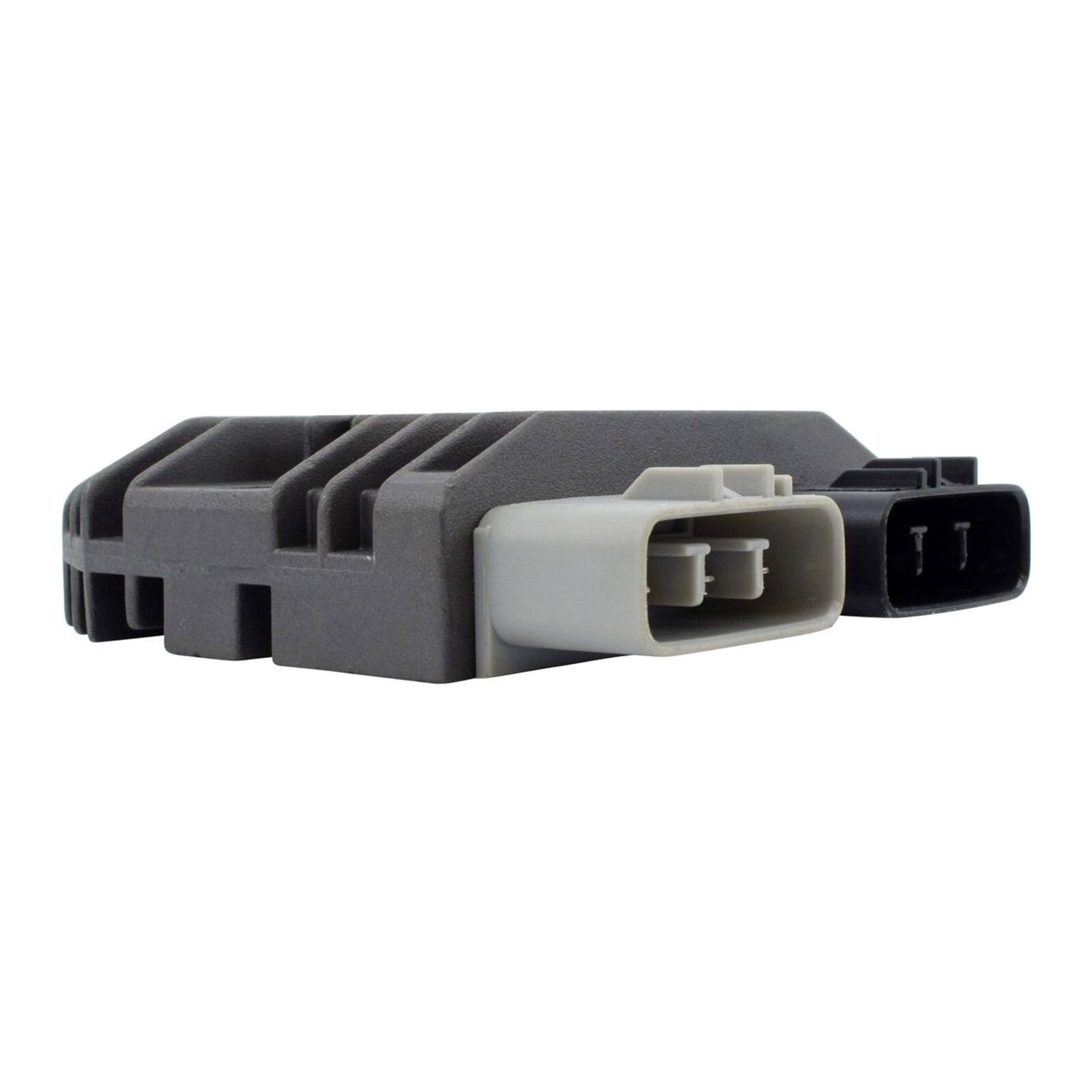

Series Regulator :

Dimensions:

  • Width: 84 mm
  • Length: 90 mm
  • Height: 32 mm
  • Fixation holes centre to centre: 69 mm

Other specifications:

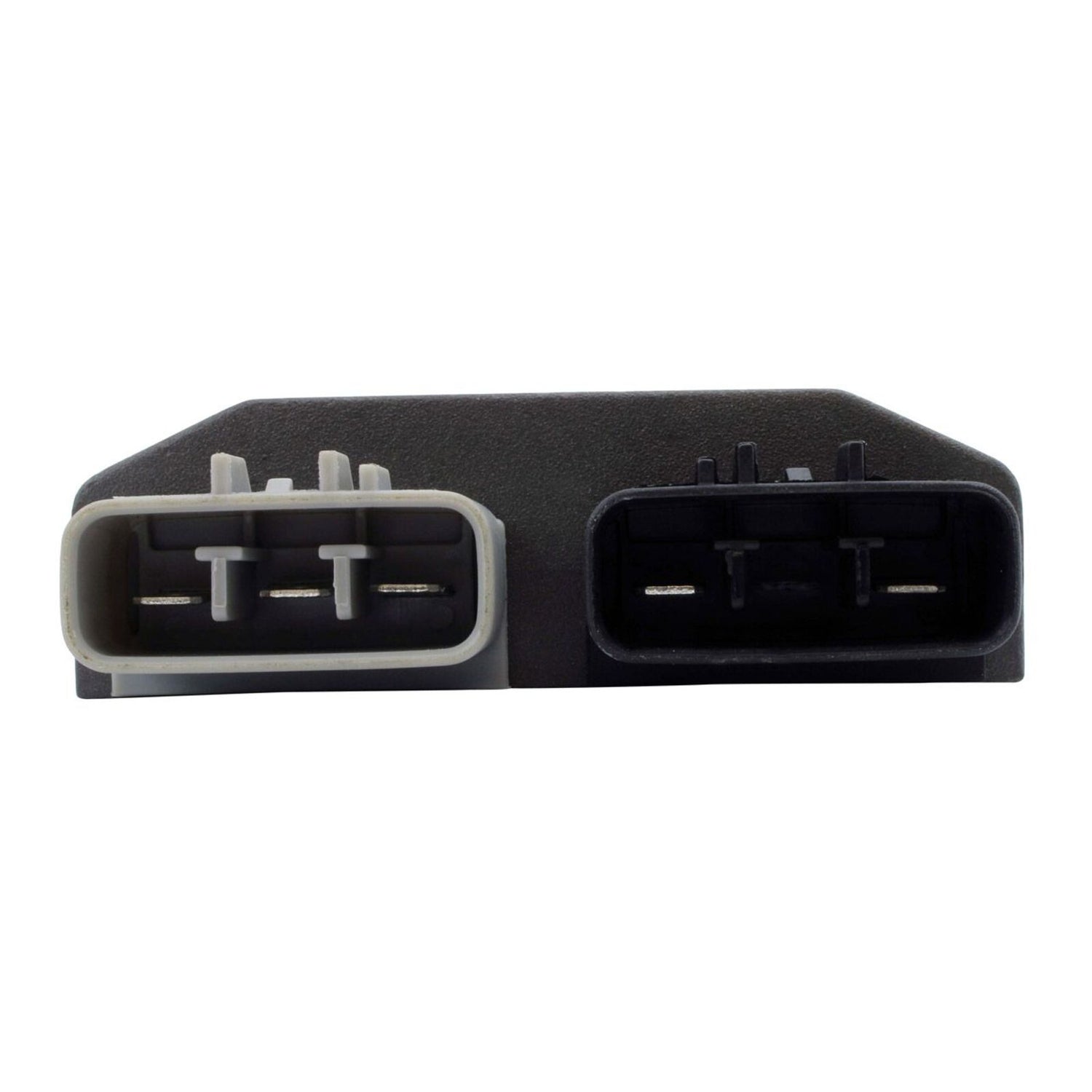

  • Number of plugs: 2
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

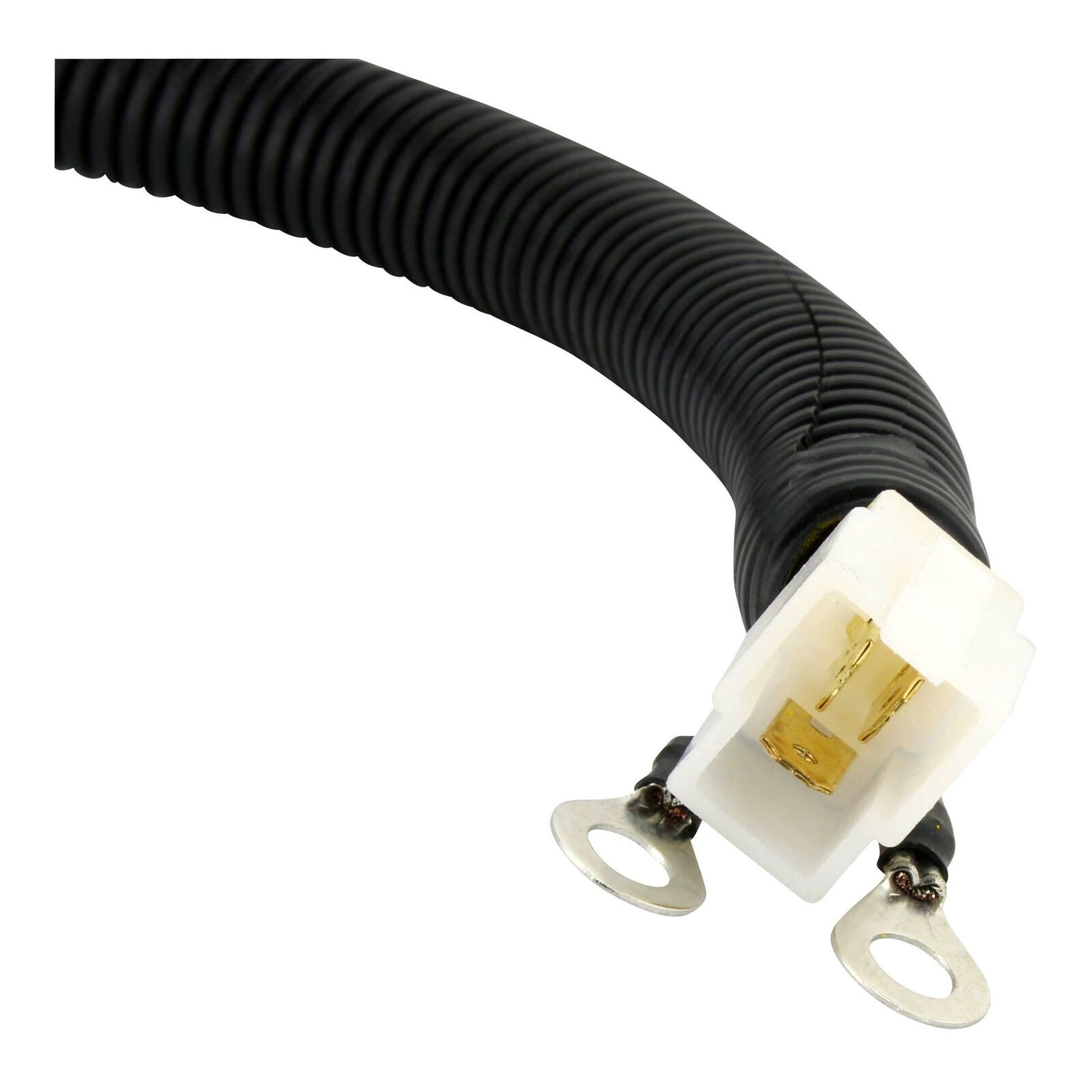

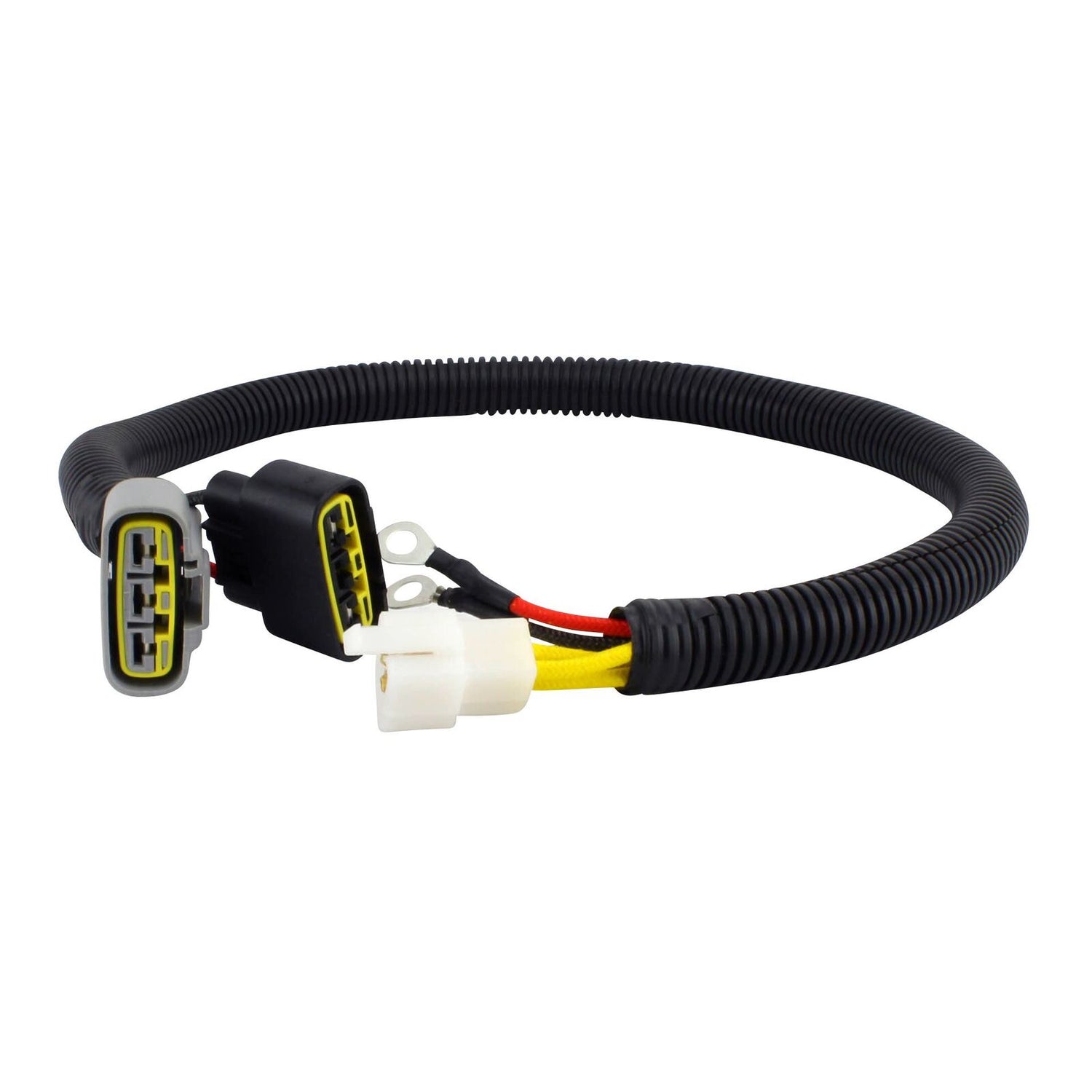

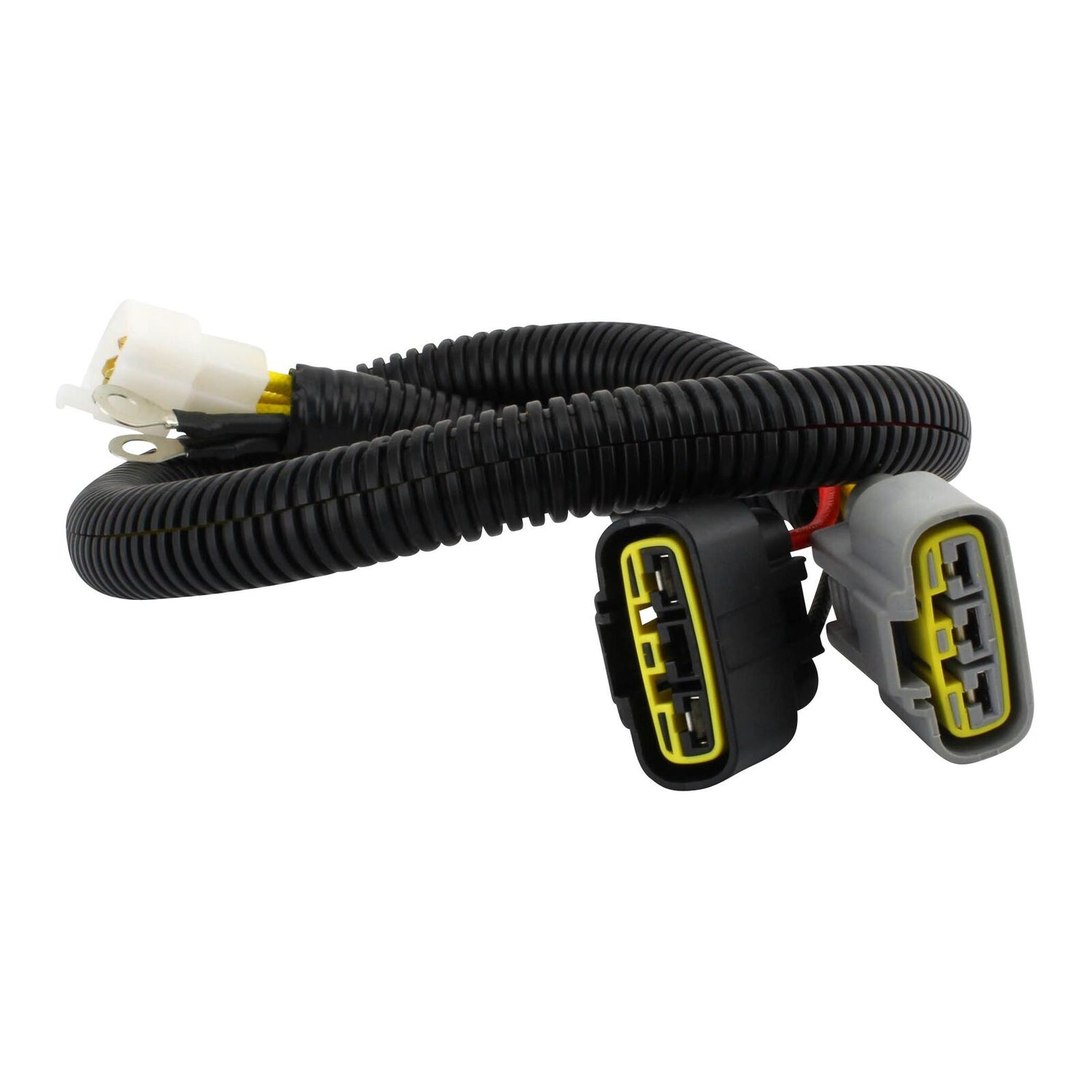

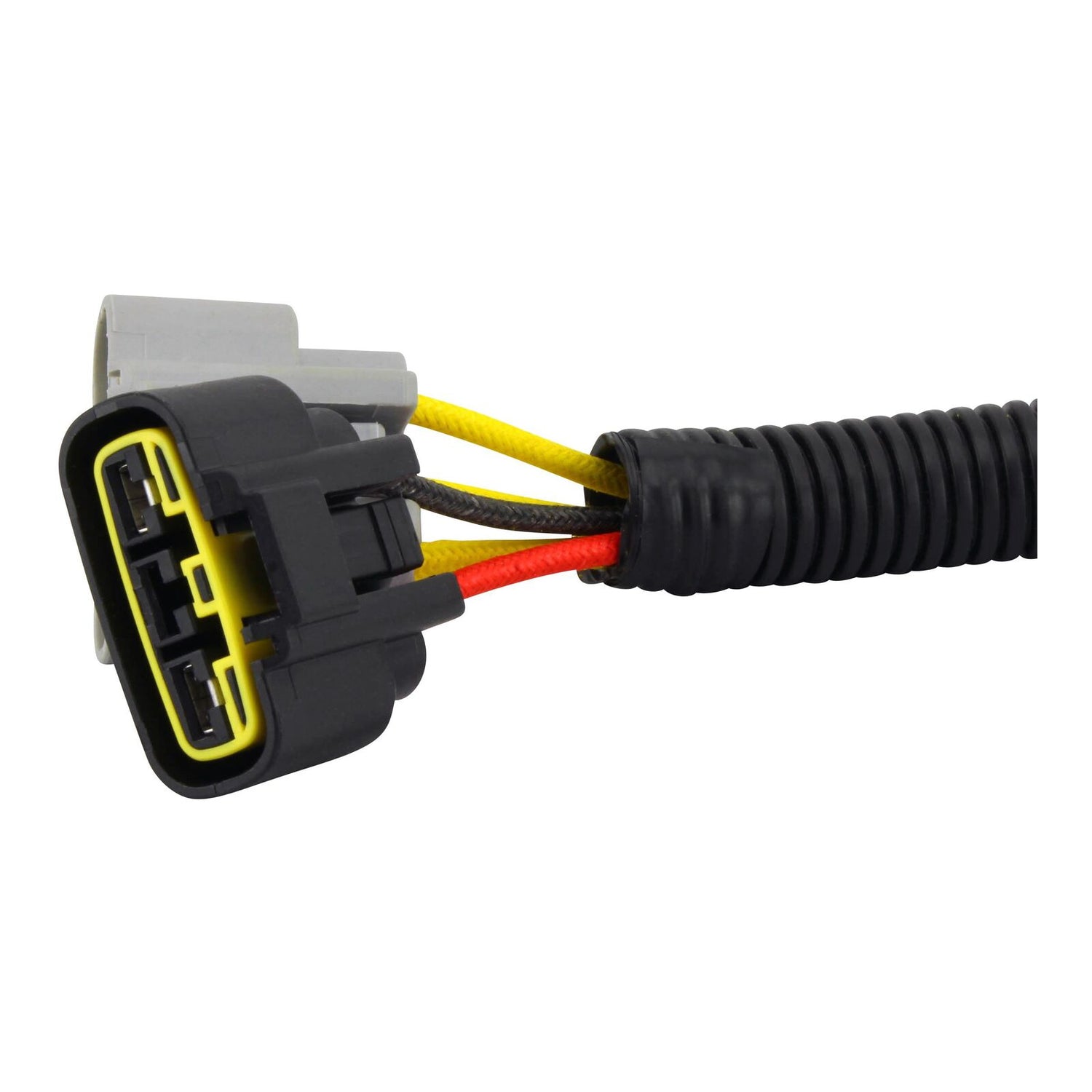

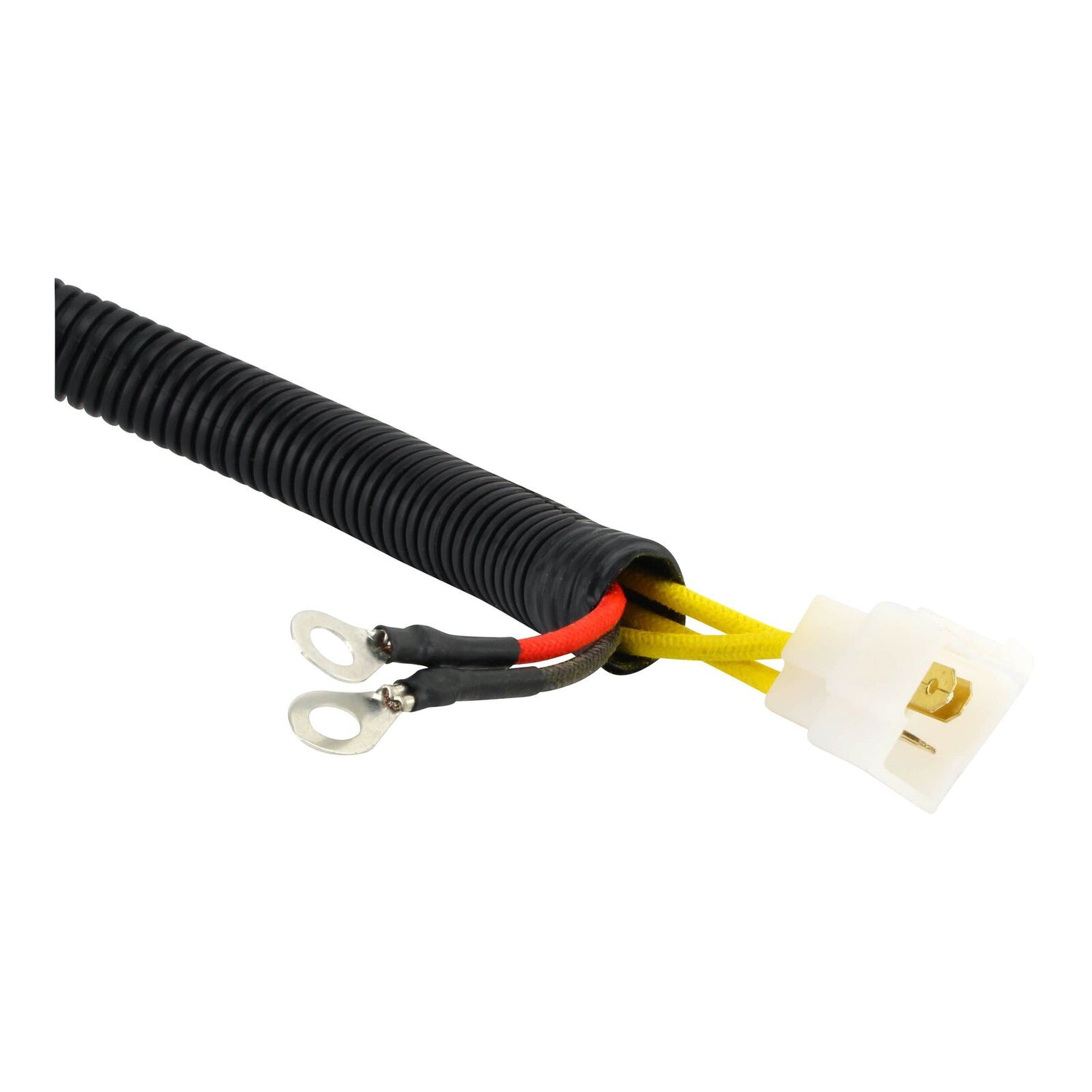

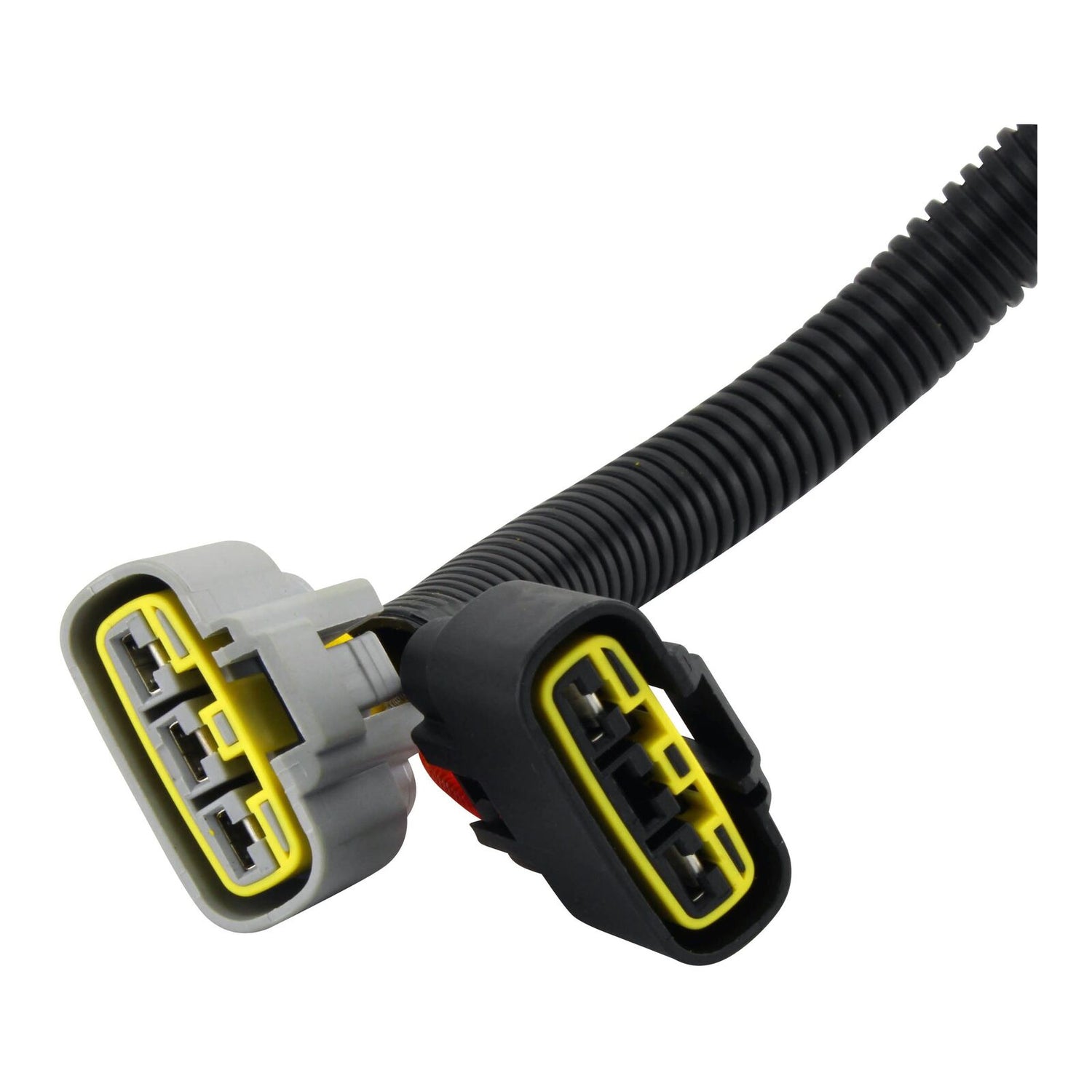

Bypass Harness:

Dimensions:

  • Wires length: 640 mm
  • Number of plugs: 3
  • Number of pins: 5
  • Number of wires: 5
