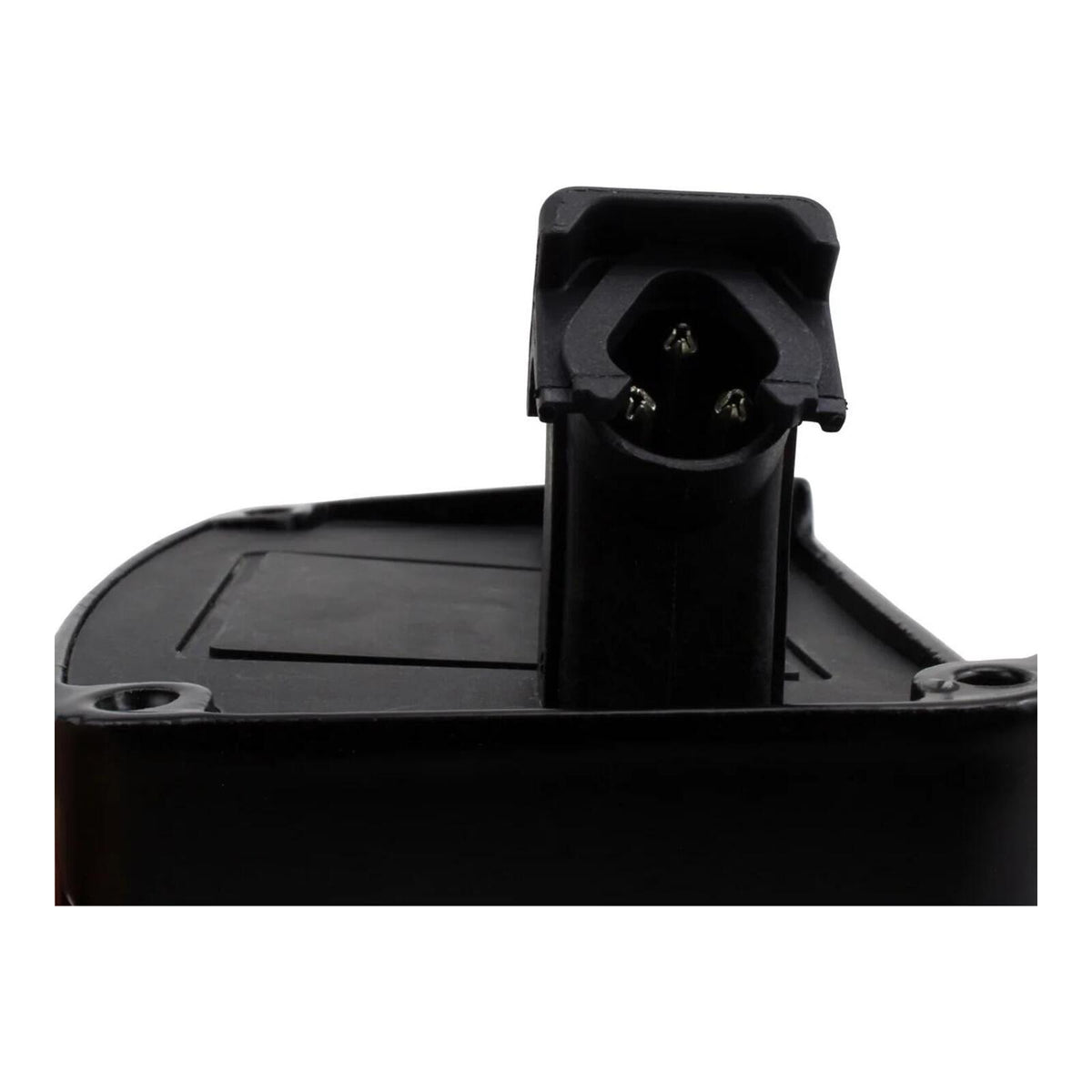

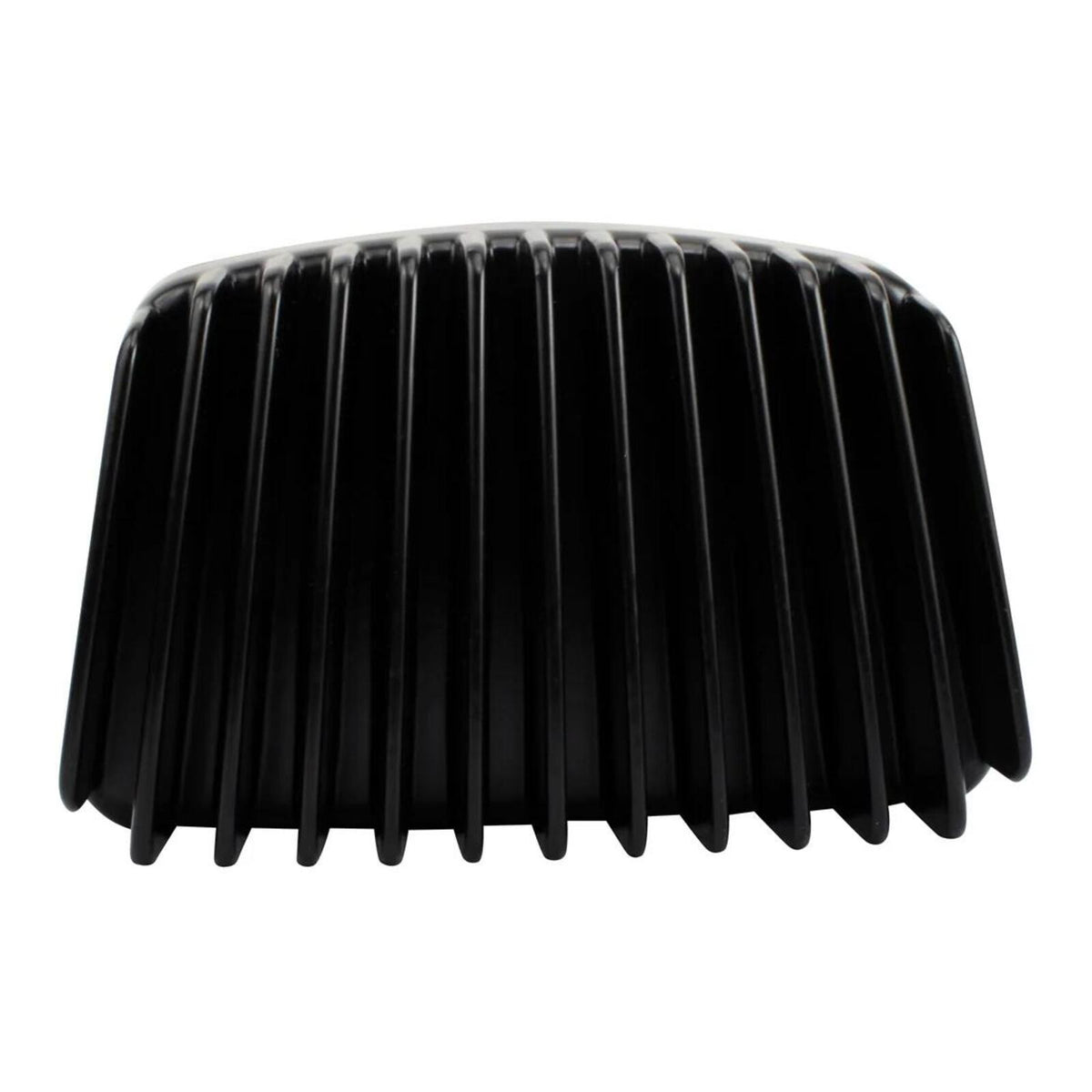

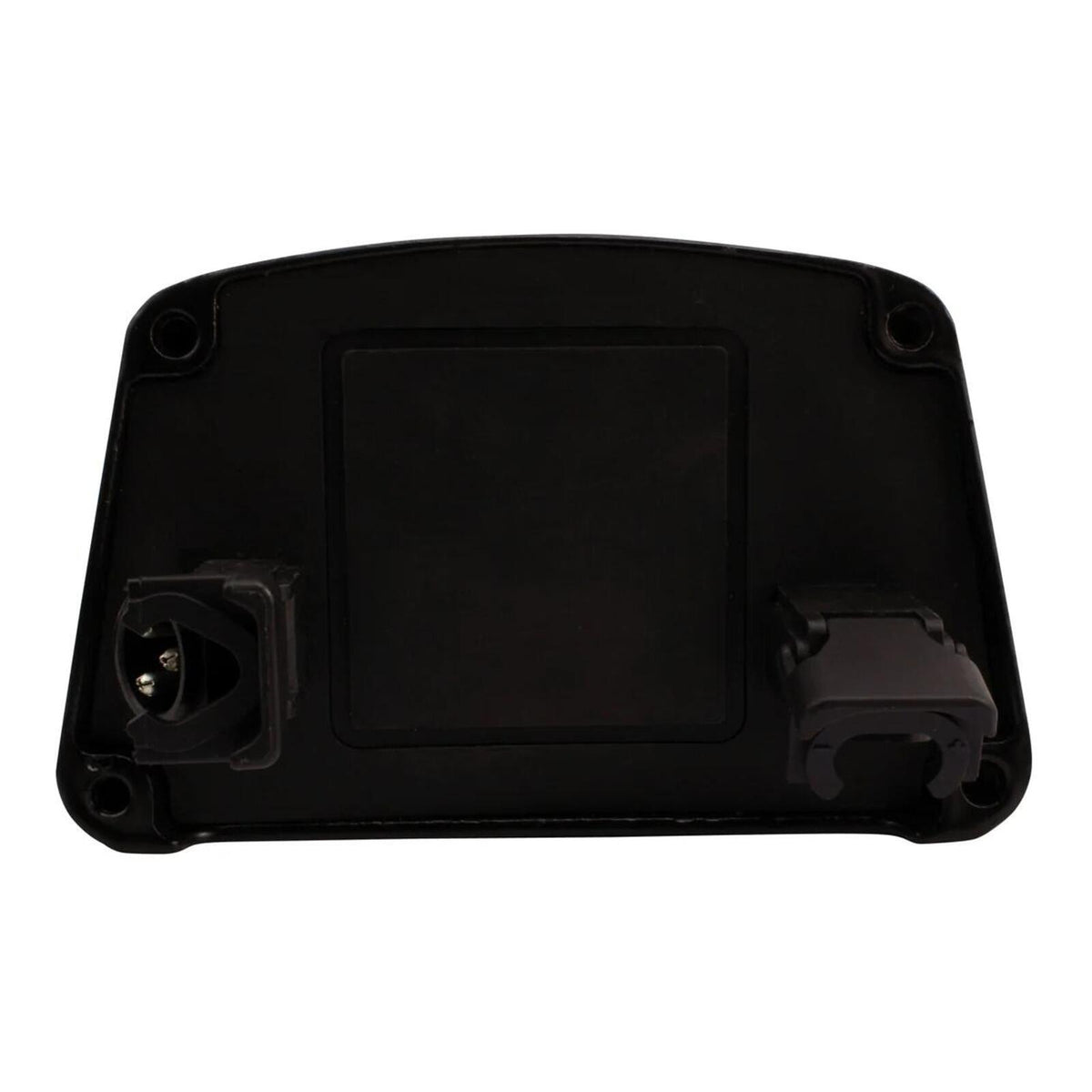

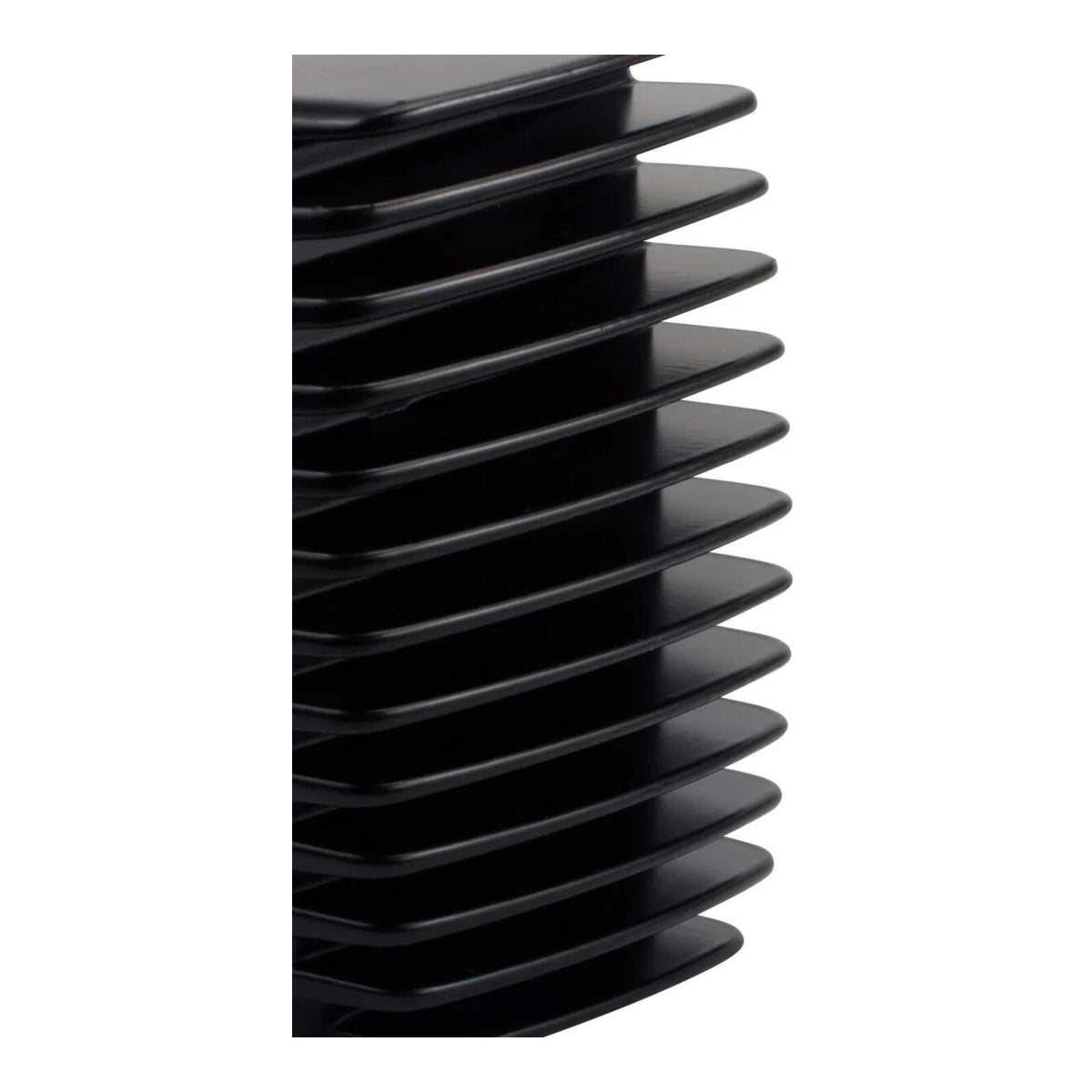

Voltage Regulator Rectifier - Assorted Harley-Davidson Models
$429.99
GST included
In stock – only 1 left – ships from Brisbane
Sold out – contact us for an ETAClick & Collect from Acacia Ridge QLD
- Brand
- RMSTATOR
- Part number
- RMS020108794
- Part type
- Regulator / Rectifiers
- Warranty
- Full manufacturer warranty
- Condition
- New
Not sure it's the right part? Call 07 3340 4392
Vehicle fitment
Check fitment before you buy
We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
| Brand | RMSTATOR |
|---|---|
| Part number | RMS020108794 |
| Part type | Regulator / Rectifiers |
| Barcode | RMS020-108794 |
| Warranty | Full manufacturer warranty |

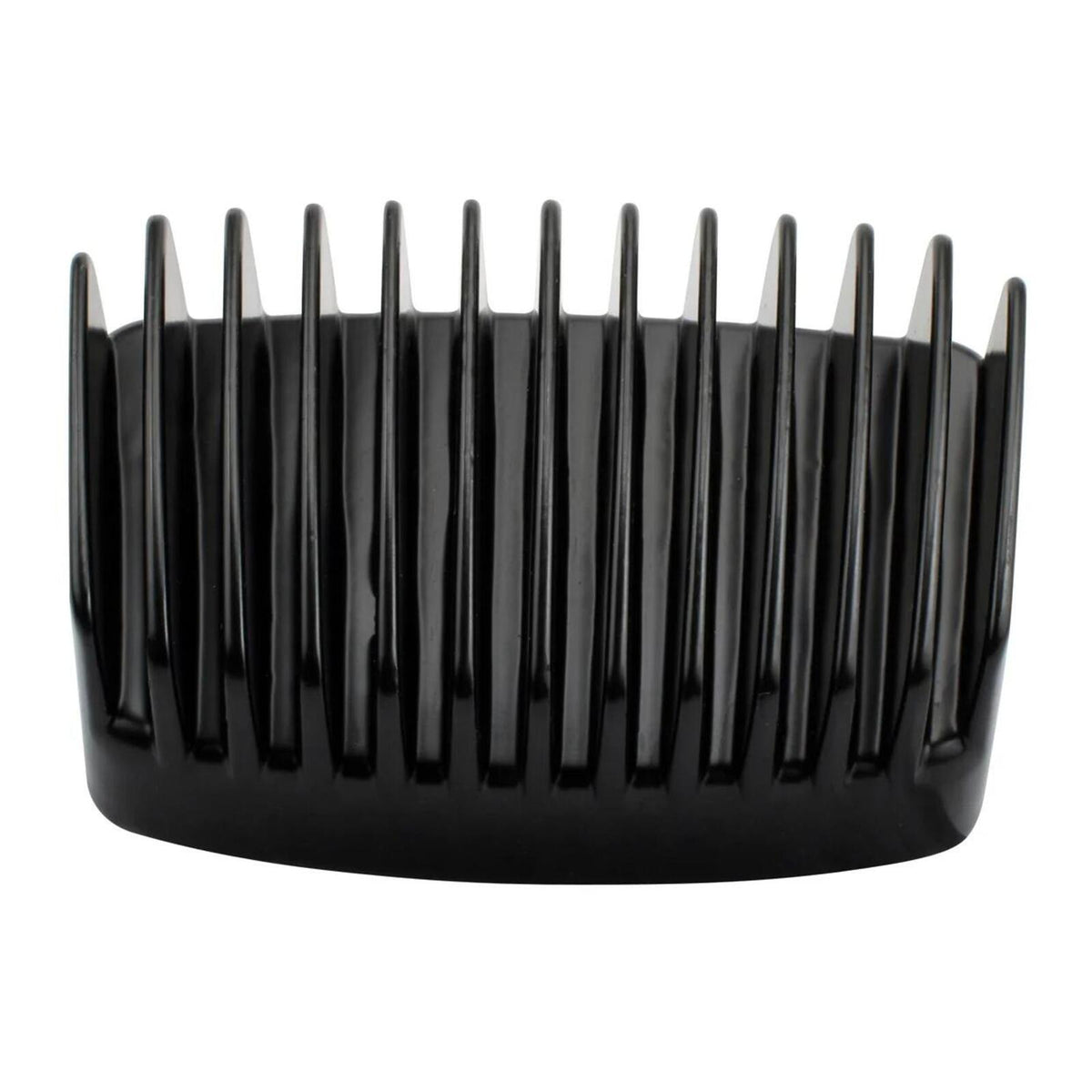

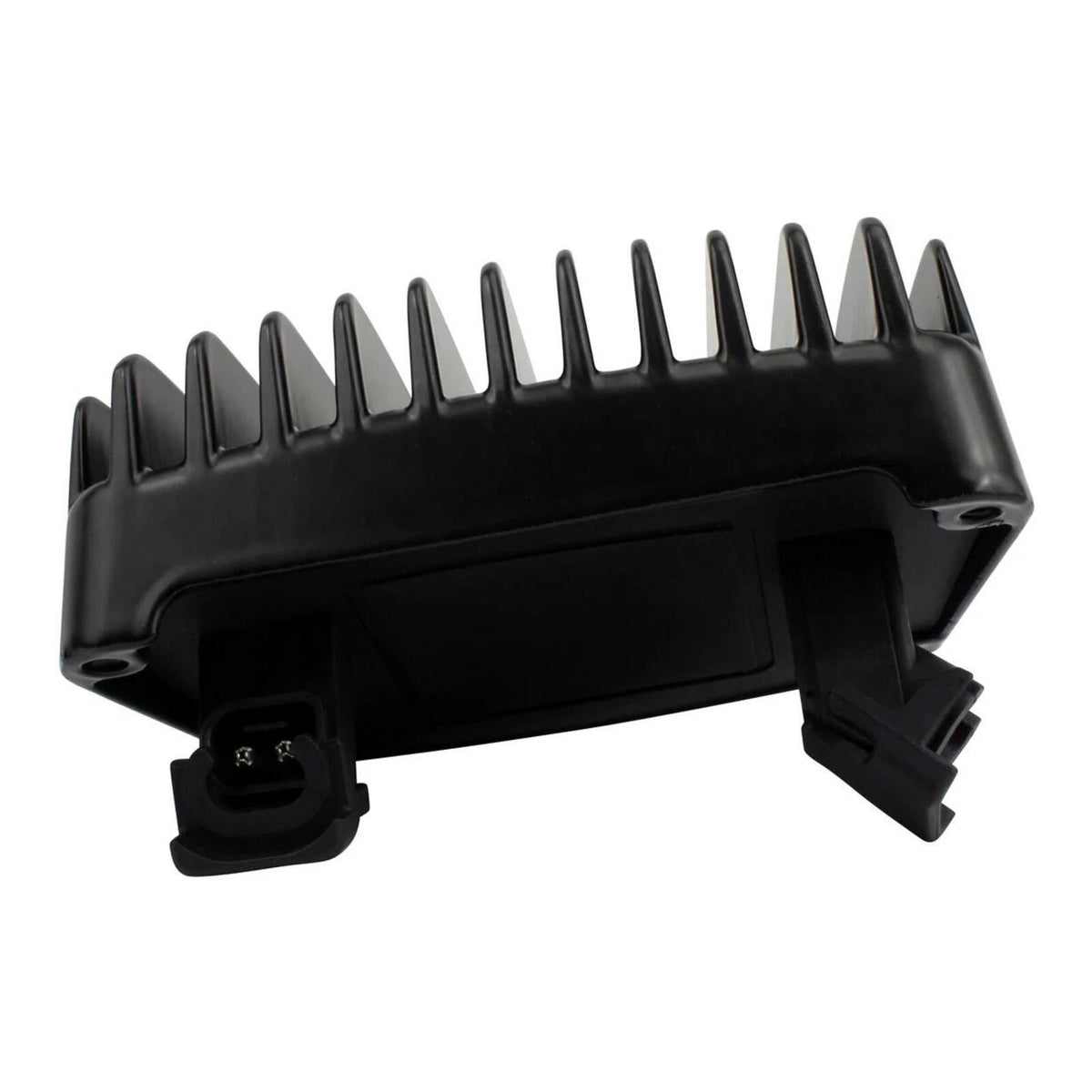

Brand new aftermarket Voltage Regulator Rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- The quality exceeds the OEM equipment.
- All products shipped are tested.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

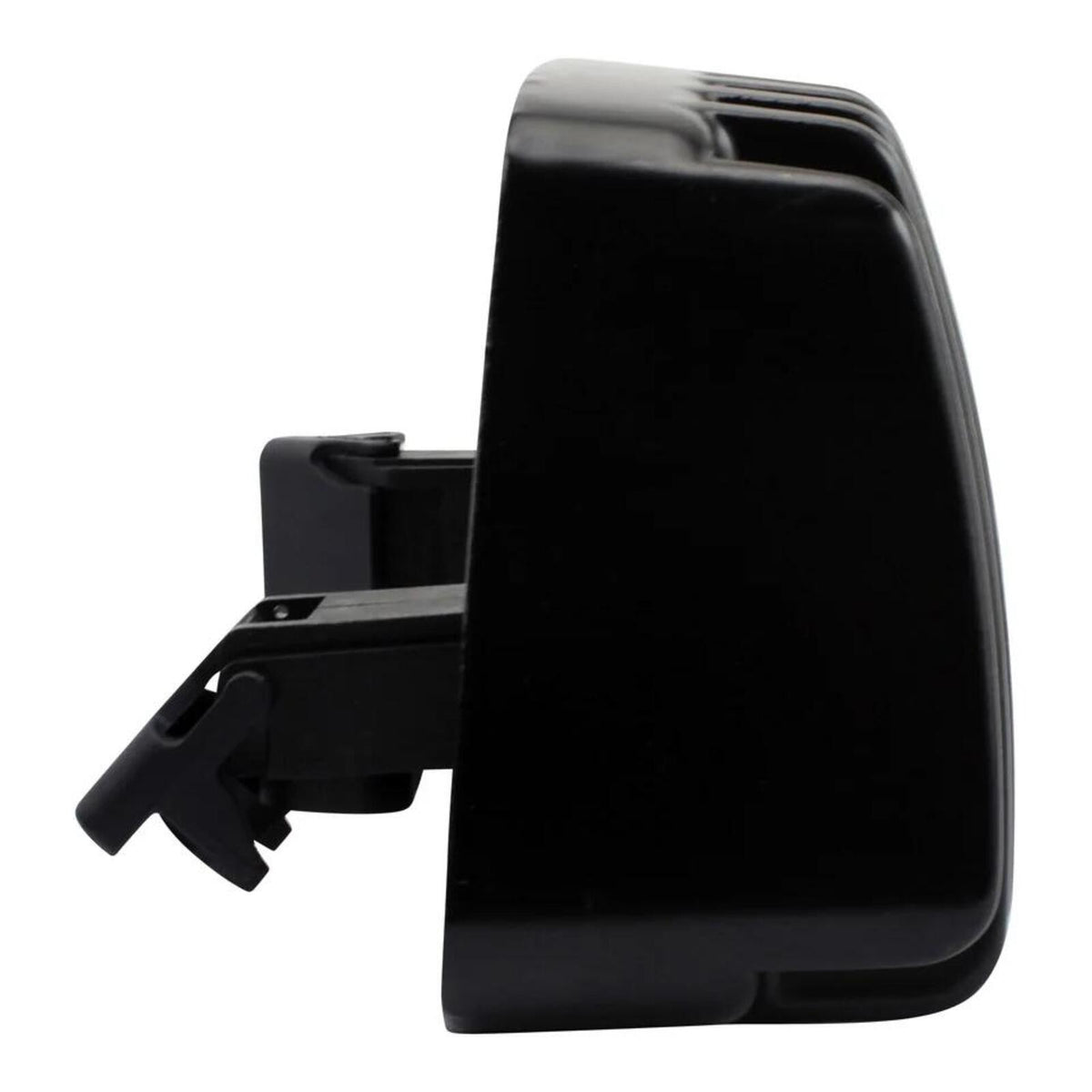

Dimensions:
- Width: 94 mm
- Length: 149 mm
- Height: 49 mm / 83 mm

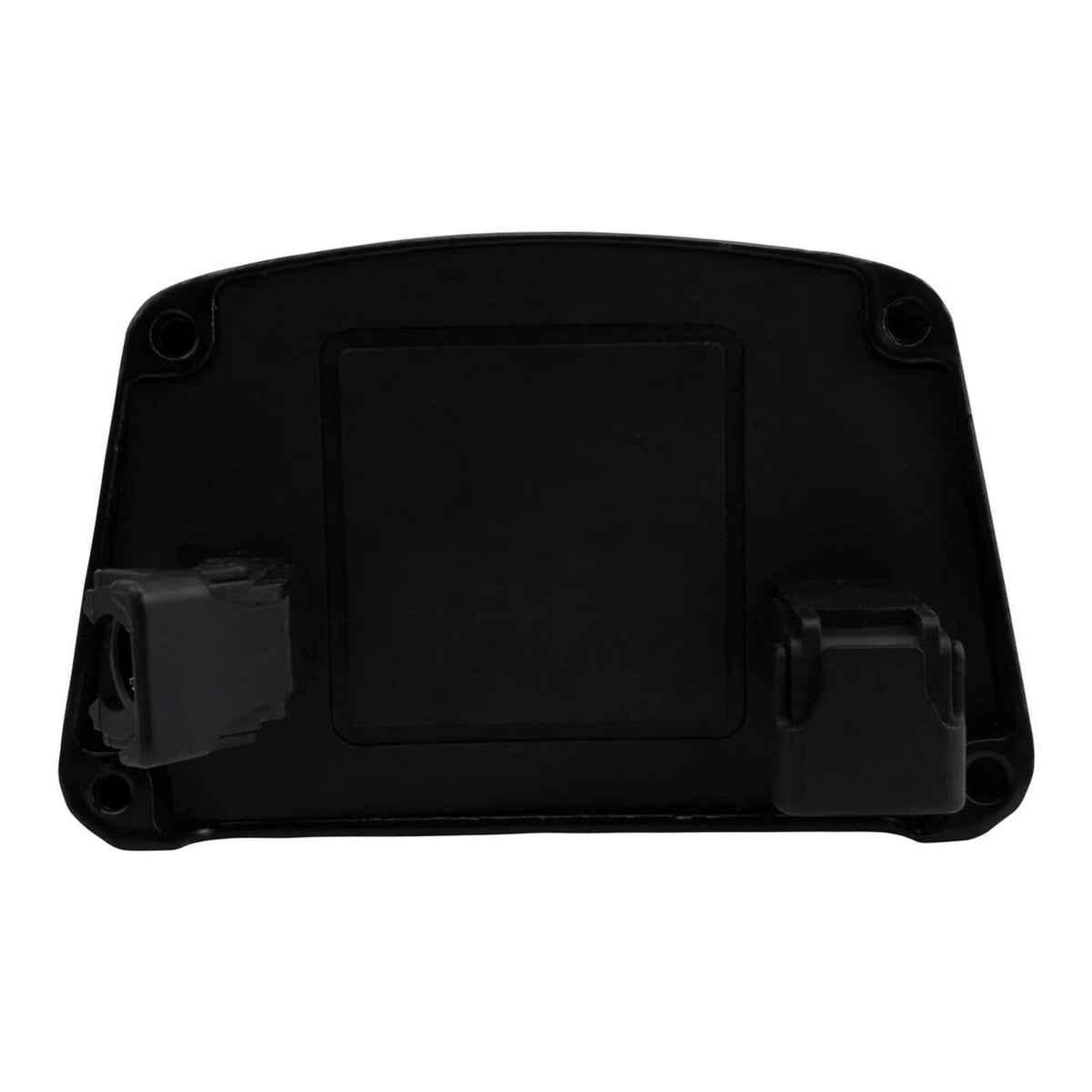

- Distance between fixation holes centre to centre: 132 mm
Other specifications:

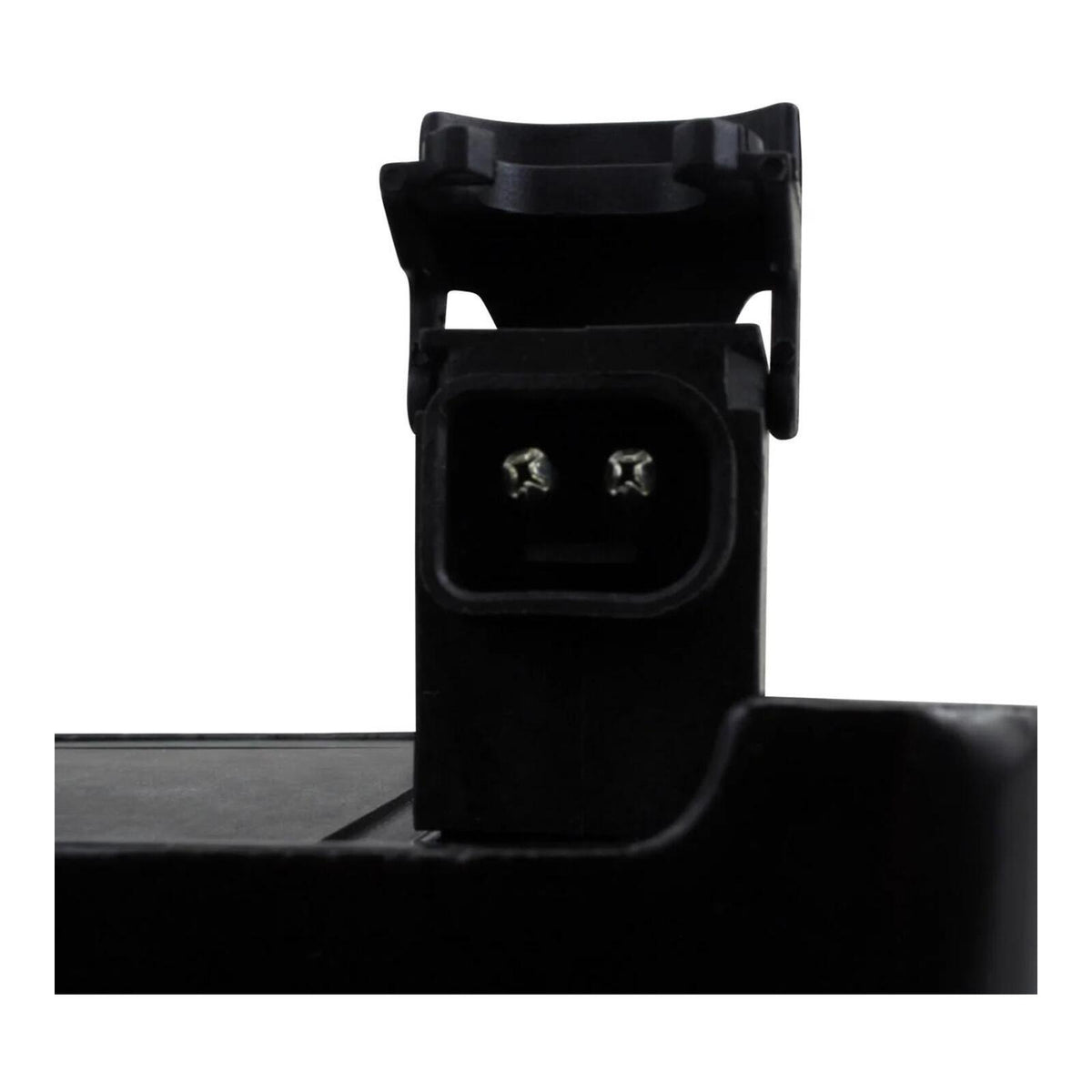

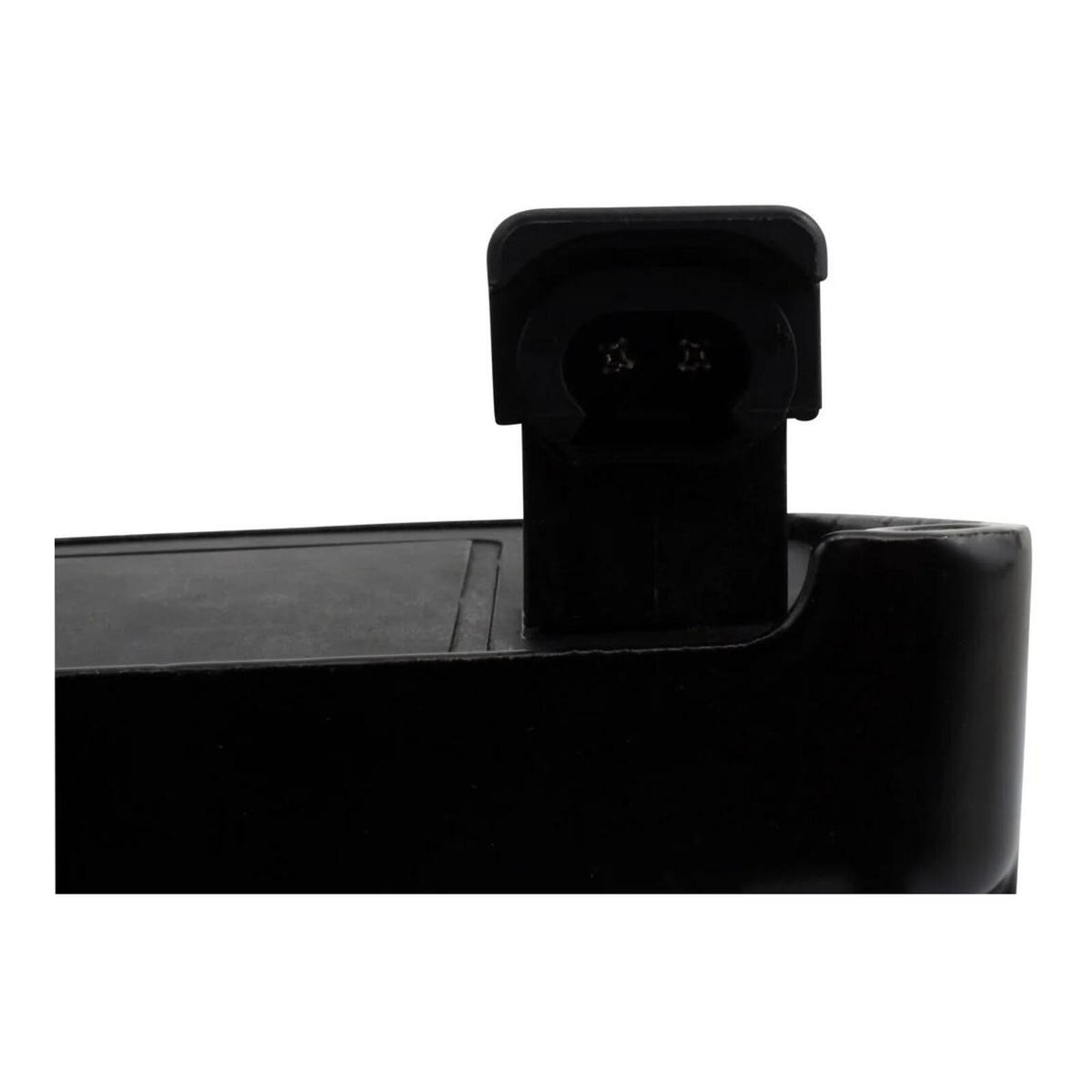

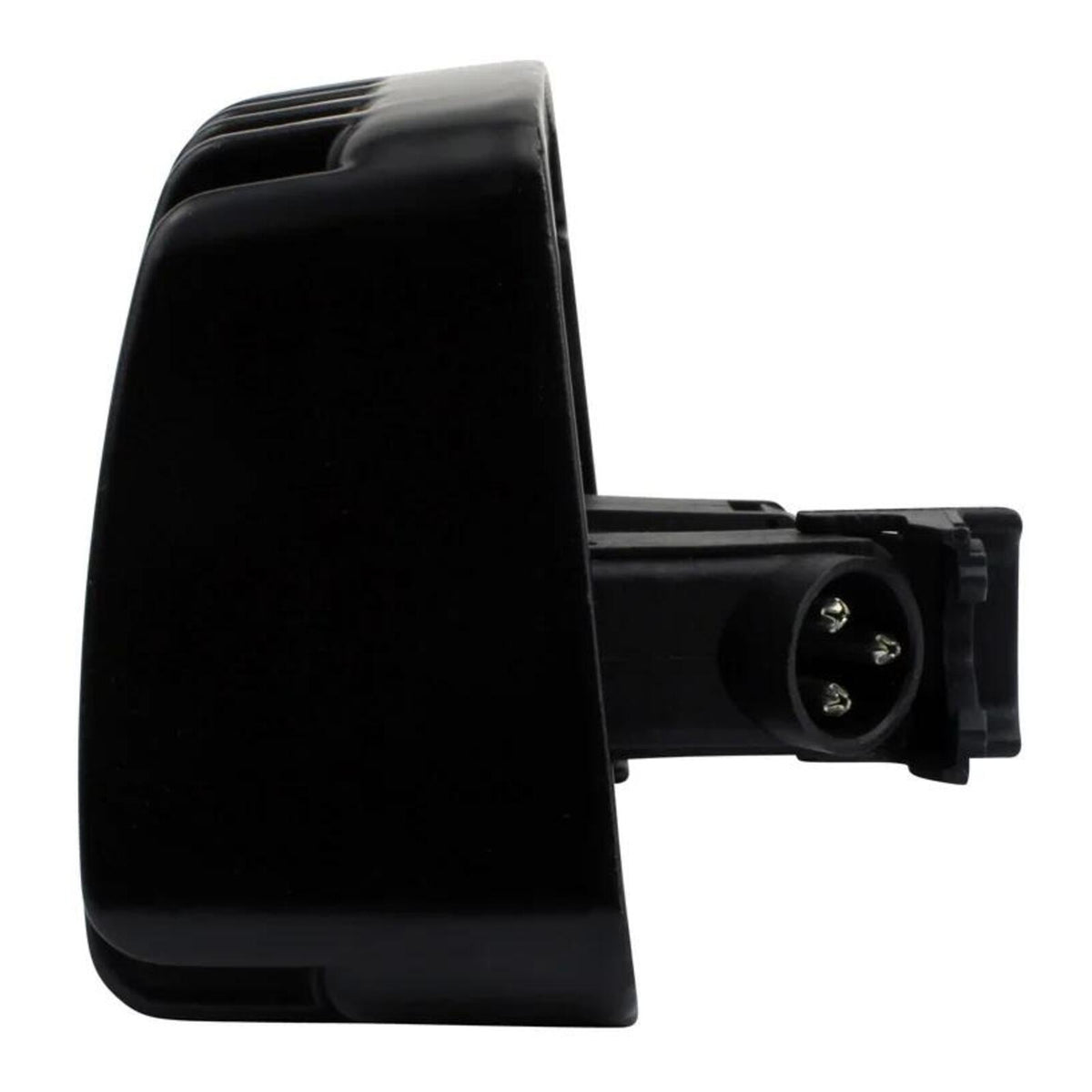

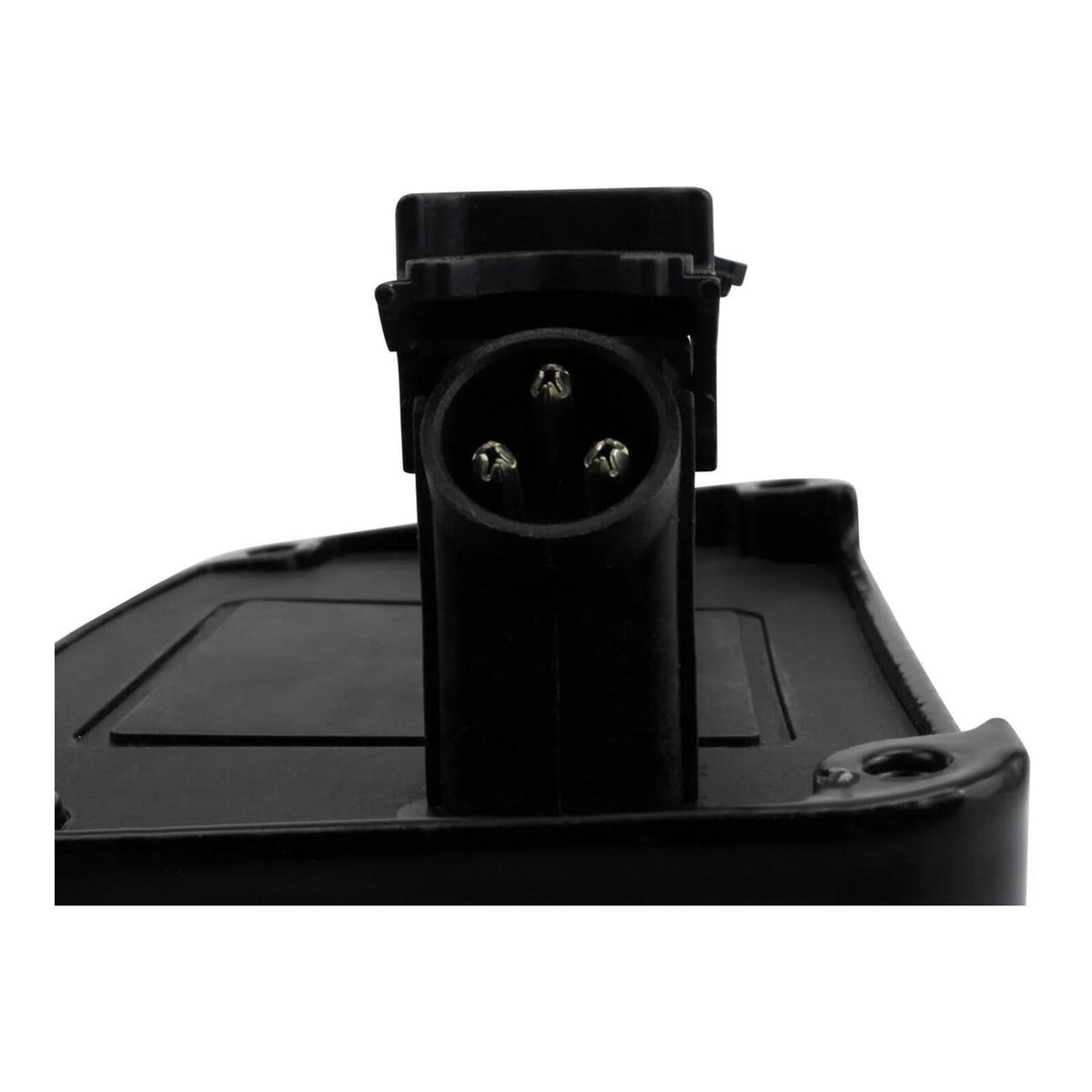

- Number of plugs: 2
- Number of pins: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
