RMSTATOR

Mosfet Aluminium Regulator with Bypass - Triumph Models

Part no.RMS022108468
Checking fitment…
$389.99
GST included
In stock – only 3 left – ships from Brisbane Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS022108468
Part type
Regulator / Rectifiers
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

BENEFITS OF SERIES VOLTAGE REGULATORS

  • SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and are way cooler than OEM parts.
  • Moreover, the regulator has a new machined billet aluminium casing which dissipates heat 33% better than a standard moulded casing.
  • Power only flows through the electrical components when the battery is charging.
  • Allows the stator to have lower current flowing when not used, extending its lifetime.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt-type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and onto the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of the charging system components.

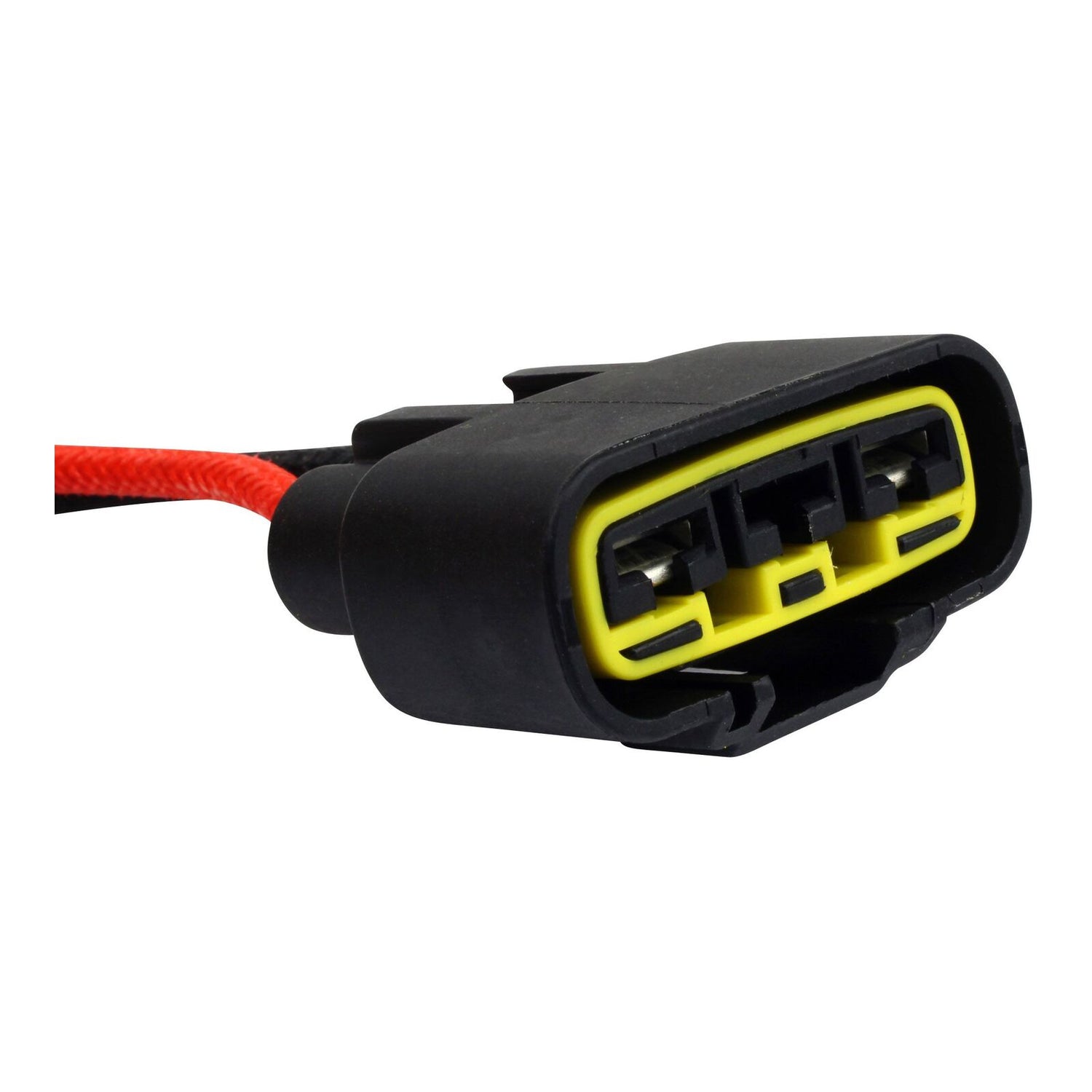

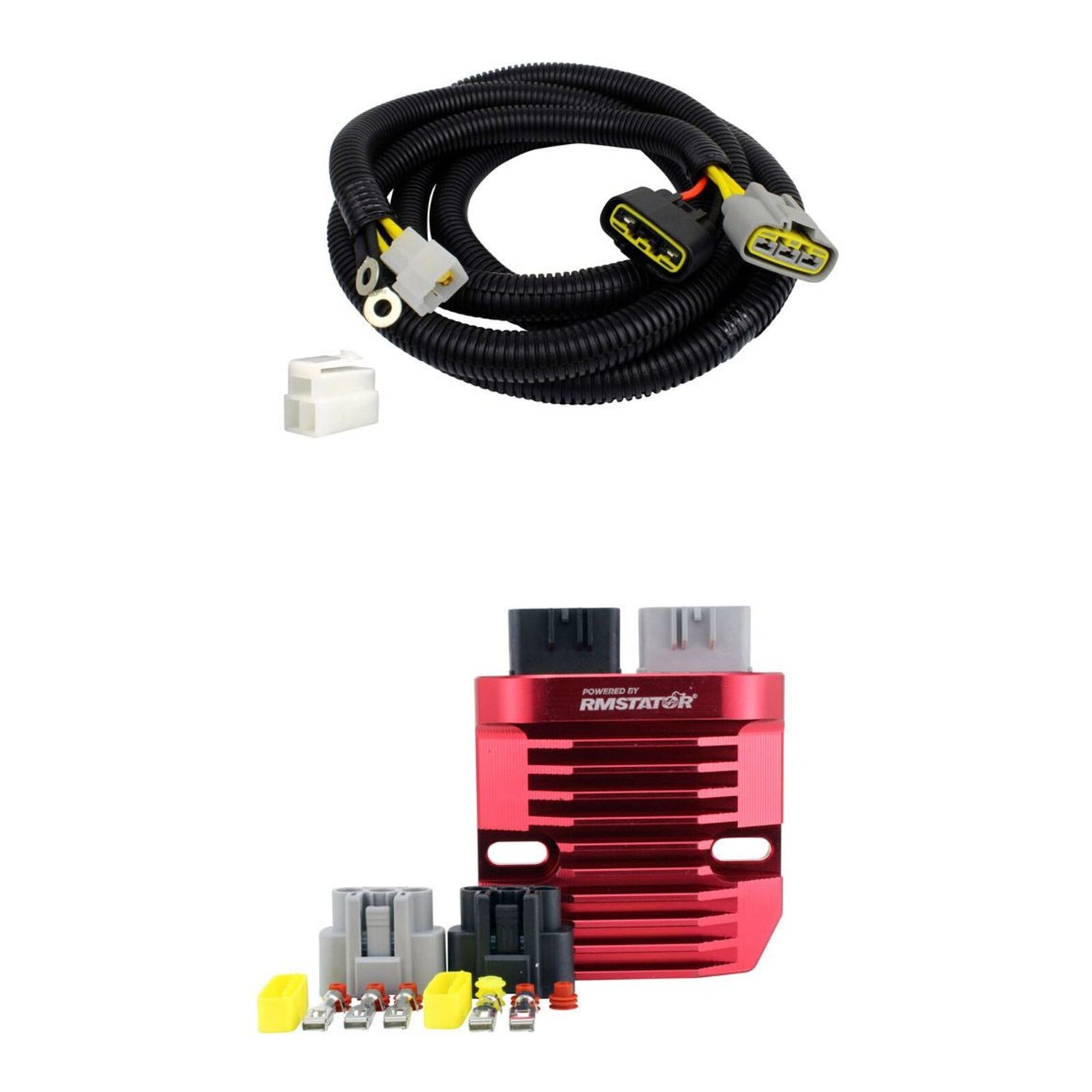

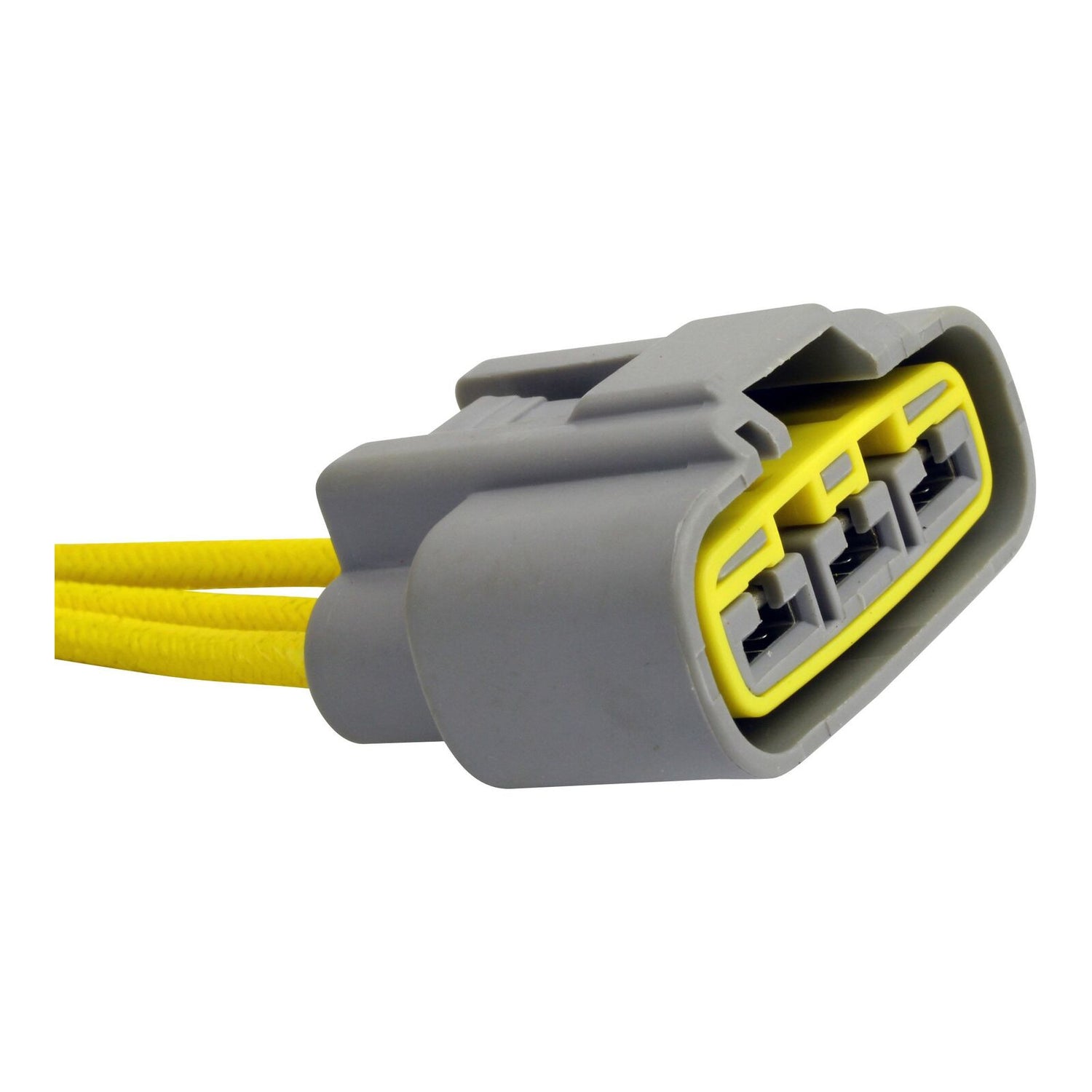

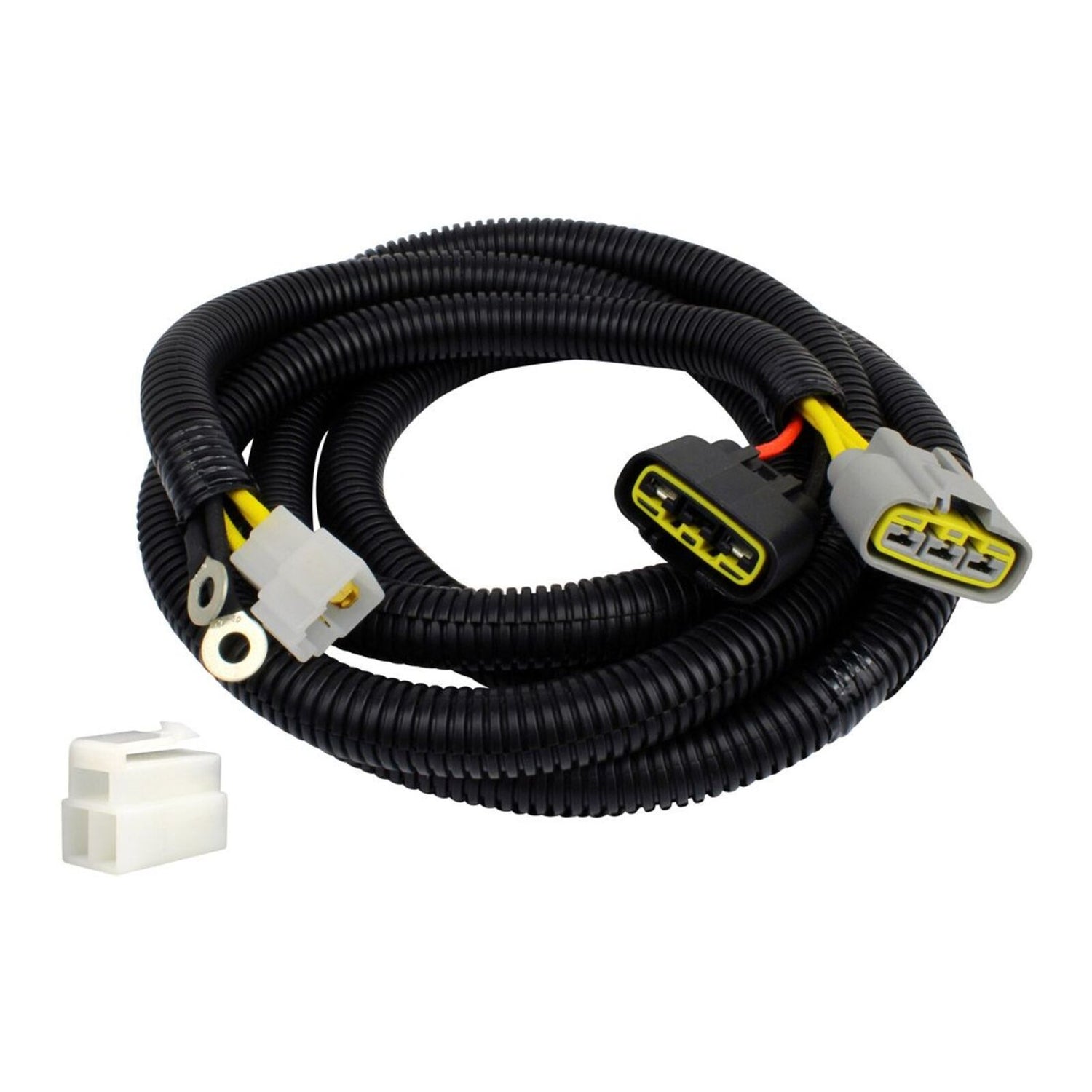

Improved Heavy Duty Bypass Harness

Automotive-grade wiring harness with OEM-quality heavy-duty connectors

Made with the same connectors as OEM parts, the wiring harnesses are manufactured in a factory with controlled quality processes. They use the same cross-linked braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.

Warning:

  • Risk of electric shock. Disconnect the battery before servicing.
  • Ensure proper installation by a qualified technician to avoid malfunction.

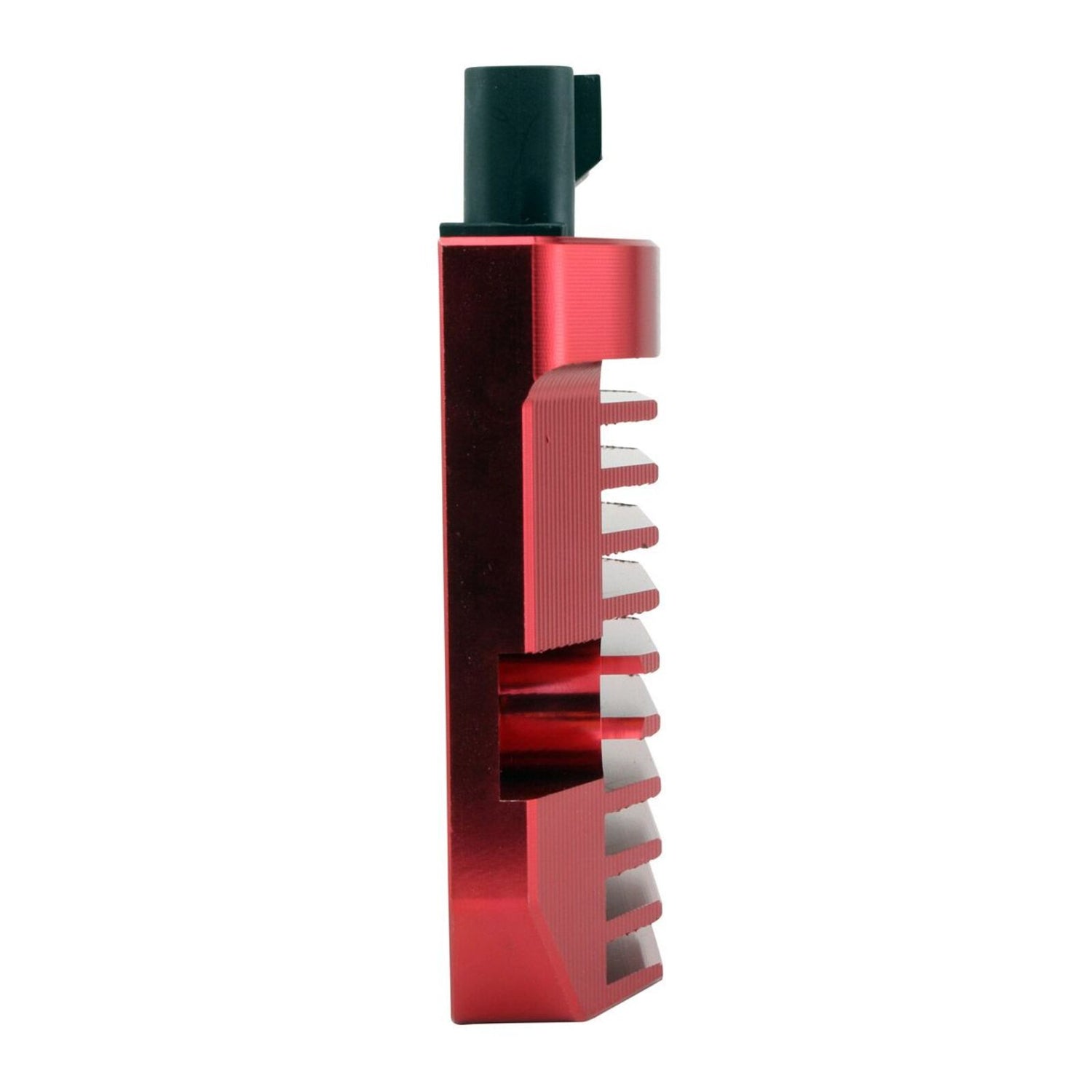

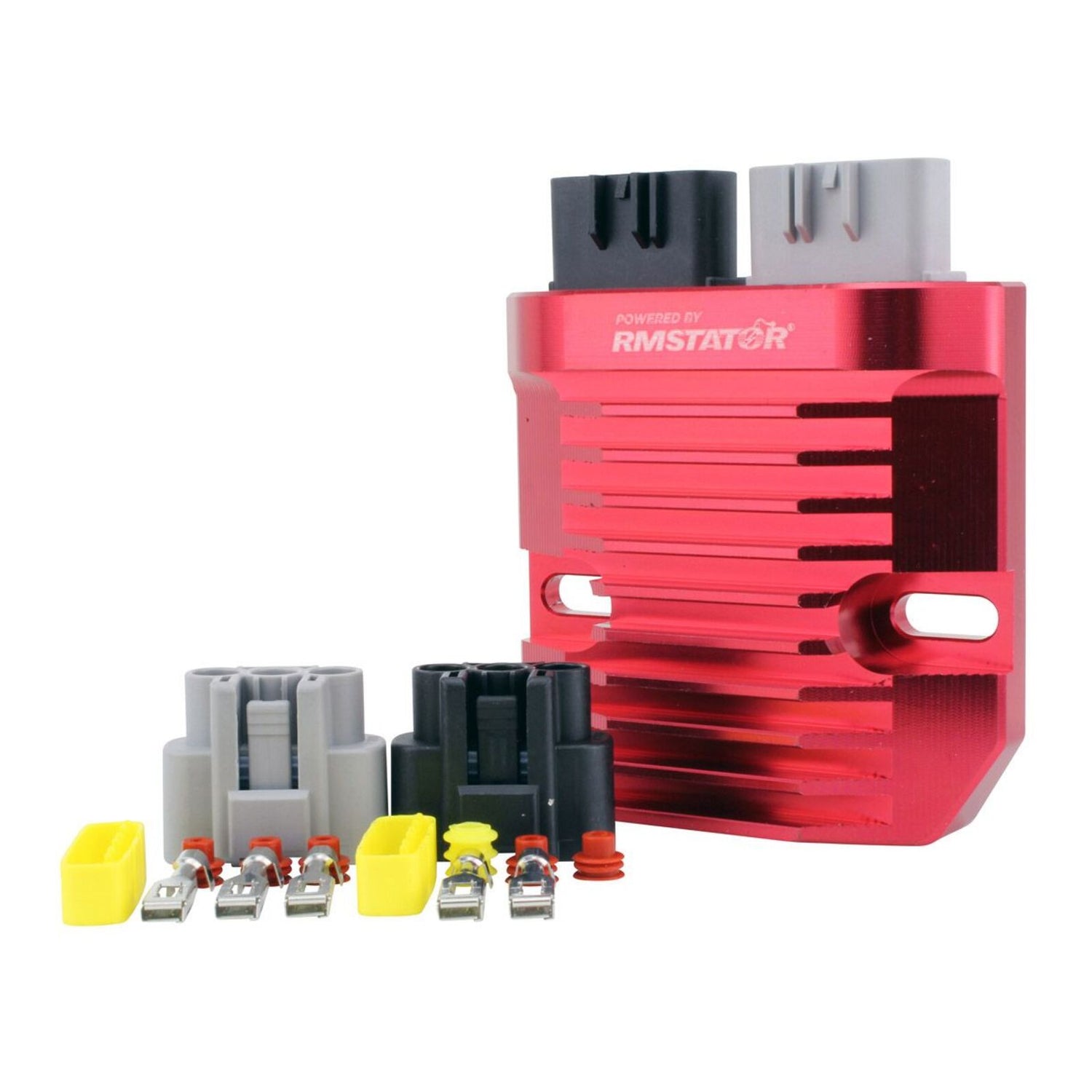

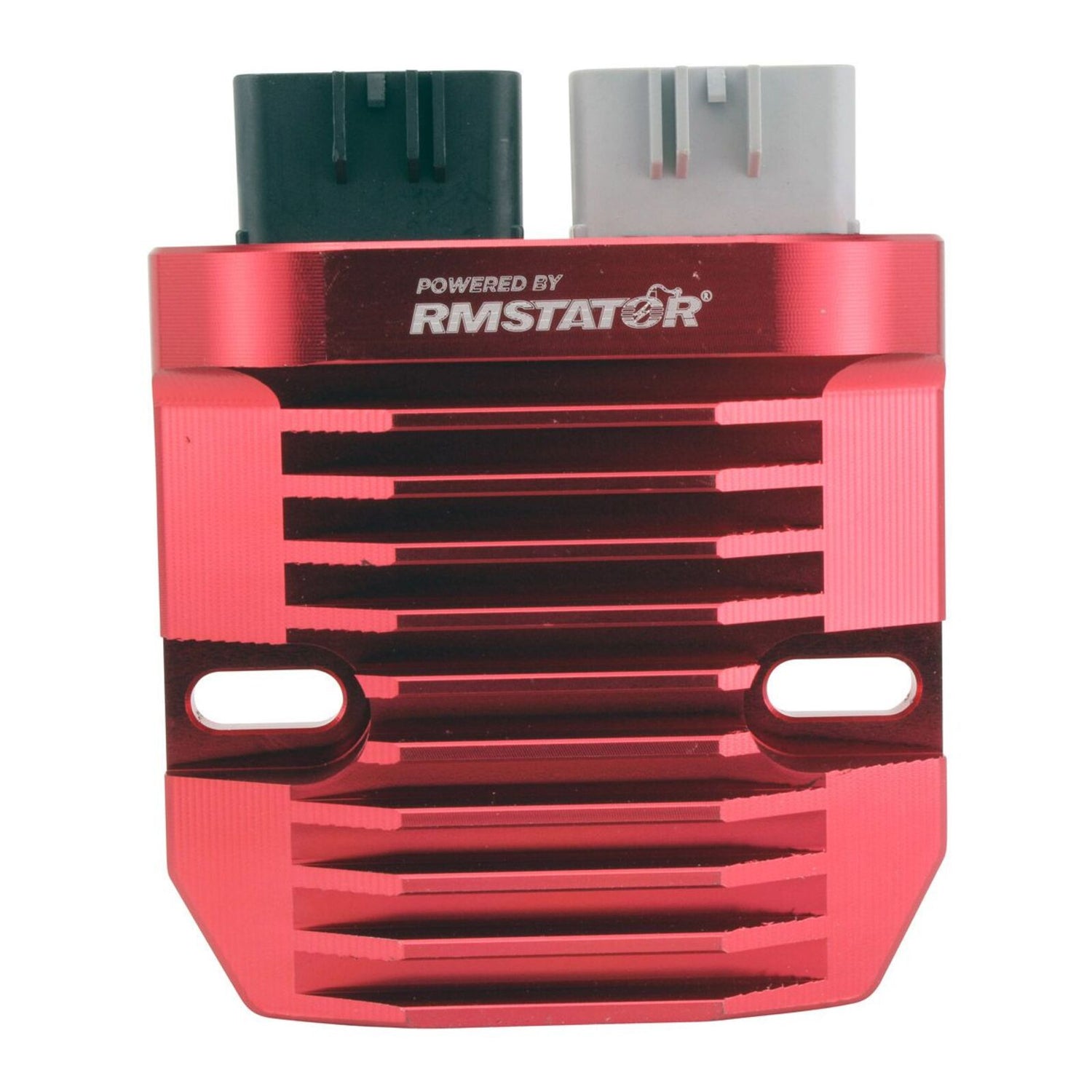

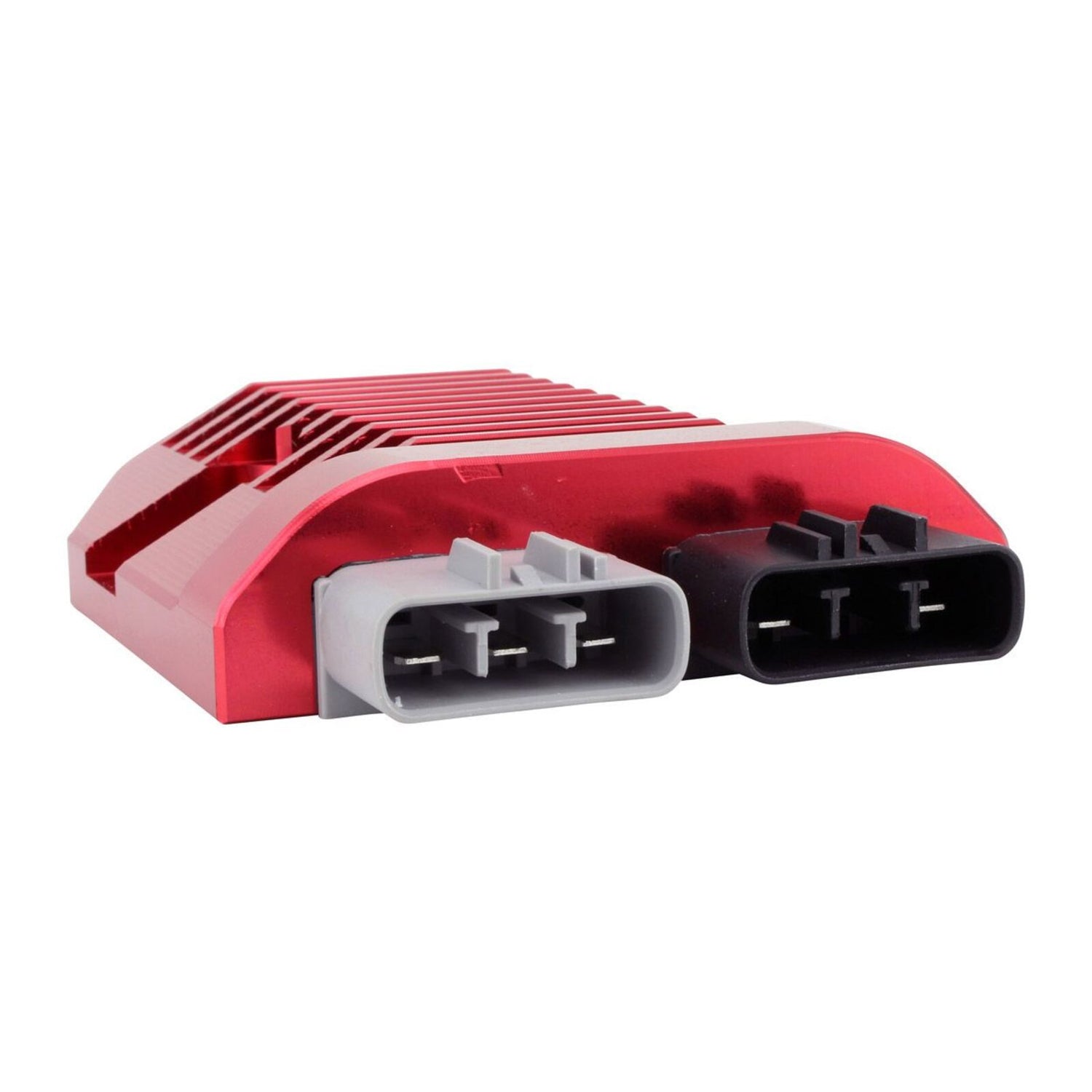

Red Machined aluminium MOSFET Regulator:

Dimensions:

  • Width: 103 mm
  • Length: 103 mm
  • Height: 28 mm
  • Fixation holes centre-to-centre: 80 mm

Other specifications:

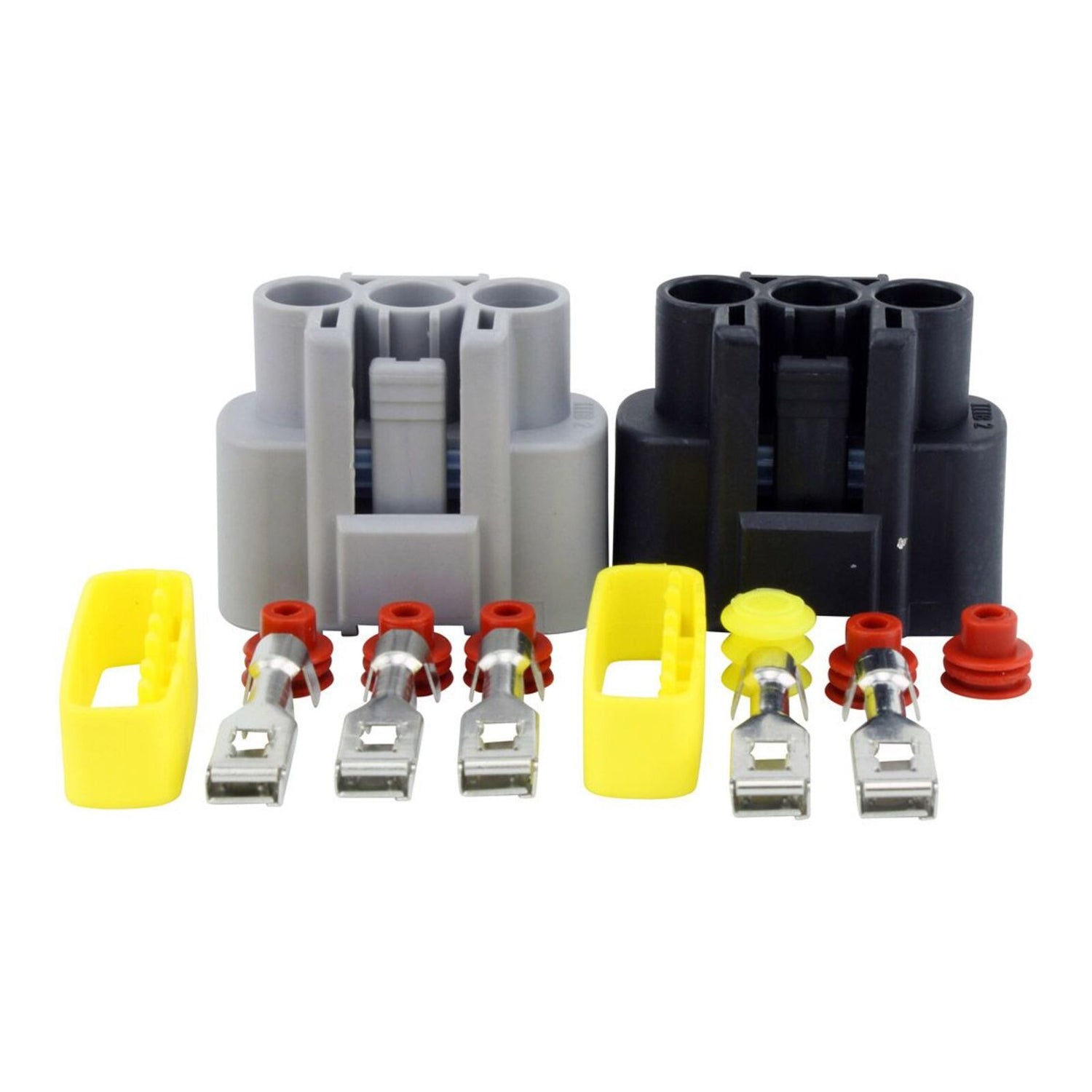

  • Number of plugs: 2
  • Number of pins: 5
  • Number of wires: 0
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

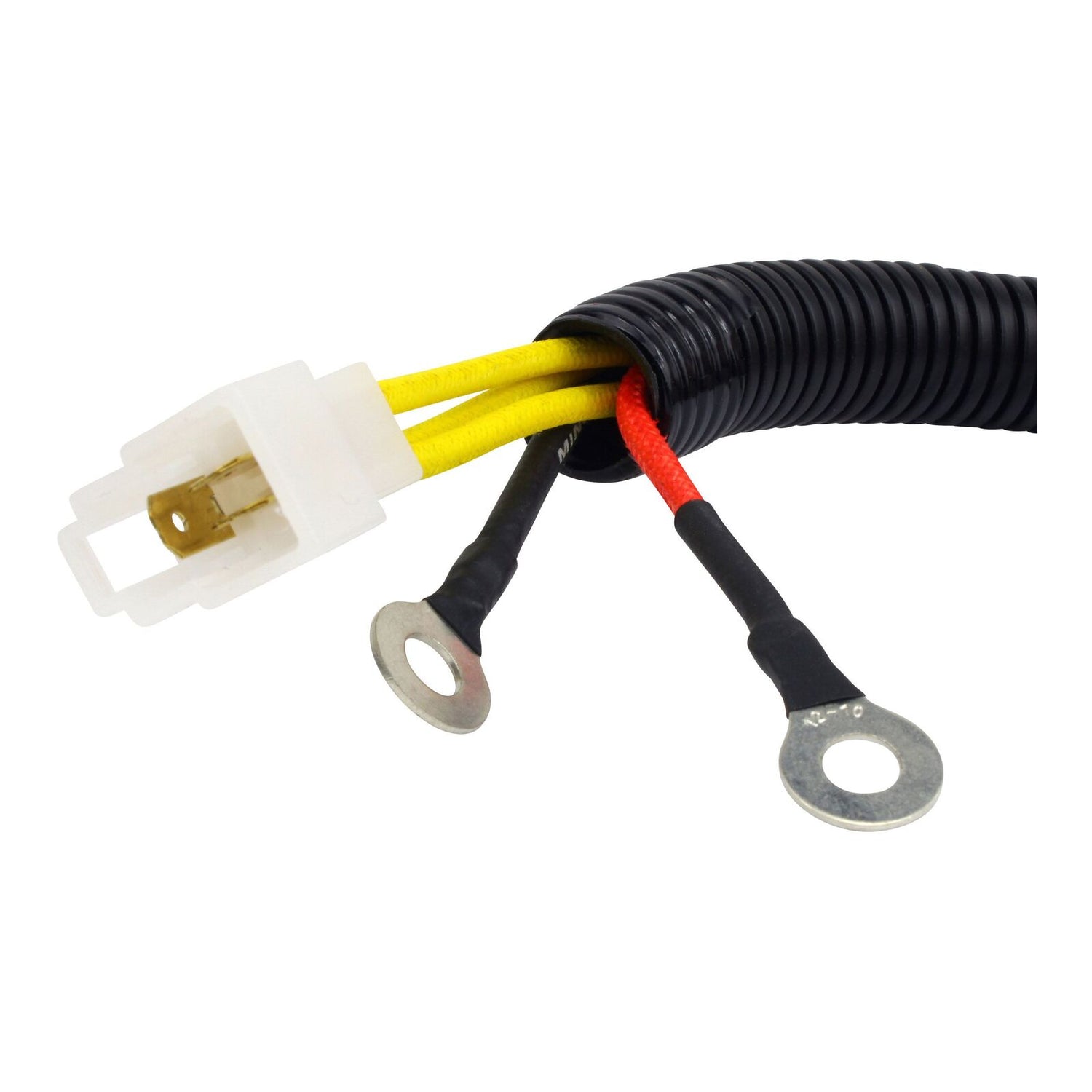

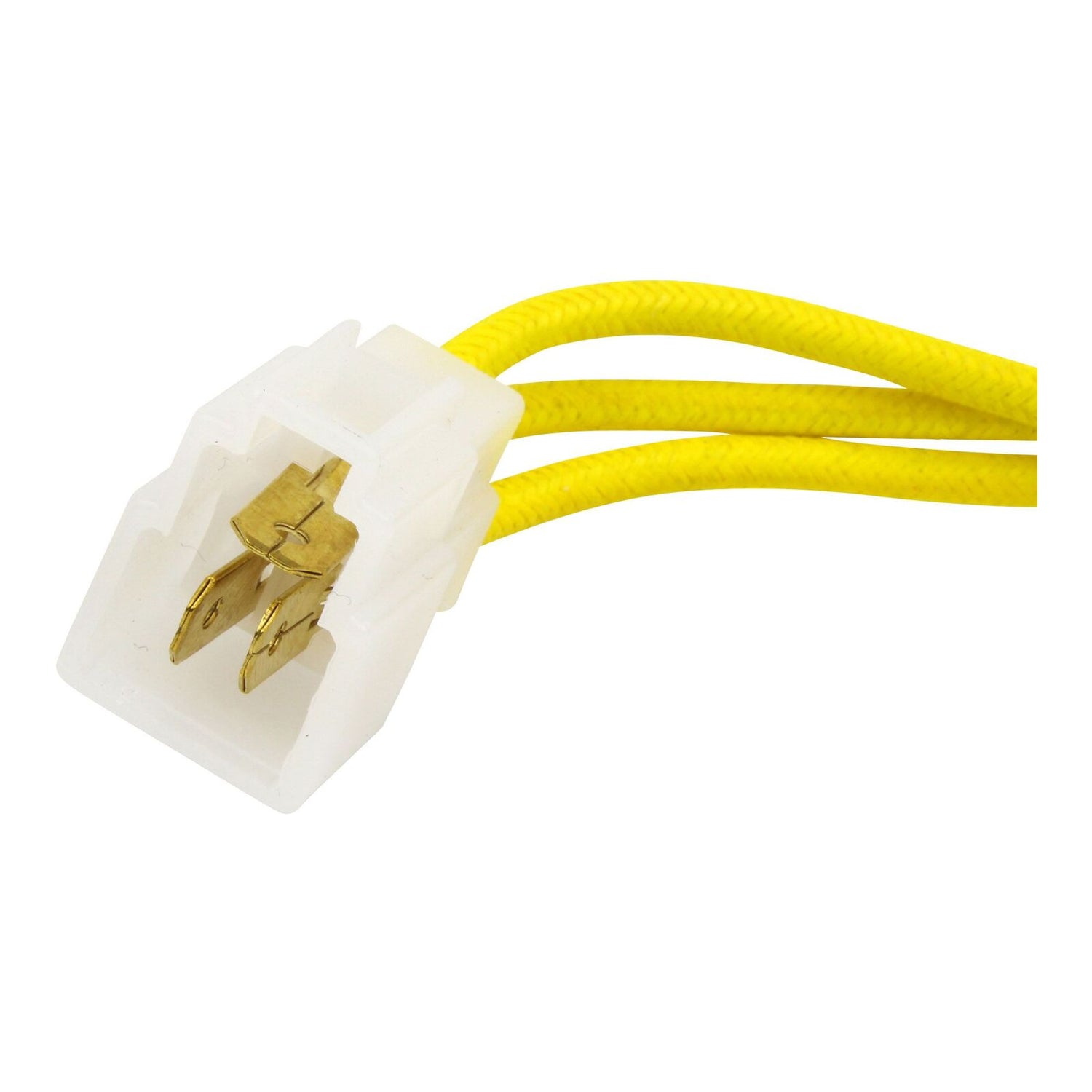

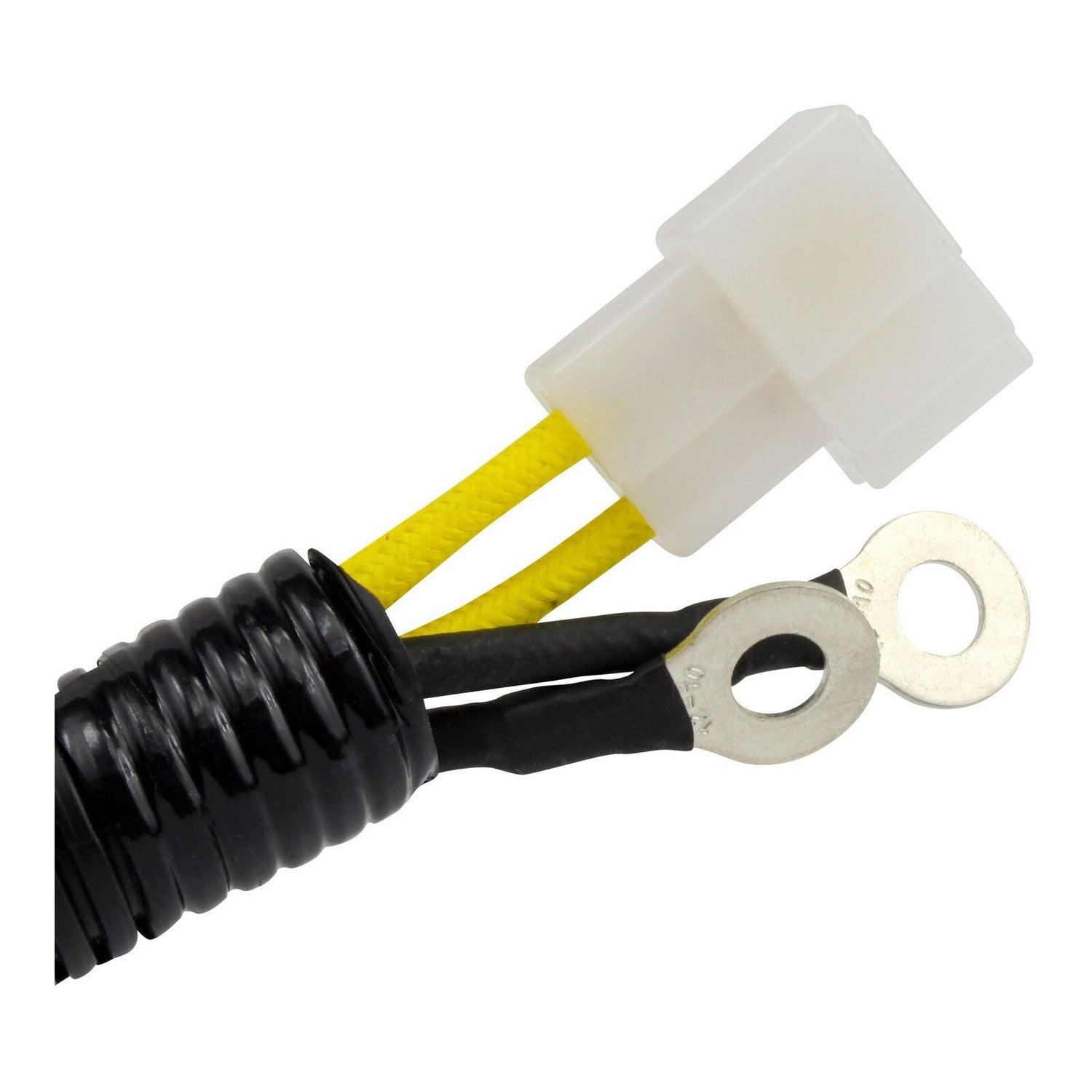

Voltage Regulator bypass Harness:

  • Wires Length: 1180 mm
  • Number of yellow wires: 3
  • Number of red wires: 1
  • Number of black wires: 1
  • Number of plugs: 3
