IMPROVED FLYWHEEL + GASKET (RMS900-107030)
-
Carry Bag Small
$5.00
$19.99 -
Kenco Bag Of Microfibre Rags 400G
$6.00
$9.99 -
SP TOOLS CHRISTMAS STOCKING
$50.00
$58.99
- Brand
- RMSTATOR
- Part number
- RMS900107030
- Part type
- Flywheels
- Warranty
- Full manufacturer warranty
| Brand | RMSTATOR |
|---|---|
| Part number | RMS900107030 |
| Part type | Flywheels |
| Barcode | RMS900-107030 |
| Warranty | Full manufacturer warranty |

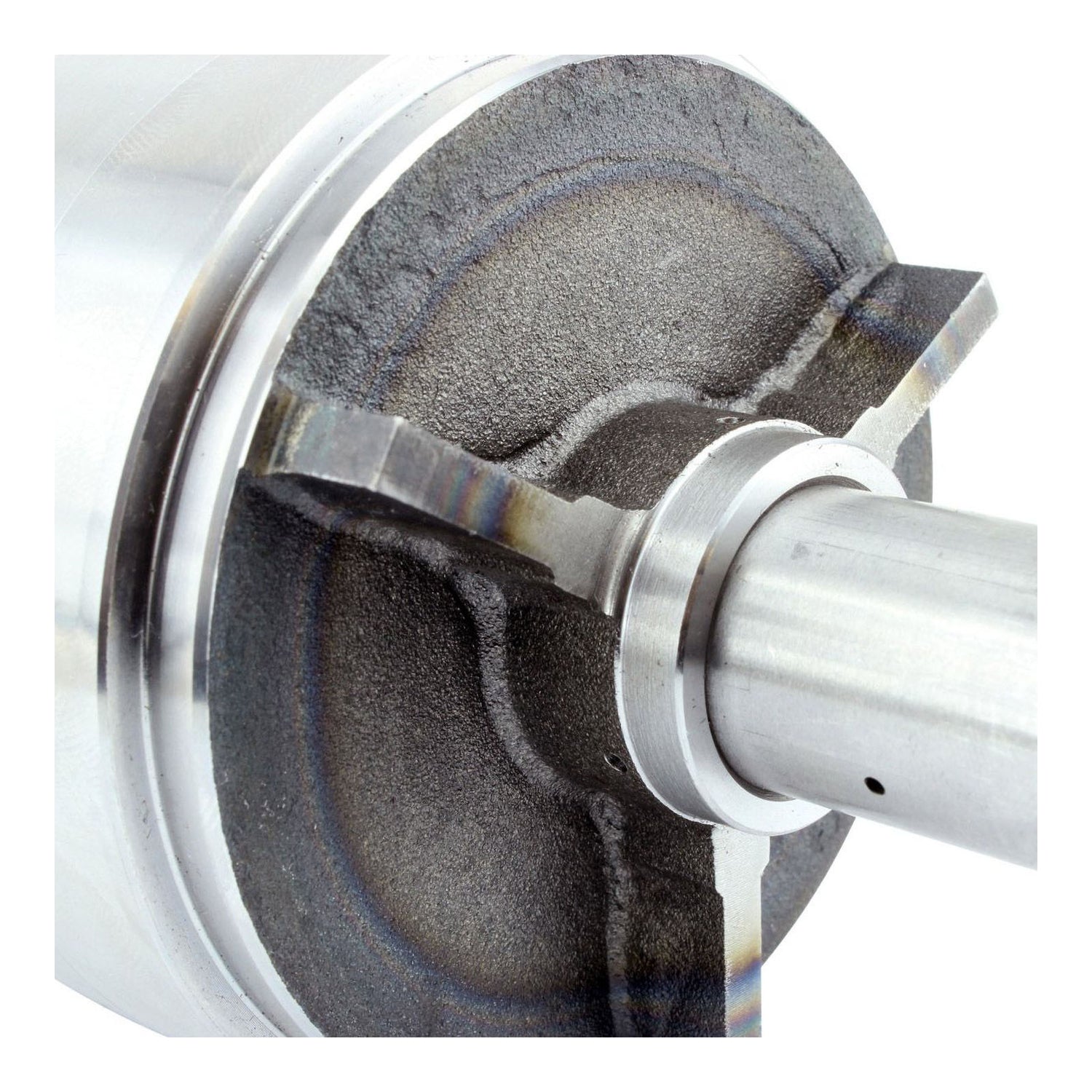

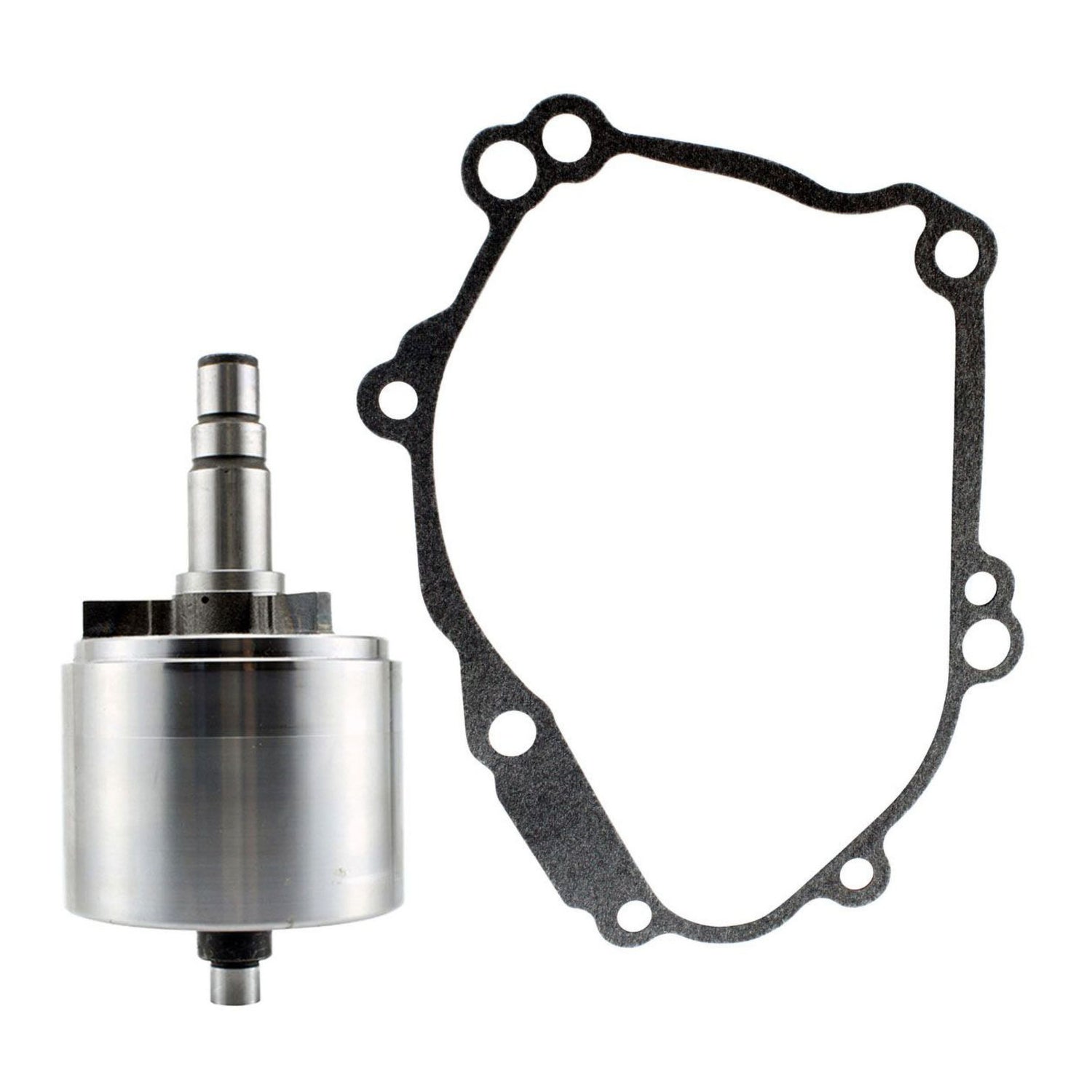

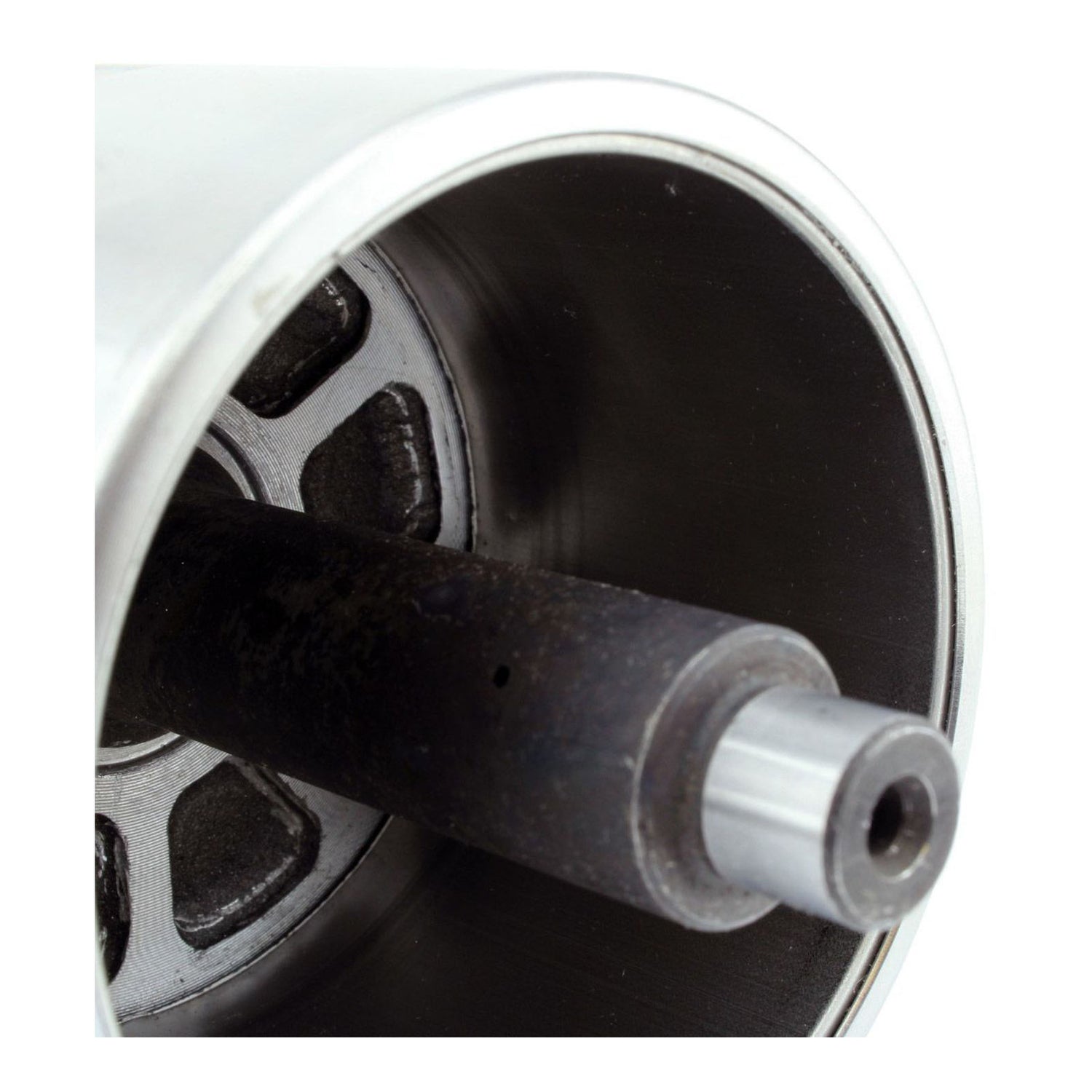

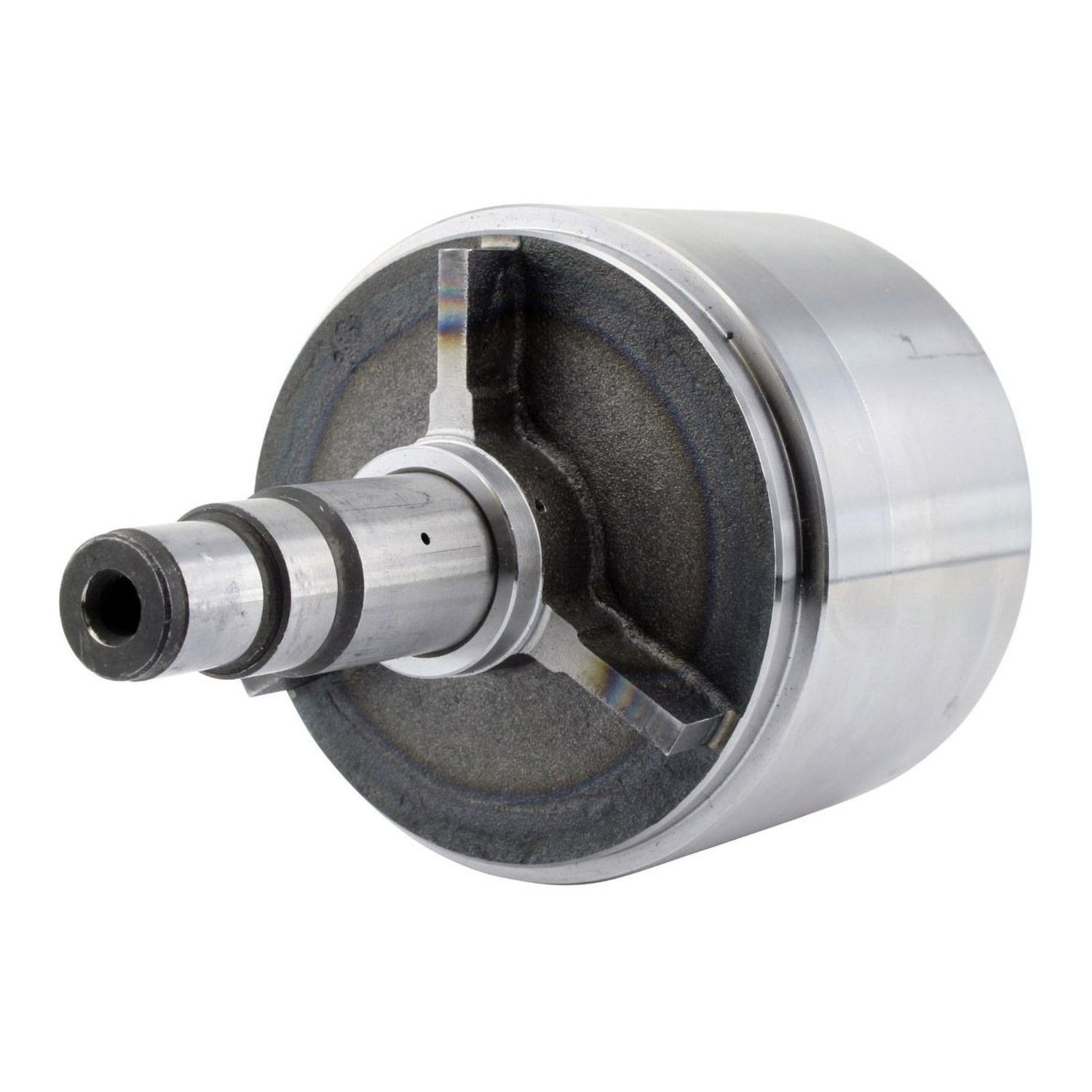

Brand new aftermarket flywheel and crankcase cover gasket kit.
- All products are tested before shipping.
Product images are accurate. If in doubt, compare the item with the original part to confirm compatibility.
Before starting the Yamaha, adjust the air gap. Rotate the flywheel until the raised node is aligned with the pickup/pulser coil. Set the gap as close as possible, but no less than 0.010 inches.
Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.
Flywheel Dimensions:
- Exterior diameter: 80 mm
- Interior diameter: 69 mm
- Centre housing interior diameter: 12 mm
- Centre housing exterior diameter: 18 mm
- Exterior thickness: 11 mm
- Interior thickness: 6 mm
Shaft Diameter (Largest to Narrowest):
- 26 mm
- 20 mm
- 18 mm
- 15 mm
Free shipping on orders over $150 Australia-wide, for orders under 4.8 kg.
Click & Collect from 111 Beenleigh Road, Acacia Ridge QLD, Monday to Friday 8:30am–5:00pm.
Vehicle fitment
We're still adding the vehicle list for this part. Send us your rego or VIN and we'll confirm it fits before we ship.
