RMSTATOR

STATOR + CNC MOSFET KIT TRI STREET 675/R

Part no.RMS900107638
Checking fitment…
$699.99
GST included
Special order – usually ships in 3–7 business days Click & Collect from Acacia Ridge QLD
Add a little extra
Brand
RMSTATOR
Part number
RMS900107638
Part type
Stators
Warranty
Full manufacturer warranty
Not sure it's the right part? Call 07 3340 4392

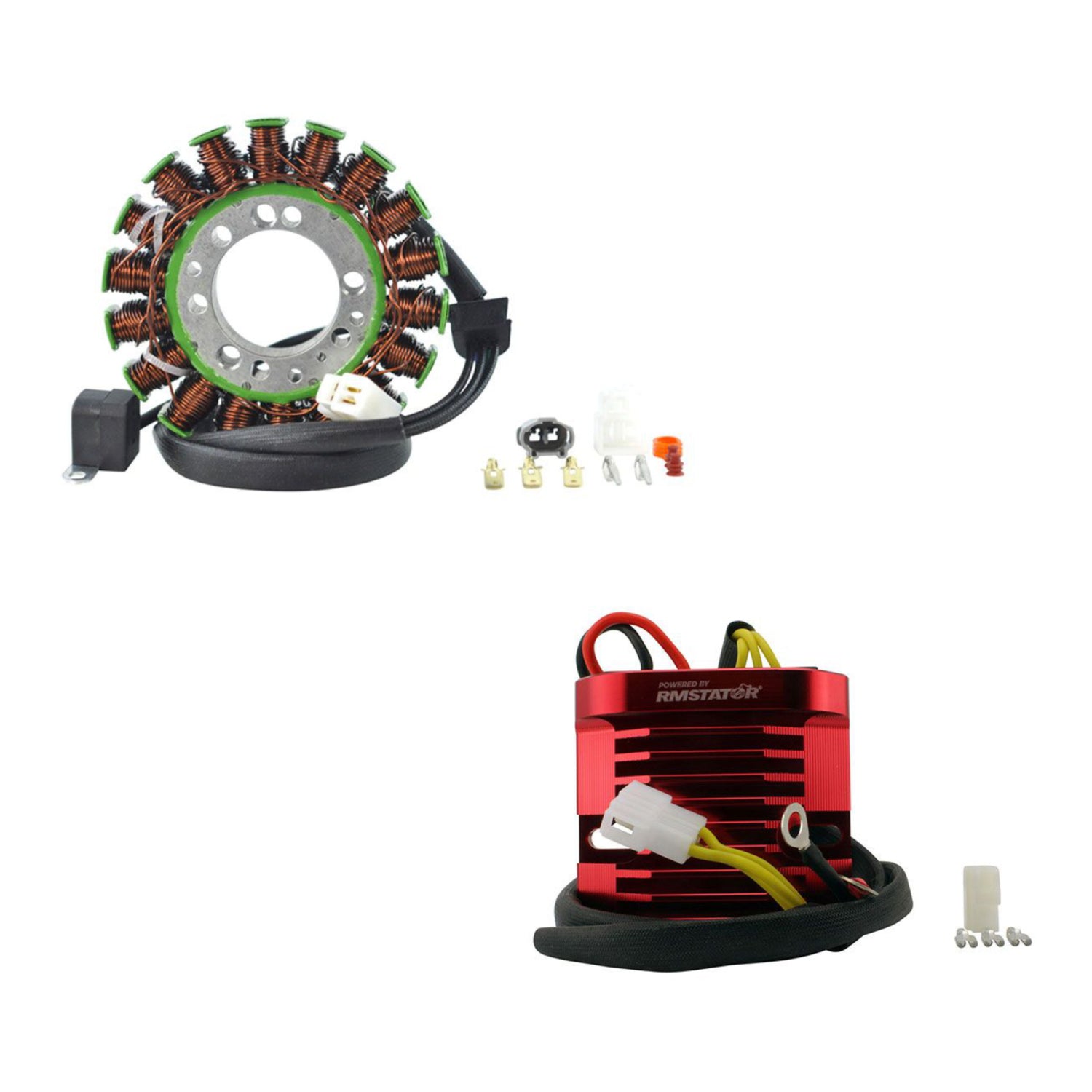

Brand new aftermarket Stator and RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier kit.

  • Direct replacement for the original unit.
  • Plug-and-play, direct fit and easy installation.

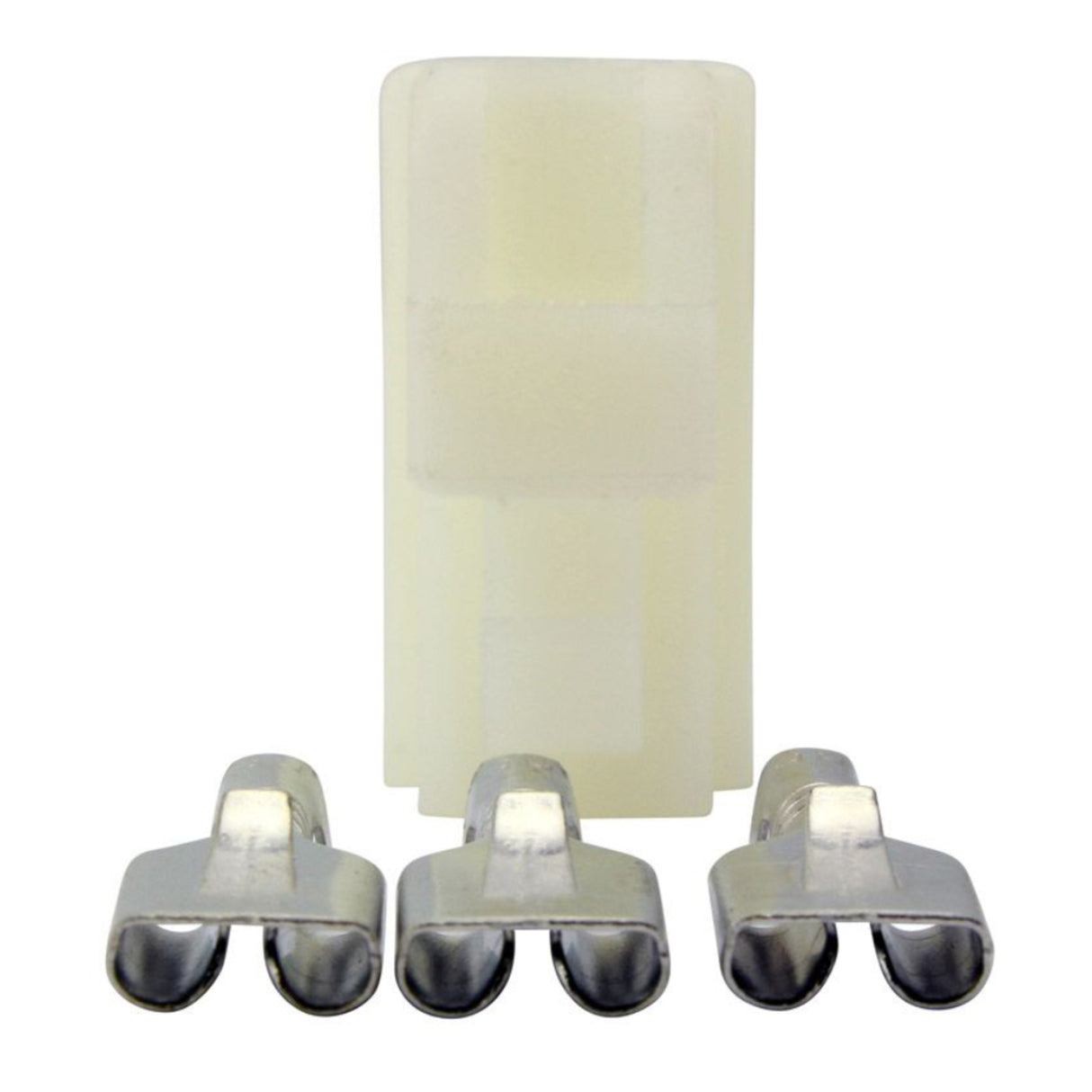

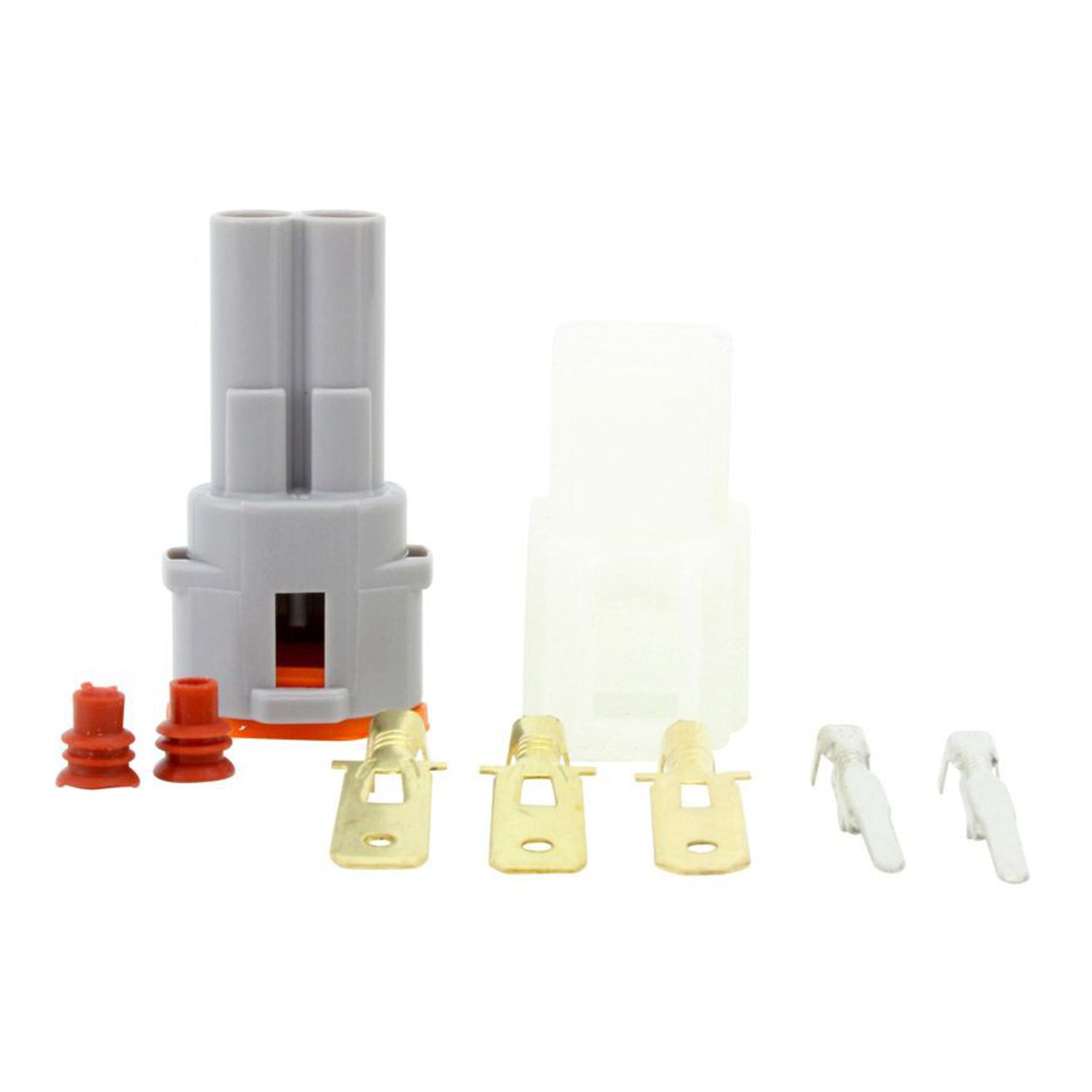

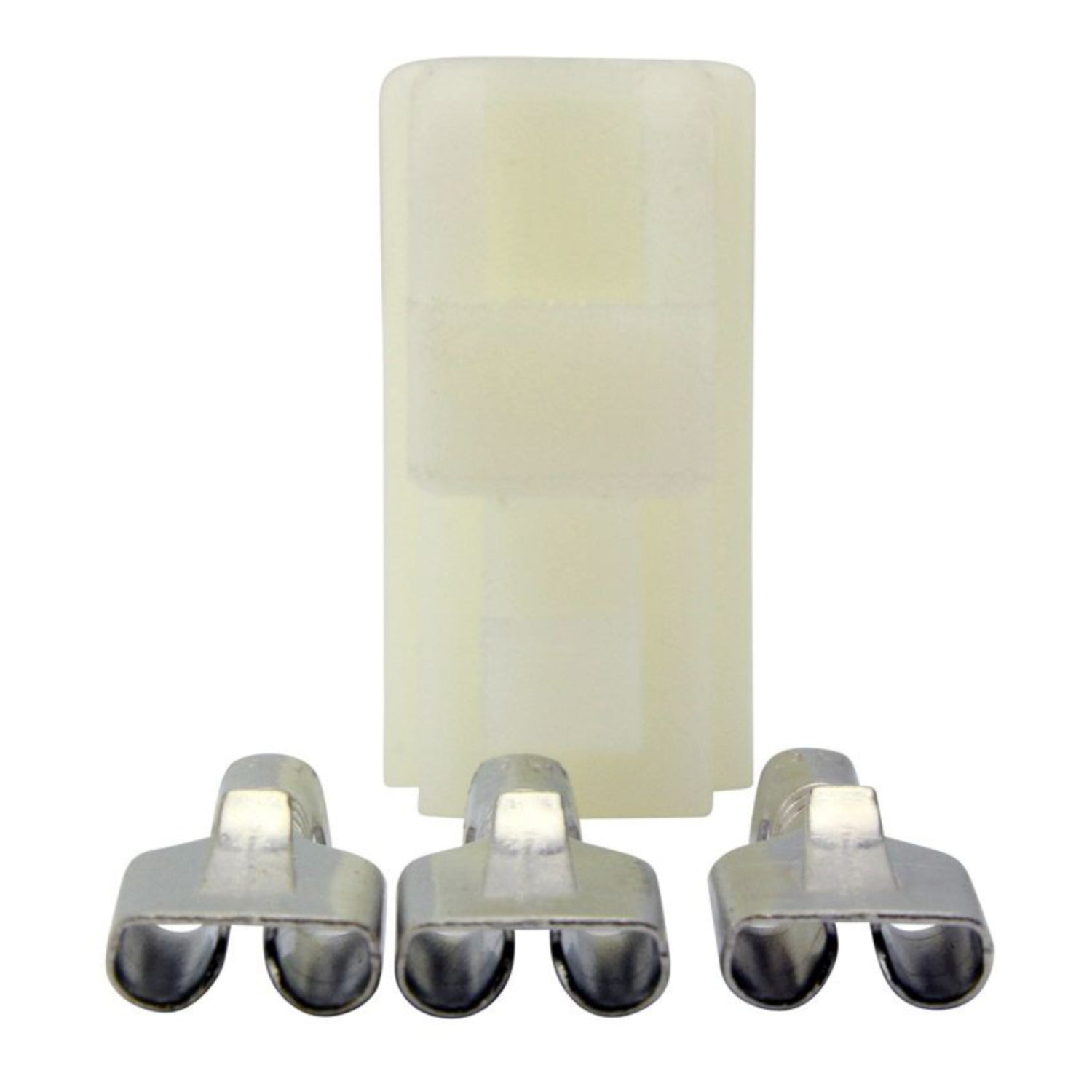

  • Connectors included.
  • Rubber grommet included.
  • All products are tested before shipping.

Product images are accurate. If in doubt, compare the items with your original parts.

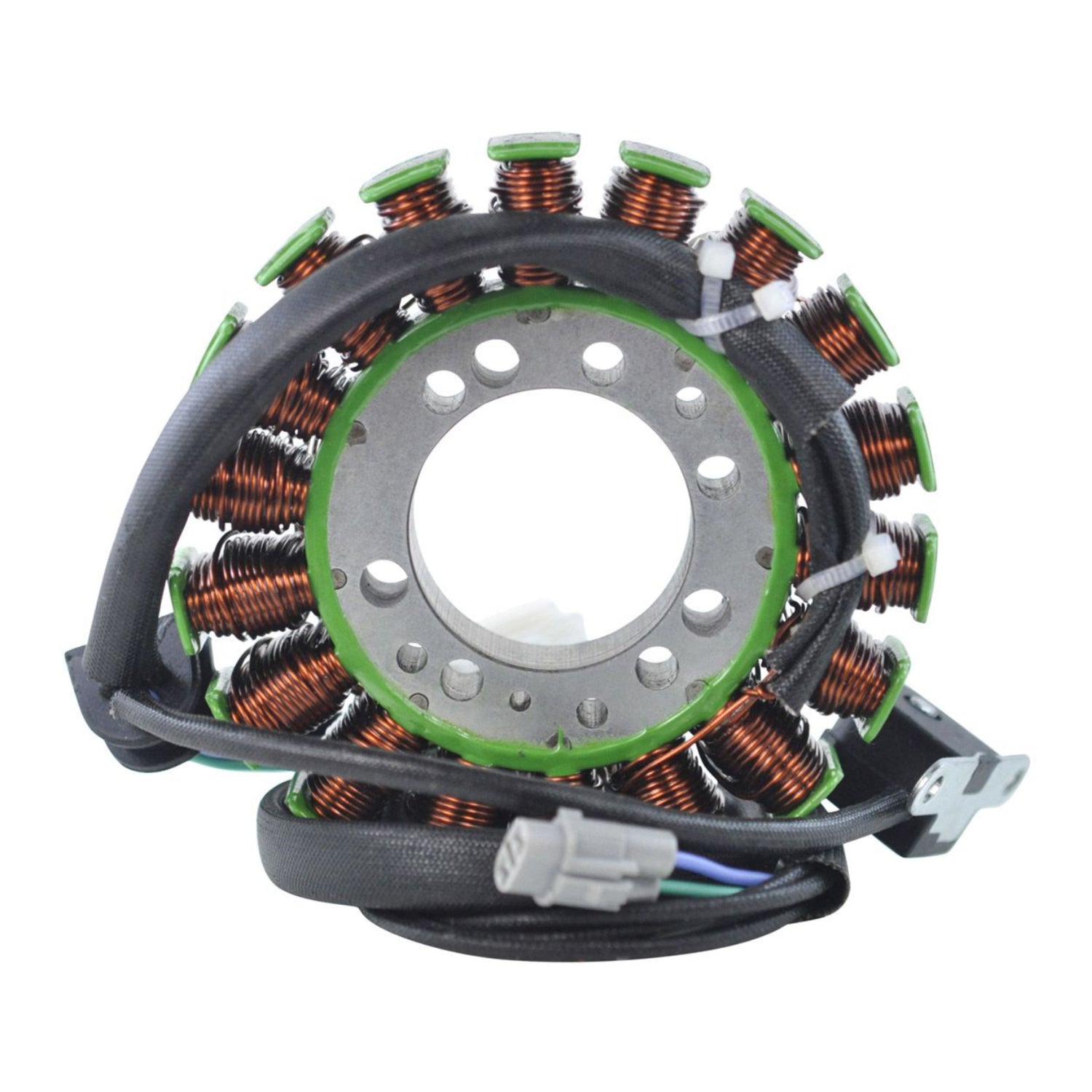

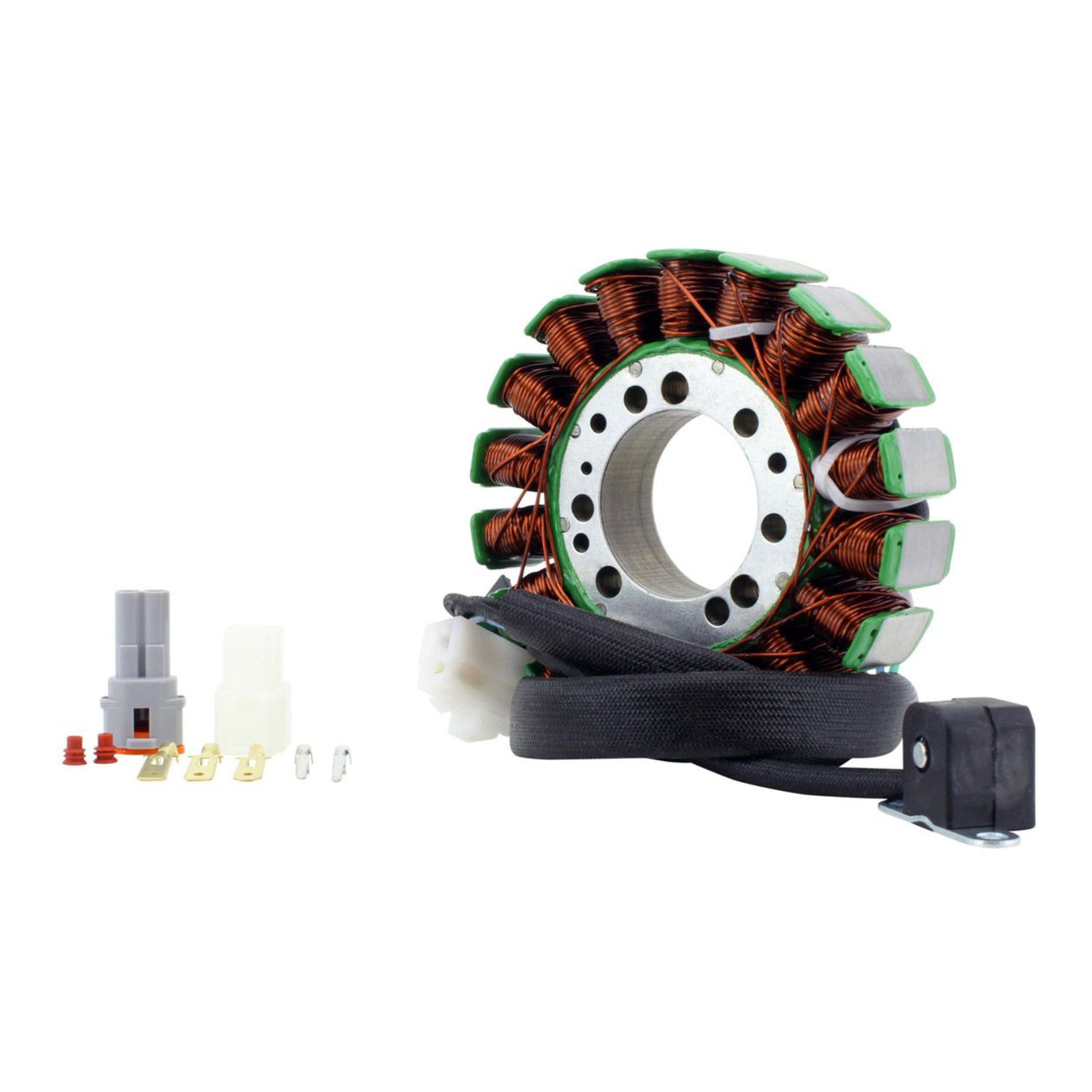

Stator

  • High-grade lamination materials.
  • High-grade copper windings, resistant to temperatures up to 200°C.
  • Pickup/pulsar coil included.

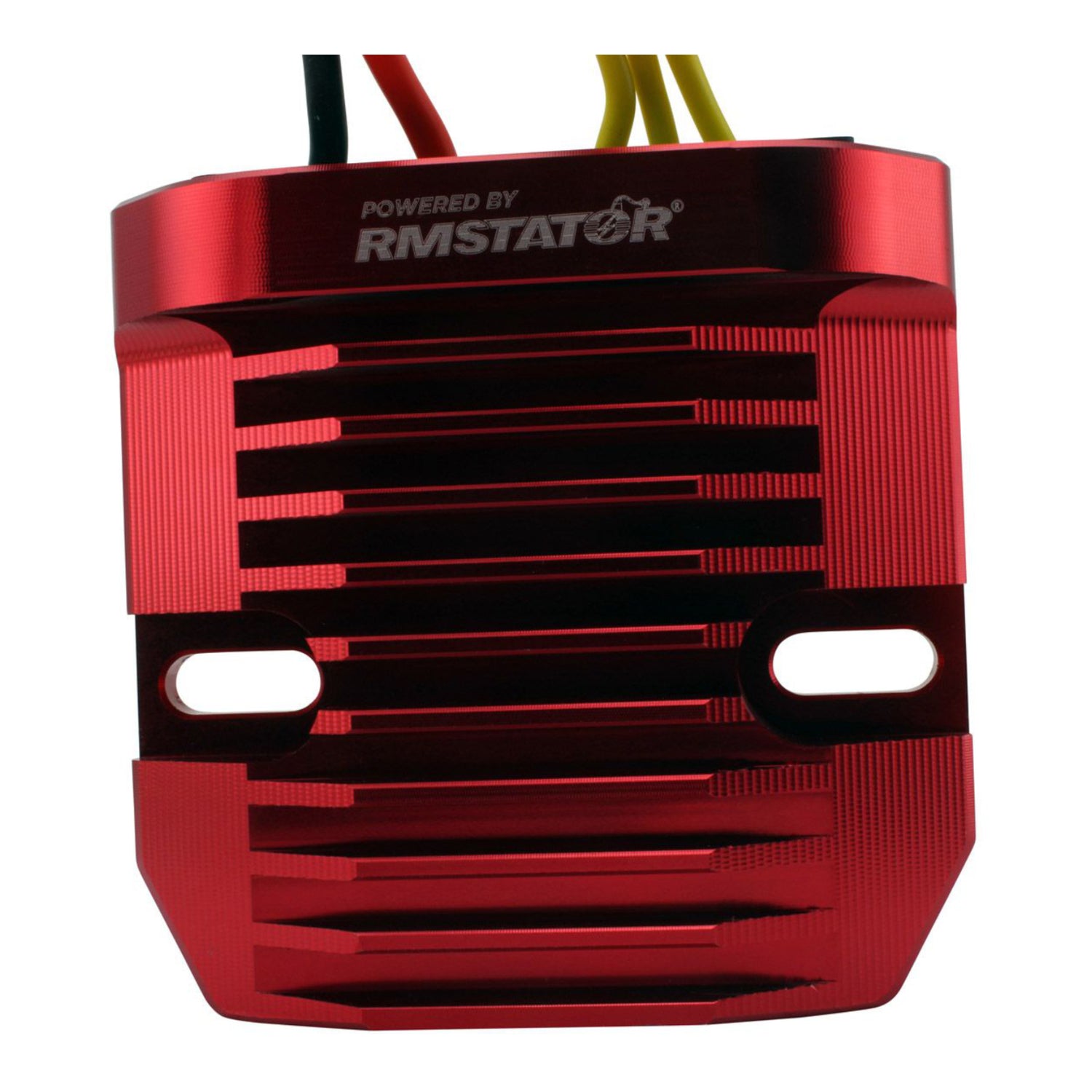

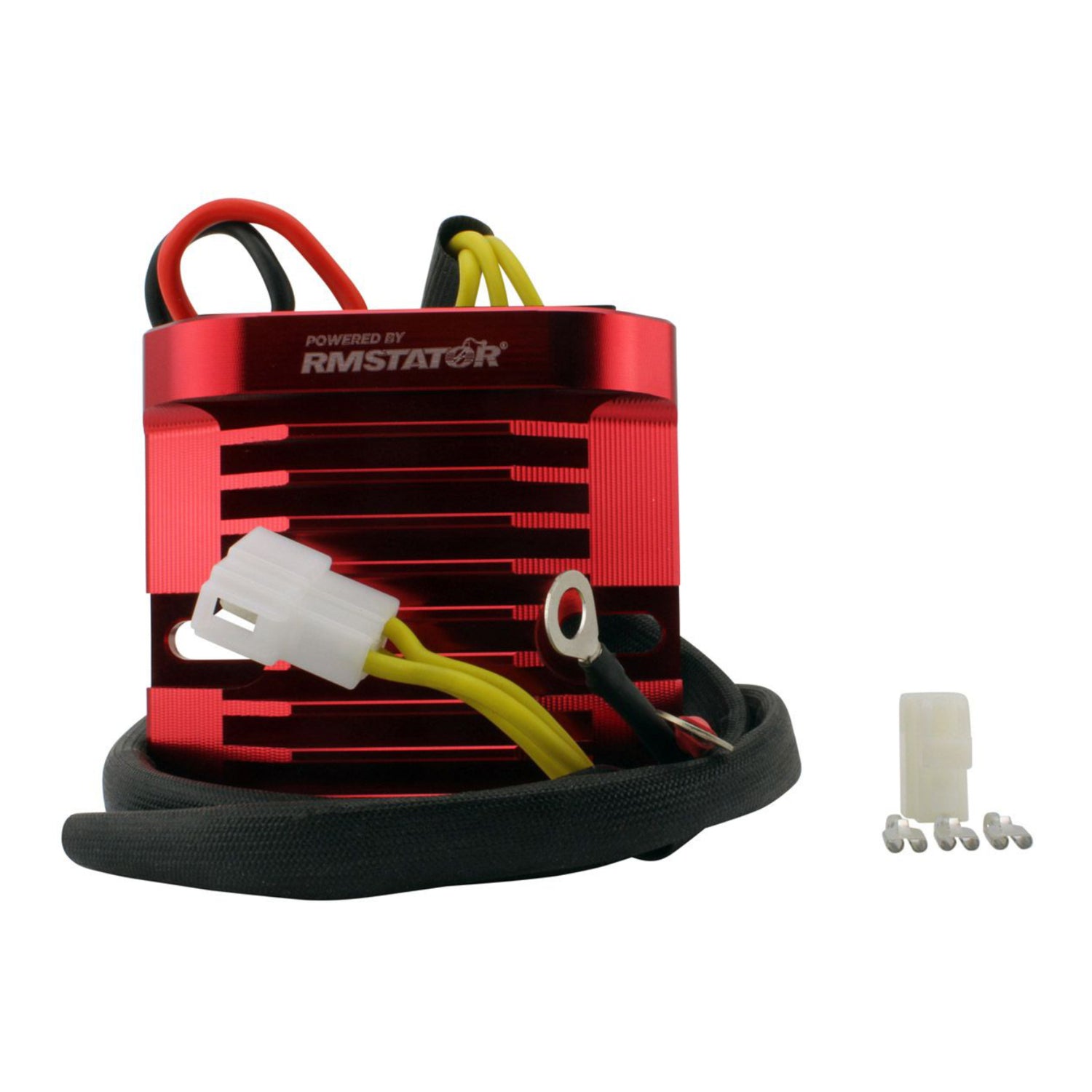

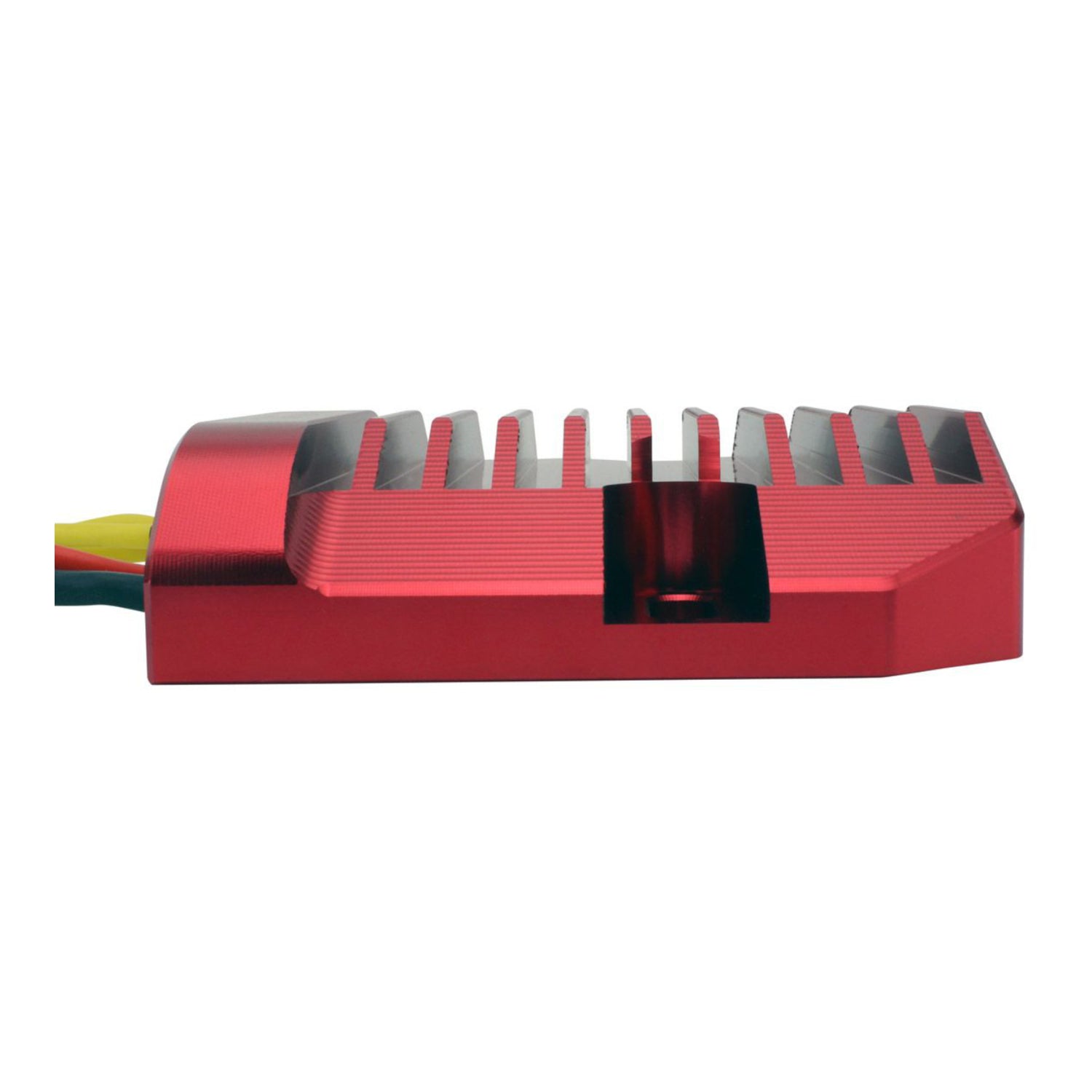

RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier

  • No assembly required.
  • Higher-grade electrical components.
  • Improved heatsink and charging capabilities.
  • Quality exceeds OEM equipment.

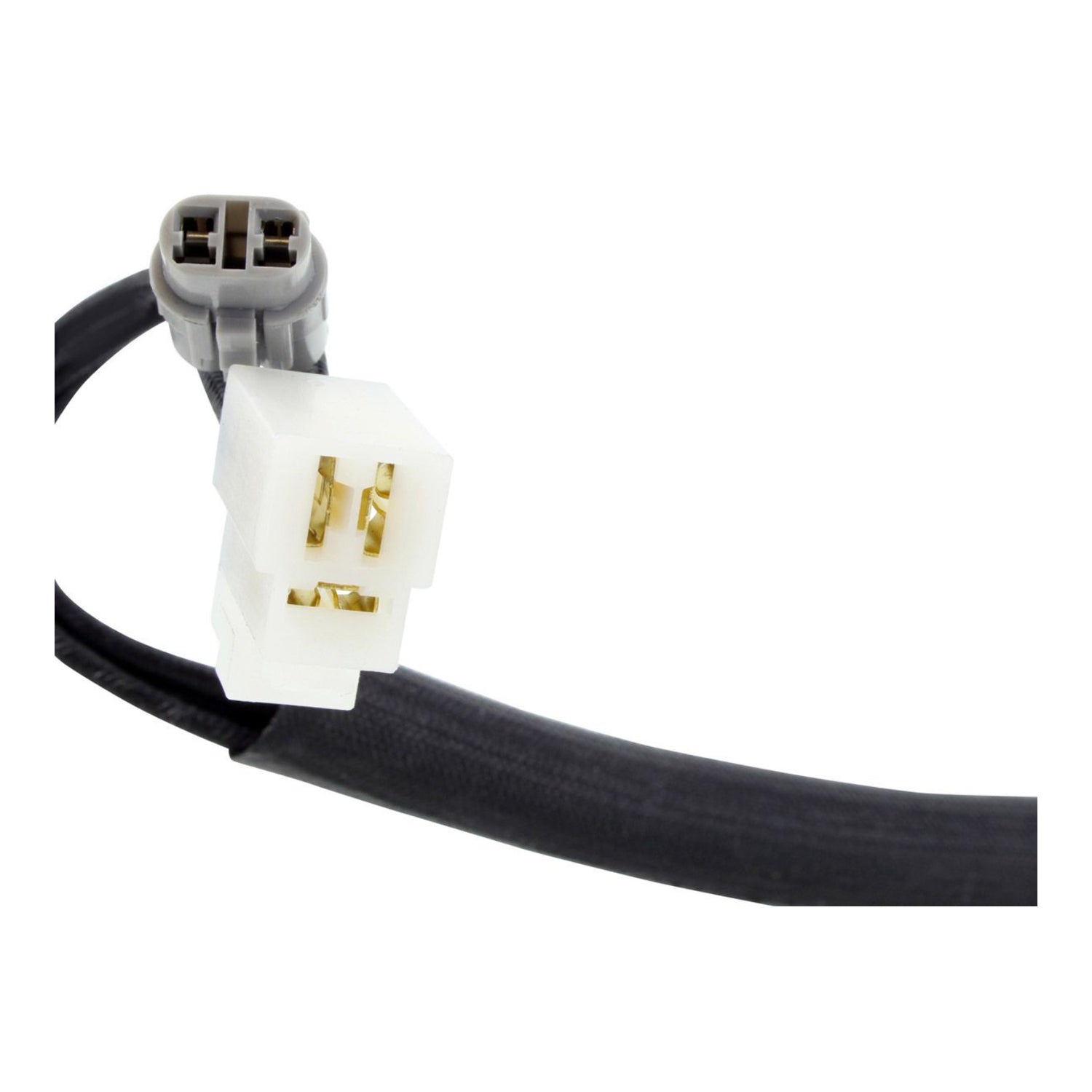

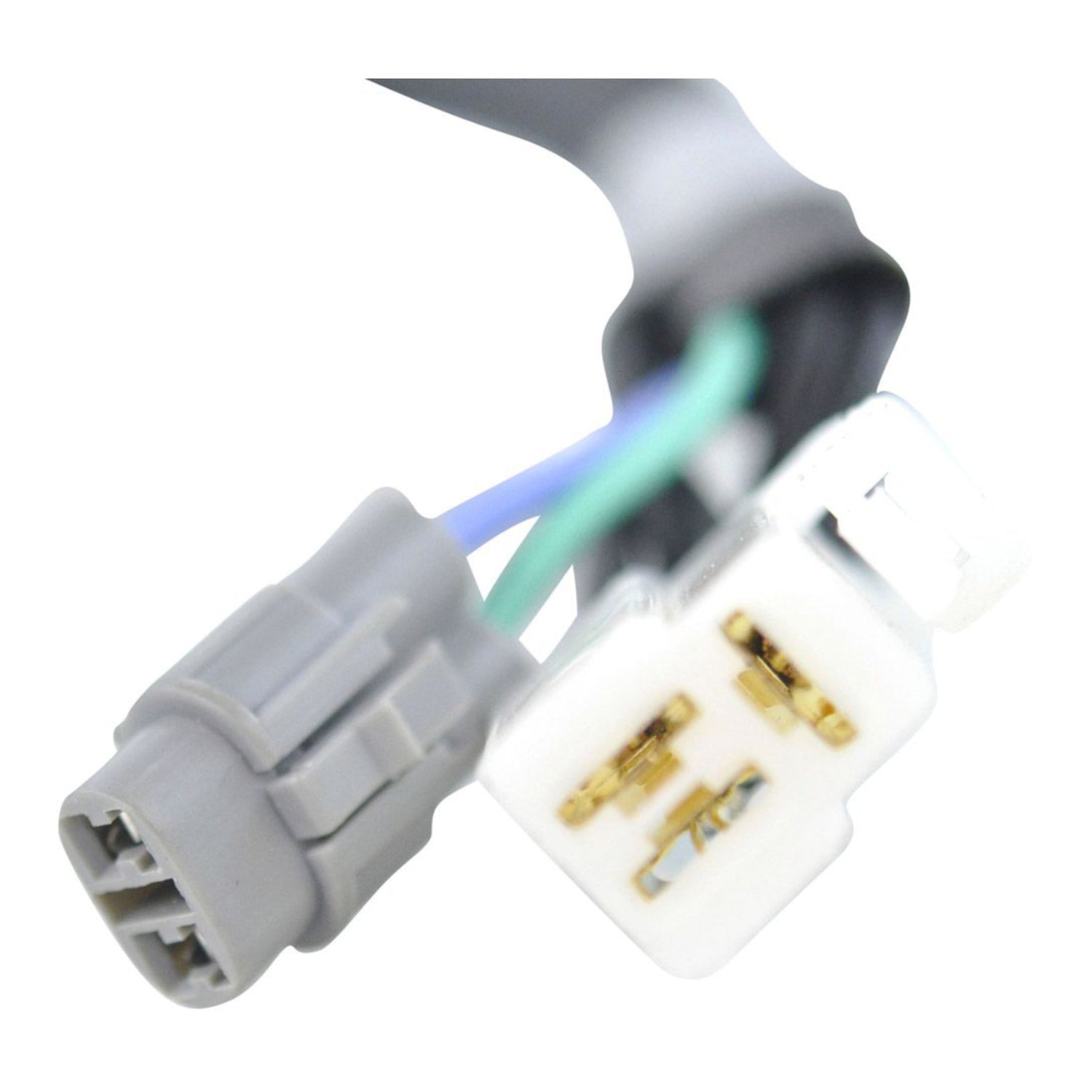

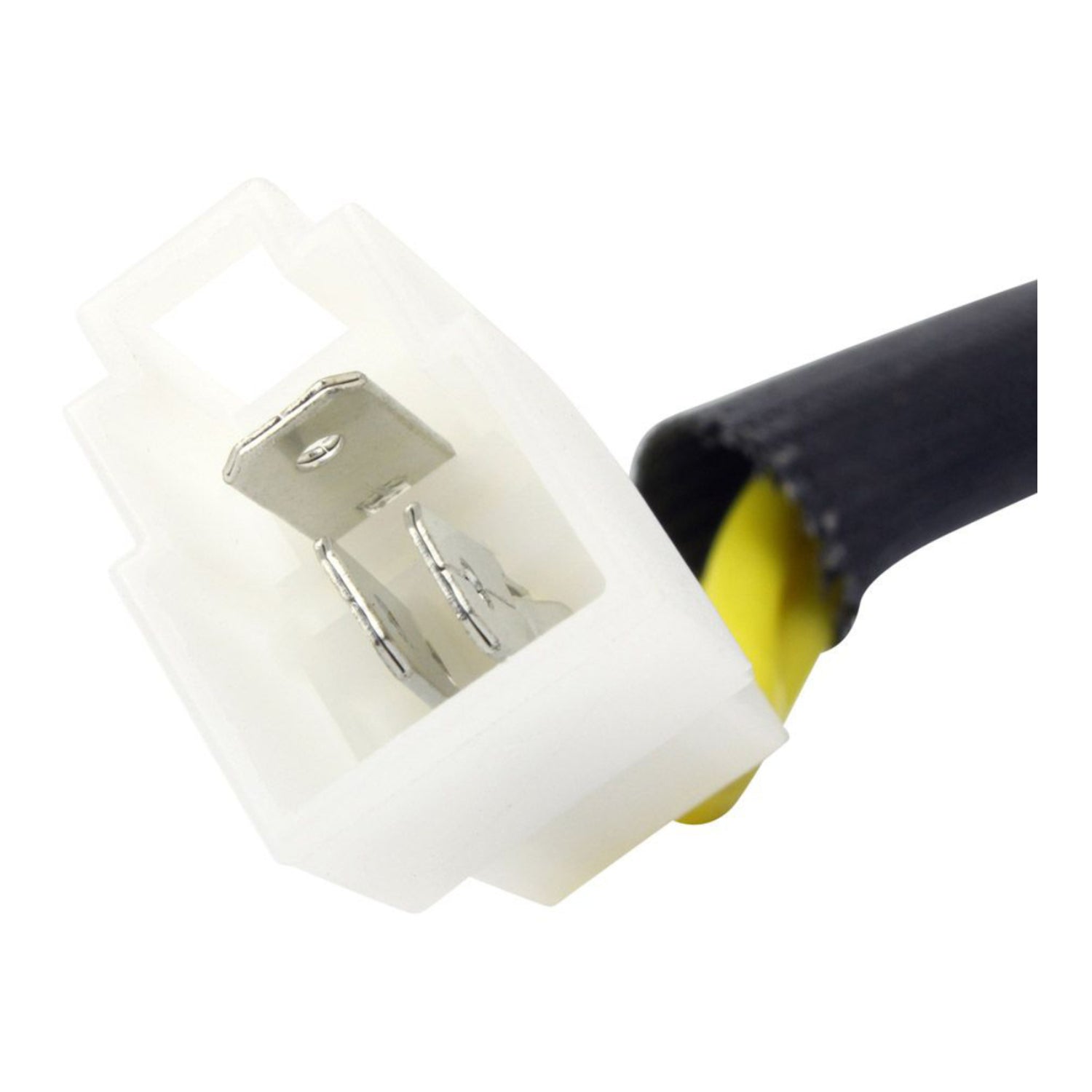

The opposite connector (main harness side) is included. Original connectors can become melted, corroded or defective, causing recurring electrical issues.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Stator Dimensions:

  • Interior diameter: 42 mm.
  • Exterior diameter: 115 mm.
  • Thickness: 22 mm.
  • Stator-to-grommet wire length: 140 mm.
  • Grommet-to-plug wire lengths: 530 mm and 590 mm.
  • Pickup coil wire-to-grommet length: 155 mm.

Other Specifications:

  • Number of wires: 5.
  • Number of plugs: 2.
  • Number of pins: 5.
  • Number of poles: 18.
  • Alternator resistance (black to black): 0.5 ohms ±20%.
  • Alternator resistance to ground: O.L.
  • Pickup coil resistance (green to blue): 200 ohms ±20%.

RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier Dimensions:

  • Width: 95 mm.
  • Length: 90 mm.
  • Height: 30 mm.

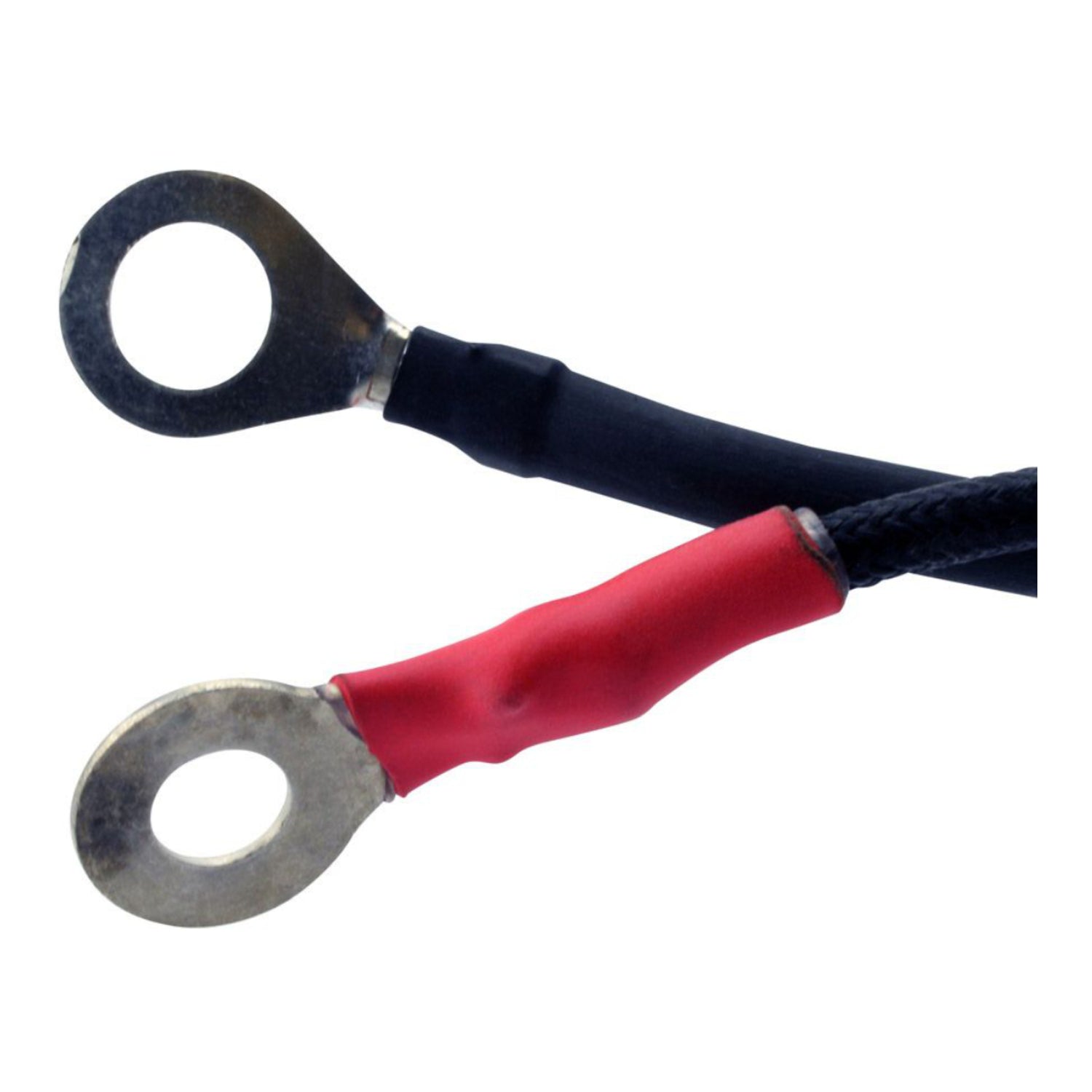

  • Wire lengths: 811 mm and 350 mm.
  • Mounting holes, centre-to-centre: 75 mm.

Other Specifications:

  • Number of plugs: 2.
  • Number of pins: 5.
  • Number of wires: 5.
  • Minimum charging voltage: 14.5 V ±0.5 V.
  • Maximum charging current: 50 A / 500 W.
  • Open-circuit voltage: Less than 15 V.
  • Operating temperature: -20°C to 85°C.
