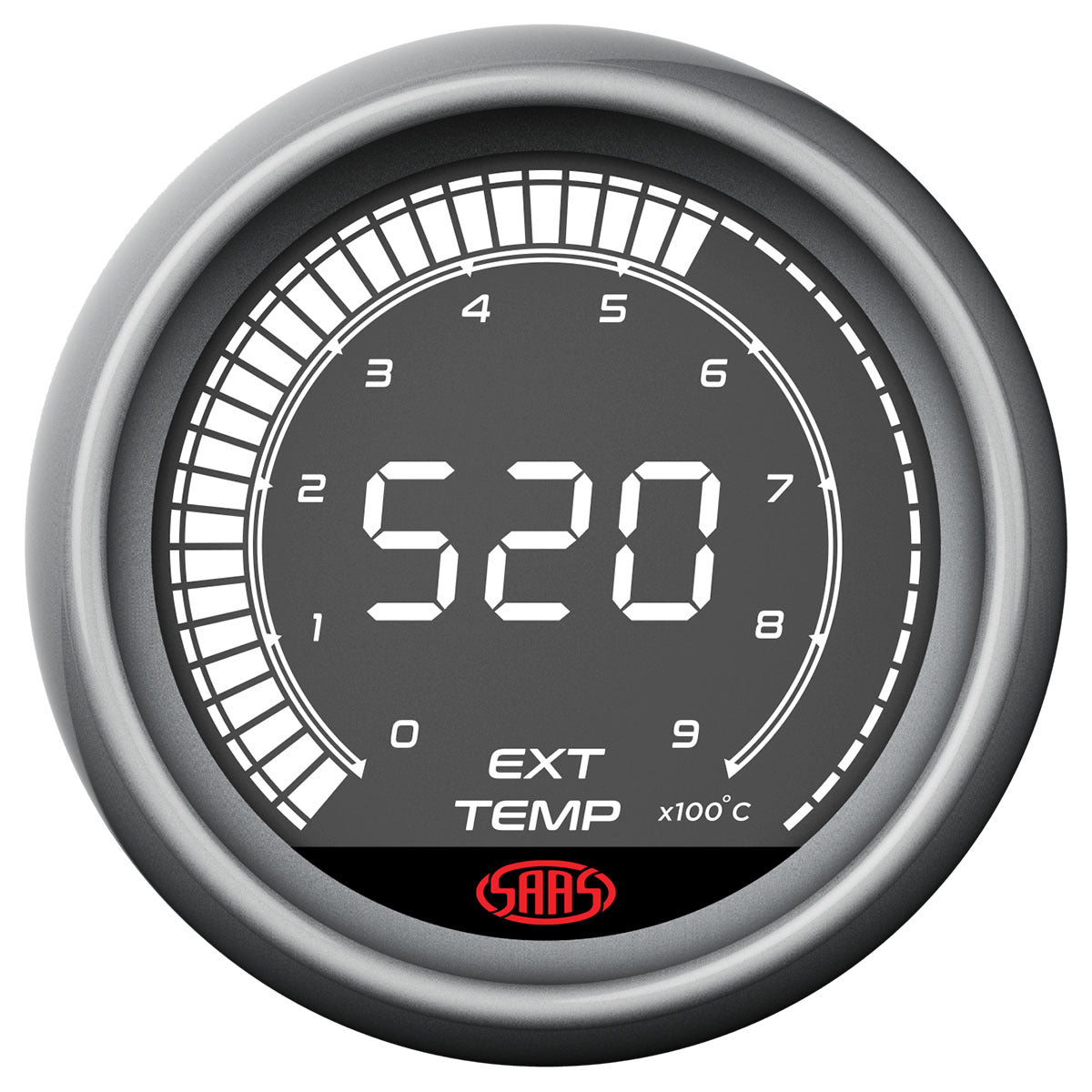

SAAS Exhaust Temp Gauge 0°-900° 52mm Digital Series | SG41240

Special Order

SG41240 Exhaust Temp Gauge EGT/Pyro 0°-900° 52mm Muscle Digital Series
NOW FEATURING DIMMABLE BACKLIGHTING

The new for 2021 SAAS Muscle Digital specialty gauges give you digital readings with the added advantage of dimmable backlighting.

No moving components allows for a vibration proof environment making these gauges ideal for 4WD offroad and performance applications.

Monitor your vehicle's exhaust gas temperature and be on the alert for possible overheating or other potential engine issues. Designed to measure high temperatures beyond those of a normal temperature gauge, our Muscle Digital series EGT gauges feature a thermocoupled sensor that can be placed into an appropriate temperature source such as the exhaust manifold.

These gauges become an essential tool in checking for imbalanced air/fuel ratios which can be influenced by restricted air filtration systems, altitude, load, ambient temperature and so on. Modify your driving (when towing for example) before excessive temperature builds.

FEATURES
Easy to read combination LCD Digital readouts
Includes all mounting hardware, bracket and sender(s)
Choice of 10 different LCD backlighting colours accessed via a remote switch
5 levels day / night dimming function
Measure EGT Pyro Exhaust Temp 0°-900°
User pre-set warning functions
Full range of replacement spare parts, senders, wiring looms available
SPARES/SPECS
SERIES Muscle Digital
BEZEL OD 57mm / 2 1/4"
BODY OD 52mm / 2"
RANGE 0°-900°
LIGHTING LED Multi-select 10 Colour
TYPE Digital
BRACKET MOUNTING SG21005
EXH TEMP BUNG SGA1001
EXH TEMP BUNG ADAPTOR SGA-320048 (1/8 NPT -> 1/4 BSP)
EXH TEMP ADAPTOR SG31013
GAUGE LINK CONNECTOR SG9101
PROGRAMMING BUTTON SG4106
SENDER EGT SG91003
SENDER EGT (HEAVY DUTY) SG91003HD
SENDER EGT EXTENSION SG91008 1.2m
SENDER THREAD 1/8" NPT
SENDER ADAPTORS List Adaptors
WIRING LOOM SG9100 4 Pin Main
WIRING LOOM CONNECTOR SG9105 100mm 2 pin
DOWNLOAD Fitting Instructions
