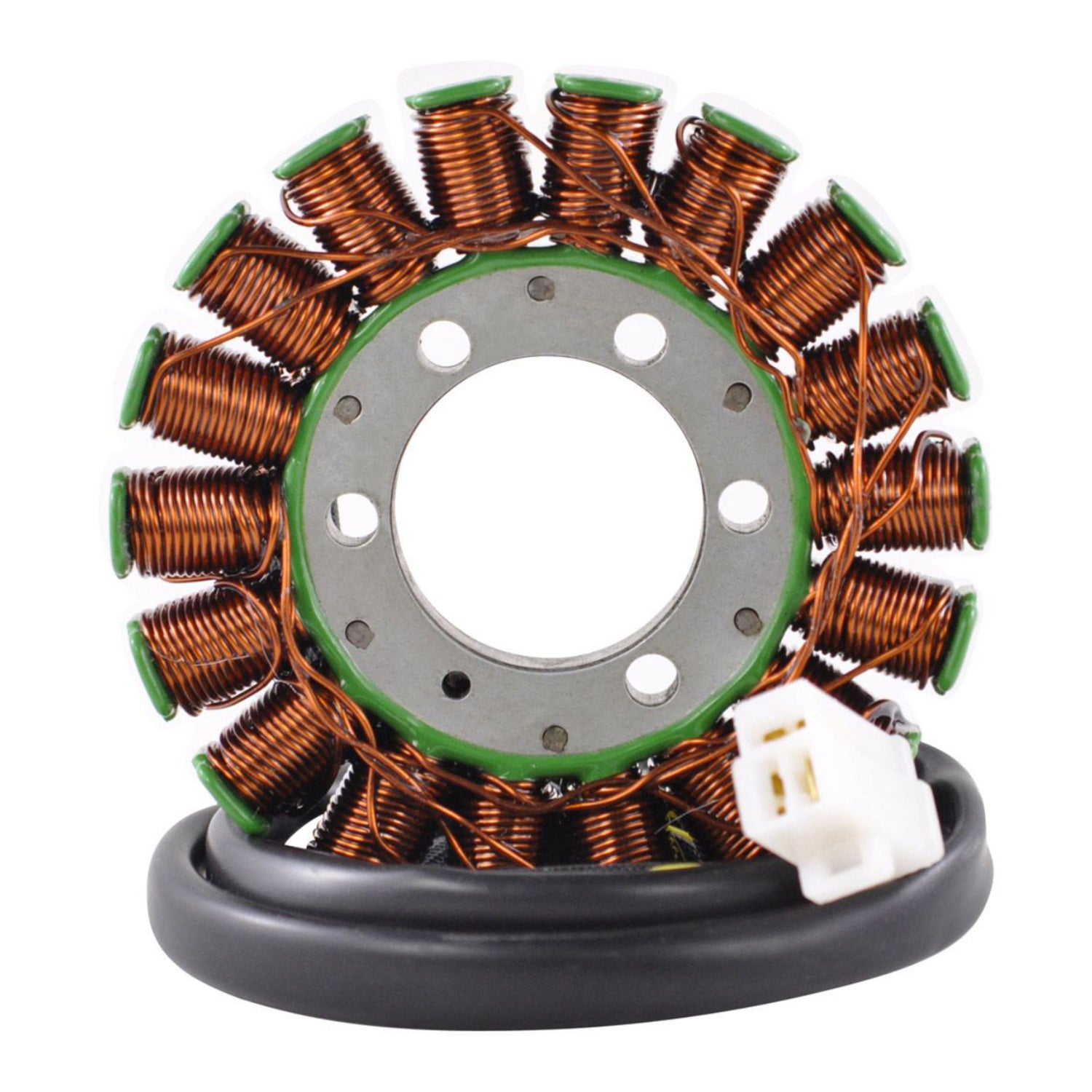

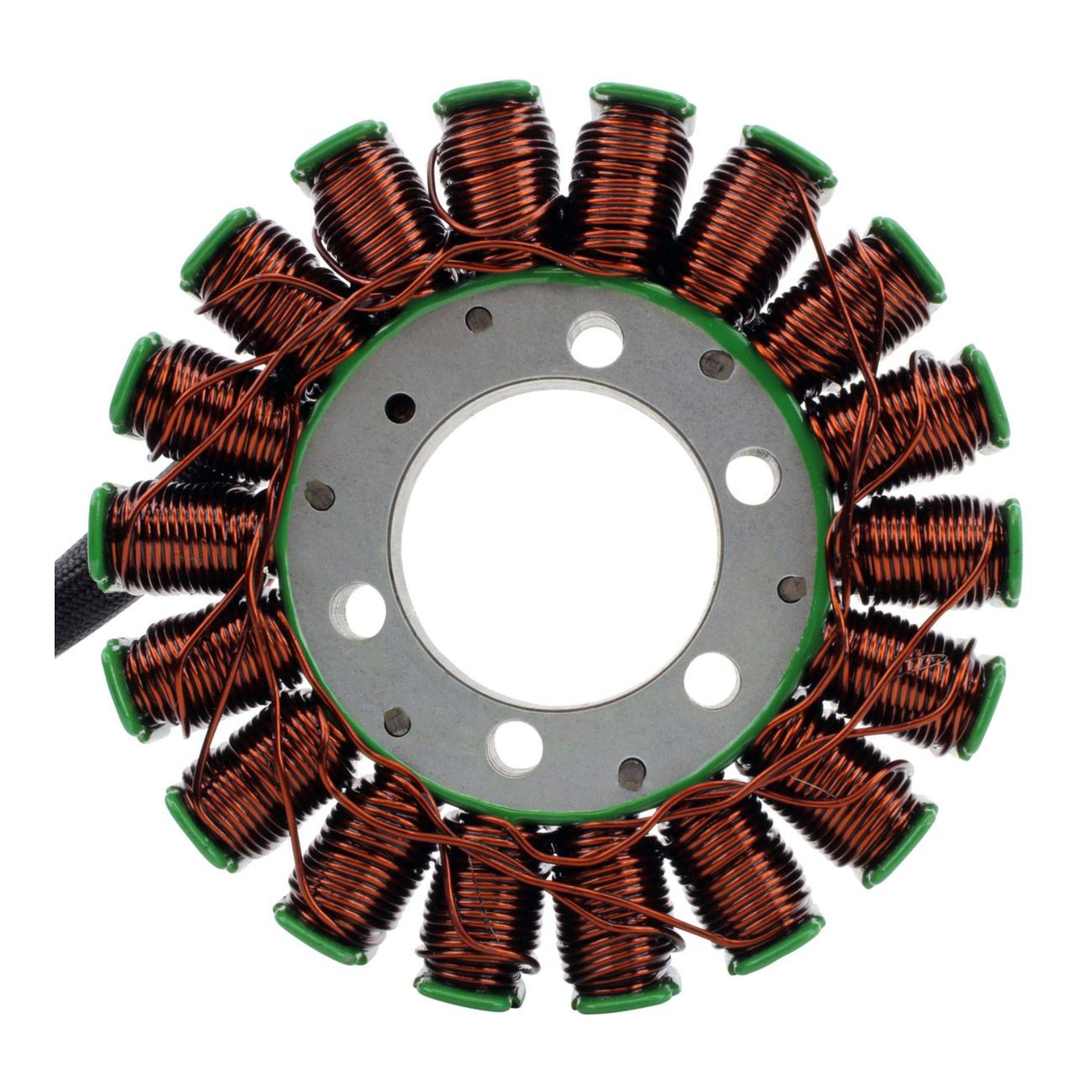

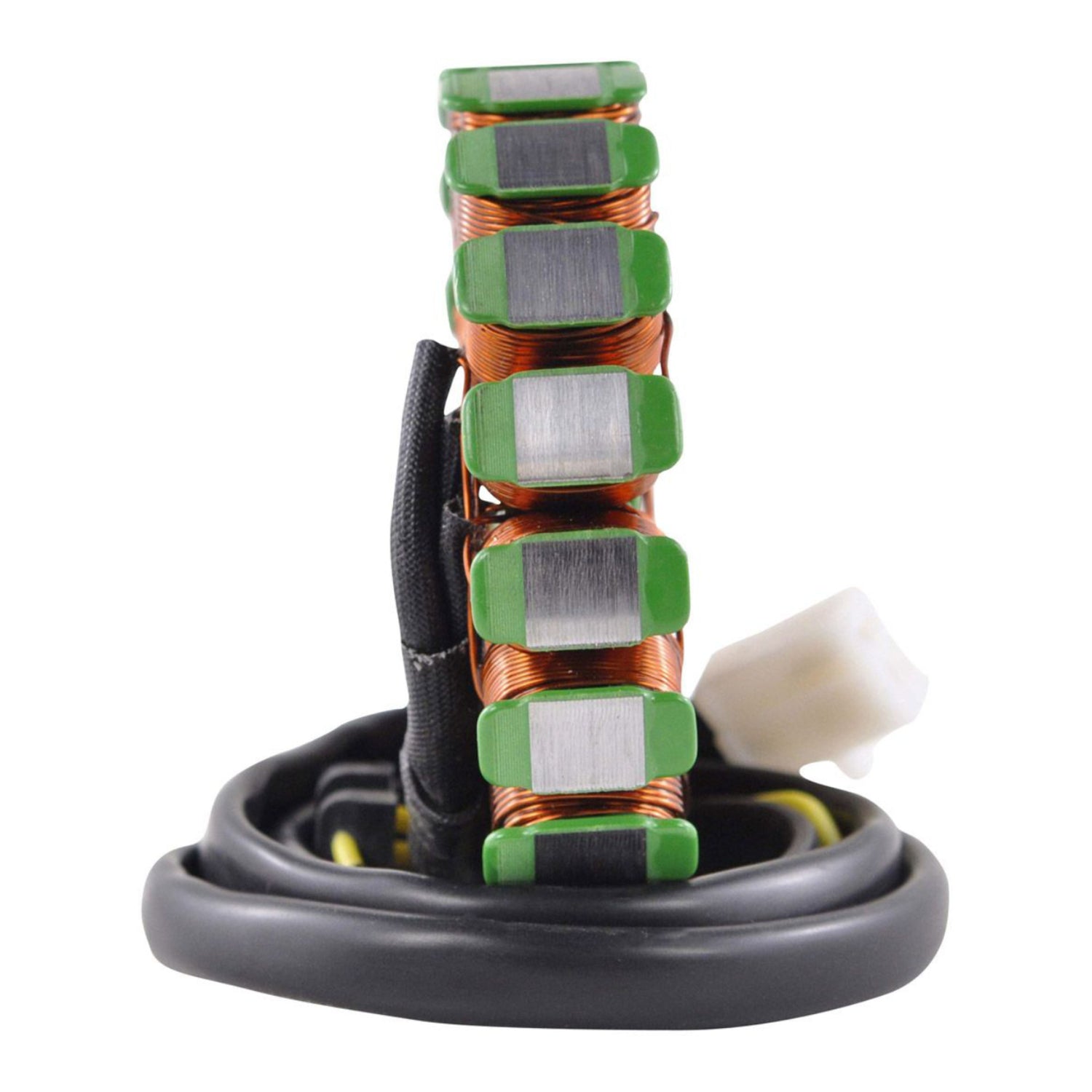

STATOR KAWASAKI NINJA 250 R '08-12 (RMS010-101490)

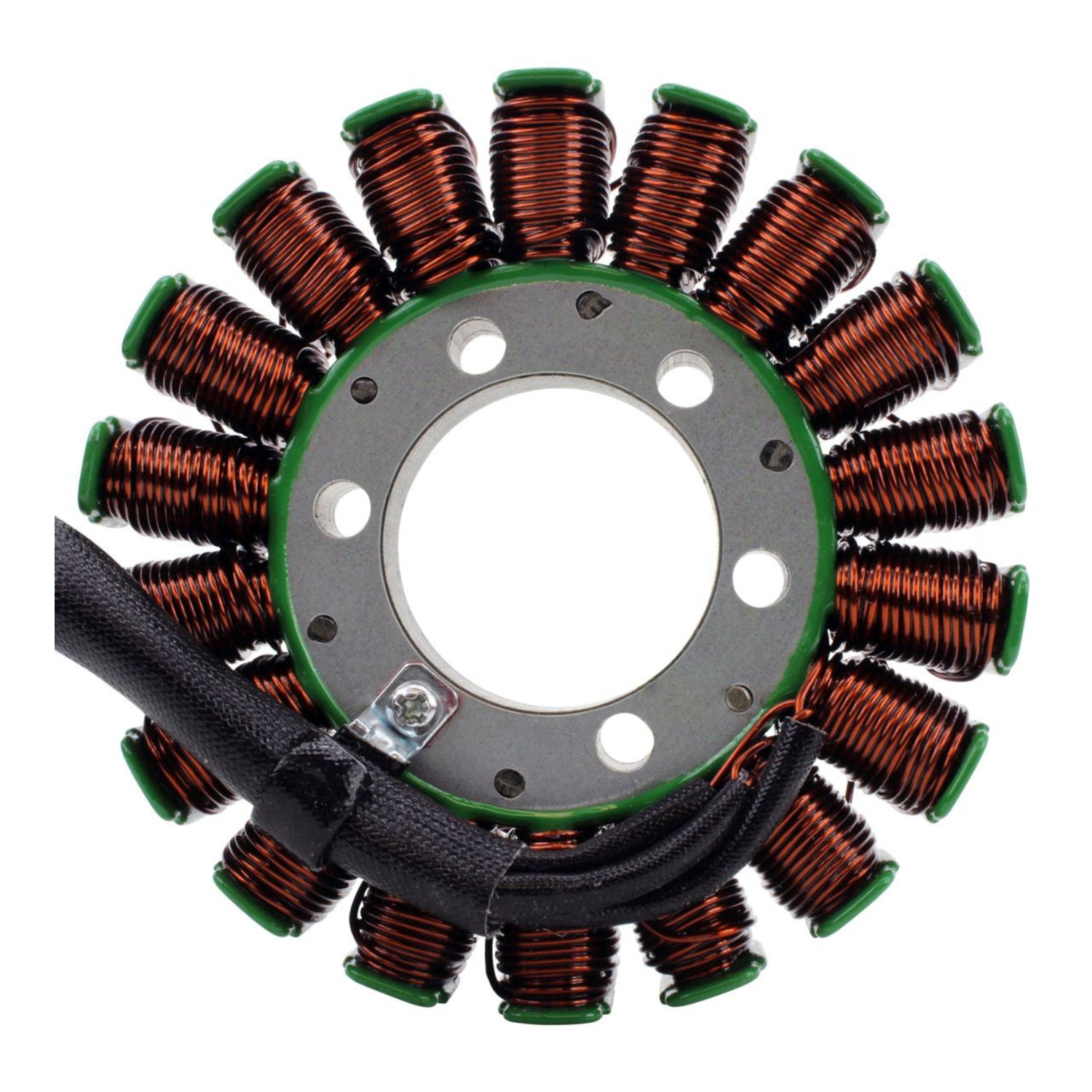

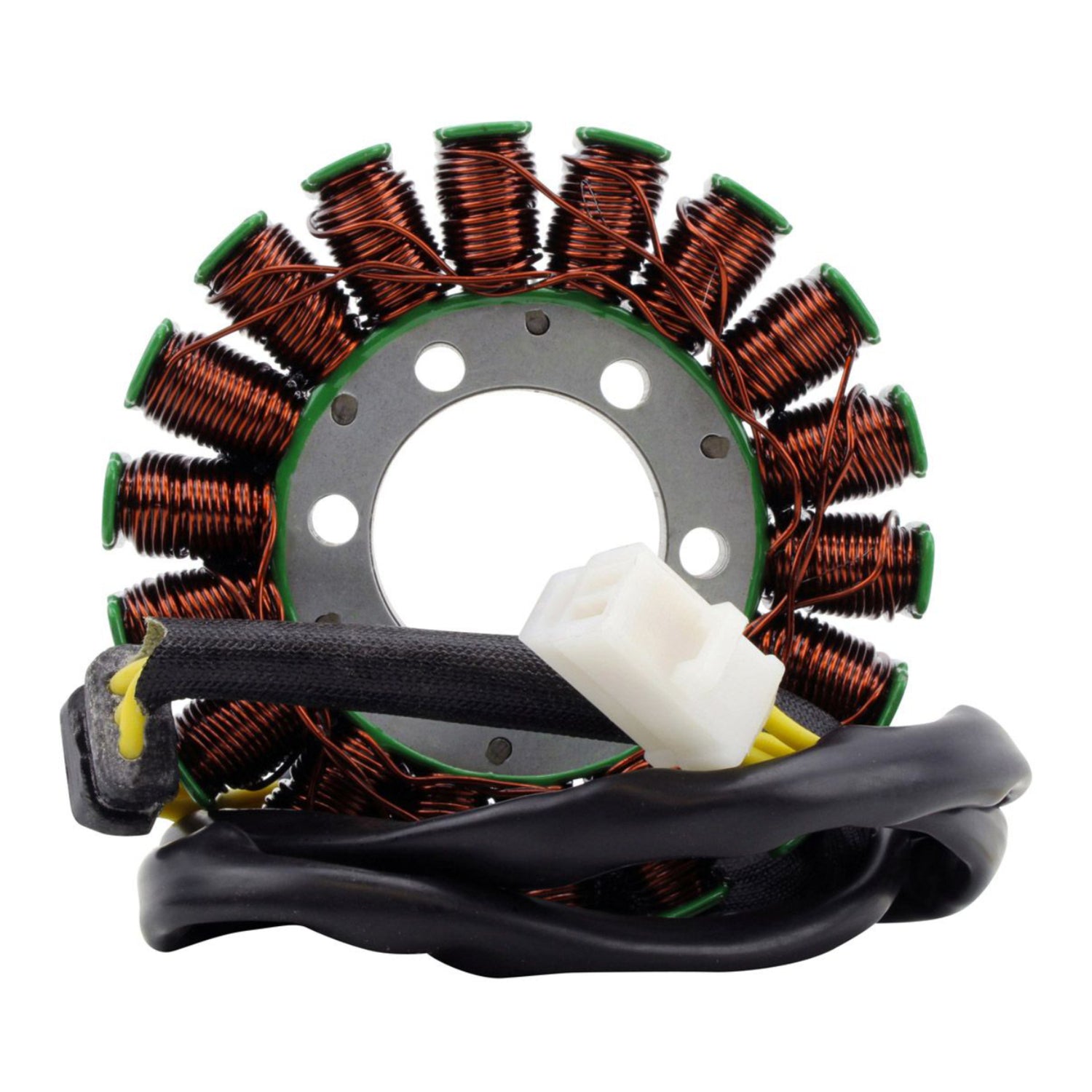

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

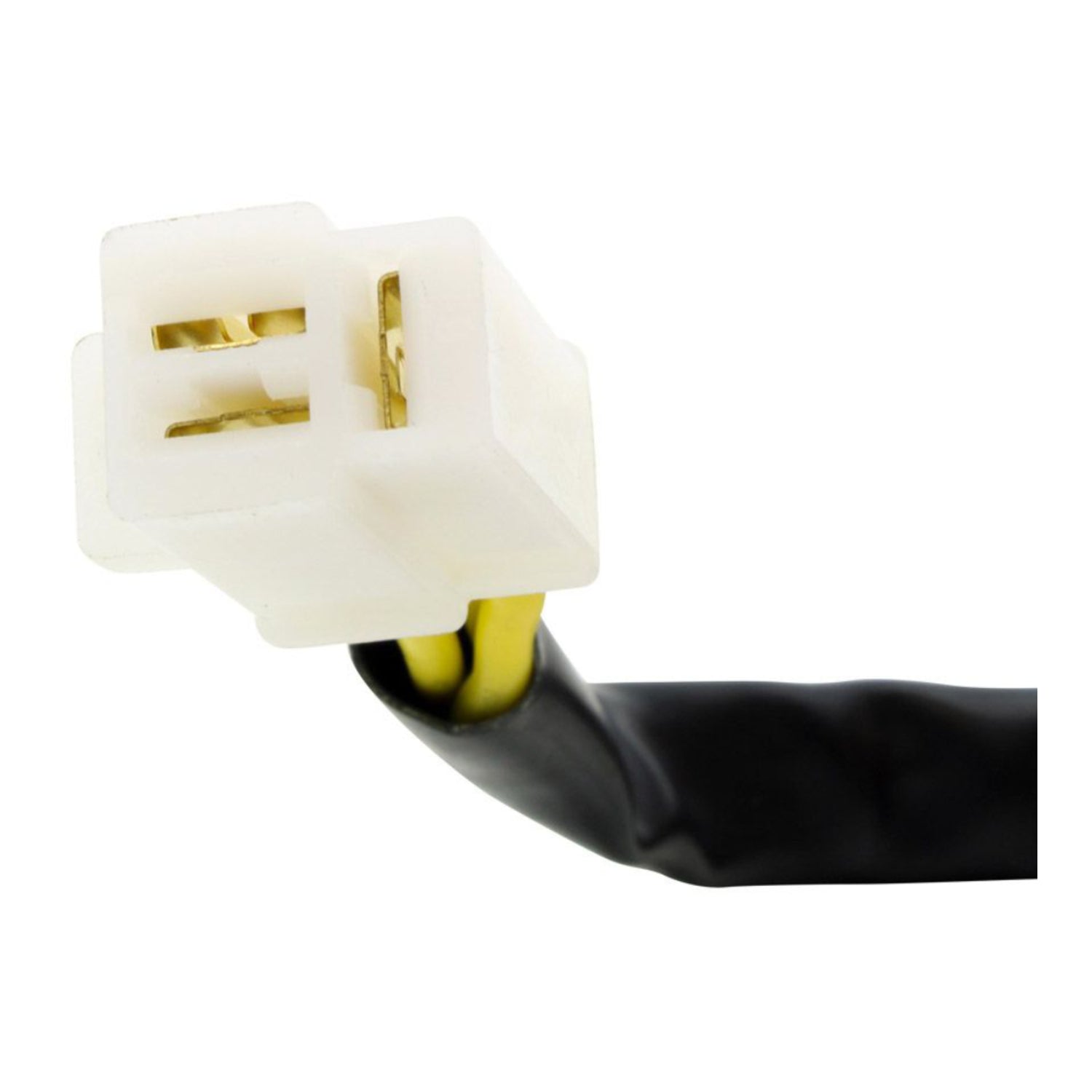

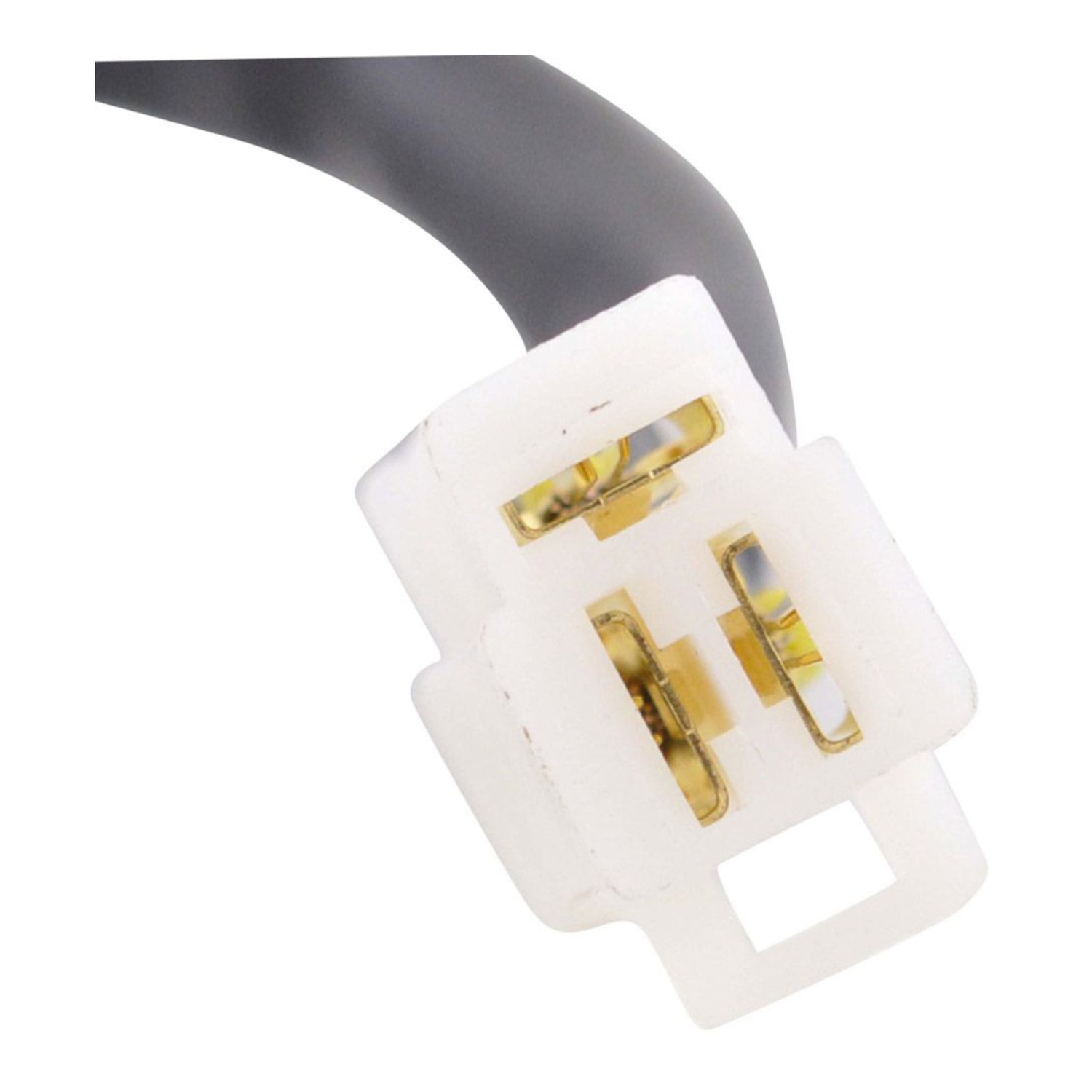

• Connector included

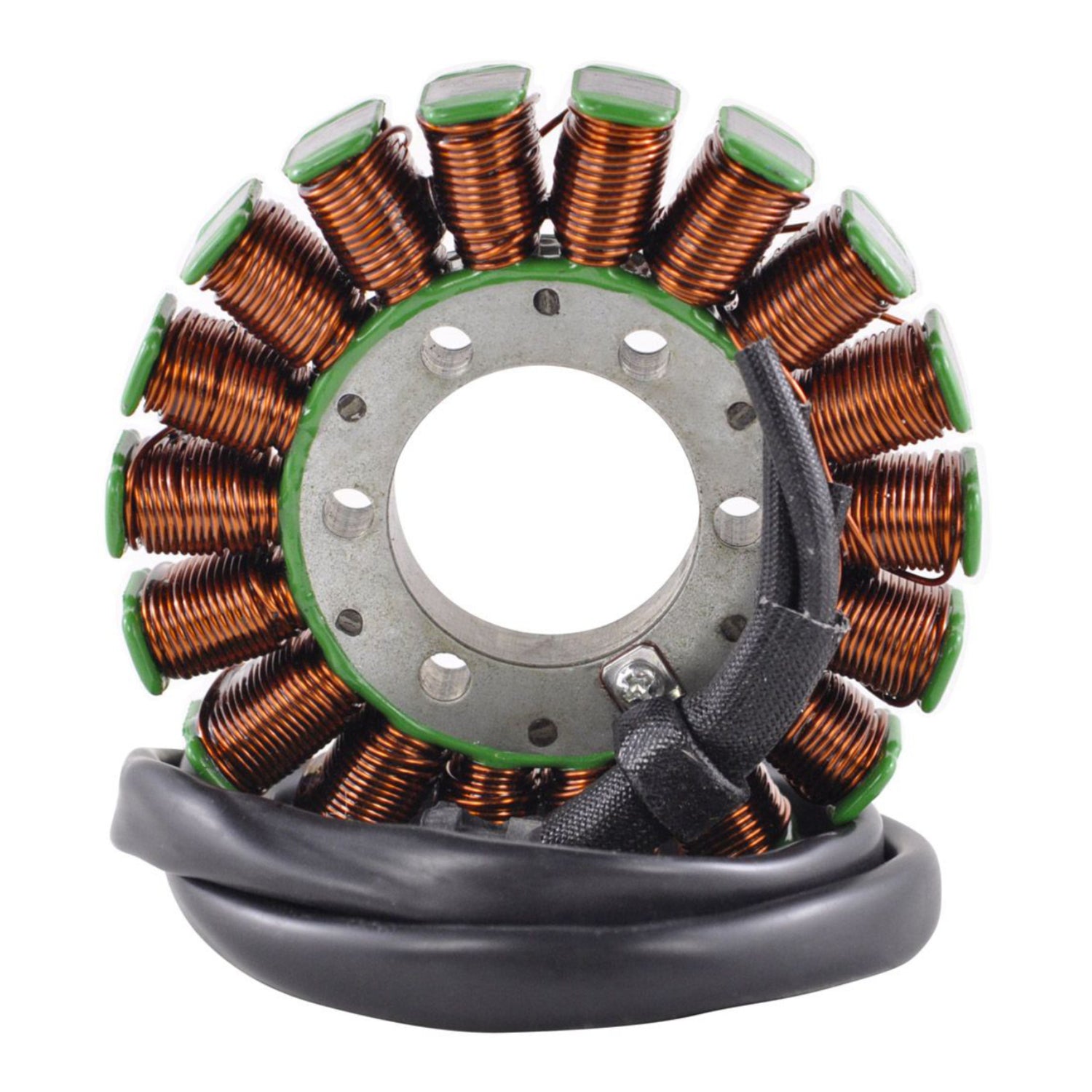

• Rubber grommet included
• All products shipped are tested

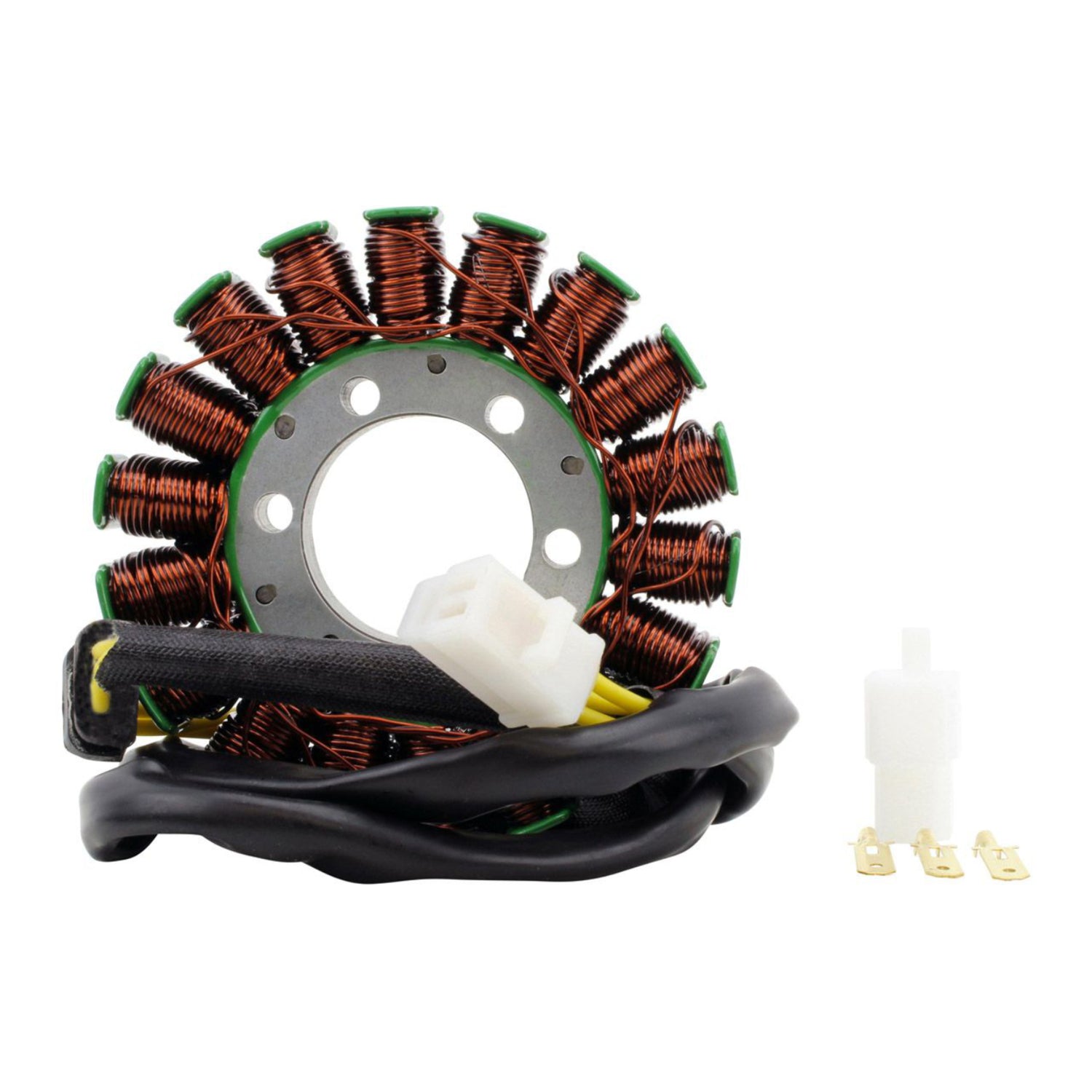

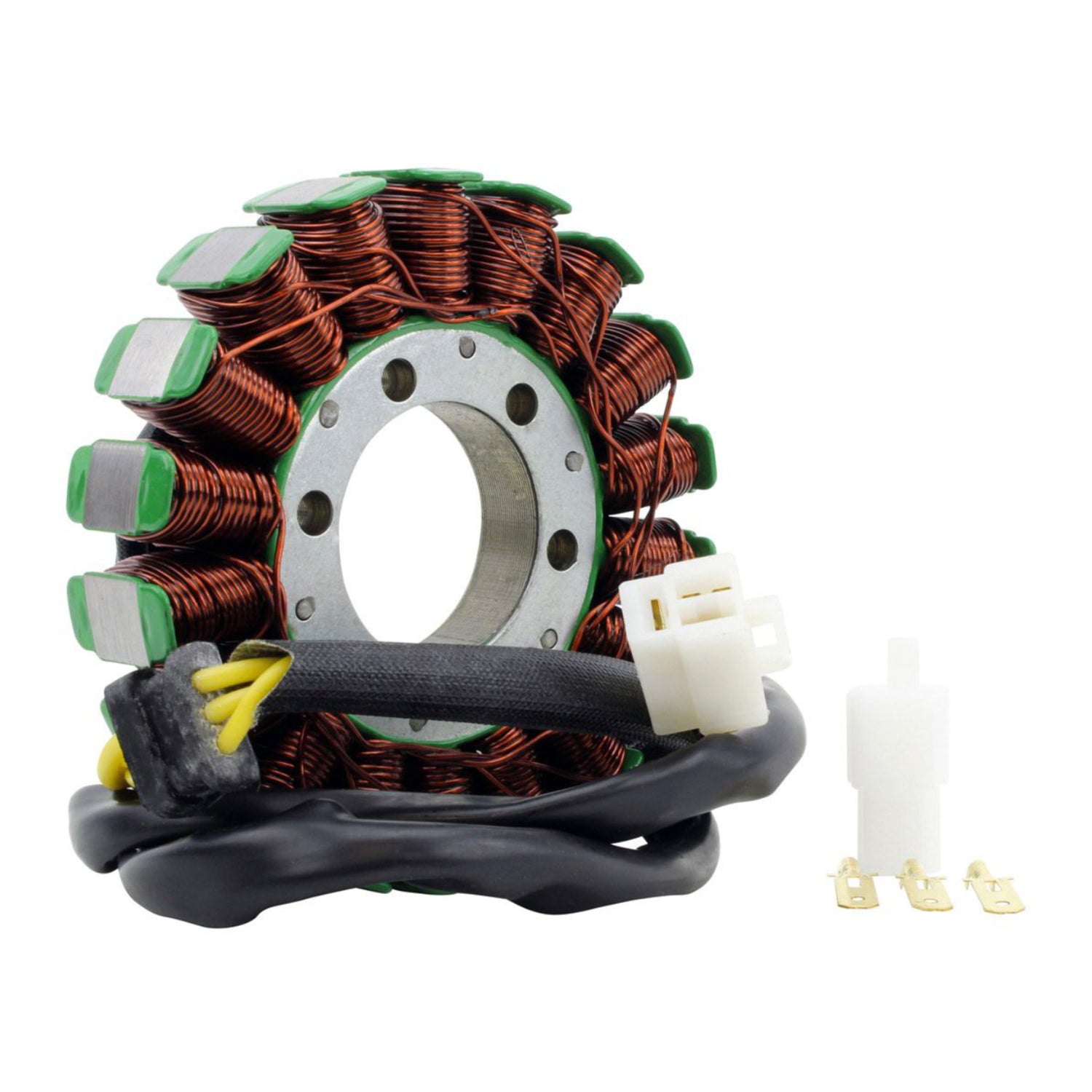

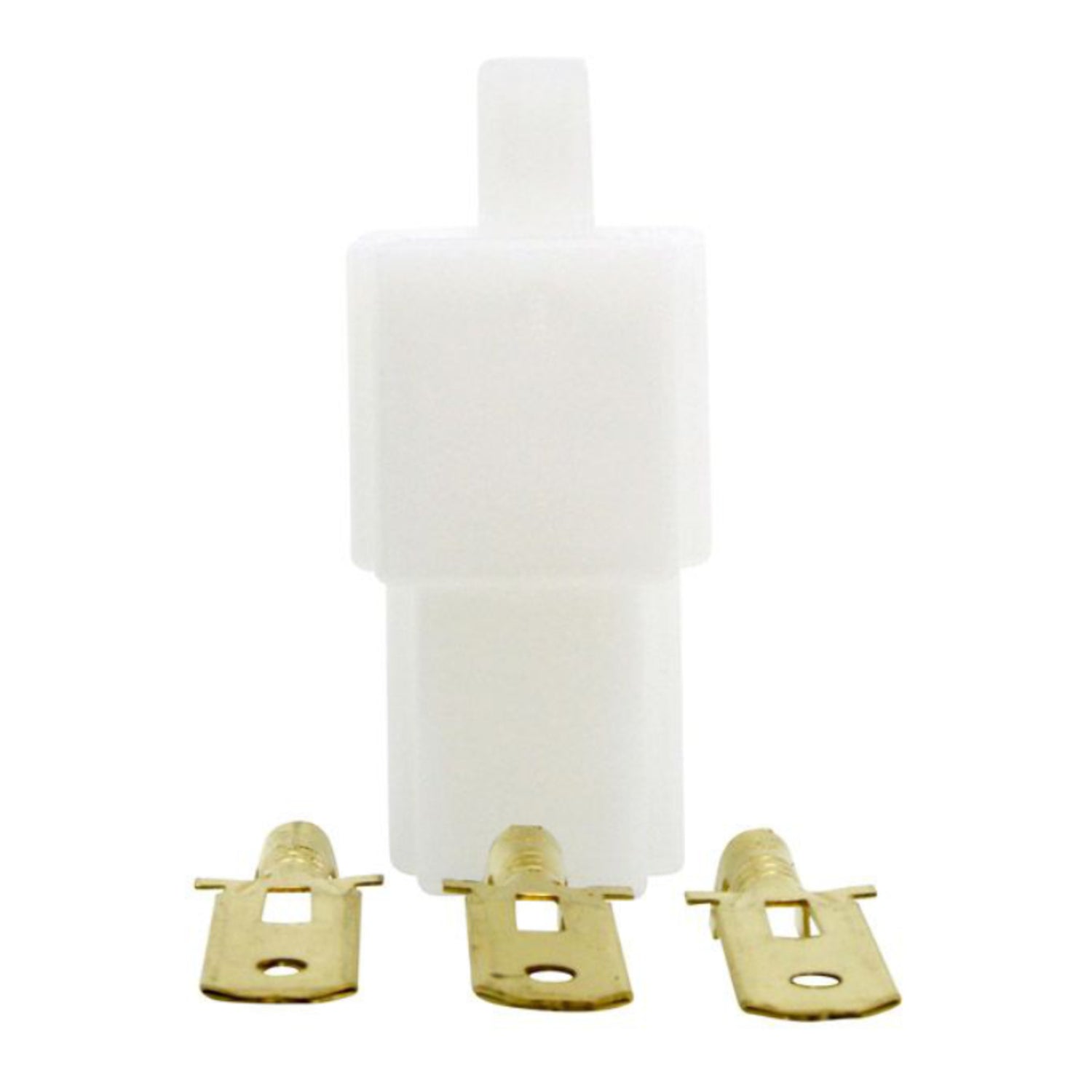

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107 mm
• Thickness: 15 mm
• Length of wires stator to grommet: 180 mm
• Length of wires grommet to plug: 780 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator : Yellow to Yellow = 0.4 ohms +-20%

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
