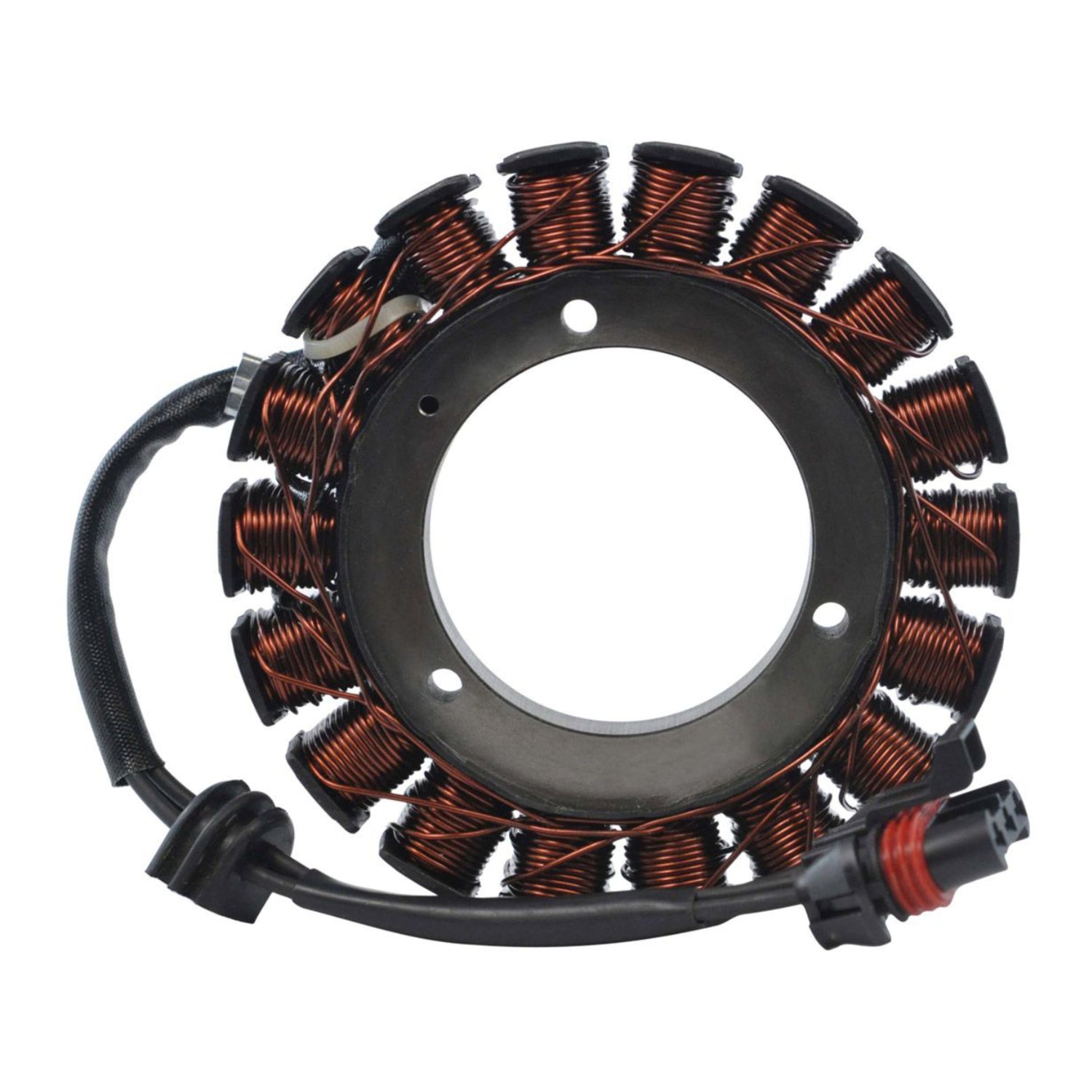

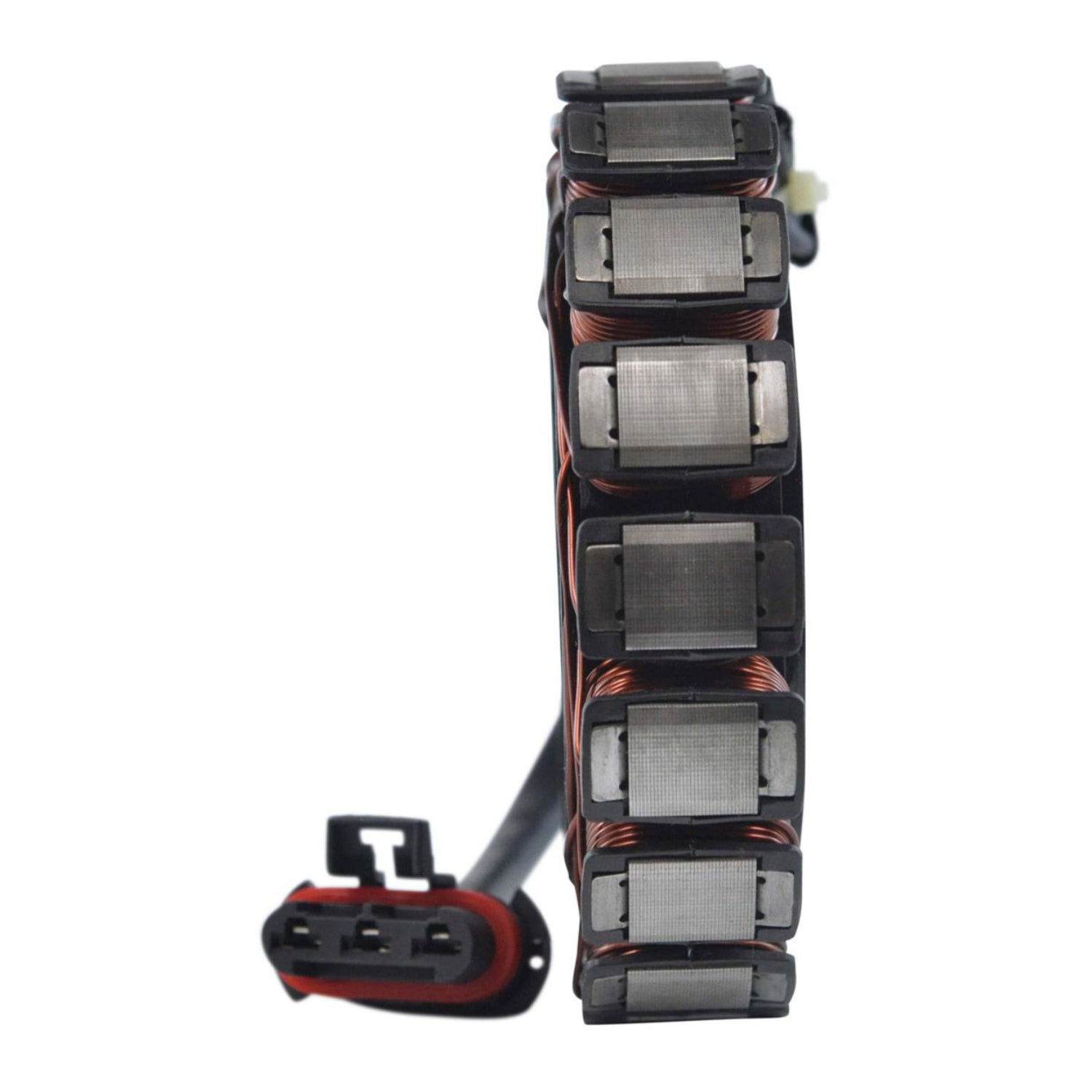

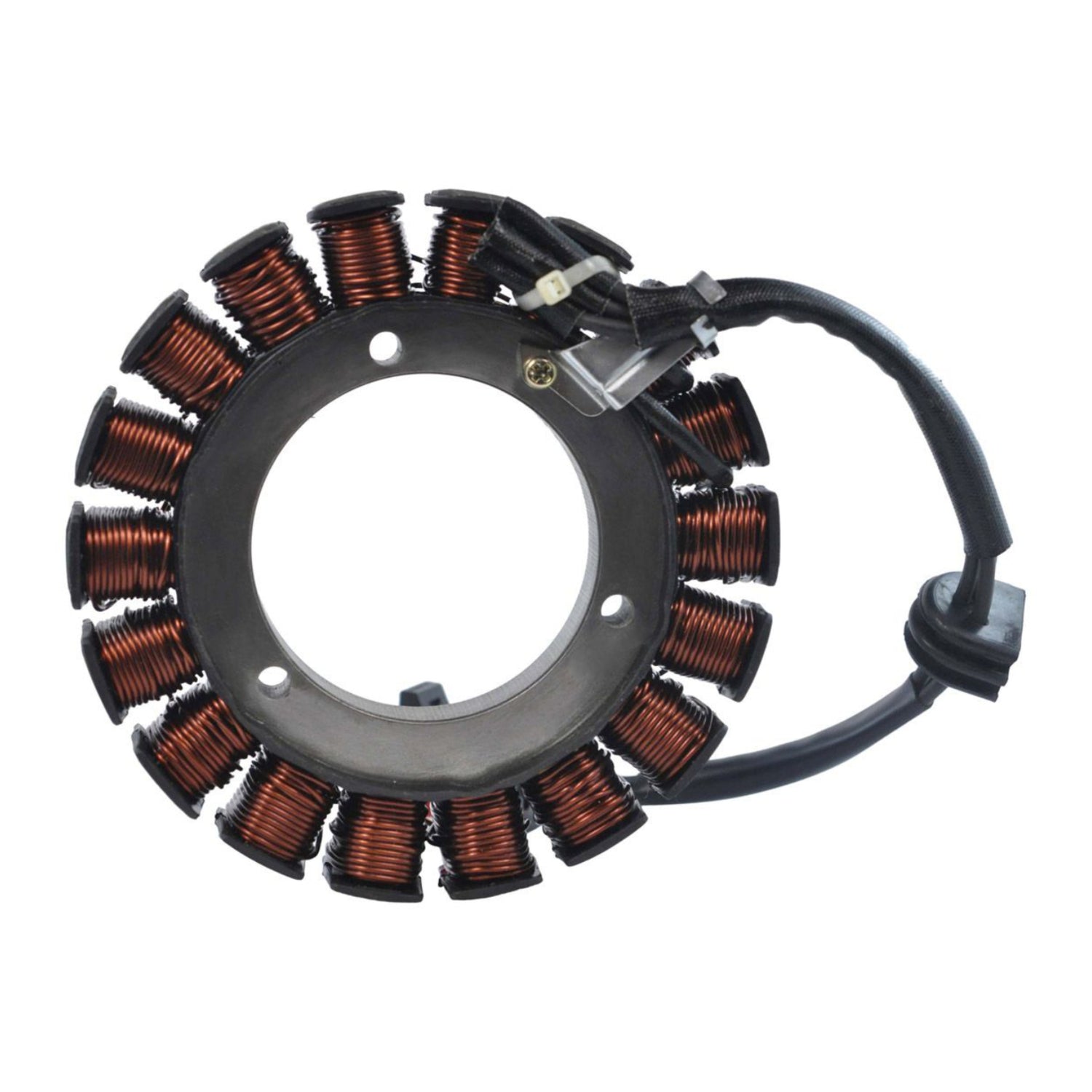

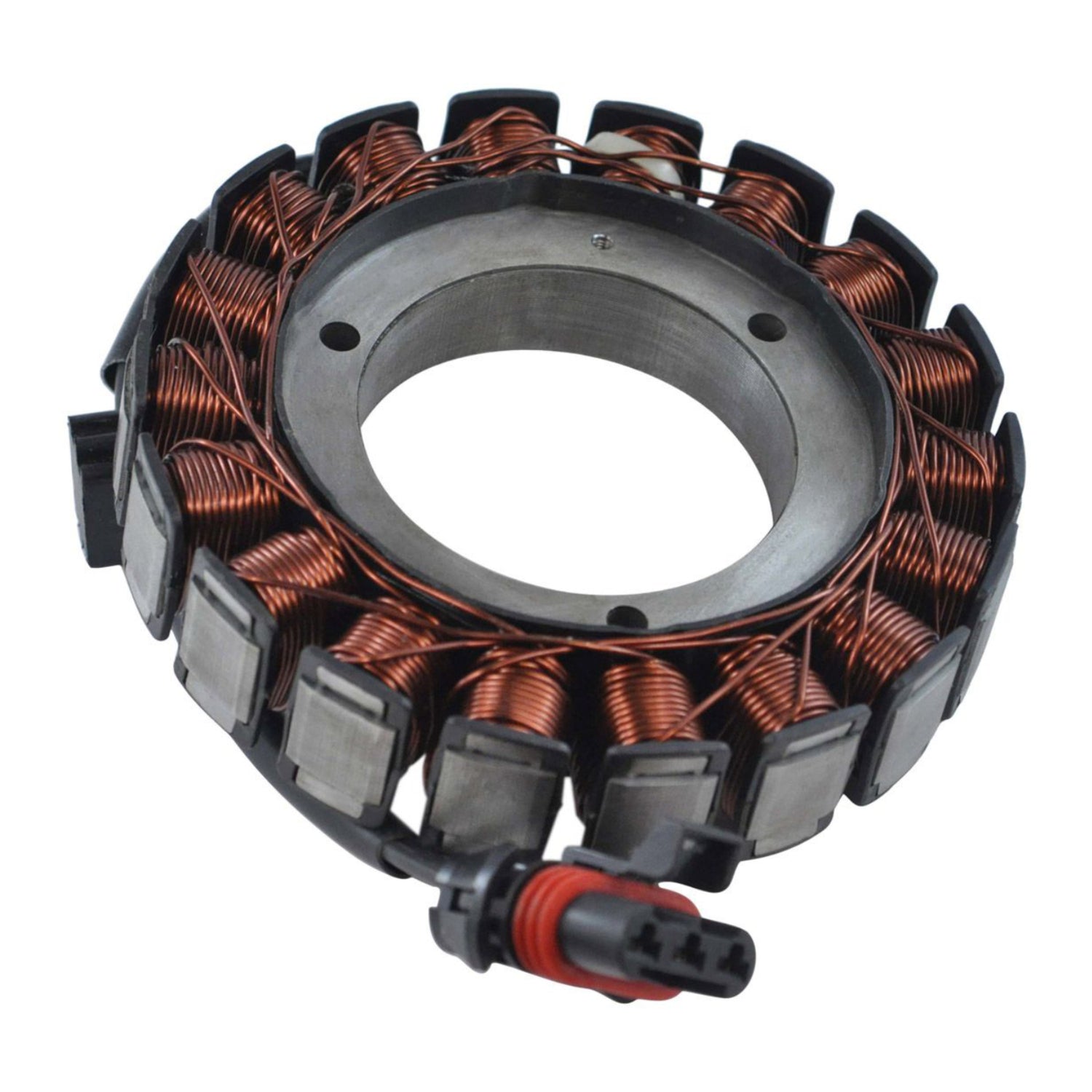

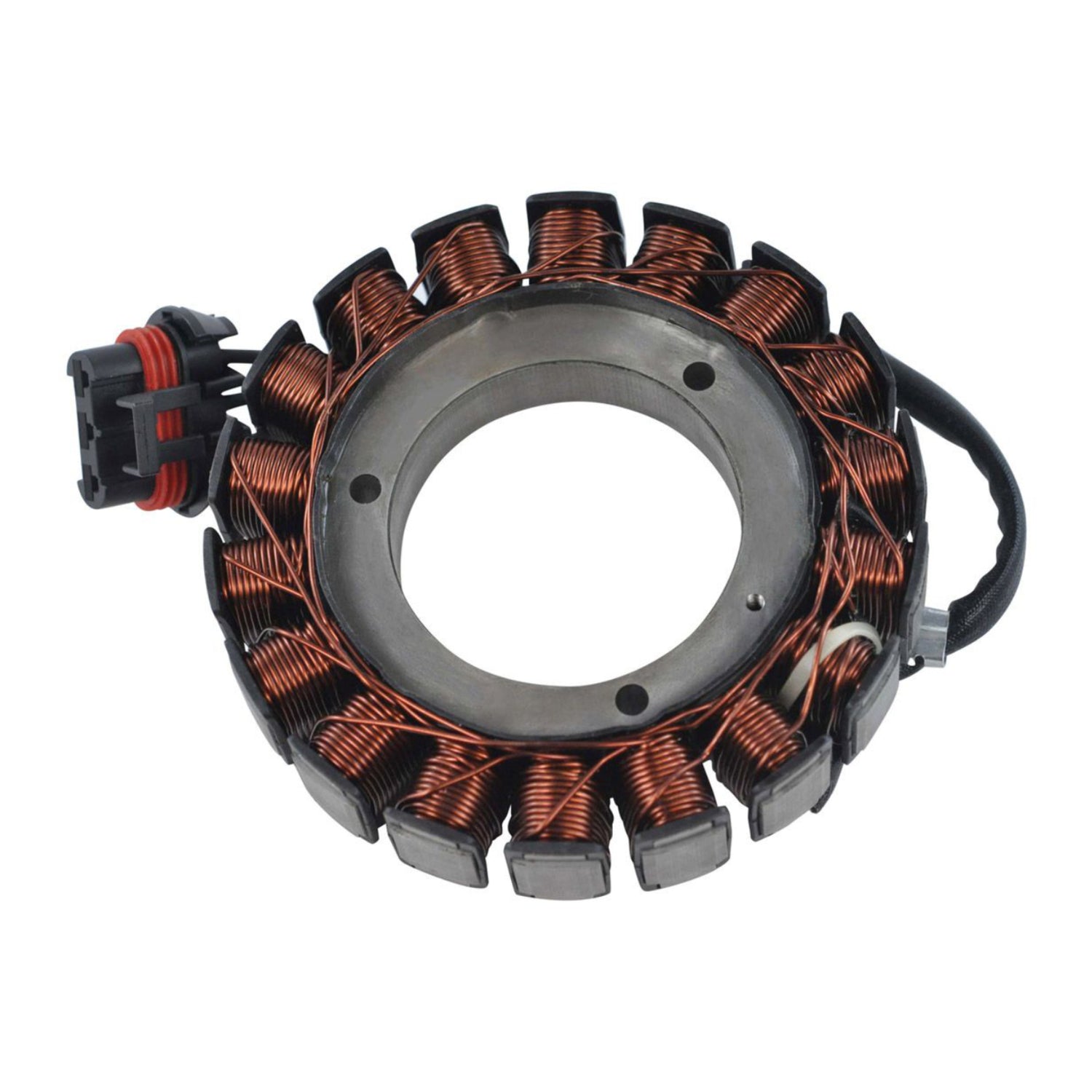

STATOR POLARIS SCRAM 850

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials

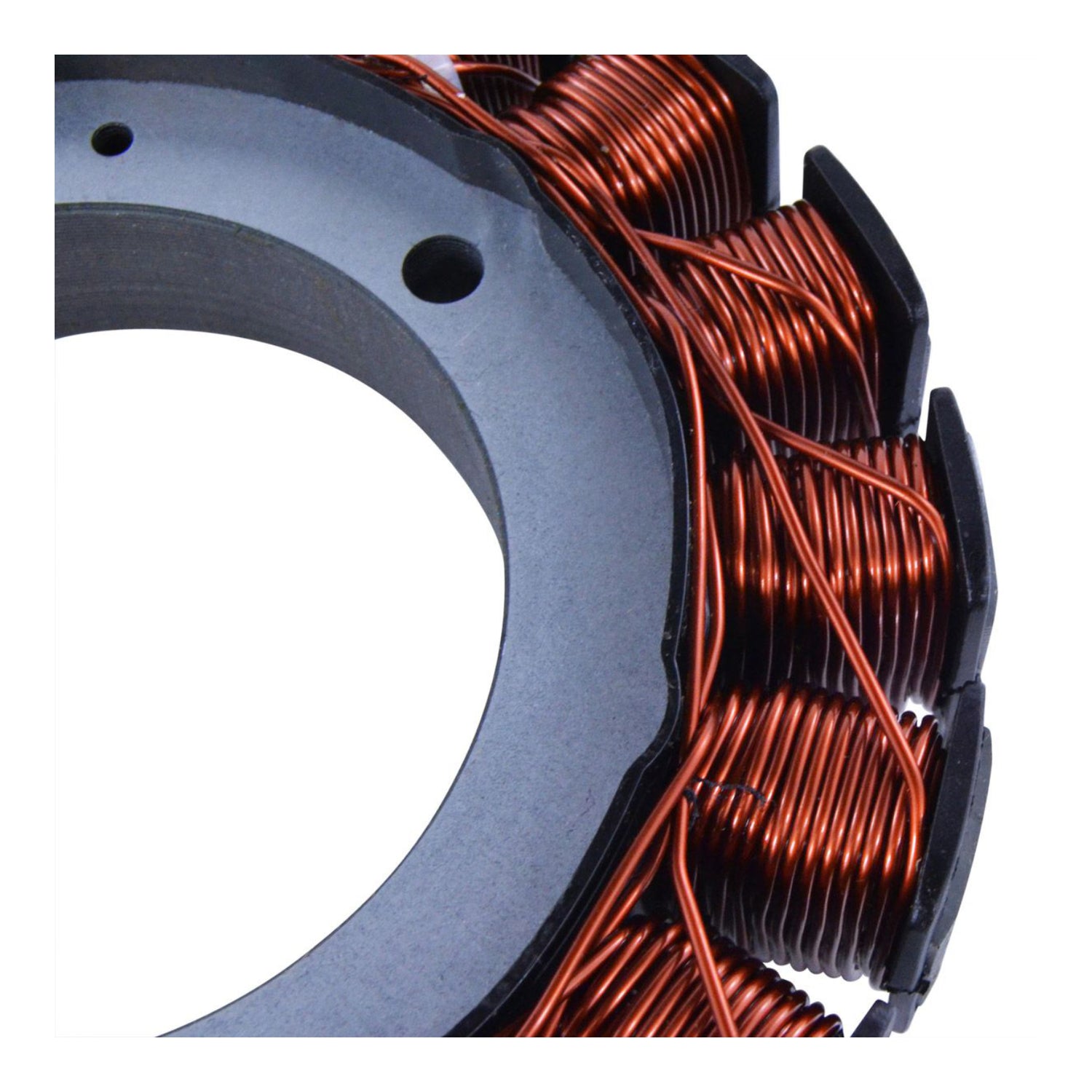

• Highest-grade copper windings, resistant to 200 degrees Celsius.

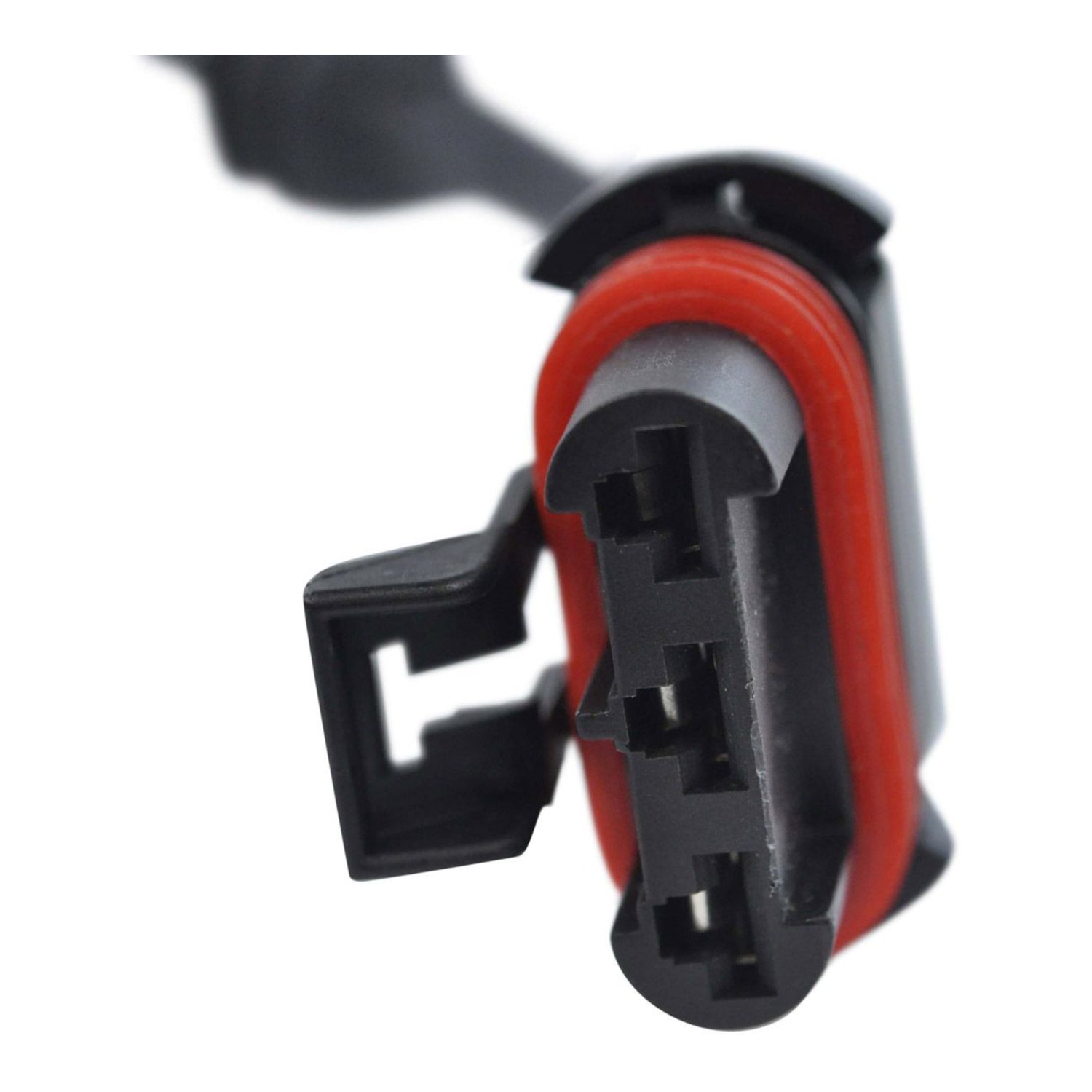

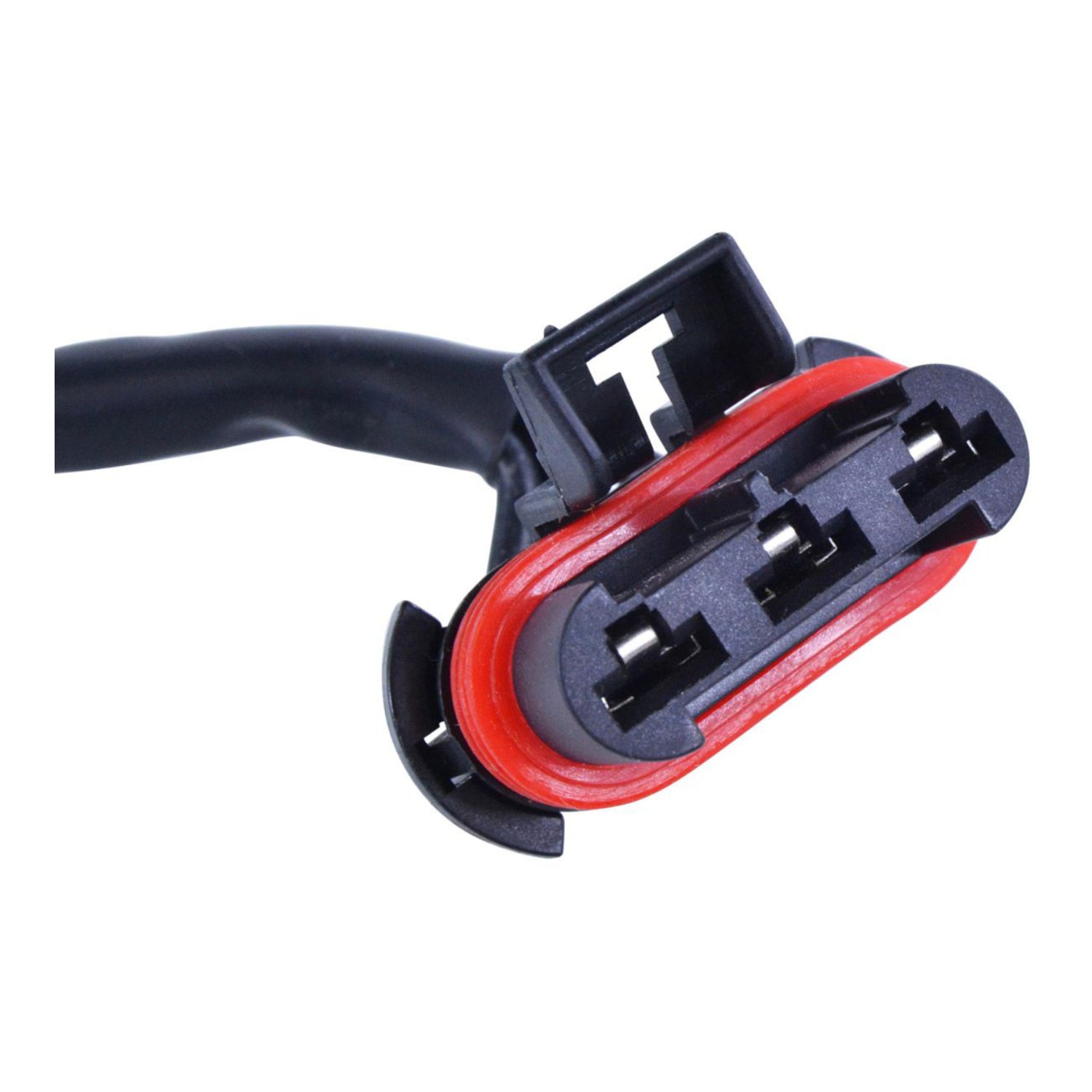

• Connector included

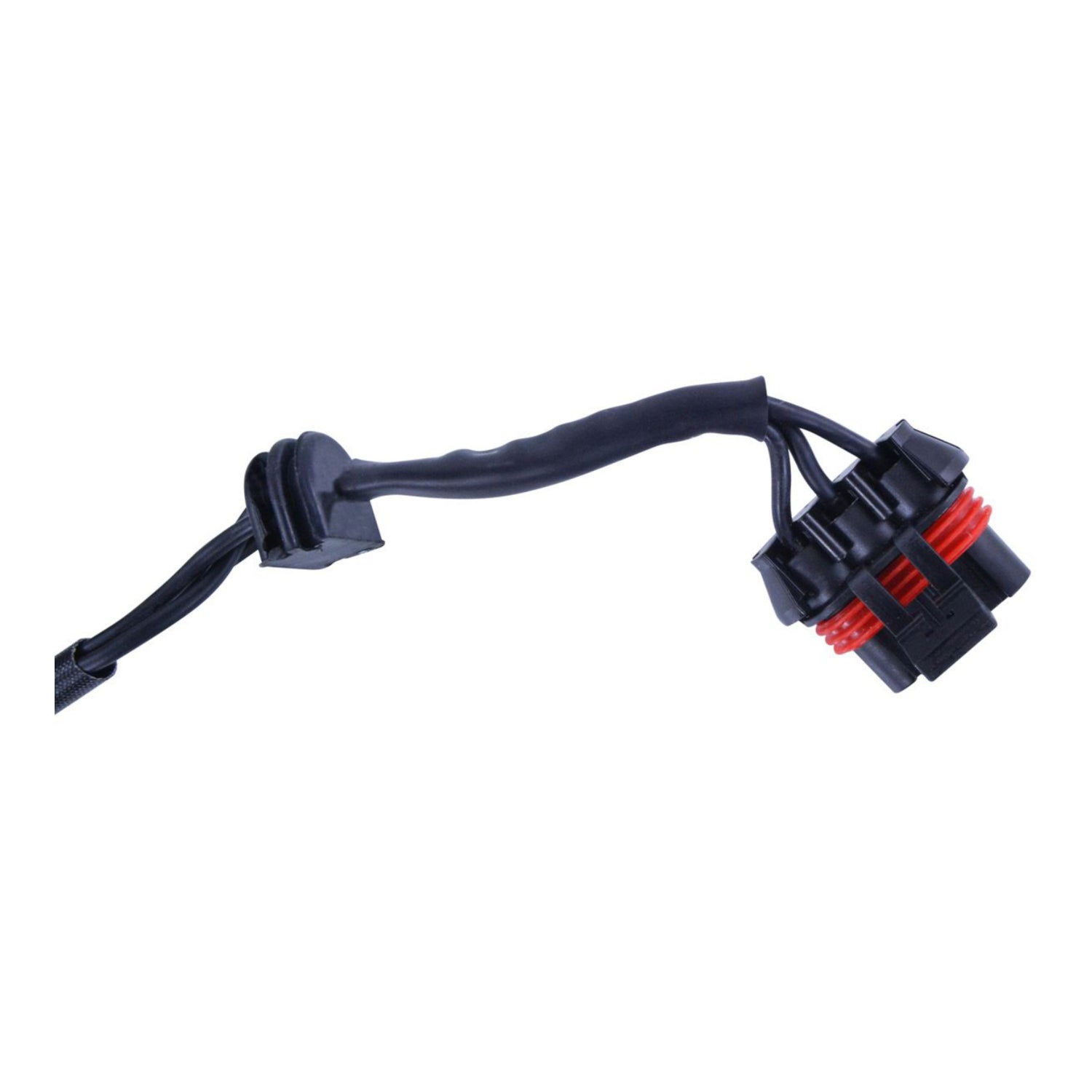

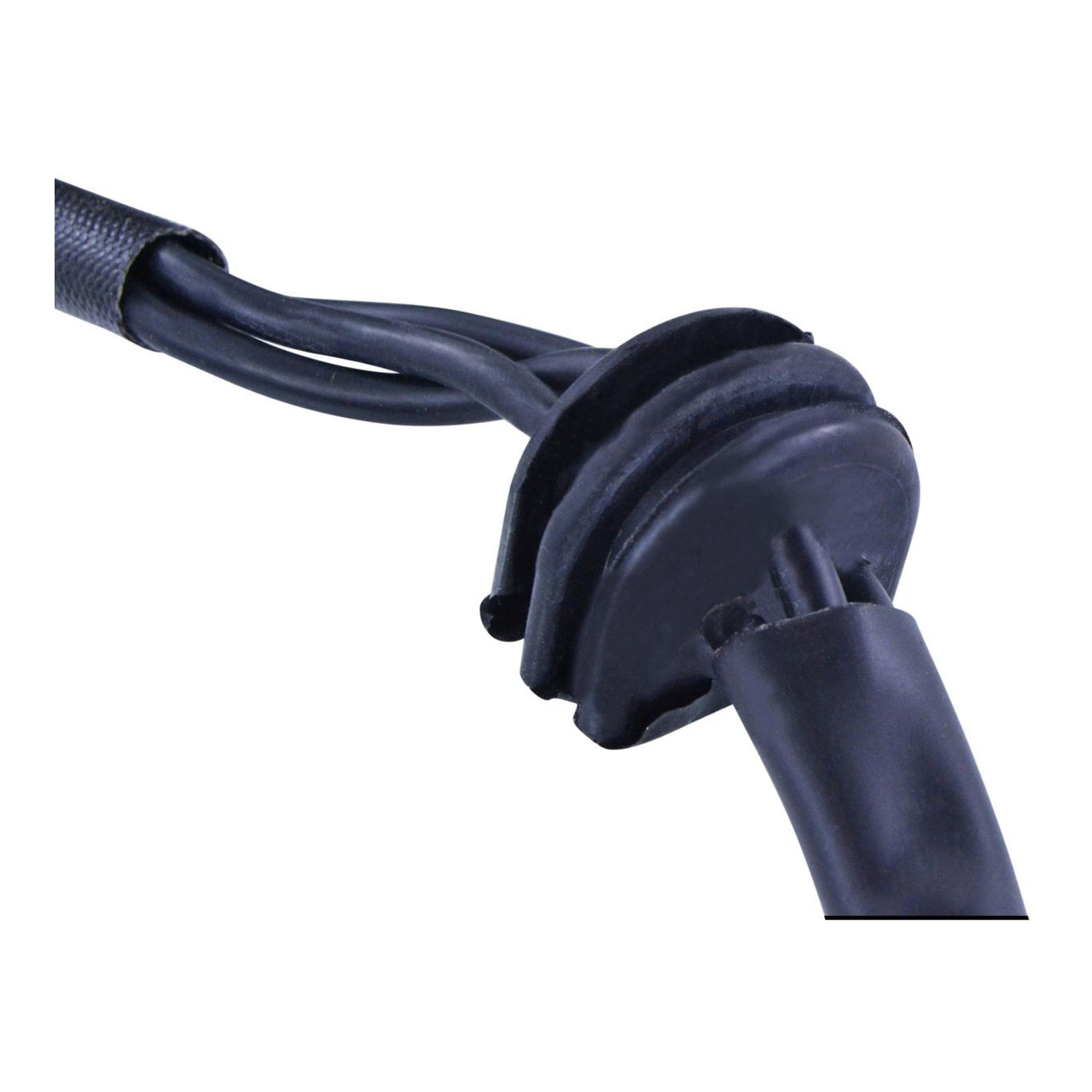

• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Interior diameter: 69mm

Exterior diameter: 144mm

Thickness: 20mm

Length of wires stator to grommet: 100mm

Length of wires grommet to plug: 100mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire-to-wire resistance:

• Alternator: White between each White = 0.2ohms +/-20%
