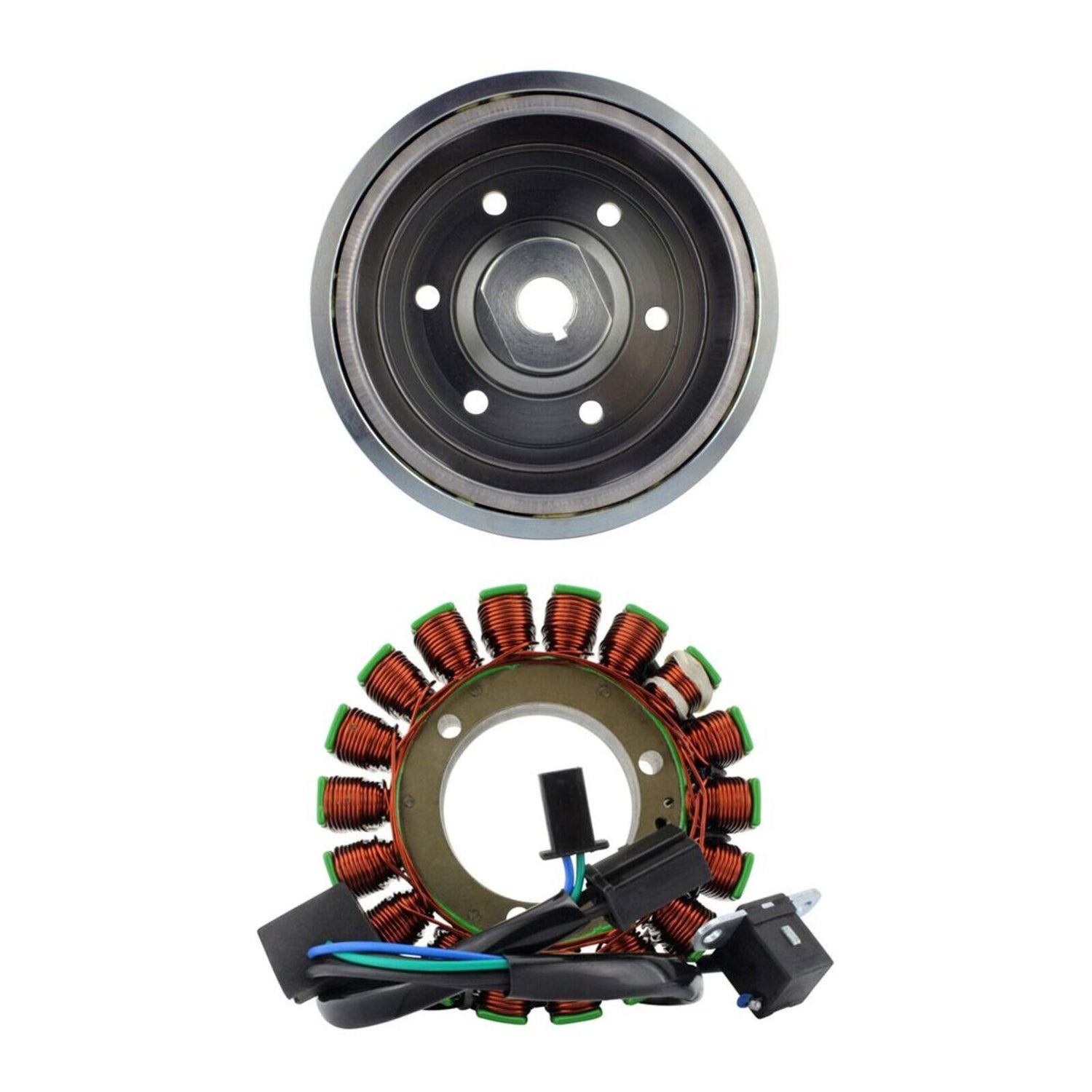

RM Stator & Flywheel Kit - Suzuki DL1000 '02-'09 & '12 (RMS900-108092)

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.

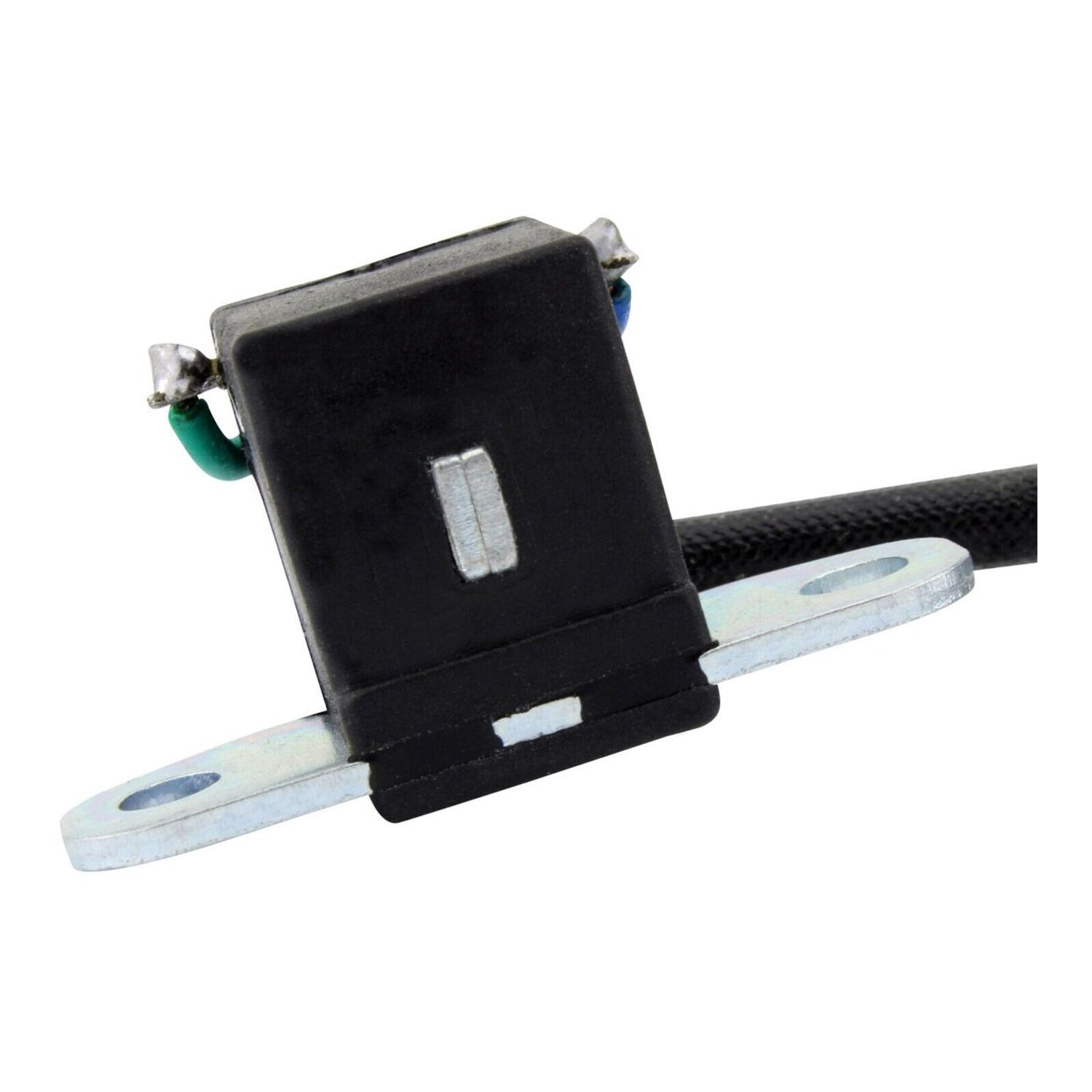

• Pick up pulsar coil included.

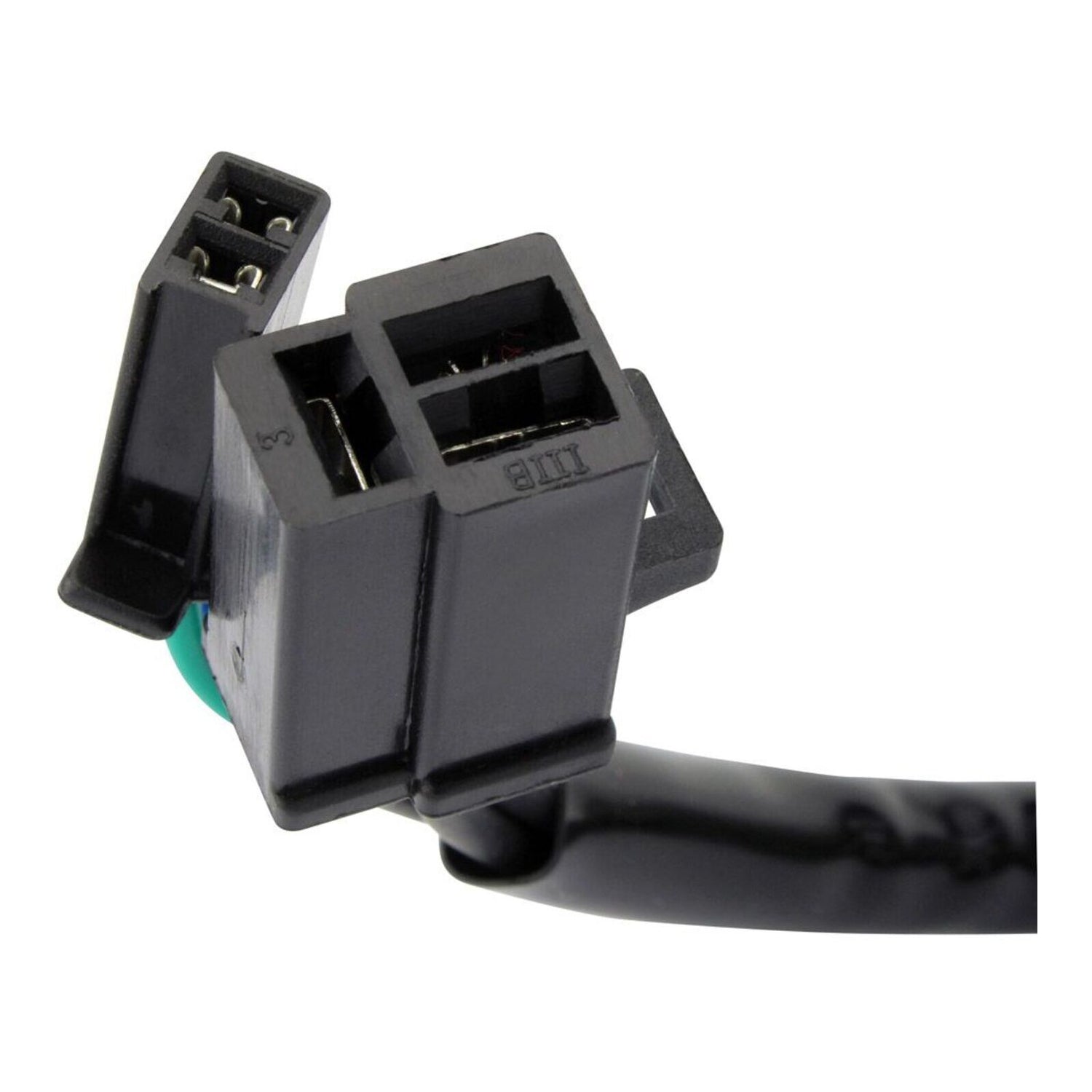

• Connector included.

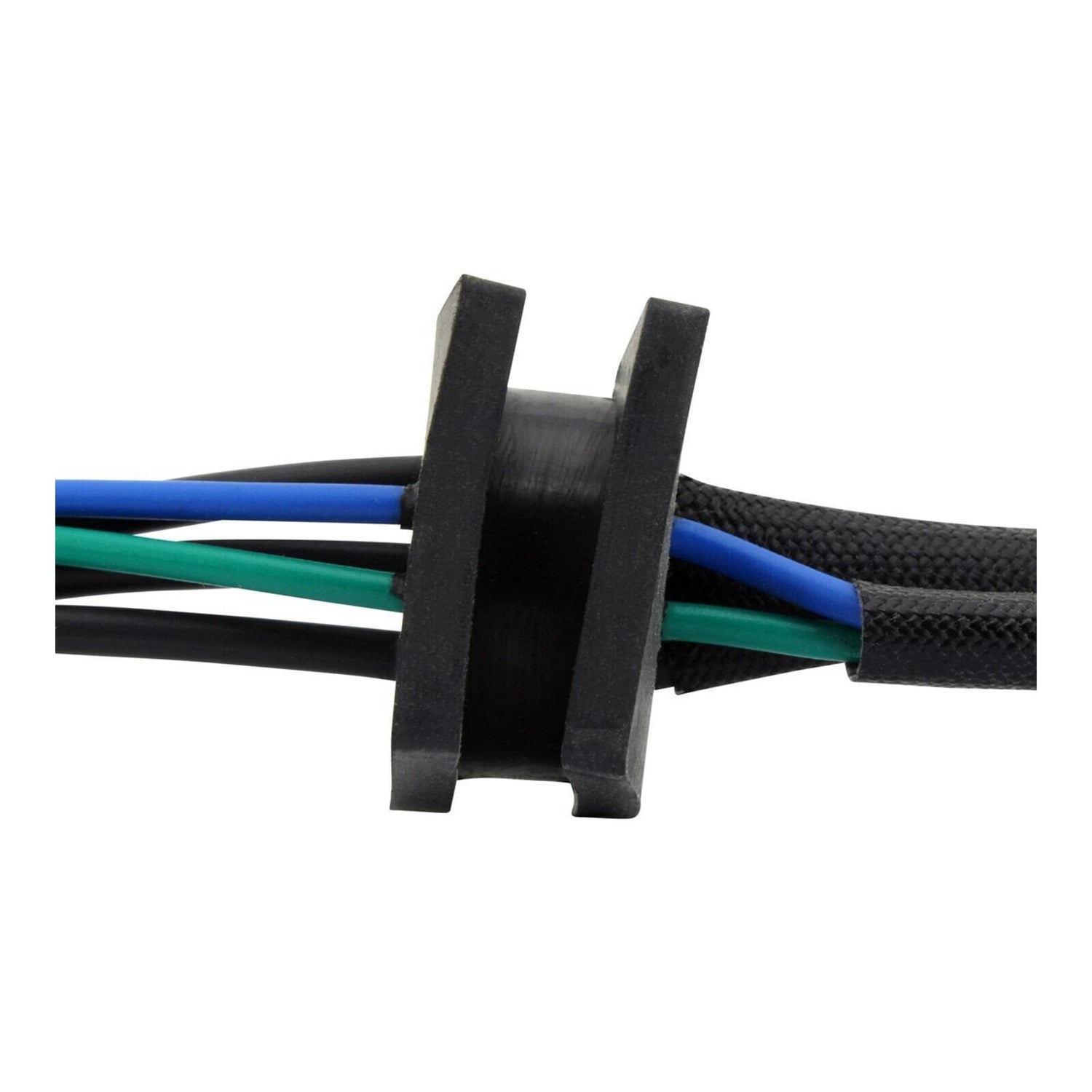

• Rubber grommet included.
• All products shipped are tested.

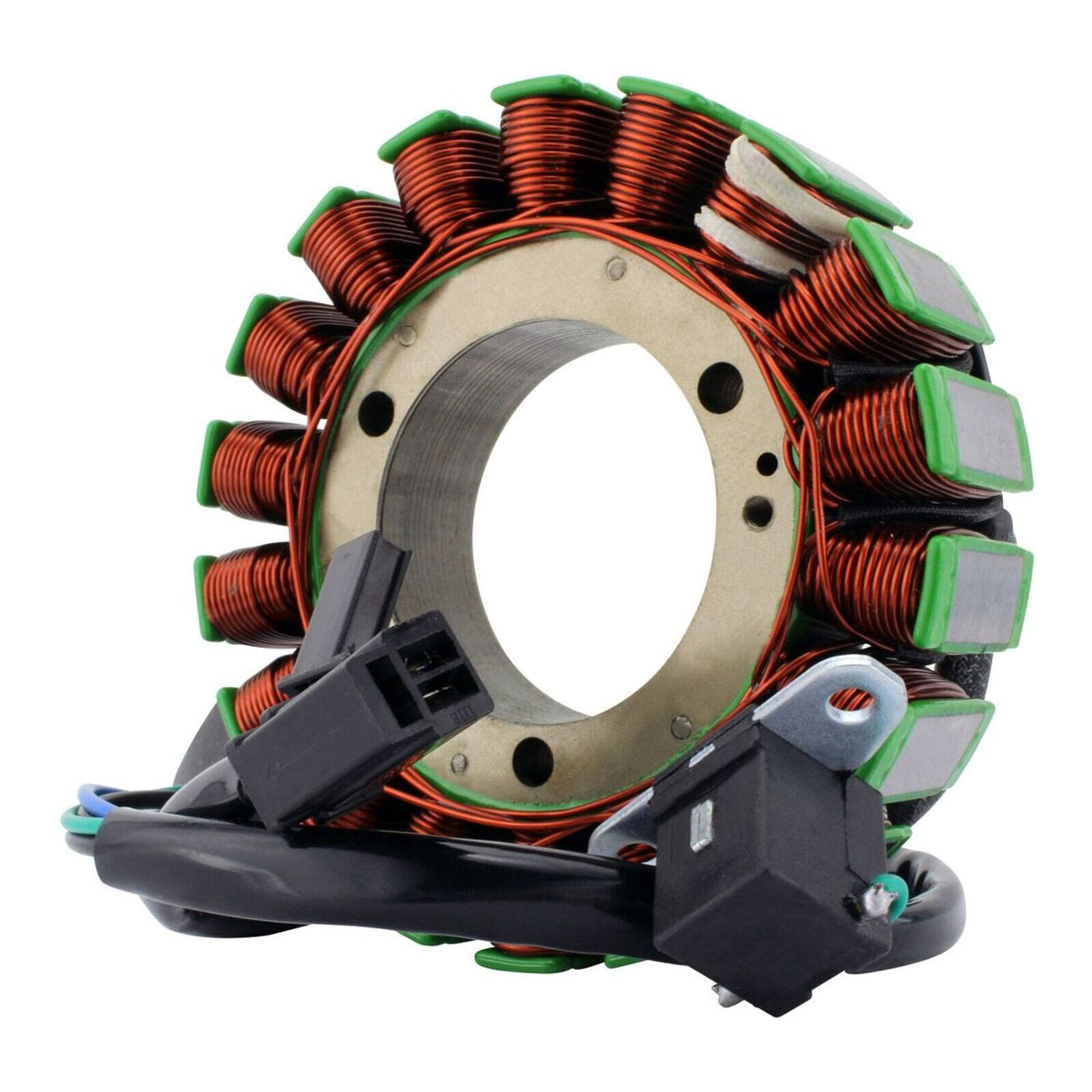

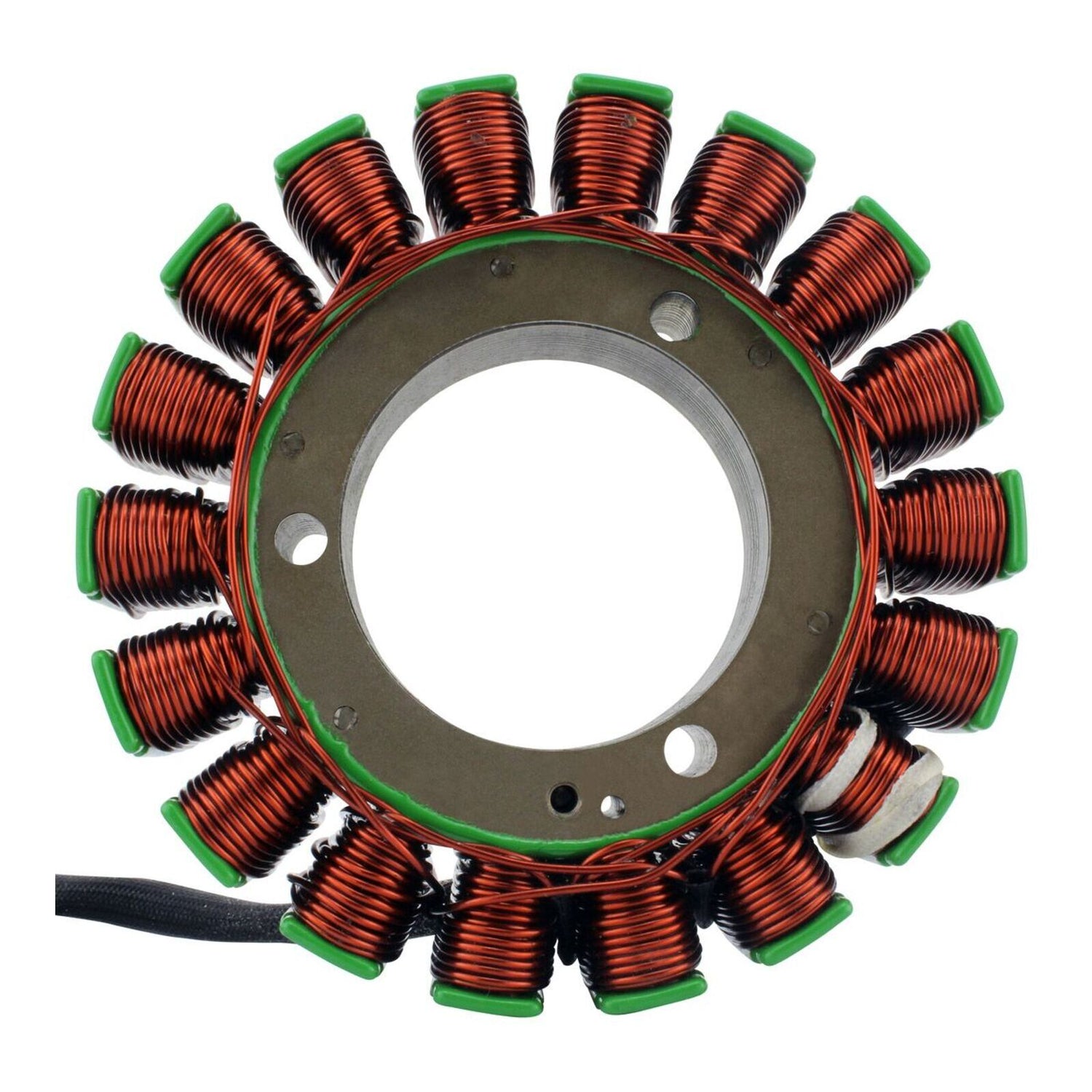

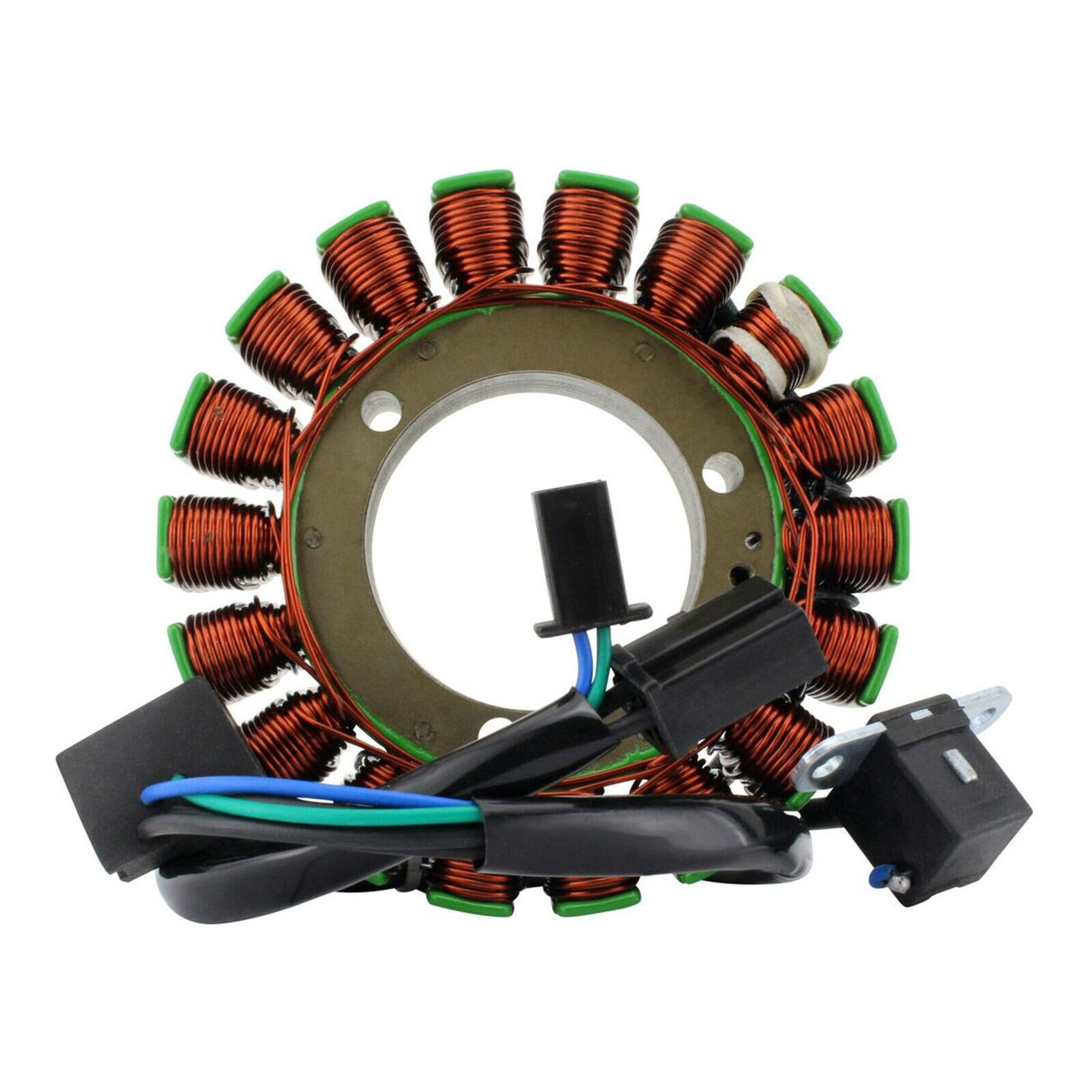

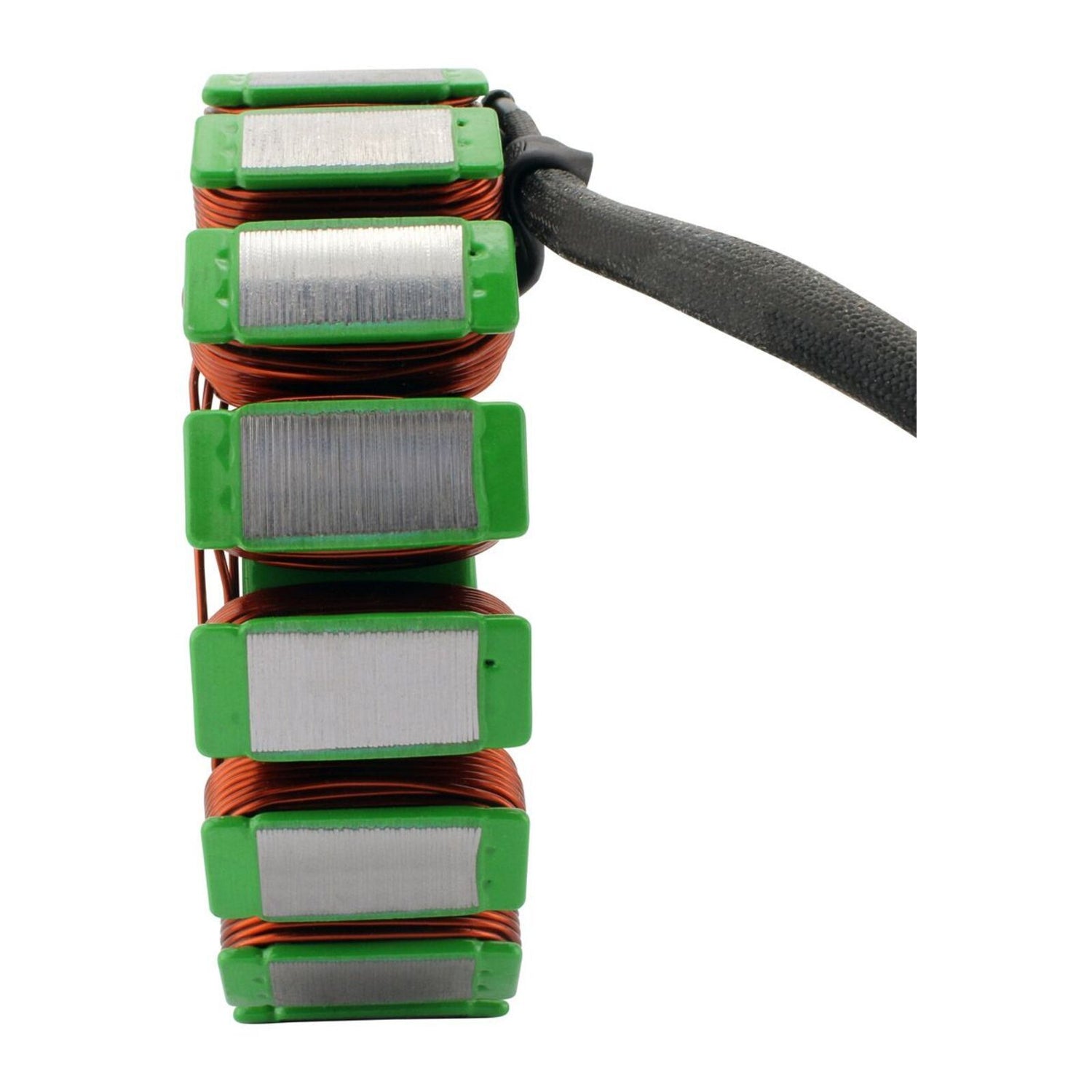

Stator:

• Dim ensions:
  • Interior diameter: 54 mm
  • Exterior diameter: 119 mm
  • Thickness: 25 mm
  • Length of wires stator to grommet: 160 mm
  • Length of wires grommet to plug: 430 mm
  • Length of pickup coil's wire to grommet: 150 mm
• Other specifications:
  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Black to Black = 0.6 ohms +-20%
    • Pickup: Blue to Green = 193 ohms +-20%

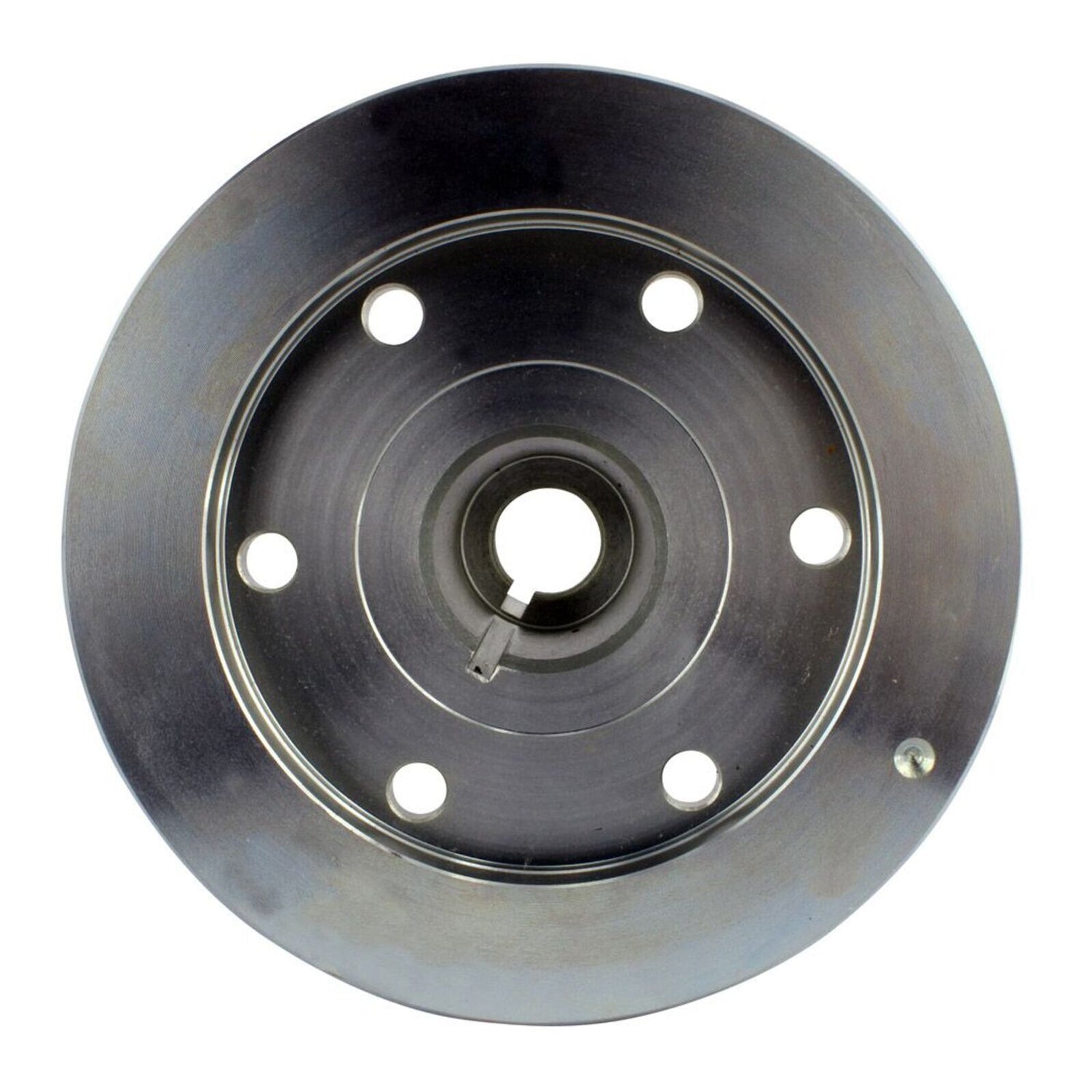

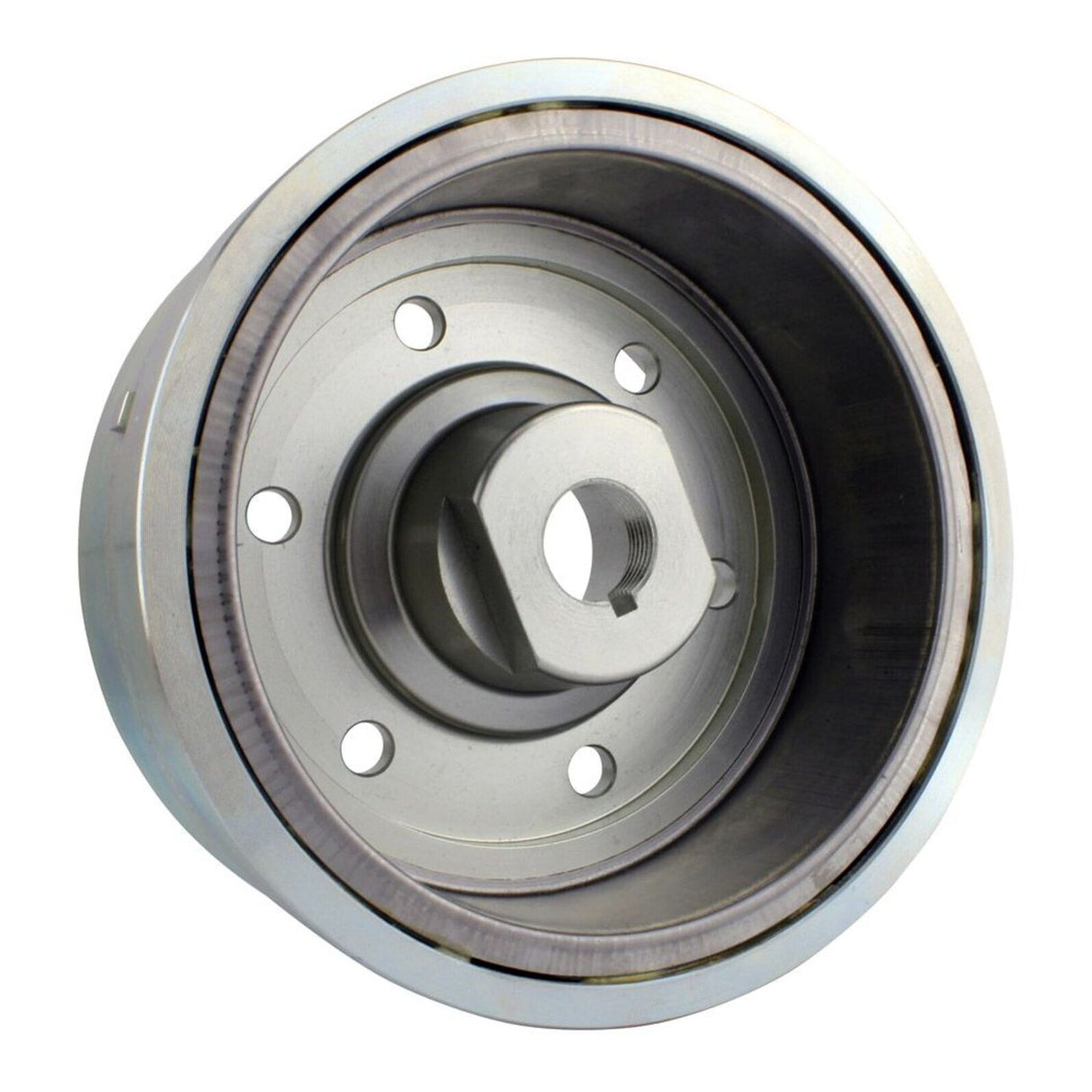

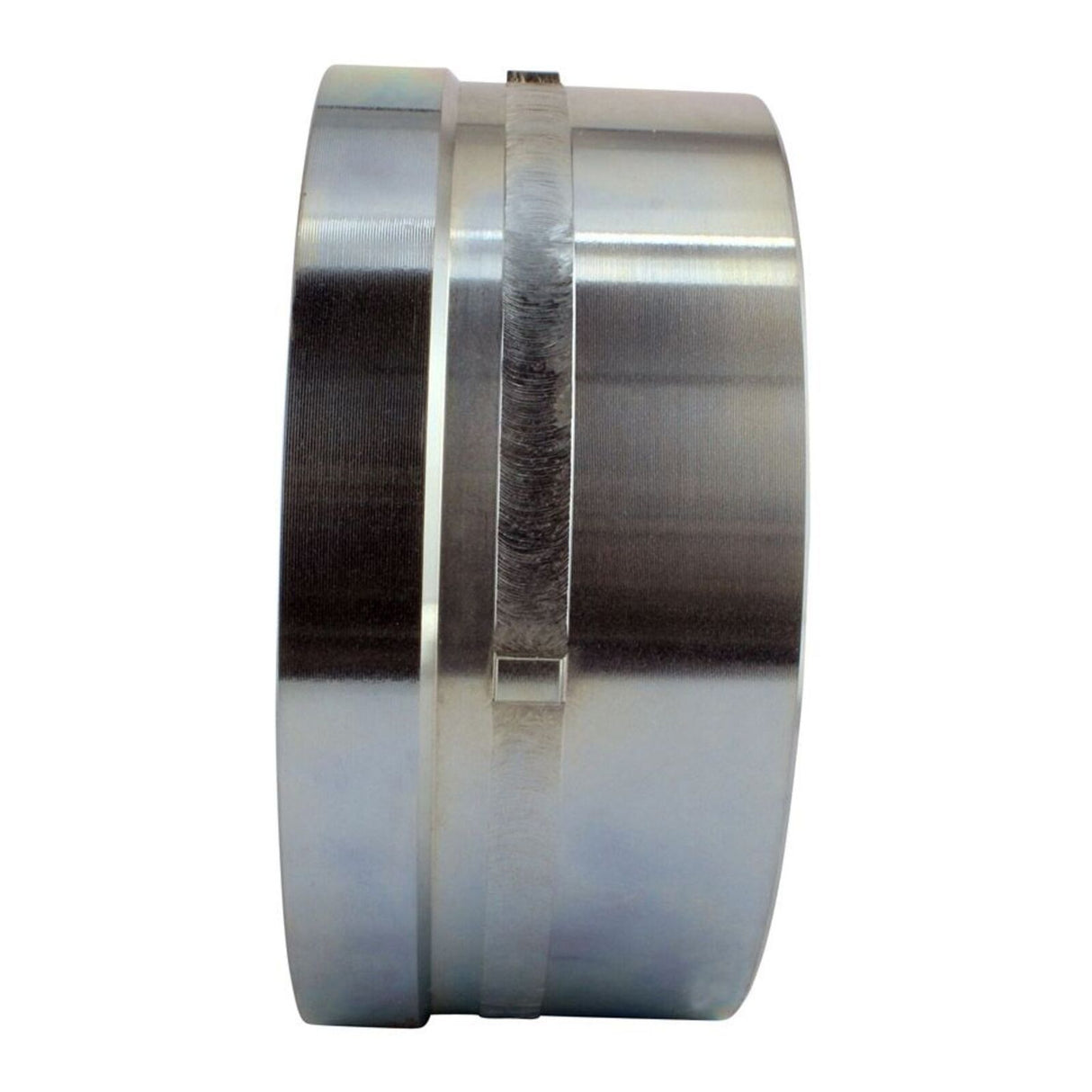

Flywheel:

• Dimensions:
  • Inner Diameter: 120 mm
  • Outer Diameter: 149 mm
  • Total Height: 65 mm
  • Inside Height: 46 mm
  • Center Housing Depth: 35 mm
  • Center Housing Widest: 35 mm
  • Center Housing Thickness: 26 mm
